| Box Case Sealer Sealing Machine |
|
Model
|
LD-ZHJ300
|
|
Power supply
|
220V, 50Hz, 0.75kW
|
|
Air pressure requirement
|
0.5-0.8MPa
|
|
Machine material
|
Aluminum + stainless steel
|
|
Applicable
|
L: 120-300mm, W: 30-150mm, H: 20-60mm
|
|
Size of carton
|
Customizable
|
| Box material |
300-450g cardboard paper, corrugated paper
|
|
Working speed
|
30-50 cartons/min
|
|
Machine size
|
4008*1354*1633 mm
|
|
Weight
|
About 1500kg
|

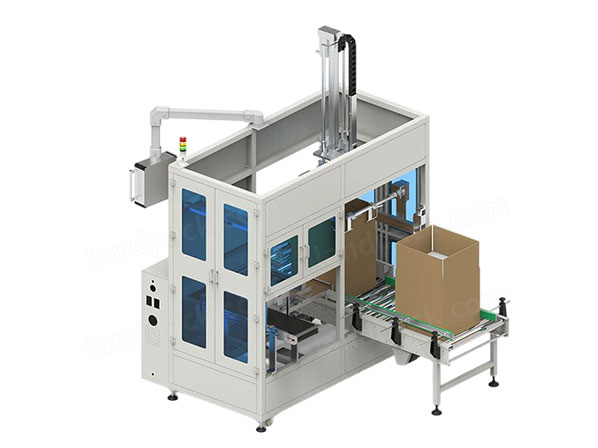

| Carton erecting machine |
|
Carton opening speed
|
10-12 cartons/min
|
|
Carton size range
|
L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time)
|
|
Power supply
|
220V, 50/60Hz, 1 Phase
|
|
Power
|
2400W
|
|
Adhesive tape width
|
48/60/75mm
|
|
Carton storage quantity
|
80-100pcs(800-1000mm)
|
|
Air consumption
|
450NL/min
|
|
Air compressing
|
6kg/cm³
|
|
Discharge table height
|
600+30 mm
|
|
Machine size
|
L2100*W2100*H1450mm
|
|
Machine weight
|
450Kg
|

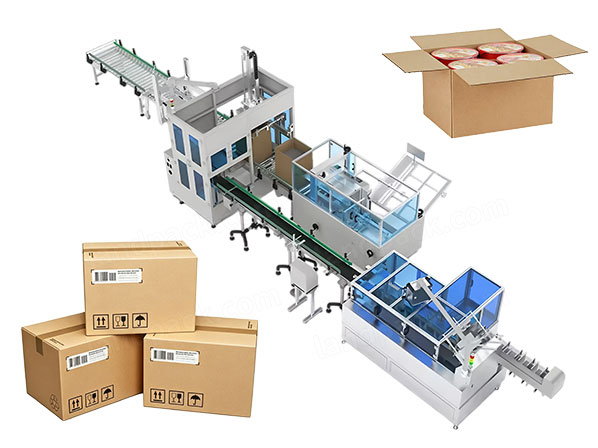

| Automatic Carton Packing Machine |
|
Model
|
LD-B8
|
LD-B18
|
LD-B30
|
LD-B42
|
LD-B48
|
|
Capacity
|
480case/h
|
1100case/h
|
1800case/h
|
2500case/h
|
2800case/h
|
|
Air consumption
|
AC380V, 50HZ
|
AC380V, 50HZ |
AC380V, 50HZ |
AC380V, 50HZ |
AC380V, 50HZ |
|
Power
|
3.7KW
|
3.7KW
|
4.5KW
|
4.5KW
|
5.2KW
|
|
Suitable products
|
Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized)
|
|
Packing way
|
Paper carton packer, plastic boxes(customized)
|
|
Packing method
|
Side push, drop, servo, sprocket, robot, spider hand(customized)
|
