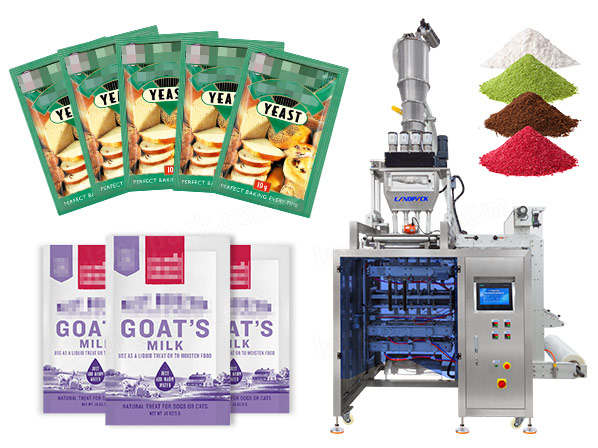

Automatic Sachet Packaging Machines for Milk Powder, Protein Powder

Application:

The LDFS-960D is mainly used for powder products such as seasoning powder, instant drink mix, coffee powder, milk tea powder, protein powder, and nutritional supplements. It ensures accurate dosing, clean sealing, and uniform sachet appearance for high-quality powder packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The LDFS-960D is mainly used for powder products such as seasoning powder, instant drink mix, coffee powder, milk tea powder, protein powder, and nutritional supplements. It ensures accurate dosing, clean sealing, and uniform sachet appearance for high-quality powder packaging.

Machine Details:

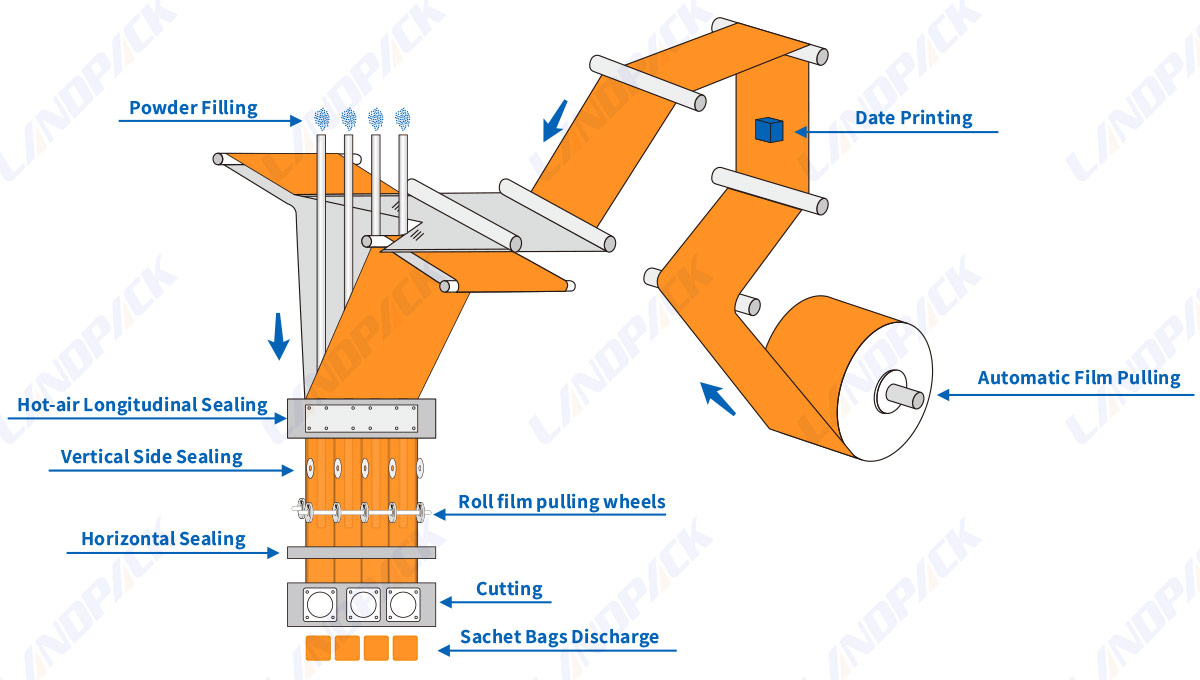

Working Process

1. Film pulling

2. Date Printing

3. Powder Filling

4. Bag Sealing

5. Cutting

6. Finished Product Output

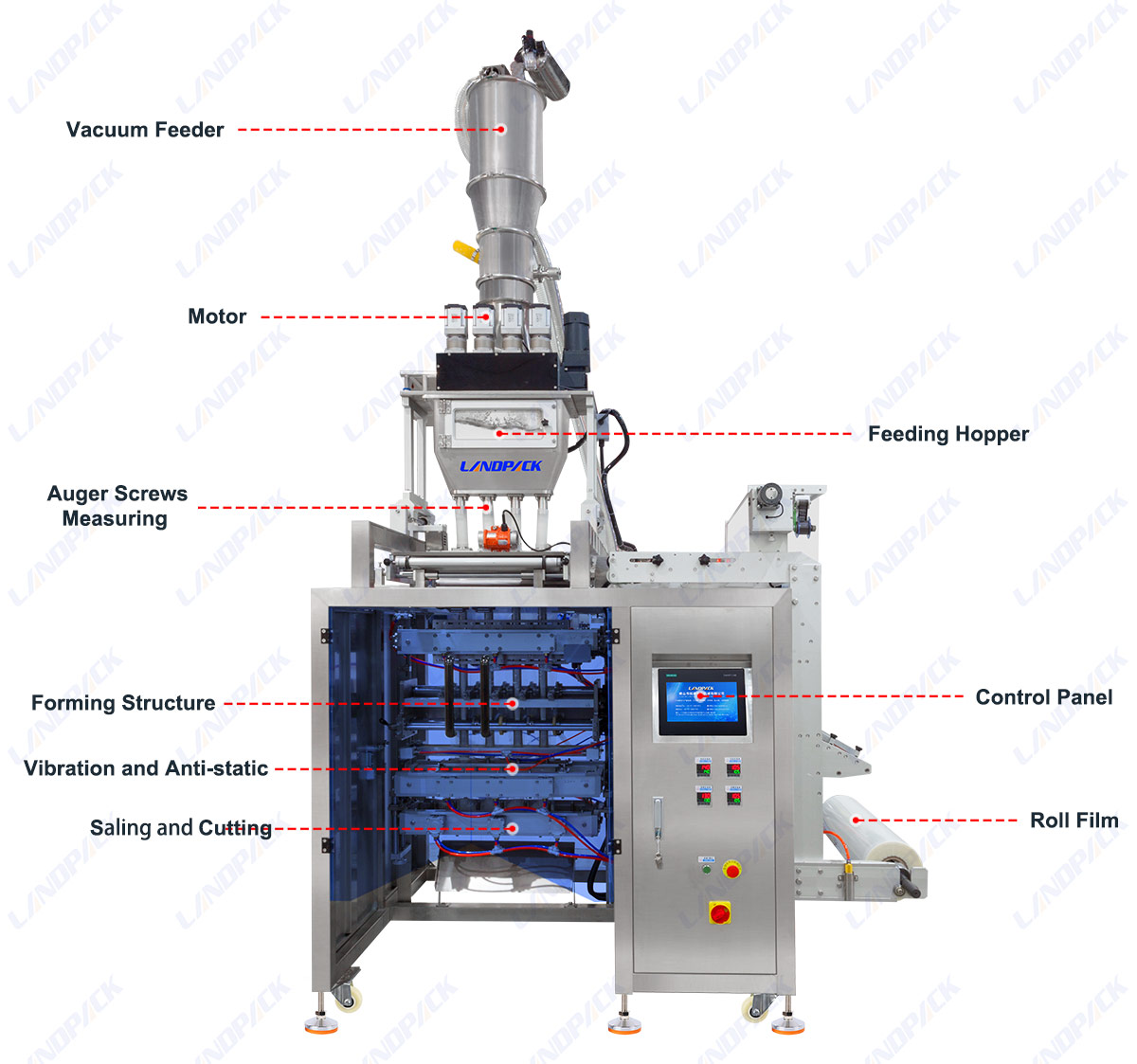

Key Component

Specification

Model	LD280BP	LD560BP	LD720BP
Lane number	4-6Lane	8-12Lane	8-12Lane
Filling method	1.Vlumetric cup; 2.weigher
Capacity	Max.35 cycle/min
Sachet size	L: 50-180mm; W: 17-30mm
Film weight&thickness	Max.280mm, 0.007-0.10mm	Max.560mm, 0.07-0.10mm	Max.720mm, 0.07-0.10mm
Sealing type	Back sealing/stick bag
Cutting type	1.straight cutting;2.zig zag cutting;3.round cutting
Air&power	0.8Mpa, 0.8m3/min; 3.5kw	0.8Mpa, 0.8m3/min; 5.5kw

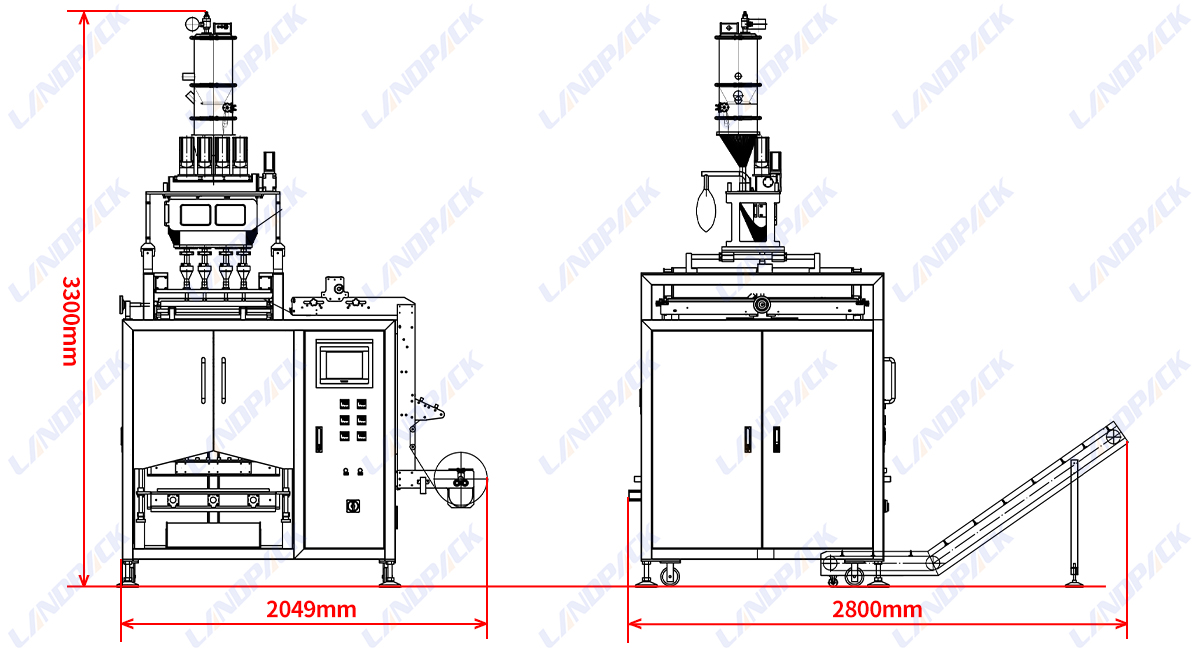

Dimension&weight	13859182005mm; 350kg	168513002005mm; 550kg

Features:

Machine Image	Benefits

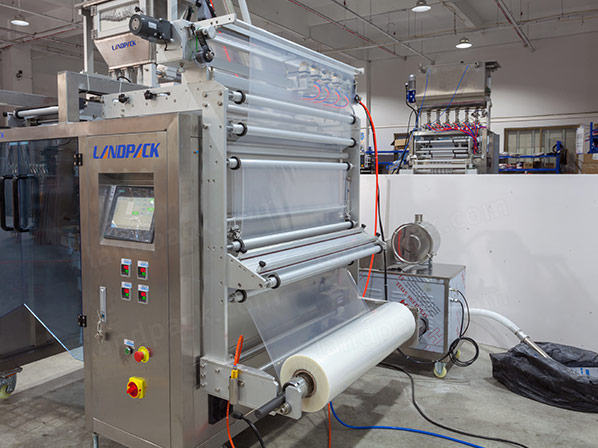

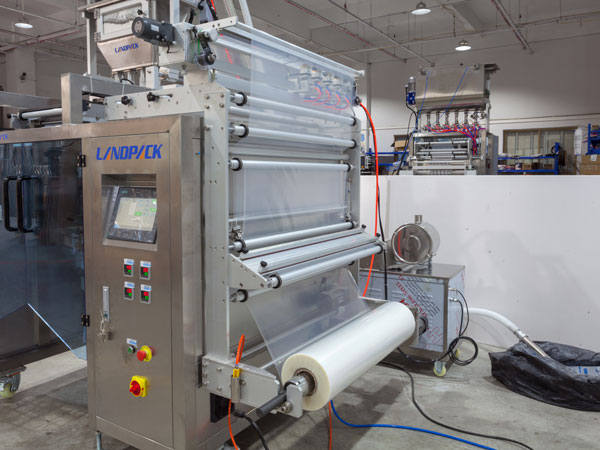

	Film Unwinding System The automatic film unwinder ensures stable film tension and smooth feeding. Equipped with a photoelectric sensor, it precisely tracks the film mark for accurate cutting and sealing alignment.

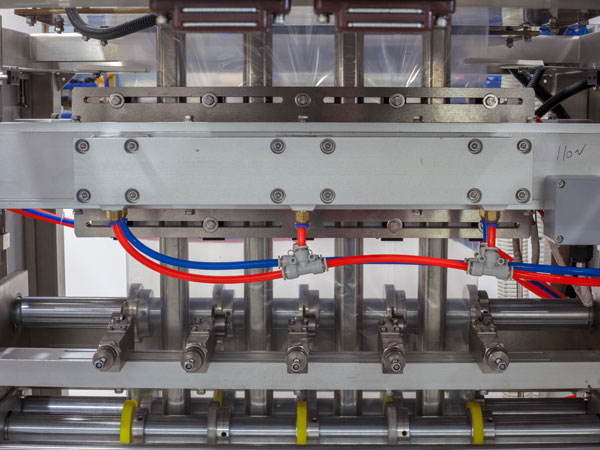

	Vertical & Horizontal Sealing Units Adopts high-precision temperature control and servo-driven sealing jaws to form neat, strong, and uniform four-side seals. The sealing temperature is adjustable accordinge to different laminated films.

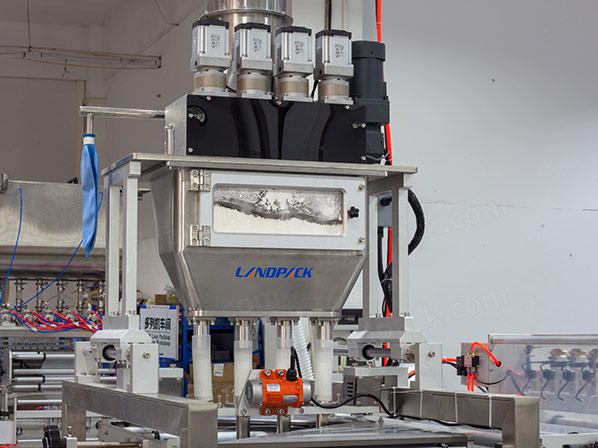

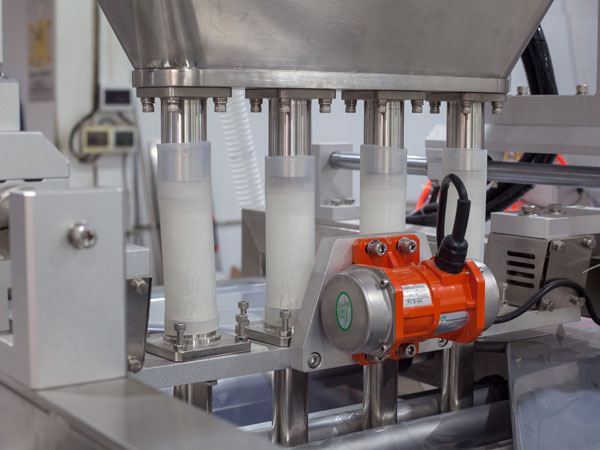

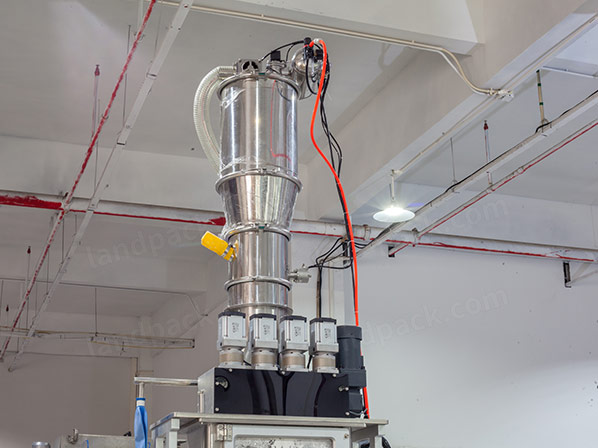

	Product Dosing System Compatible with various dosing devices — such as auger filler for powders, piston pump for liquids, or volumetric cup filler for granules — enabling flexible adaptation to different materials.

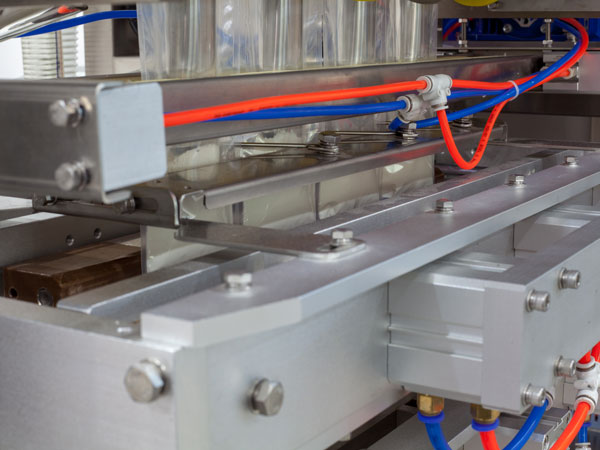

	Cutting & Output System A servo-controlled cutter separates sachets neatly with smooth edges and consistent lengths. Finished sachets are automatically counted and discharged for downstream collection or cartoning.

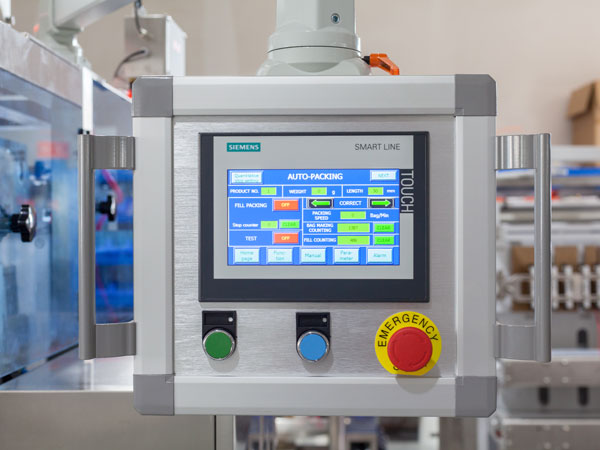

	PLC Touch Screen Control Panel The HMI system provides intuitive operation, parameter storage, and error alarms. Operators can easily adjust filling volume, speed, and sealing temperature through the touch screen
