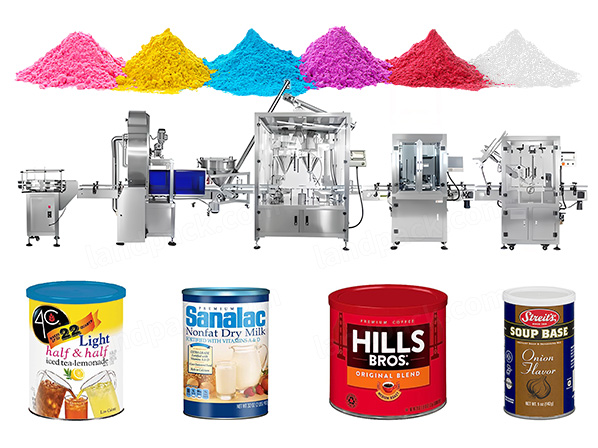

Automatic Milk Powder Canning Line With UV sterilizer And Can Seaming

Application:

the automatic milk powder canning line is widely used in: infant formula milk powder, protein powder / whey powder, nutritional supplement powders, coconut milk powder, health food powders, flavored milk or malted powders etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Complete Automation: Integrated powder filling, UV sterilization, nitrogen flushing, and can seaming in one continuous line.

2.High Precision Auger Filling Servo Driven auger fillers with less than ±1% inaccuracy.

3.Ultraviolet Sterilization in Two Stages: Secures a clean packing environment and provides longer life to the product.

4.Solid Sealing Seaming: The machine is equipped with high-grade seaming heads to guarantee minimum spillage during seaming and also toensure no laceration on the sealing edge, that canoccurs with substandard seaming.

5. Intelligent Control System: PLC control, touch screen with intuitive and convenient data monitoring.

6. Hygiene Construction: Contact components are made from food grade SUS304/316, built to CE dairy-grade standards.

7. Adjustable Line: Suitable for all kinds of cans, adjustable to adapt to different powder products (milk powder, whey, protein, etc.).

Application:

The automatic milk powder canning line is widely used in: infant formula milk powder, protein powder / whey powder, nutritional supplement powders, coconut milk powder, health food powders, flavored milk or malted powders etc.

Videos Introduction:

Specification:

Model	LF-PJ-02	LFP-02
Filling Weight	10-5000g(customizable)	10-5000g(customizable)
Bottle diameter	Φ30-Φ140mm(customizable)	Φ30-Φ140mm(customizable)
Bottle height	50mm-200mm(customizable)	50mm-200mm(customizable)
Yield	10-20 Bottle/min	20-40 Bottle/min
Measurement accuracy	≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material)	≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material)
Power	2.5KW	5KW
Silo capacity	50L	50L
Power Supply	220V、50Hz	220V、50Hz
Working Pressure	0.6-0.8MPa	0.6-0.8MPa
Weight	350kg	550kg

Optional:

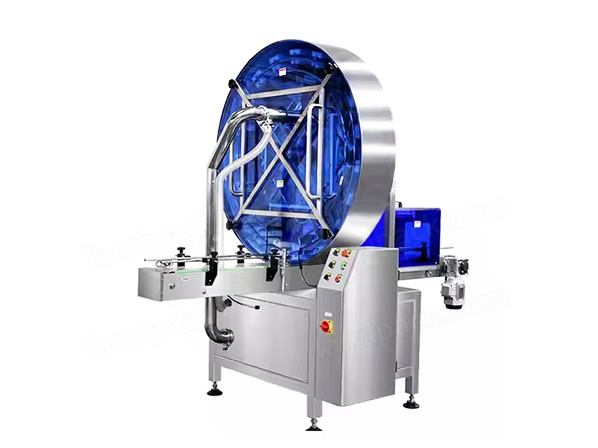

1.Automatic UV cleaning sterilization machine

2.Vibration plate spoons feeder

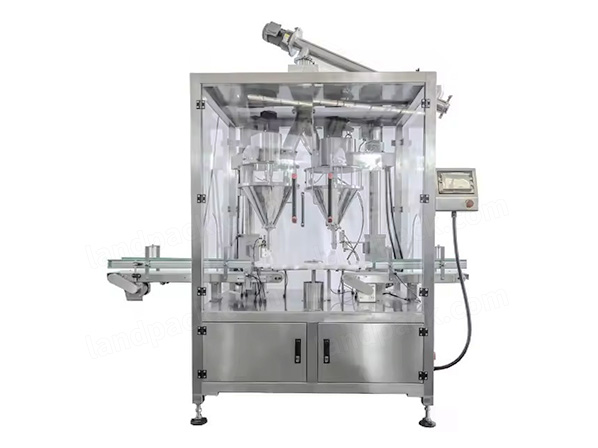

3.Automatic powder weighing filling machine

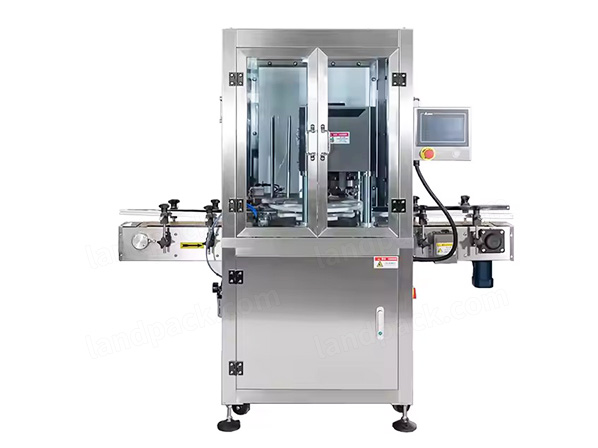

4.Automatic vacuum can seaming machine with nitrogen air filling device

5.Laser printer

6.Weight detection and elimination machine

7.Automatic empty cans cleaning machine

8.Automatic plastic lids pressing machine
