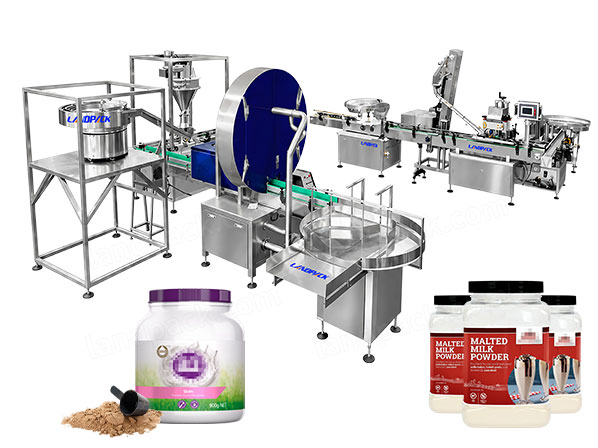

Fully Automatic Milk Powder Bottle Filling Capping Labeling Machine with Spoon Feeder

Application:

Automatic Milk Powder Bottle Filling Capping Labeling machine is designed for milk powder, skim milk powder, infant formula, goat milk powder, whey protein powder, plant protein powder, sports nutrition powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Automatic Milk Powder Bottle Filling Capping Labeling machine is suitable for:Plastic Bottles, PET Jars, HDPE Containers, Composite Cans, Food-Grade Containers.Supports different bottle sizes, filling weights, and customized packaging formats.

Machine Details:

Working Process

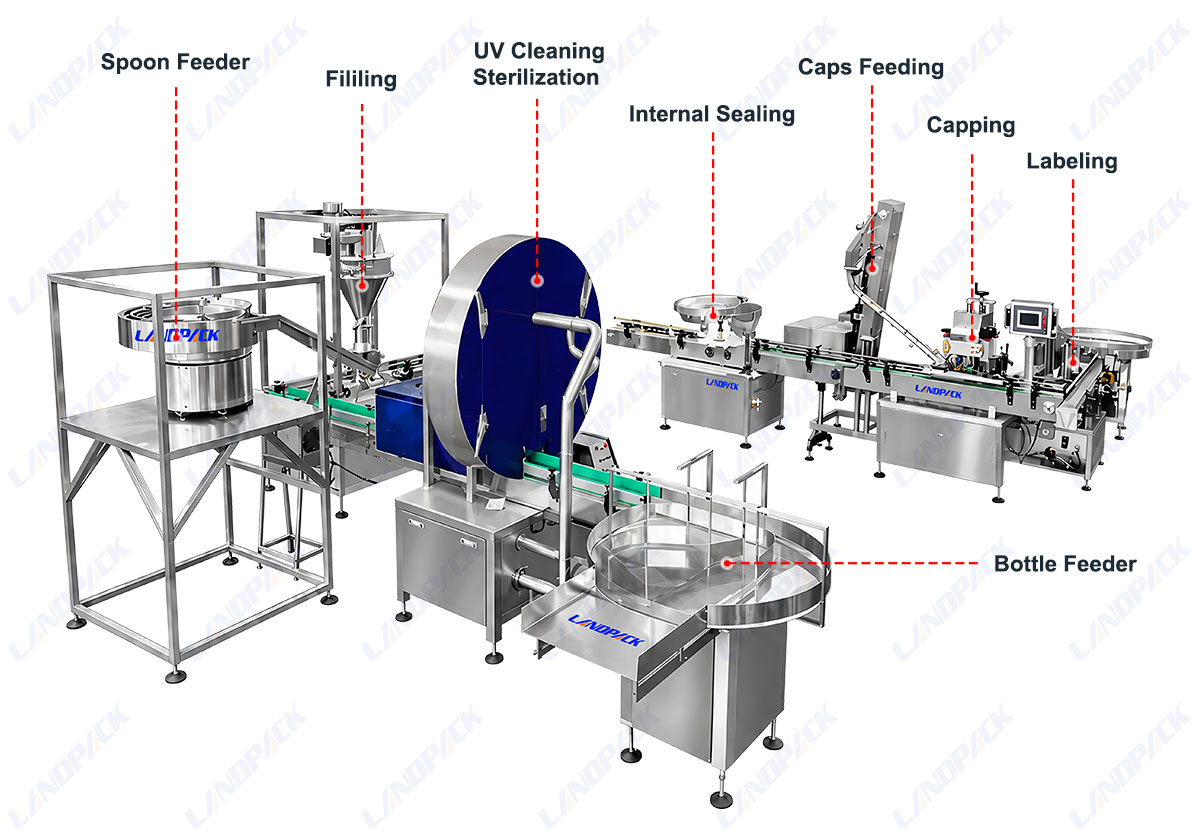

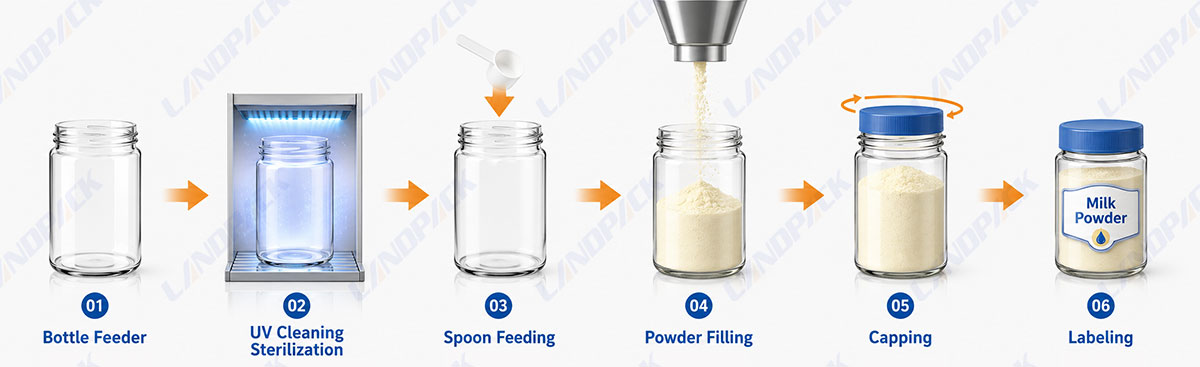

1. Bottle Feeding → UV Sterilizing → Powder Filling → Spoon Feeding → Cap Feeding → Capping → Labeling → Date Coding → Finished Product Output

Key Component

Specification

Bottle unscrambler
Voltage	220V 50/60Hz customized
Power	0.5KW
Material	Stainless Steel
Dimensions	10009001000mm
Bottle turning and blowing cleaning machine
Voltage	380V 50/60Hz
Power	1.1KW
Cleaning speed	1-90 bottles/min
Applicable tank diameter	Diameter:75-150mm High:75-150mm（Change mold）
Automatic spooning machine
Voltage	380V 50/60Hz
Power	0.37KW
Spooning speed	40-60pcs/min
Dimensions	15007001500mm
Filling machine
Voltage	220/380V 50/60Hz
Power	2KW
Filling weight	10-5000g
Filling accuracy	1%
Dimensions	130011502300mm
Weighing machine
Voltage	220V 50/60Hz
Power	0.3KW
Inspection range	50-5000g
Belt width	300mm
Inner capping machine
Voltage	220V 50/60Hz
Power	1KW
Bottle diameter	Φ35-Φ130mm
Bottle height	50-320mm
Dimensions	15008001600mm
Capping machine
Voltage	220V 50/60Hz
Power	0.3KW
Applicable bottle diameter	50-280mm
Working air pressure	0.4-0.6MPa
Dimensions	20004701240mm
Labeling machine
Voltage	220V 50/60Hz
Power	0.2KW
Labeling speed	100-250pcs/min
Label height	20-140mm
Applicable paper roll inner and outer diameters	76mm-300mm
Dimensions	17006501300mm
Bottle collecting machine
Voltage	220V 50/60Hz
Power	0.5KW
Machine material	Stainless Steel
Dimensions	10009001000mm

Features:

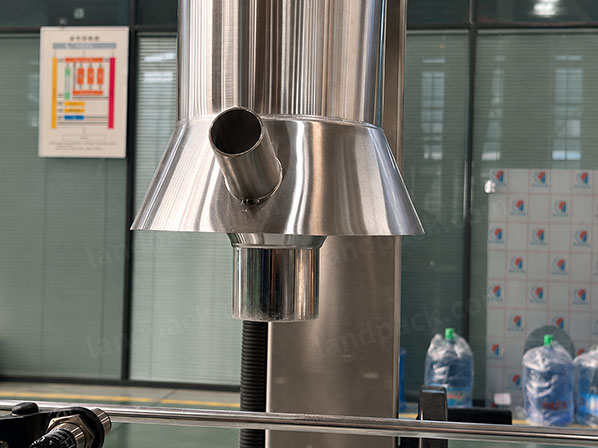

1. Equipped with servo motor-driven auger filling system, the machine provides stable powder dosing with high filling accuracy.

2. The electric eye detects material level automatically and controls the feeder to refill when powder is insufficient.

3. Filling nozzles and filling heads can be customized according to different bottle sizes and production requirements.

4. Siemens PLC control system and touchscreen panel make filling weight, conveying speed, and operation settings easy to adjust.

5. The enclosed auger filling structure helps reduce powder dust during operation and improves production cleanliness.

6. The customized material feeder with discharge outlet makes material replacement and leftover powder cleaning faster and easier.

7. The machine features no bottle no fill function and automatic stop protection when bottle blockage or low air pressure occurs.

8. SUS304 stainless steel construction with optional SUS316 contact parts ensures durability, hygiene, and reliable long-term operation.

Optional:

1.Unscramble can machine

2.Filling + weighing machine

3.Can seaming machine

4.Collecting platform
