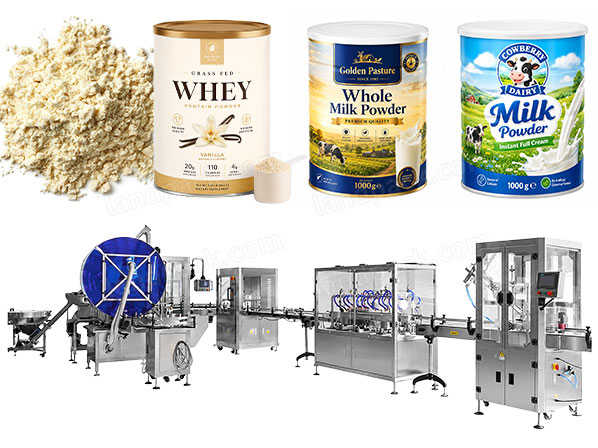

Fully Automatic Milk Powder Can Packaging Production Line Milk Powder Can Filling Machine

Application:

Fully Automatic Milk Powder Can Packaging Machine is designed for milk powder, protein powder, nutritional supplements, milk powder, whey protein powder, plant protein powder, infant formula powder, nutritional supplement powder, meal replacement powder, coffee powder, cocoa powder, creamer powder, health supplement powder

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Fully Automatic Milk Powder Can Packaging Machine is designed for suitable for tin cans, aluminum cans, composite paper cans, metal containers, and food-grade plastic Jars. Supports different can diameters, heights, and customized powder filling requirements

Machine Details:

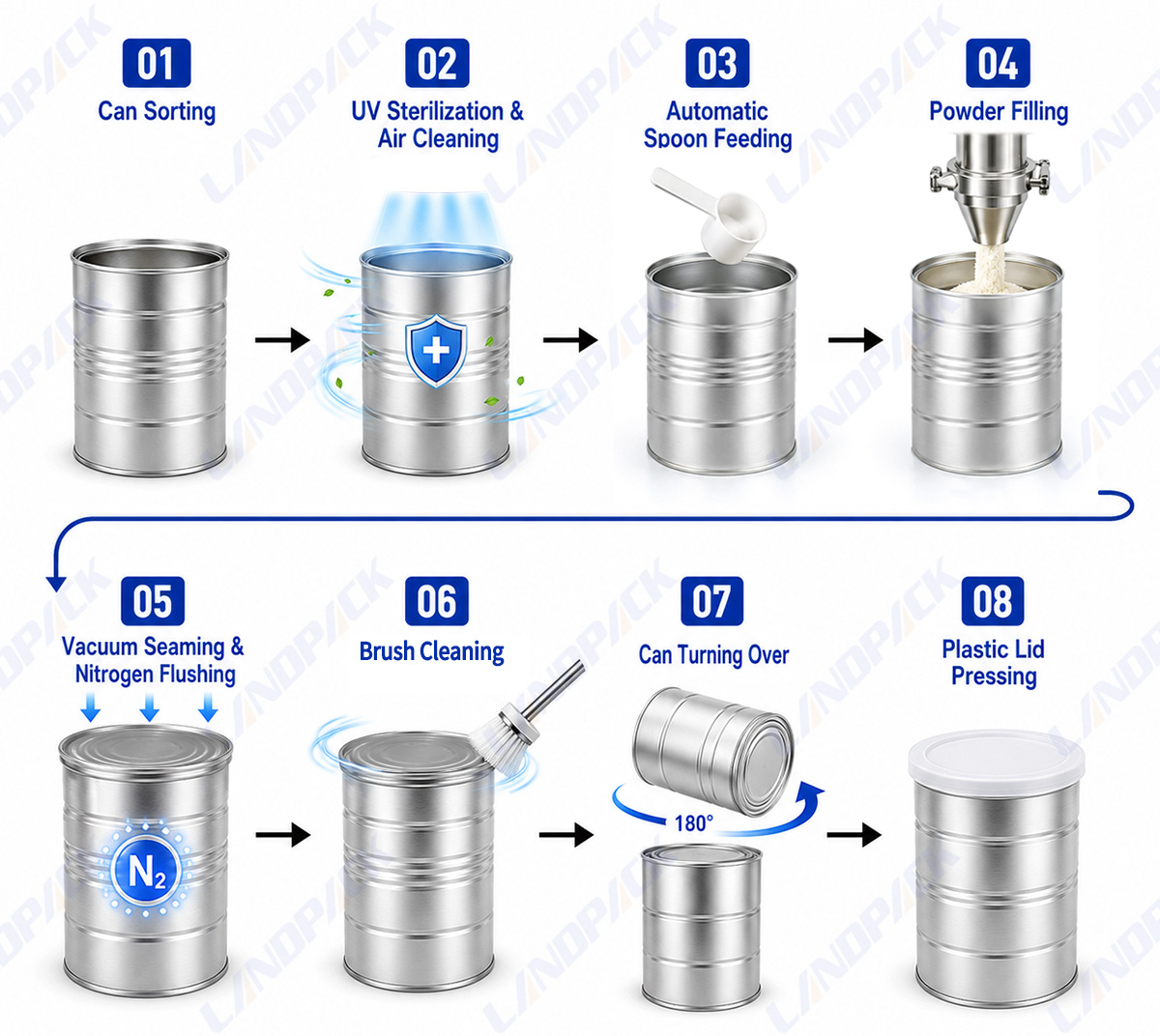

Working Process

1. Bottle Feeding → Automatic UV Sterilization → Powder Filling → Vacuum & Nitrogen Flushing Seaming → Can Flipping → Empty Can Surface Cleaning → Plastic Lid Pressing → Finished Product Output

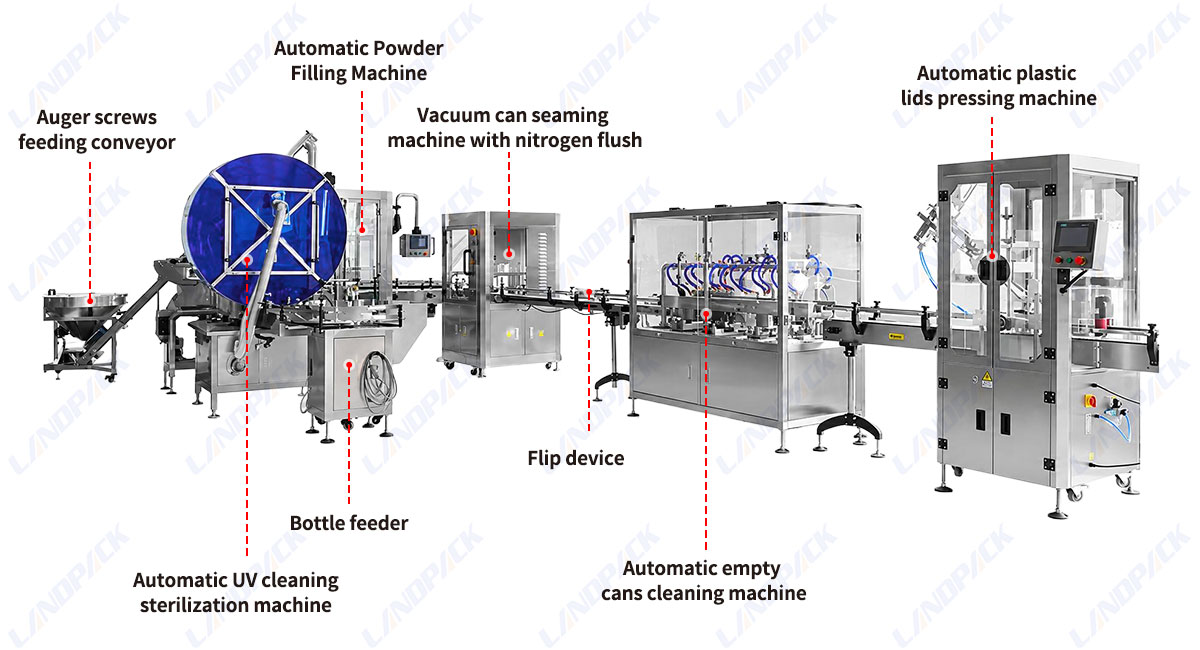

Key Component

Specification

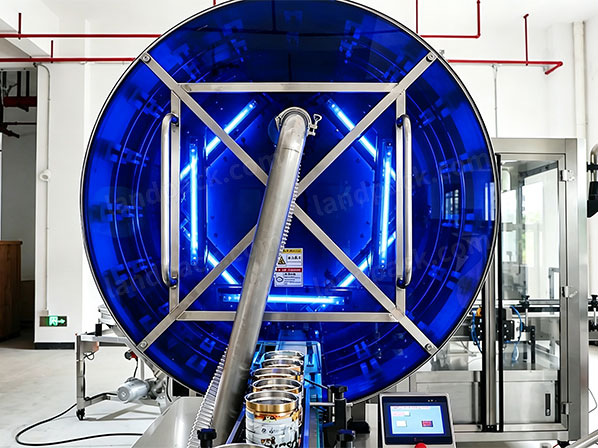

UV Cleaning Blowing Machine
Item	Specifications
Voltage	220V/50Hz (customized)
Power	2500W
Air pressure	0.3-0.5mpa
Speed	10-50 BPM
Bottle diameter	76-140mm
Bottle high	80-200mm
UV light	7
Outline dimension	240013002200MM
Net weight	350KG
Spoons vibration feeder
Voltage	220V/50Hz (customized)
Power	300W
Speed	10-40 BPM
Vibration top diameter	60-80cm
Spoon size	customized
Outline dimension	10008001200MM
Net weight	150KG

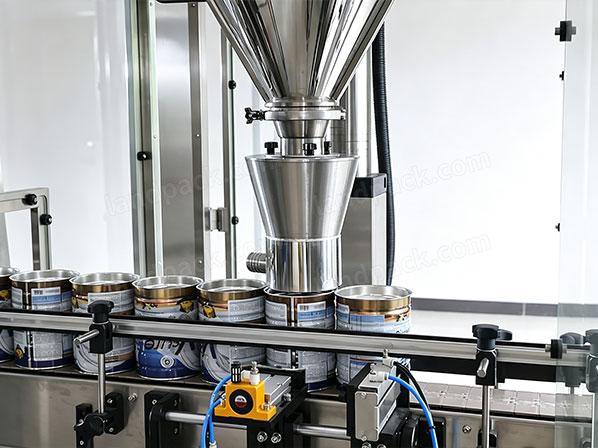

Auger Filler (powder dosing)
Max Weight	10~1000g/time
Container size	Φ 80-210mm H100-330mm(customized)
Filling weight	900g-2500g(customized)
Filling accuracy	500g,≤±1%
Filling speed	10~30bottles/min(depend on the material and weight)
Auger Filler hopper	50L
Power supply	Three phase380V or single phase
Total power	3.5 KW
Total weight	420kg
Dimension	20009001850mm
Automatic Can Seamer Machine
Bottle type	round, square bottles, etc need to be customized.
Can body max diameter	153mm(can be customized)
Bottle height	50-150mm(can be customized)
Speed	5-8BPM(it depends on product)
Seaming Type	Nitrogen consumption and vacuum seaming
Caps feeding type	Automatic lids feeding
Machine voltage	220V(can be customized)
Machine size	200010001700mm
Machine weight	550kg
Laser Printer
power	20~200W (can be option)
Laser	1064mm
repeat frequency	20~200KHZ
basement membrane Gaussian beam	＜1.2
Printing range	100*100mm
Engraving	＜0.4mm
Speed	Max 10000mm/s
Minimum Line Width	0.01mm
Minimum character	0.15mm
Accuracy	±0.02
Power supply	220V/50Hz, 500W
Positioning way	Infrared focusing
Machine size	8255451425mm
Machine Weight	60kg
Operating system	Embedded touch marking system or external 10.1 inch
Cooling method	Built-in air cooling
Control interface	Standard USB
File format	All fonts/glyphs of WINDOWS operating system fonts
Laser type	Air-cooled fiber laser; Service life of up to 100,000 hours
Automatic Cans cleaning machine
Speed	20-40bpm
Bottle diameter	80-210mm (or custom-made)
Power	2KW 380V
Weight	350KG
Machine size	17008001800mm
Automatic lids pressing machine
Material	304 stainless steel
Cover size	Cover diameter: 40-130mm (can be custom-made)
cover height	5-15mm
Bottle diameter	50-220mm
Speed	10-50 bottles/minute
Conveyor belt size	(L)1900mm(H)900(W)114mm
Machine size	(L)1900mm(H)1700(W)800mm
Weight	250KG
Power	220V, 50HZ, 0.68KW
Air pressure	0.5-0.7MPa, require 750W air compressor

Features:

1. The servo auger filling system provides high filling accuracy with stable performance and filling error controlled within ±2g.

2. The automatic can unscrambler continuously feeds containers onto the conveyor, improving production efficiency and reducing labor costs.

3. The UV sterilization and air blowing system helps ensure cans are cleaned before filling for improved packaging hygiene.

4. The vacuum nitrogen seaming machine achieves residual oxygen levels below 2%, helping extend product shelf life.

5. The filling machine is equipped with a dust collection device to reduce powder leakage and maintain a cleaner production environment.

6. The feeding hopper features a vibration function to improve powder flow and ensure stable material feeding.

7. The can brush cleaning machine automatically removes residual powder from the container surface before the next process.

8. The automatic plastic lid pressing machine applies lids accurately and consistently to improve package appearance and protection.

Optional:

1.Unscramble can machine

2.Filling + weighing machine

3.Can seaming machine

4.Collecting platform
