Fully Automatic Milk Powder Canning Weighing Filling Seaming Machine

Application:

The Milk Powder Filling Machine is suitable for Milk Powder, Whey Protein Powder, Plant Protein Powder, Infant Formula Powder, Nutritional Supplement Powder, Meal Replacement Powder, Coffee Powder, Cocoa Powder, Creamer Powder, Health Food Powder

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

The Milk Powder Filling Machine is suitable for packaging powder products in: Plastic Bottles, Tin Cans, Aluminum Cans, Composite Cans, Food Jars, Other Customized Containers..

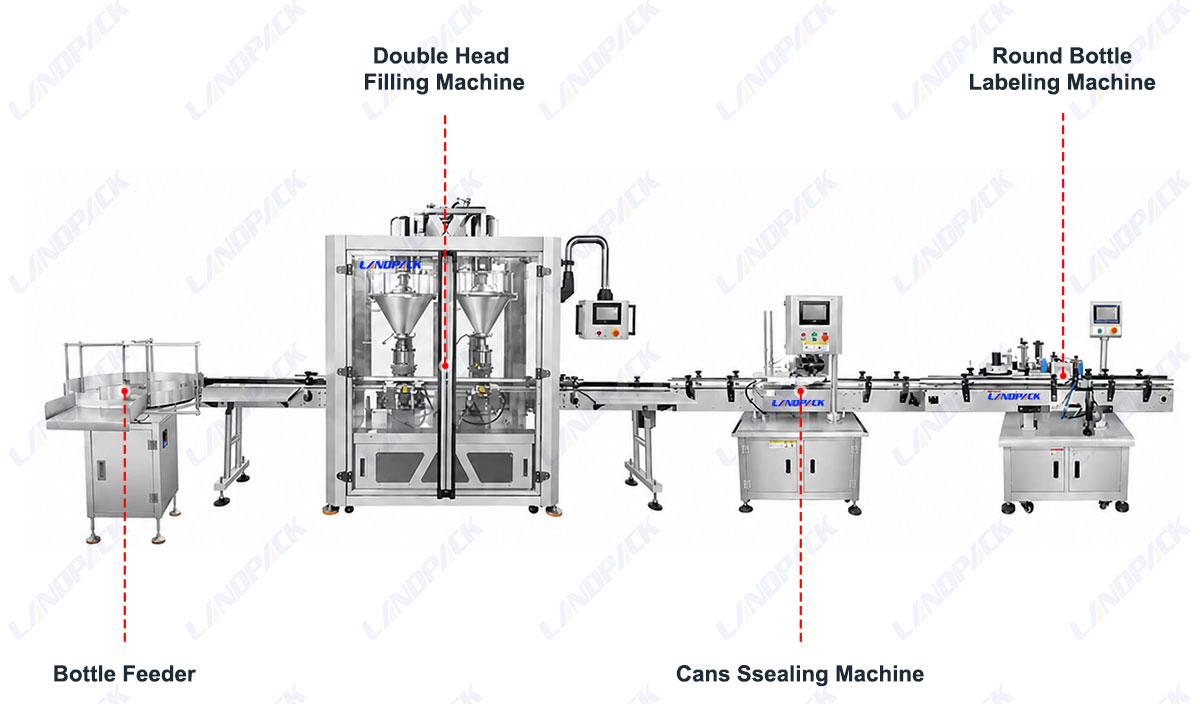

Machine Details:

Working Process

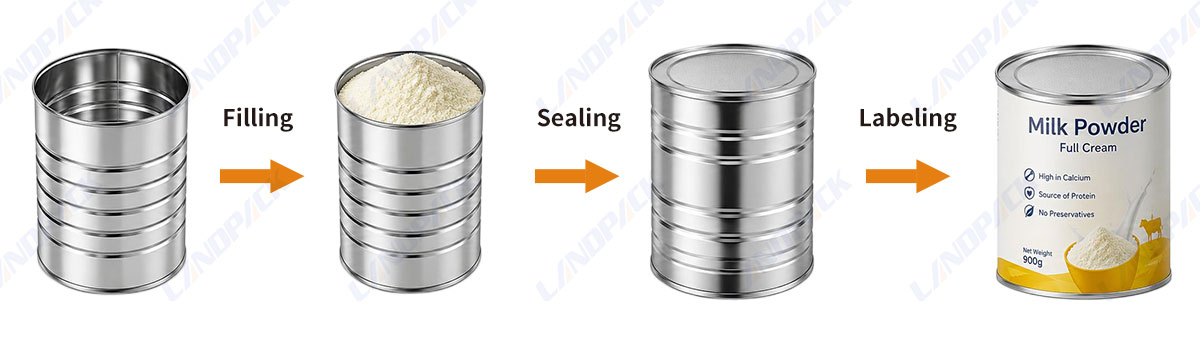

1. Container Feeding → Automatic Positioning → Powder Weighing & Filling → Lid Feeding → Can Sealing → Label Application → Date Coding → Finished Product Output

Key Component

Specification

Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Can Diameter	40-130mm
Suitable Can Height	30-200mm
Working Speed	40-60 bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

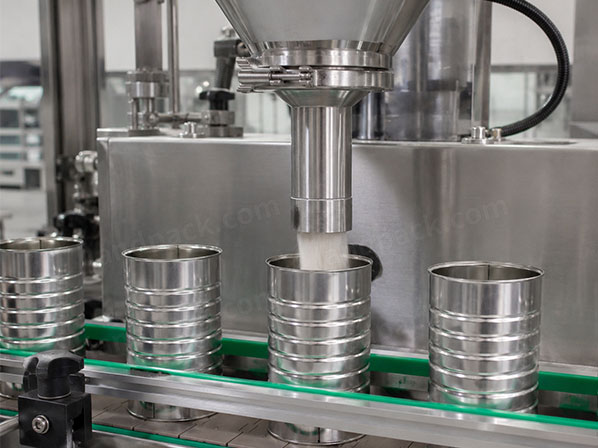

Auger Filler (powder dosing)
Max Weight	10~1000g/time
Container size	Φ 80-210mm H100-330mm(customized)
Filling weight	900g-2500g(customized)
Filling accuracy	500g,≤±1%
Filling speed	10~30bottles/min(depend on the material and weight)
Auger Filler hopper	50L
Power supply	Three phase380V or single phase
Total power	3.5 KW
Total weight	420kg
Dimension	20009001850mm

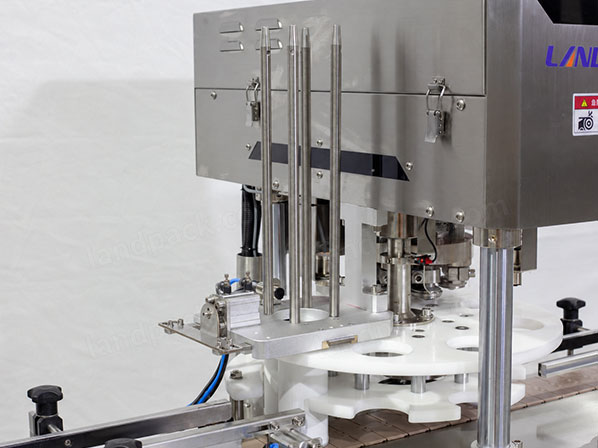

Automatic Can Seamer Machine
Bottle type	round, square bottles, etc need to be customized.
Can body max diameter	153mm(can be customized)
Bottle height	50-150mm(can be customized)
Speed	5-8BPM(it depends on product)
Seaming Type	Nitrogen consumption and vacuum seaming
Caps feeding type	Automatic lids feeding
Machine voltage	220V(can be customized)
Machine size	200010001700mm
Machine weight	550kg
Automatic labeling machine
Model	LFT-SM-00
Labeling speed	10-40 bottles/min
Labeling Accuracy	±1mm (Does not contain product and label errors)
Max Label width	200mm
Applicable Product Size	H≤400mm, T≤100mm (Can be customized)
Applicable inner diameter of paper	Φ76.2 mm
Applicable outer diameter of paper	Max.Φ350mm
Air Source	4-6KG, 30L/min
Dimension	305014501800mm
Voltage	220V, 50Hz, 3500W
Weight	500KG

Features:

1. Supports filling bottles, cans, boxes, and other containers with one machine for flexible production.

2. Servo motor-driven screw filling system provides high accuracy, fast speed, and stable performance with measuring error within ±1%.

3. Touchscreen control system allows easy parameter adjustment and storage of multiple product recipes.

4. High-precision sensors ensure no bottle no fill and no powder no fill operation for reduced material waste.

5. Automatic can conveying, lid placing, sealing, and output functions improve packaging efficiency.

6. Servo-controlled sealing turntable provides adjustable torque and stable sealing performance for different can sizes.

7. Mitsubishi PLC labeling control system ensures accurate labeling with intelligent operation and easy maintenance.

8. SUS304 stainless steel construction meets GMP requirements with excellent durability and easy cleaning.

Optional:

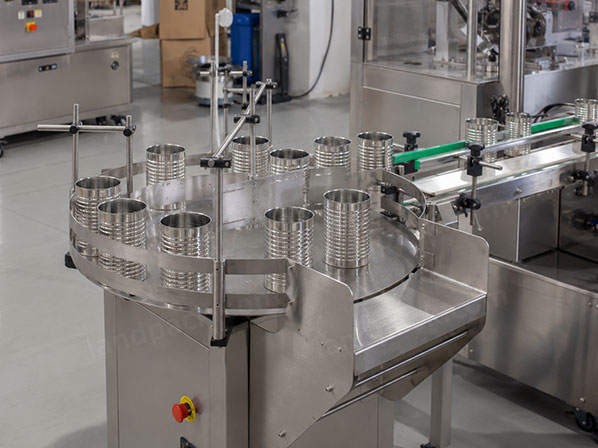

1.Unscramble can machine

2.Filling + weighing machine

3.Can seaming machine

4.Collecting platform
