Automatic Protein Powder Collagen Powder Can Filling Vacuum Nitrogen Seaming Machine Line

Application:

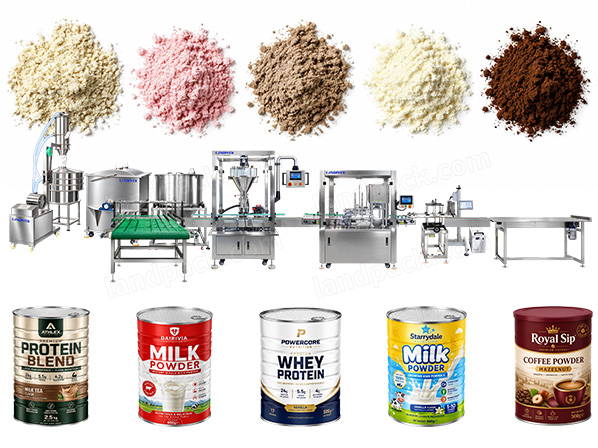

The Automatic Protein Powder Can Filling Line is suitable for Whey protein powder, plant protein powder, protein blends, mass gainer powder, collagen peptides, hydrolyzed collagen powder, collagen drink powder, meal replacement powder, nutritional powder, fiber powder, functional drink powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This protein powder filling line is suitable for metal cans, composite cans and other compatible rigid canisters that can be matched with the vacuum nitrogen flushing and can-seaming system. Container diameter, height, lid structure and seam specifications should be confirmed according to the customer's actual can samples.

Machine Details:

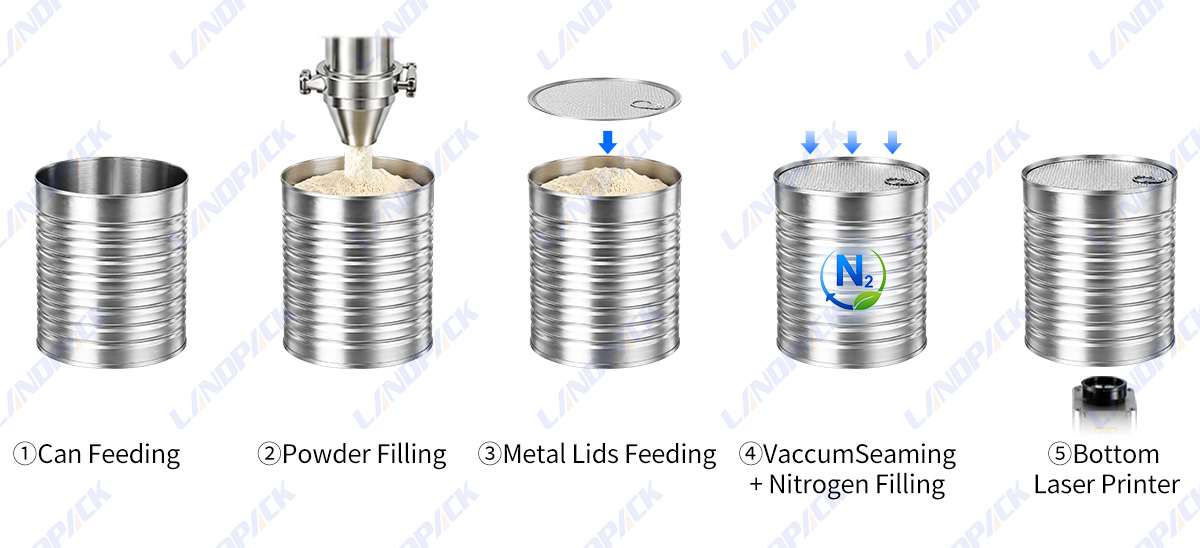

Working Process

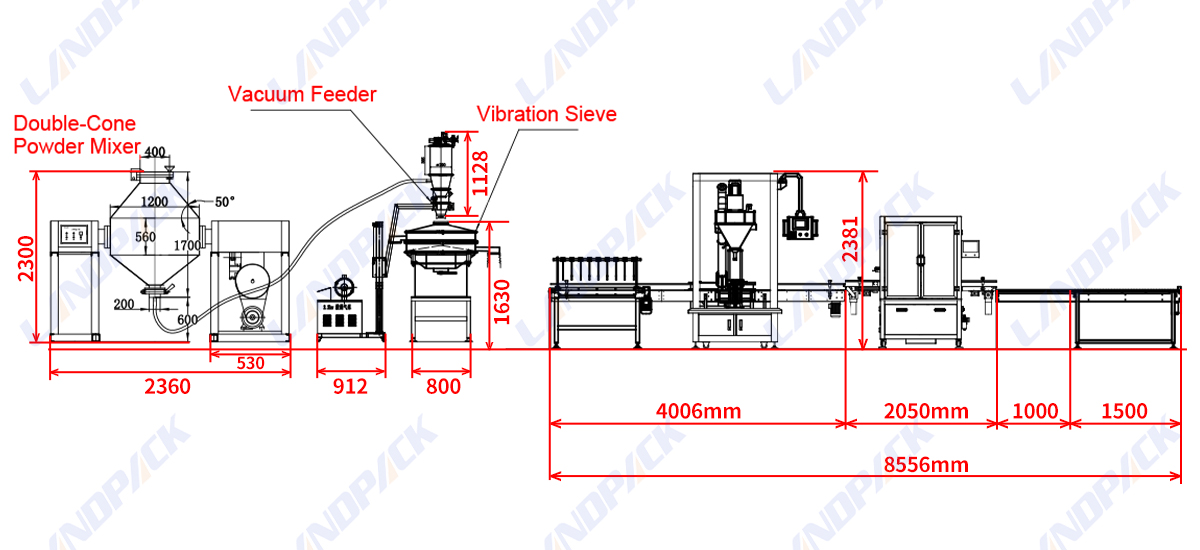

1. Powder Mixing → Powder Storage → Vibrating Screening → Belt Can Feeding → Single-Head Auger Filling → Vacuum Extraction → Nitrogen Flushing → Can Seaming → Laser Coding → Finished Can Collection

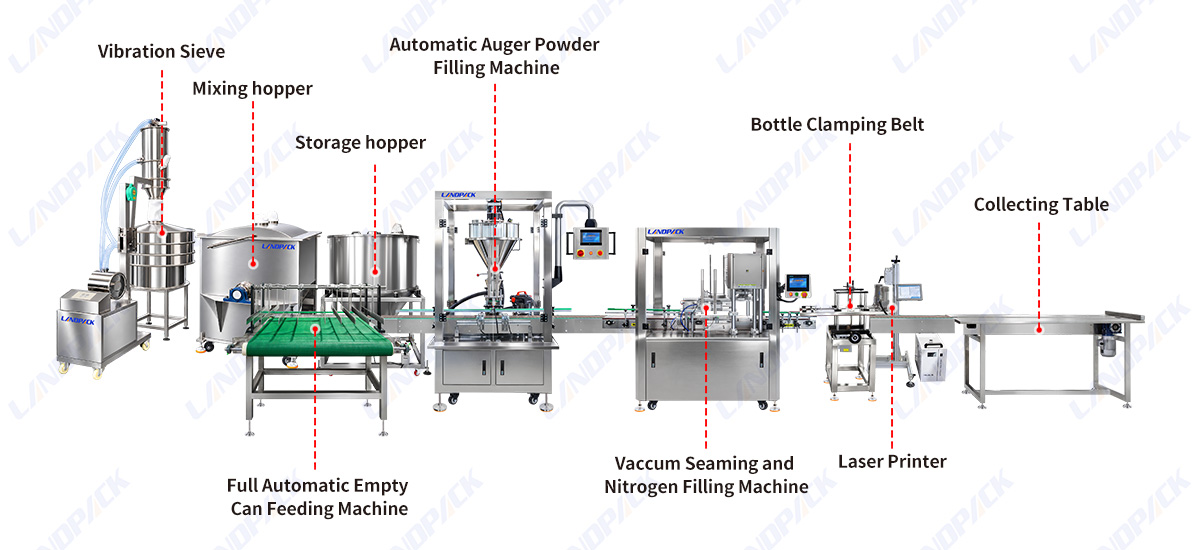

Key Component

Specification

Automatic Bottle Feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

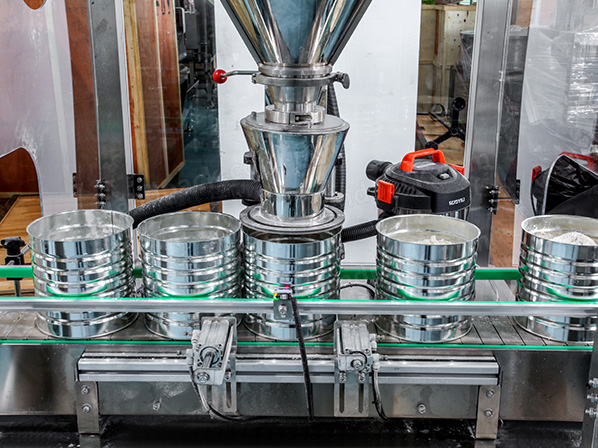

Automatic Powder Filling Machine
Model	LFP-01(Single Head)	LFP-01(Dual Head)
Filling Weight	10-5000 g (by changing auger)	10-5000 g (by changing auger)
Bottle Diameter	Φ30-Φ140 mm (customizable)	Φ30-Φ140 mm (customizable)
Bottle Height	50-200 mm (customizable)	50-200 mm (customizable)
Capacity	10-20 bottles/min	20-40 bottles/min
Filling Accuracy	≤500 g: ±1%>500 g: ±0.5% (varies by material)	≤500 g: ±1%>500 g: ±0.5% (varies by material)
Power Consumption	2.5 kW	5 kW
Hopper Capacity	50 L	50 L
Power Supply	220 V, 50 Hz	220 V, 50 Hz
Air Pressure	0.6–0.8 MPa	0.6–0.8 MPa
Machine Weight	350 kg	550 kg

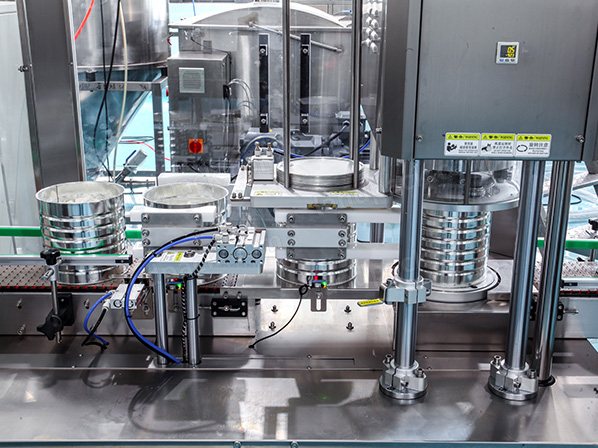

Vacuum can seaming machine with nitrogen flush
Bottle type	Round, square bottles, etc need to be customized.
Bottle diameter	50-120cm(can be customized)
Bottle height	50-150mm(can be customized)
Speed	5-8BPM(it depends on product)
Caps feeding type	ausomtaic lids feeding
Machine voltage	220V(can be customized)
Machine size	200010001700mm
Machine weight	550kg
Laser printer
Print range	100*100mm
Positioning way	Infrared focusing
Focuslens	focal length 150mm
Speed	Max10000mm/s(can be customized)
Laser	fiber laser generator
Machine voltage	220V(can be customized)
Machine size	8255451425mm
Machine weight	60kg
Parameter	Specification
Machine Name	Powder Storage Hopper with Vibrating Sieve
Application	Powder materials
Hopper Capacity	Customized
Sieve Mesh Size	Customized according to material
Feeding Method	Automatic conveying
Sieve Type	Vibrating sieve
Contact Material	Stainless steel
Discharge Method	Continuous discharge
Voltage	Customized
Connection	Can be connected with powder filling machine

Features:

1. Fully automatic production line integrates powder feeding, filling, vacuum nitrogen seaming, coding and collection to reduce manual operation and labor costs.

2. Mixing hopper and storage hopper provide continuous powder preparation and buffering for stable protein powder filling.

3. Vibrating sieve screens oversized agglomerates before filling, helping maintain consistent powder feeding into the dosing system.

4. Single-head auger filler achieves up to ±1% reference filling accuracy and can be adjusted for different can sizes and target weights.

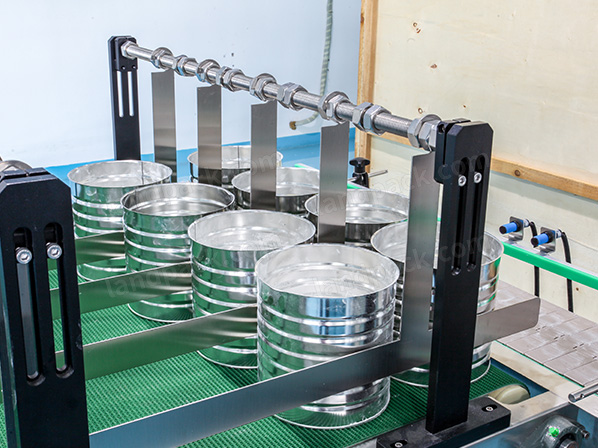

5. Belt conveyor automatically transfers and positions cans through the filling and seaming sections for continuous production.

6. Vacuum and nitrogen flushing system reduces residual oxygen to below 3% under validated operating conditions, helping protect product freshness and shelf life.

6. Automatic can seaming provides a tight and consistent mechanical seal after vacuum extraction and nitrogen flushing.

6. Laser coding system permanently marks production dates, batch numbers and traceability information without conventional ink consumables.
