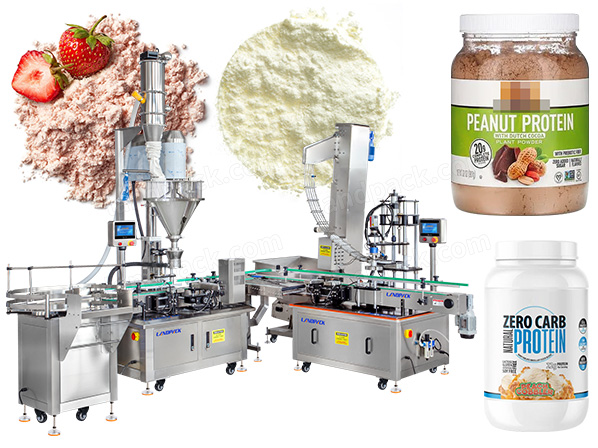

High Accuracy Protein Powder Collagen Powder Filling Machine

Description:

It is widely used for nutrition and health powders such as protein powder, whey powder, collagen powder, and meal replacement blends, as well as various food and beverage powders including milk powder, coffee powder, cocoa powder, and instant drink mixes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This filling line is designed for a variety of rigid container formats commonly used in the nutrition and food industries. It supports round plastic bottles, PET jars, and tin or aluminum cans, making it suitable for powders that require strong protection and convenient consumer use.

Wide Application Range

This powder filling line is designed for efficiently packaging a wide range of fine and medium-flow powders into round bottles with high accuracy and stable production performance. It is especially suitable for nutrition and food-grade powders that require precise dosing, clean filling, and secure sealing.

Nutrition & Health Powders

• protein powder, whey powder, meal replacement powder, collagen powder.

Food & Beverage Powders

• milk powder, coffee powder, cocoa powder, instant drink powders.

Supplement & Functional Powders

• dietary fiber powder, probiotic powder, vitamin blends.

Machine Details:

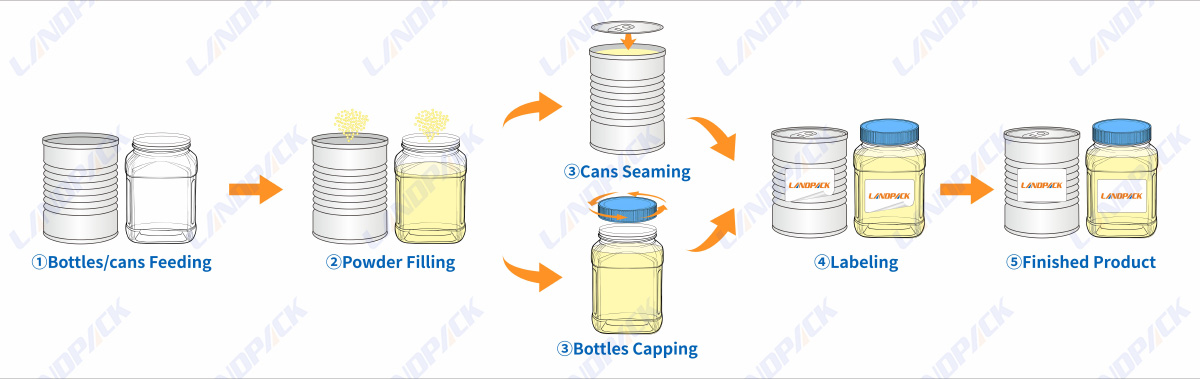

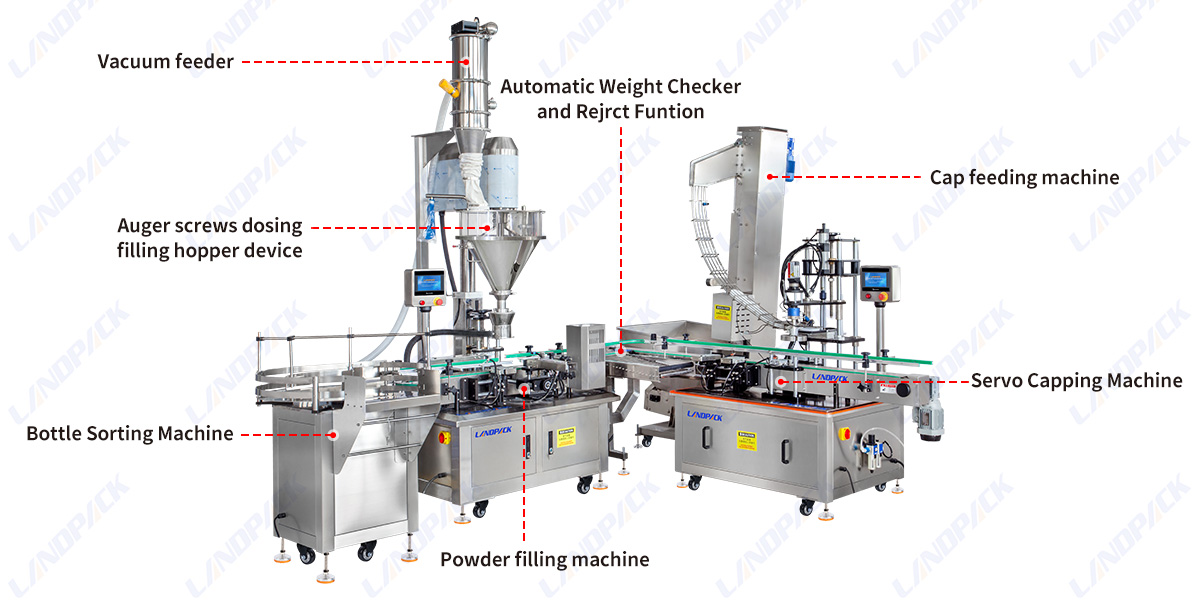

Working Process

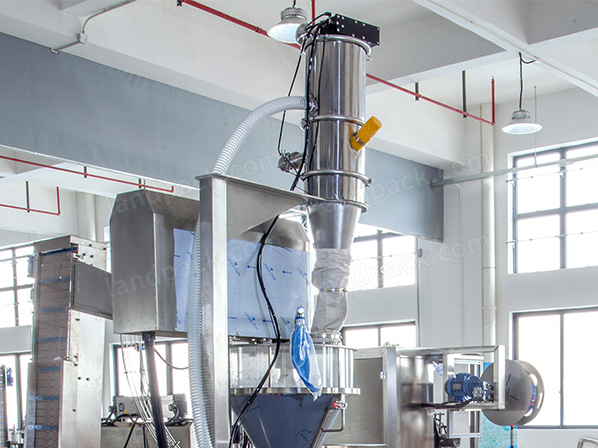

1. Vacuum feeder → 2. Automatic bottle arrange machine → 3. Powder filling machine → 4. Automatic Weight Checker and Rejrct Funtion → 5. Cap feeding machine → 6. Servo Capping Machine

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

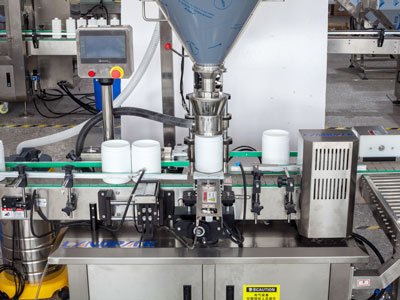

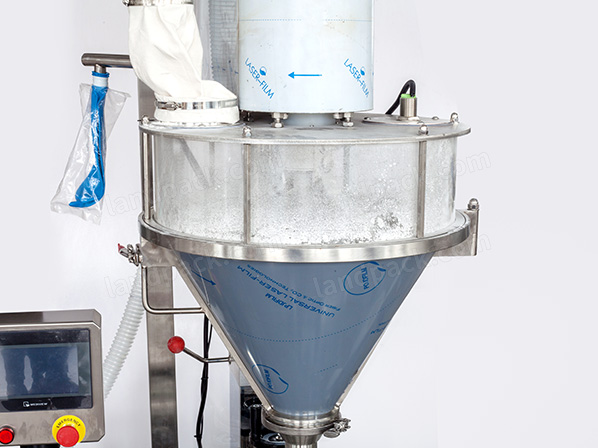

Powder Filling Machine

Model LD-PAF01

Filling Range 10-5000g (Customizable)

Filling Speed 20-40 bottles/min

Measurement accuracy ±1%

Power 5 KW

Working power supply 220V, 50Hz

Working pressure 0.6-0.8MPa

Weight 550kg

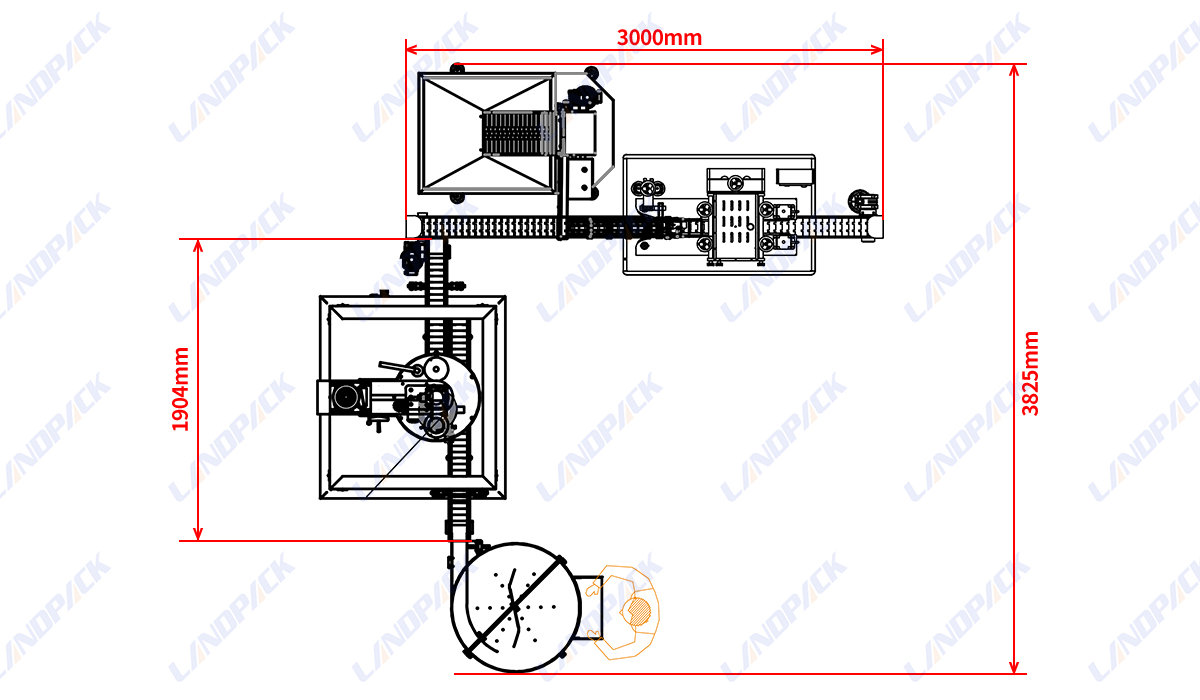

Size L2006*W979*H2068(mm)

Automatic capping machine with cap feeder

Model LFX-JX-01 (Four wheel capping) LFX-GS-150 (Eight wheel capping) LFX-GS-250 (Six wheel capping)

Capacity 20-50 bottles/min 40-100 bottles/min 30-80 bottles/min

Bottle cap diameter Φ22mm-Φ80mm (Could be customised) Φ18mm-Φ80mm (Could be customised) Φ18mm-Φ80mm (Could be customised)

Bottle diameter Φ35mm-Φ140mm (Could be customised) Φ35mm-Φ140mm (Could be customised) Φ35mm-Φ140mm (Could be customised)

Bottle sealing height 38mm-300mm (Could be customised) 38mm-300mm (Could be customised) 38mm-300mm (Could be customised)

Power 1.5KW 2KW 1.5KW

Voltage 220V, 50HZ 220V, 50HZ 220V, 50HZ

Air pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.5-0.7Mpa

weight 250kg 350kg 300kg

Dimensions H3000*W800*L1600mm H3120*W1544*L2122 H3100*W1244*L2122

Features:

Machine Image	Benefits

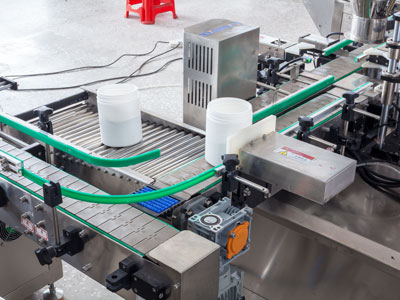

	Guaranteed Filling Accuracy with Automatic Reject System The entire system supports full customization according to different bottle sizes, cap types, and powder characteristics. Designed as a compact, space-saving production line, it is ideal for small to medium factories seeking efficient powder filling without requiring large floor space.

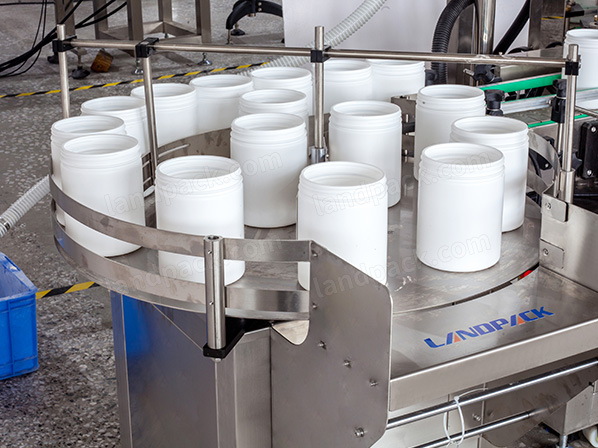

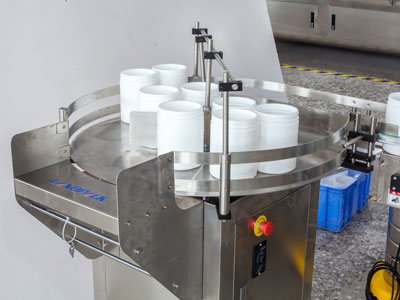

	Stable Bottle Feeding and Seamless Line Integration The bottle arranging unit provides smooth and continuous bottle feeding, minimizing manual intervention and ensuring stable downstream filling and capping performance.

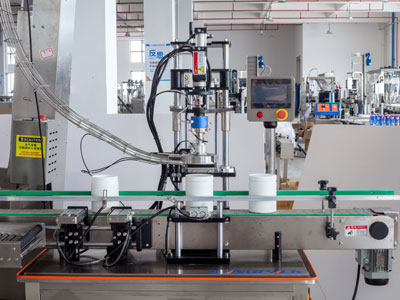

	Precise Servo Capping for Reliable Seal Quality The servo-driven capping machine delivers consistent torque control for all bottle types, ensuring a tight, secure seal and preventing leakage or cap damage.
	Clean Powder Handling with Reduced Dust Emission Equipped with enclosed filling components and optional dust extraction, the system maintains a clean operating environment and reduces product loss from airborne powder.

Learn More:

1.If you need more protein powder packing machine for your product , read our-- protein powder packing machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Powder Filling Machine
Model	LD-PAF01
Filling Range	10-5000g (Customizable)
Filling Speed	20-40 bottles/min
Measurement accuracy	±1%
Power	5 KW
Working power supply	220V, 50Hz
Working pressure	0.6-0.8MPa
Weight	550kg
Size	L2006W979H2068(mm)
Automatic capping machine with cap feeder
Model	LFX-JX-01 (Four wheel capping)	LFX-GS-150 (Eight wheel capping)	LFX-GS-250 (Six wheel capping)
Capacity	20-50 bottles/min	40-100 bottles/min	30-80 bottles/min
Bottle cap diameter	Φ22mm-Φ80mm (Could be customised)	Φ18mm-Φ80mm (Could be customised)	Φ18mm-Φ80mm (Could be customised)
Bottle diameter	Φ35mm-Φ140mm (Could be customised)	Φ35mm-Φ140mm (Could be customised)	Φ35mm-Φ140mm (Could be customised)
Bottle sealing height	38mm-300mm (Could be customised)	38mm-300mm (Could be customised)	38mm-300mm (Could be customised)
Power	1.5KW	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
