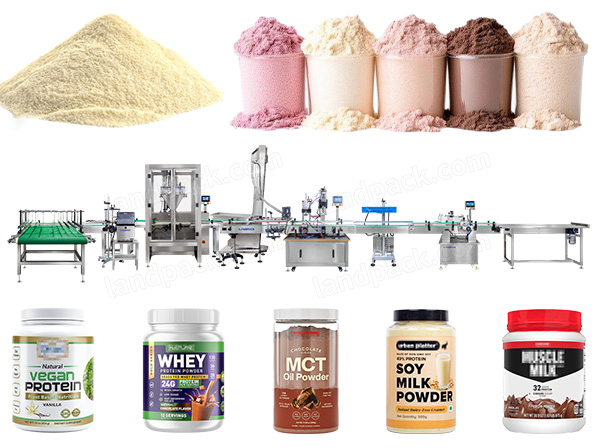

Fully Automatic Protein Powder Single Head Filling Sealing Labeling Capping Line

Description:

The protein powder filling line integrates bottle unscrambling, date coding, precise powder filling, automatic cap feeding, servo capping, aluminum foil sealing, labeling, and finished product collection.It ensures consistent filling accuracy, clean sealing, and reliable performance for nutritional and food-grade powder manufacturers.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Designed for round bottles and jars, compatible with PET bottles, HDPE containers, and plastic jars in various diameters and heights.

Wide Application Range

An protein powder filling machine engineered for free-flowing and semi-free-flowing powders:

Nutritional Supplements

• protein powder, whey protein, collagen peptides, BCAA powder

Dairy & Beverage Powders

• milk powder, coffee powder, cocoa powder, creamer

Functional & Health Powders

• meal replacement powder, plant protein blends, fiber powder

Machine Details:

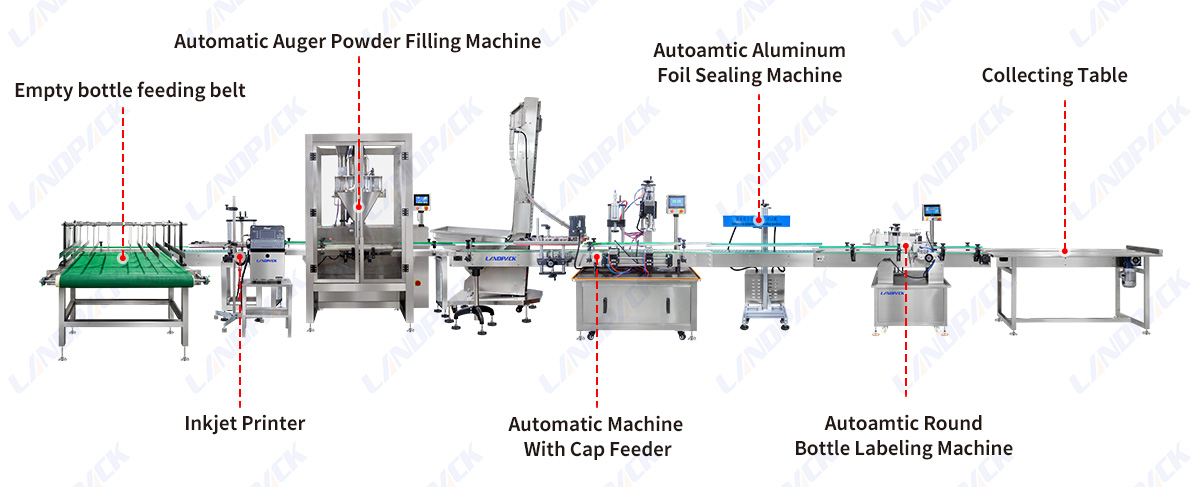

Working Process

1. Bottle Feeding → 2. Date Coding → 3. Powder Filling → 4. Cap Feeding → 5. Servo Capping → 6. Foil Sealing→ 8. Labeling→ 9. Finished Output

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

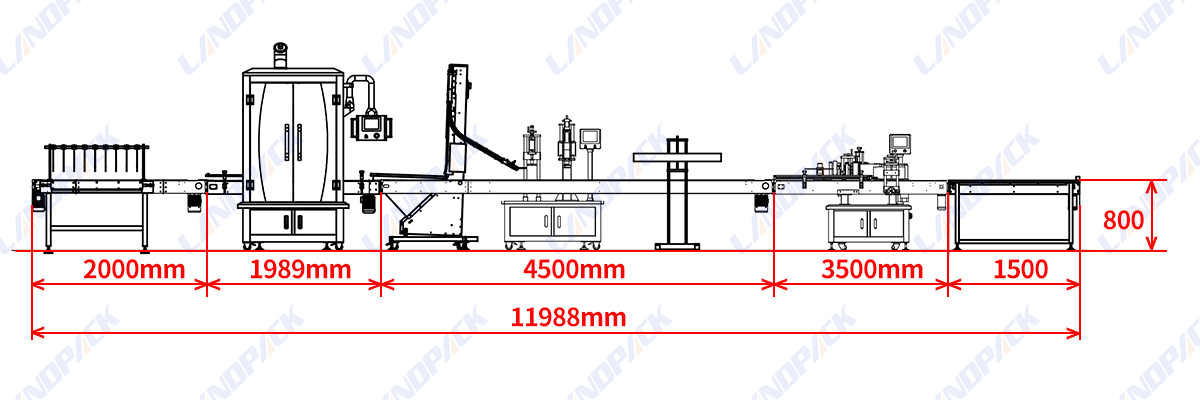

Specification

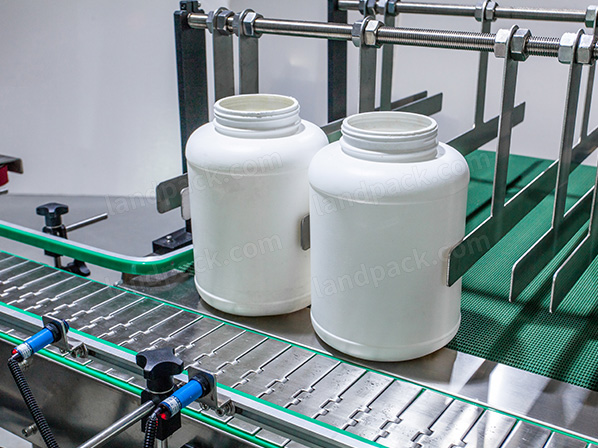

Automatic Bottle feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	40-60bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg

Automatic Powder Filling Machine
Item	LFP-01 (Single Head)	LFP-01 (Dual Head)
Model	LFP-01	LFP-01
Filling Weight	10–5000 g (by changing auger)	10–5000 g (by changing auger)
Bottle Diameter	Φ30–Φ140 mm (customizable)	Φ30–Φ140 mm (customizable)
Bottle Height	50–200 mm (customizable)	50–200 mm (customizable)
Capacity	10–20 bottles/min	20–40 bottles/min
Filling Accuracy	≤500 g: ±1%>500 g: ±0.5% (varies by material)	≤500 g: ±1%>500 g: ±0.5% (varies by material)
Power Consumption	2.5 kW	5 kW
Hopper Capacity	50 L	50 L
Power Supply	220 V, 50 Hz	220 V, 50 Hz
Air Pressure	0.6–0.8 MPa	0.6–0.8 MPa

Autoamtic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

Collecting Table
Capacity	30-50Bottle（Could be customized）
Material	Stainless Steel 304
Dimension	3002000100mm（Could be customized）
Weight	200KG

Features:

Machine Image	Benefits

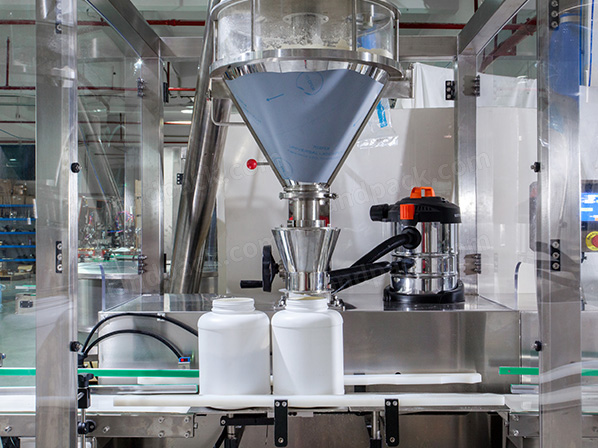

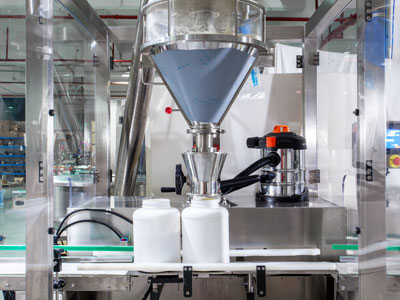

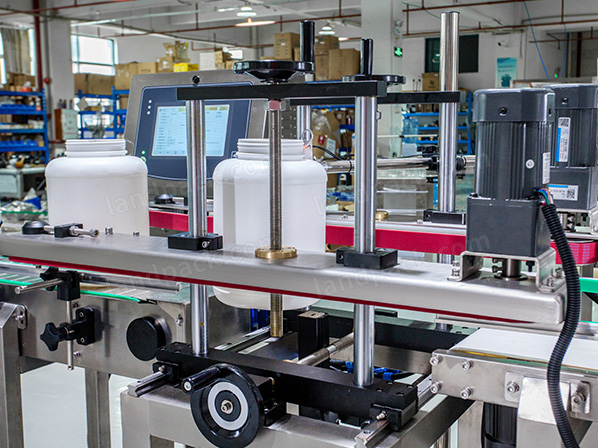

	High-Precision Powder Filling System The single-head powder filler guarantees an accurate and stable dose, which is ideal for nutrition and protein powders with a constant weight control.

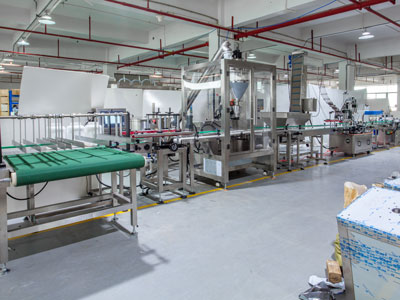

	Fully Integrated Automatic Line It combines filling, capping sealing, coding and labeling into a single automated system, which reduces the need for manual intervention and the cost of labor.

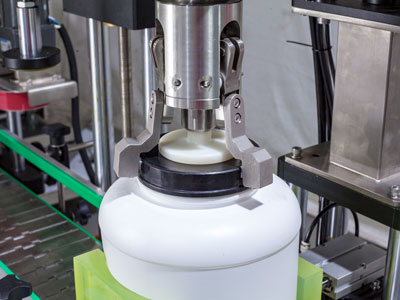

	Servo-Controlled Capping Technology The capping is servo-driven and ensures the same torque for tightening, eliminating loose caps or excessive tightening
	Hygienic & Food-Grade Design Contact parts for products are constructed of food-grade material, which is easy to clean and fully compliant with nutrition and food safety requirements.
	Stable Sealing & Professional Appearance The sealing of aluminum foil and the precise labeling increase shelf life, tamper-resistant and brand image.

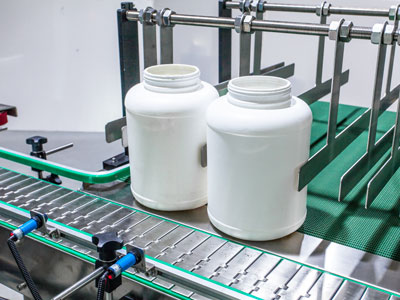

	Flexible Bottle Compatibility It is suitable for different sizes of bottles that can be adjusted quickly, perfect for production with multiple products and specifications.
