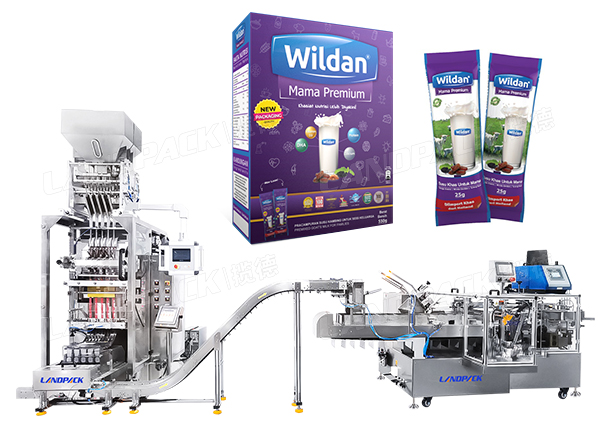

Automatic Multi Lane Milk Powder Stick Packaging Machine Boxing Production Line

Packaging Line Composition:

It is suitable for the automatic filling of various powder products, such as milk powder, coffee powder, protein powder, nutritional powder, medicine powder, chemical powder, meal replacement powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.


Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1.Customizable Modular Design: The machine’s module structure allows customization to meet specific customer needs.

2.Efficient Film Usage and Material Savings: By minimizing film waste, this equipment optimizes material usage during the packaging process.

3.Humanized Installation and Maintenance: The equipment is easy to install, disassemble, and maintain, thanks to its thoughtful design.

4.Automatic Alarm System: The machine features an automatic alarm system, enhancing safety and preventing material wastage.

5.Easy Mobility with Casters: The equipment is equipped with casters, making it easy to handle and move.

6.Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel, meeting the requirements for pharmaceutical and food production.

7.Hidden Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.

8.Automated Multifunctionality: This machine seamlessly performs tasks such as measuring, bag making, sealing, cutting, counting, and finishing product conveyors.
Application:

It is suitable for the automatic filling of various powder products, such as milk powder, coffee powder, protein powder, nutritional powder, medicine powder, chemical powder, meal replacement powder, etc.

Videos Introduction:

Specification:
MULTI-LANE STICK PACK POWDER PACKAGING MACHINE
Model
LD280BK
Lane number
2-6 Lanes
Filling Method
1. Volumetric cup; 2. Weigher;
Capacity
Max.50 cycles/min
Sachet size
L: 50-180mm; W: 17-65mm
Film width & Thickness
Max.280mm, 0.07-0.10mm
Sealing type
Back sealing/ Stick bag
Cutting type
1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut
Air & Power
0.8Mpa, 0.8m³/min, 3.5kw
Dimension & weight
1385*918*2005mm;350kg
BOXING MACHINE
Model
LD200ZH
Paper type
250-400g/²(Boxes need come with pre-fold over)
Capacity
30-60 boxes/min
Box type
Gusseted tongue type; Glue spray type
Count way
Fixed number type; Numerable type; Manipulator counting
Boxing way
Orderly type; Unorderly type
Air & Power
0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW
Workflow
Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish

Working Process:

1.Milk Powder feeding

2.Bag making

3.Filling

4.Batch numbering

5.Cutting and tearing

6.Bag-shaped punching

7.Bag picking arrangement and transmission

8.Bag weighing

9.Missing and less filling removal

10.Automatic counting of finished bags

11.Stacking and transferring

12.Carton forming

13.Finished product bag boxing

14.Finished product output
