You are here: Home > Product > Powder Packing Machine > Spice Filling Machine
  • spice bottle filling machine
  • masala filling machine
  • spice powder filling machine
  • spice jar filling machine
  • spice bottling machine

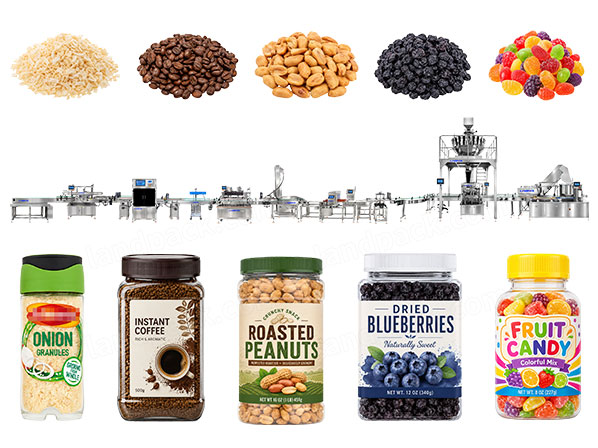

    Fully Automatic Granule Spice Bottle Filling Capping Labeling Line with Visual Inspection and Weigh Metal Detector

    Description:

    The Automatic Granule Spice Bottle Filling Capping Labeling Line is widely used for packaging various free-flowing food granules and seasoning products, including black pepper, white pepper, chili flakes, mixed seasonings, garlic granules, onion flakes, curry powder granules, dried herbs, BBQ seasonings, hot pot seasonings
    Kindly Reminder:

    We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
    E-mail: [email protected]
    Tel/Whtasapp: +86 18688215960
    Chat Now Send Email View video
    Video:
    Application:
    Machine Details:
    Features:
    Learn More:
    Inquiry
    Video:
    Application:
    This Automatic Granule Spice Bottle Filling Capping Labeling Line is suitable for a wide range of rigid containers, including PET bottles, plastic spice jars, seasoning bottles, shaker containers, square bottles, round bottles, and food-grade plastic containers.

    Machine Details:

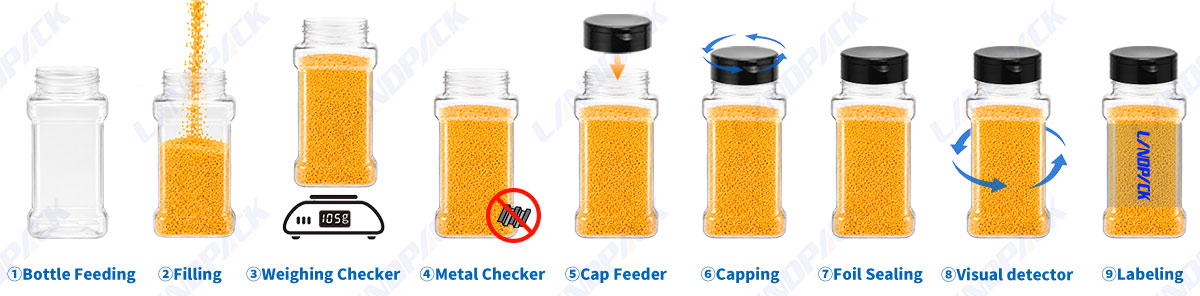

    Working Process


    1. Bottle Unscrambling → Product Feeding → Multihead Weighing → Double Rotary Filling → Checkweighing → Metal Detection → Cap Feeding → Capping → Induction Sealing → Vision Inspection → Four-Side Labeling → Collection Table → Finished Product Output.

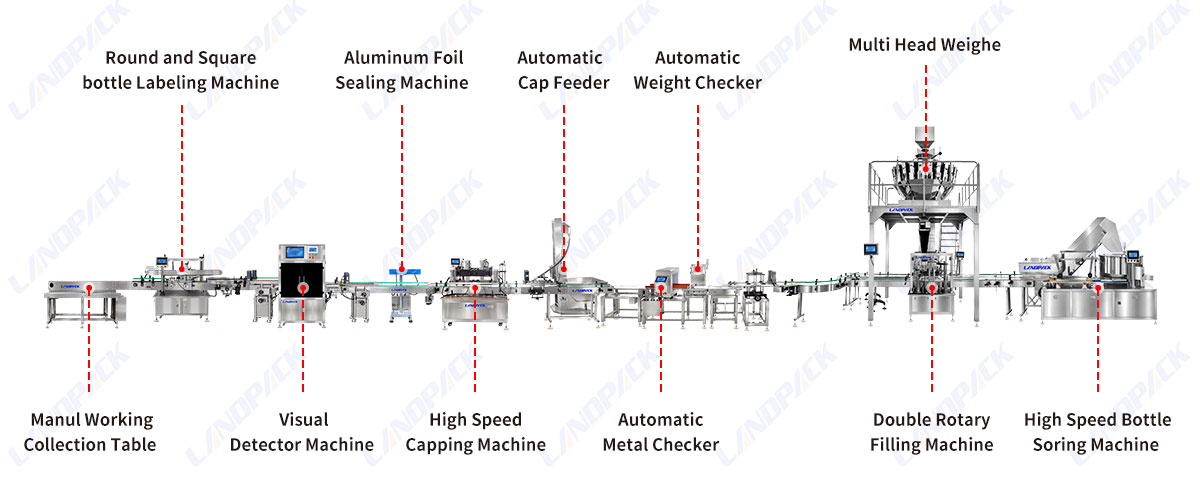

    Key Component

    ★  LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

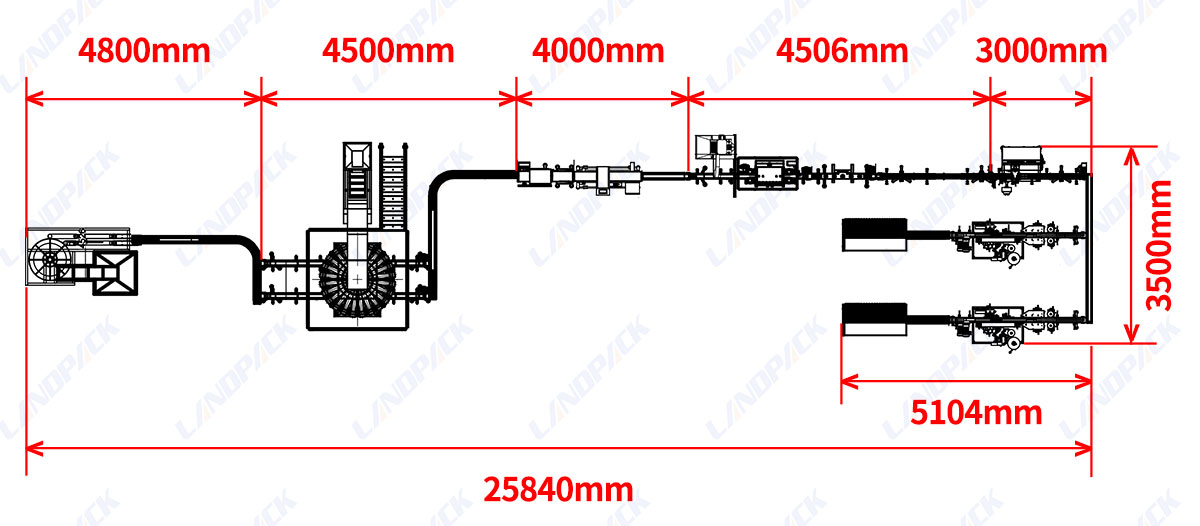

    Specification

    High Speed Bottle Soring Machine
    Model LP-BU Series
    Application Empty Bottle Sorting, Orienting and Feeding
    Output Speed 50-120 Bottles/min (Customized Available)
    Applicable Bottle Type Plastic Round Bottles, Square Bottles, Flat Bottles
    Applicable Bottle Material PET, PE, PP Plastic Bottles
    Bottle Size Range 50-1000ml (Customized Available)
    Bottle Feeding Method Automatic Elevator Feeding
    Bottle Sorting Method Rotary Sorting System
    Bottle Orientation Automatic Bottle Upright Positioning
    Control System PLC + Touch Screen Control
    Sensor System Photoelectric Sensor Detection
    No Bottle No Feeding Supported
    Bottle Jam Detection Automatic Alarm & Stop
    Speed Adjustment Variable Frequency Speed Regulation
    Main Material SUS304 Stainless Steel
    Conveyor Type Stainless Steel Chain Conveyor
    Motor Brand Customized (Siemens / SEW / Other Brands Available)
    Power Supply 220V/380V, 50Hz/60Hz
    Total Power Approx. 1.5-3KW
    Air Pressure 0.5-0.7MPa
    Air Consumption Customized According To Configuration
    Machine Dimension Approx. 2500×1200×1800mm
    Machine Weight Approx. 500-800kg
    Operation Mode Fully Automatic
    Changeover Easy Adjustment For Different Bottle Sizes
    Application Industry Food, Beverage, Cosmetic, Pharmaceutical, Chemical
    High speed Automatic Granule Filling Machine
    Model LD-AF01
    Filling Range 10-2000g (Customizable)
    Filling Speed 120 PCS/min
    Measurement accuracy ±0.3-1.5%
    Power 1 KW
    Working power supply 220V、50Hz
    Working pressure 0.6-0.8MPa
    Weight 400kg
    Size L4002*W2694*H2250(mm)

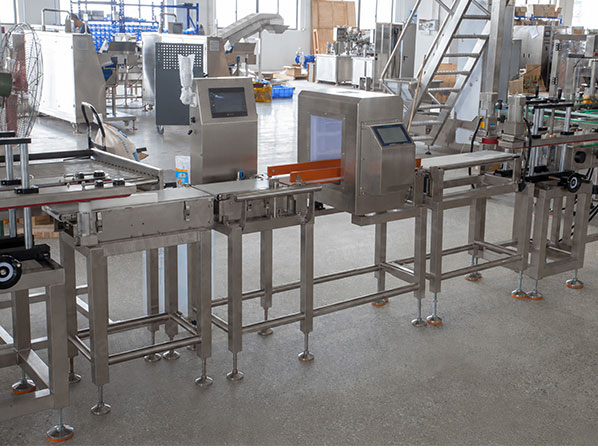

    Automatic Metal Checker and  Weight Checker
    Model LD-100 LD-150 LD-200 LD-250 LD-300
    Detecting window height(mm) 100 150 200 250 300
    Effective Detecting width(Max)(mm) 400 400 440 440 440
    Fe(mm)-iron ball-steel ball(mm) 0.8-1.0 1.0-1.2 1.2-1.5 1.5-2.0 2.0-2.5
    304Sus(mm)304-306(mm) 1.5-2.0 2.0-2.3 2.3-2.5 2.5-3.0 3.0-3.5
    Frame material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
    Model LD10 LD100 LD201 LD401 LD1000
    Weight Range 10-99g 100-200g 201-400g 401-999g 1000-10000g
    Rate 65bag/min 60bag/min 50bag/min 45bag/min 40bag/min
    Precision ±0.5g ±1g
    Minimum scale 0.1g
    Predesign pattern 10kinds
    Size 1050*681*1260
    Voltage 220V
    Power 300W
    Automatic Capping Machine With Cap Feeder
    Model LFX-JX-01(Four wheel capping) LFX-GS-150(Eight wheel capping) LFX-GS-250(Six wheel capping)
    Capacity 20-50Bottles/min 40-100Bottles/min 30-80Bottles/min
    Bottle cap diameter Φ22mm-Φ80mm（Could be customized） Φ18mm-Φ80mm（Could be customized） Φ18mm-Φ80mm（Could be customized）
    Bottle diameter Φ35mm-Φ140mm（Could be customized） Φ35mm-Φ140mm（Could be customized） Φ35mm-Φ140mm（Could be customized）
    Bottle sealing height 38mm-300mm（Could be customized） 38mm-300mm（Could be customized） 38mm-300mm（Could be customized）
    Power 1.5KW 2KW 1.5KW
    Voltage 220V、50HZ 220V、50HZ 220V、50HZ
    Air pressure 0.6-0.8Mpa 0.6-0.8Mpa 0.5-0.7Mpa
    weight 250kg 350kg 300kg
    Dimensions H3000*W800*L1600mm H3120*W1544*L2122 H3100*W1244*L2122
    Automatic Aluminum Foil Sealing Machine
    Model LD-ZS(Double Heads Aluminum Foil Sealing) LF-LB-2000(Single Heads Aluminum Foil Sealing)
    Applicable bottle diameter Φ10-200mm（Could be customized） Φ10-200mm（Could be customized）
    Applicable bottle height H:40-300mm（Could be customized） H:40-300mm（Could be customized）
    Speed 0-30bottle/min 0-10bottle/min
    Bottle material Glass, ceramics, plastics, metals Glass, ceramics, plastics, metals
    Voltage 220V,50HZ 220V,50HZ
    Power 1500W 1200W
    Dimension 1500*800*1750mm 1200*600*1550mm
    Automatic Vision Bottle Orienting Machine
    Model LP-VBO Series
    Application Bottle Detection, Orientation Correction and Direction Alignment
    Working Principle Vision Camera Detection + Servo Rotation System
    Production Speed 60-200 Bottles/min (Customized Available)
    Applicable Bottle Type Round Bottles, Square Bottles, Oval Bottles, Irregular Bottles
    Applicable Bottle Material PET, PE, PP, HDPE Plastic Bottles
    Bottle Size Range 50-2000ml (Customized Available)
    Orientation Method Automatic 180°/360° Bottle Rotation
    Detection System Industrial Vision Camera System
    Recognition Function Bottle Shape, Label Position, Color and Mark Detection
    Rotation Control Servo Motor Precision Control
    Orientation Accuracy ≥99.5%
    Bottle Feeding Method Conveyor Feeding
    Conveyor Type Stainless Steel Chain Conveyor
    Control System PLC + Touch Screen Control
    Sensor System Photoelectric Sensor + Vision Sensor
    No Bottle No Rotation Supported
    Bottle Jam Detection Automatic Alarm and Stop
    Speed Adjustment Frequency Converter Control
    Changeover Method Adjustable Guide Rails For Different Bottle Sizes
    Main Material SUS304 Stainless Steel
    Machine Structure Modular Stainless Steel Frame
    Power Supply 220V/380V, 50Hz/60Hz
    Total Power Approx. 2-5KW
    Air Pressure 0.5-0.7MPa
    Machine Dimension Approx. 2000×1200×1800mm
    Machine Weight Approx. 500-900kg
    Operation Mode Fully Automatic
    Integration Compatible With Filling, Capping And Labeling Lines
    Application Industry Food, Beverage, Cosmetic, Pharmaceutical, Chemical Industries
    Automatic Four Side Labeling Machine
    Model LP-SBL Series
    Application Square Bottle Four Side Labeling
    Labeling Method Self-Adhesive Sticker Labeling
    Applicable Bottle Shape Square Bottles, Rectangular Bottles, Flat Bottles
    Applicable Bottle Material PET, PE, PP, Glass Bottles
    Labeling Speed 30-80 Bottles/min (Customized Available)
    Labeling Accuracy ±1mm
    Number of Labeling Sides 4 Sides
    Labeling Head Single / Double Labeling Head Optional
    Bottle Width Range 20-100mm (Customized Available)
    Bottle Height Range 30-320mm (Customized Available)
    Label Width Range 20-150mm
    Label Length Range 25-300mm
    Label Roll Inner Diameter Φ76mm
    Label Roll Outer Diameter Φ300mm
    Bottle Positioning Method Mechanical Positioning System
    Conveyor Type Stainless Steel Chain Conveyor
    Control System PLC + Touch Screen
    Detection System Photoelectric Sensor
    Speed Adjustment Variable Frequency Speed Control
    Operation Mode Fully Automatic
    Changeover Method Adjustable Guide Rail System
    Coding Function Optional Date / Batch Code Printer
    Main Material SUS304 Stainless Steel
    Machine Structure Stainless Steel Frame With Protective Cover
    Power Supply 220V/380V, 50Hz/60Hz
    Total Power Approx. 1-2KW
    Air Pressure 0.4-0.6MPa
    Machine Dimension Approx. 2400×1350×1500mm
    Machine Weight Approx. 350-500kg
    Application Industry Food, Beverage, Cosmetic, Pharmaceutical, Chemical Industries
    Automatic Bottle Collection Platform
    Model LP-ACP Series
    Application Bottle Collection, Buffering and Accumulation
    Function Automatic Product Collection Between Packaging Machines
    Applicable Products Bottles, Jars, Containers, Packed Products
    Applicable Bottle Shape Round Bottles, Square Bottles, Rectangular Bottles
    Conveying Speed 10-60 m/min (Adjustable)
    Conveyor Width 100-600mm (Customized Available)
    Conveyor Length Customized According To Production Line Layout
    Conveyor Type Stainless Steel Chain Conveyor
    Drive System Variable Speed Motor Drive
    Speed Control Frequency Converter Control
    Buffer Capacity Customized According To Production Requirements
    Bottle Arrangement Automatic Continuous Accumulation
    Guide Rail System Adjustable Side Guide Rails
    Control Mode PLC Control / Independent Control
    Sensor System Photoelectric Sensor Detection
    Bottle Jam Detection Automatic Alarm And Stop
    Material SUS304 Stainless Steel
    Frame Structure Heavy Duty Stainless Steel Frame
    Surface Treatment Polished Stainless Steel Surface
    Power Supply 220V/380V, 50Hz/60Hz
    Total Power Approx. 0.4-1.5KW
    Motor Type Gear Motor
    Machine Height Customized According To Production Line
    Machine Dimension Customized
    Machine Weight Customized According To Length
    Operation Mode Fully Automatic
    Installation Method Stand Alone Or Integrated With Packaging Line
    Application Industry Food, Beverage, Cosmetic, Pharmaceutical, Chemical Industries
    Features:

    1. 24-head 1.6L multihead weigher provides accurate weighing performance and fast product feeding for granule spices.

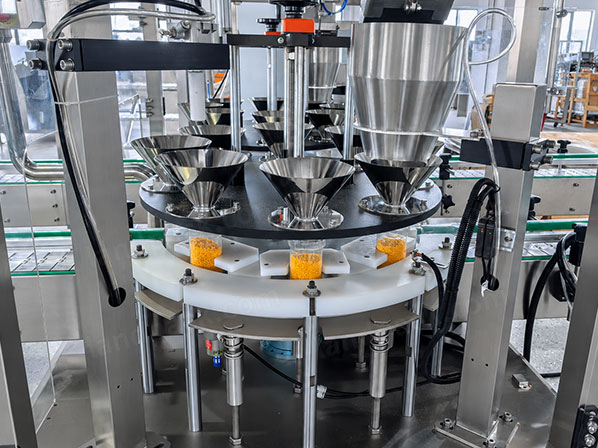

    2. Double rotary filling system supports stable production speeds of up to 50-60 bottles per minute.

    3. Filling range supports approximately 50-500g and can be customized according to bottle size and product requirements.

    4. Integrated checkweigher and metal detector help ensure product quality and food safety before shipment.

    5. Automatic cap elevator and high-speed capping machine reduce manual labor while improving production efficiency.

    5. Induction aluminum foil sealing machine provides reliable tamper evidence and improves product shelf life.

    5. Vision inspection system automatically checks bottle condition, cap status and labeling quality during production.

    5. Four-side labeling machine delivers professional labeling results for premium retail packaging appearance.


    Learn More:

    1.Learn more Landpack Spice Filling Machine

    2.Why choose Landpack

    3.Certificate of the Landpack packing machine.


    4.Guidance for first time to buy Filling Machine/ Packing Machine
    Related products
      spice packing machine
      Automatic Chicken Essence Seasoning Powder Mix Spice Sachet Filling Packing Machine It is suitable for many kinds of powder products, such as spice powder, medical powder, chemical powder, chicken essence, seasoning powder, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc. Get Price
      spice packing machine
      High Speed Spice Powder Filling Line With Anti Leak Anti-Dustying Device And Capping Machine The powder jar can filling sealing machine line is mainly suitable for powder filling of various material metering jar can and bottle. Likes spice powder, condiment powder, seasoning powder protein powder, condiment and other powder materials. Automatical Get Price
      spice filling machine
      Automatic Spice Powder Vertical Form Fill Seal Bag Packing Machine Vertical Pouch Packing Machine Automatic powder packing machine is suitable for packing fine dry powder materials, such as spice powder, garlic powder, turmeric powder, seasoning powder, chili powder, pepper, etc. Get Price
      spice packing machine
      Small Bag Spice Powder Vertical Sachet Packing Machine Suitable for fine powder material, such as spices powder, coffee powder, wheat flour, detergent powder, chilli powder, seasoning powder, etc. Get Price
      automatic spice packing machine
      Fully Automatic Spice Seasoning Powder Bottle Filling Capping Labeling Machine Line The automatic spice powder filling capping labeling line is suitable for filling fluidic or low-fluidity powder materials like spice powder, protein powder, coffee powder, medicine powder, chemical powder, granular additives, etc. It's widely used in var Get Price
      spice filling machine
      Spice Filling Machine Chilli Powder Filling Capping Labeling Machine Line This spice filling machine is widely used for spice and seasoning powders such as chili powder, paprika powder, black pepper powder, cumin powder, curry powder, garlic powder, and onion powder. Get Price
      spice filling machine
      Automatic Seasoning Powder Spice Bottle Filling Capping and Labeling Machine Suitable for automatic filling and packaging of bottled spices such as chili flakes, black pepper, white pepper, cumin seeds, mixed spices, garlic granules, onion granules, sesame seeds, and BBQ seasoning Get Price
      spice packing machine
      High Speed Seasoning Spice Powder Bottle Filling Machine This high speed spice powder bottle filling machine is suitable for automatic filling of various powder products, such as spice powder, chili powder, condiment powder, seasoning powder, onion powder, ginger powder, etc. Get Price
      spice filling machine
      Automatic Spice Seasoning Powder Canning Filling Seaming Labeling Machine Line This automatic powder canning filling seaming labeling line is suitable for filling all kinds of powder products, such as spice powder, garlic powder, turmeric powder, seasoning powder, chili powder, pepper, milk powder, protein powder, nutritional powder Get Price
      automatic spice packing machine
      Automatic Spice Seasoning Rotary Premade Pouch Bag Packing Packaging Machine This rotary spice pouch packing machine widely used in for packing fine dry powder materials, such as milk powder, spices powder, coffee powder, corn flour, laundry powder, coconut powder, fruit powder, collagen protein powder, cocoa powder, chili powder, Get Price
      After receiving your inquiry,We will send you the quotation as soon as possible.
      * Name:
      Tel or Whatsapp:
      * E- mail:
      Country:
      * Message:
      Send message
      Follow us
      icon-user Jason
      Mobile/whatsapp: +86 18688215960
      Tel: +86 18688215960
      Fax: +86 757 81807758
      Email: [email protected]
      WeChat: +86 18688215960
      Address: 1A01, 2A01, 3A01, Workshop 2, No. 8, Jixiang Road, Xiabai Community, Shishan Town, Nanhai District, Foshan City, Guangdong Province, China
      PRODUCT
      Hot ProductsPacking SystemFilling MachinePremade Pouch Doypack Packing MachineSachet/ Stick Pack MachineVertical Form Fill Seal Machine(VFFS)Powder Packing MachineGranule Packing MachineLiquid Packing Machine
      Inquiry
      *
      *
      *
      send
      COPYRIGHT © Foshan Land Packaging Machinery Co.,Ltd. Friendly Link:More LANDPACK Product Rang    Doypack Machine    Fastener Packaging Machine
