Automatic Seasoning Powder Spice Bottle Filling Capping and Labeling Machine

Description:

This automatic spice filling machine is designed for high-speed and accurate filling of granular spices into bottles. The system integrates bottle handling, filling, inspection, sealing, capping, and labeling to ensure consistent spice packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This spice powder filling machine is suitable for plastic spice bottles, glass spice jars, seasoning containers in round, square, and custom shapes.

Wide Application Range

This spice filling machine is designed for filling of granular and coarse seasoning products into bottles and jars.

Spice & Seasoning Products:

• Chili flakes, crushed chili, black pepper granules, white pepper granules, cumin seeds, fennel seeds, coriander seeds, sesame seeds.

Compound Seasonings:

• BBQ seasoning blends, mixed spices, herb blends, flavored salts, compound condiments.

Food Ingredients:

• Garlic granules, onion granules, dehydrated vegetable granules, dried herb particles.

Machine Details:

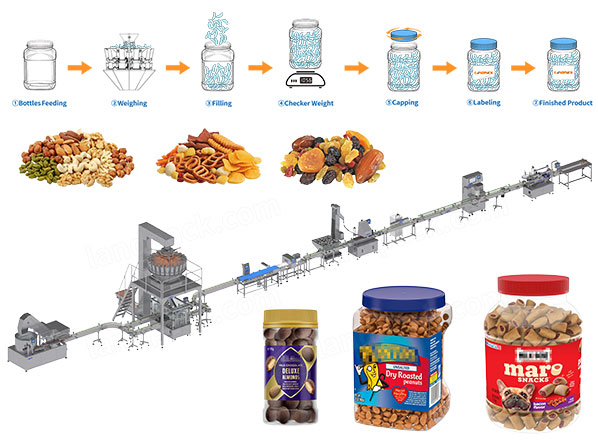

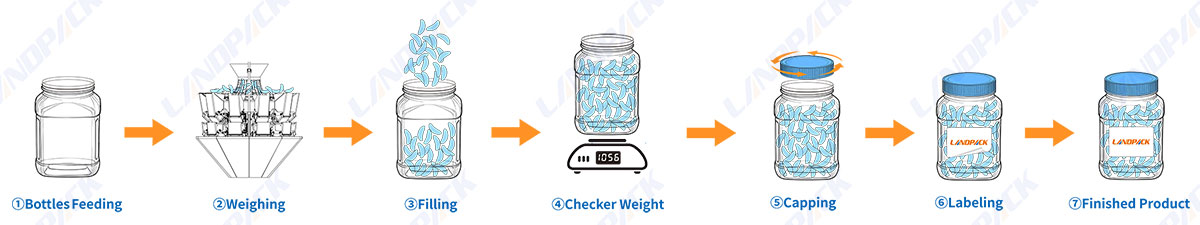

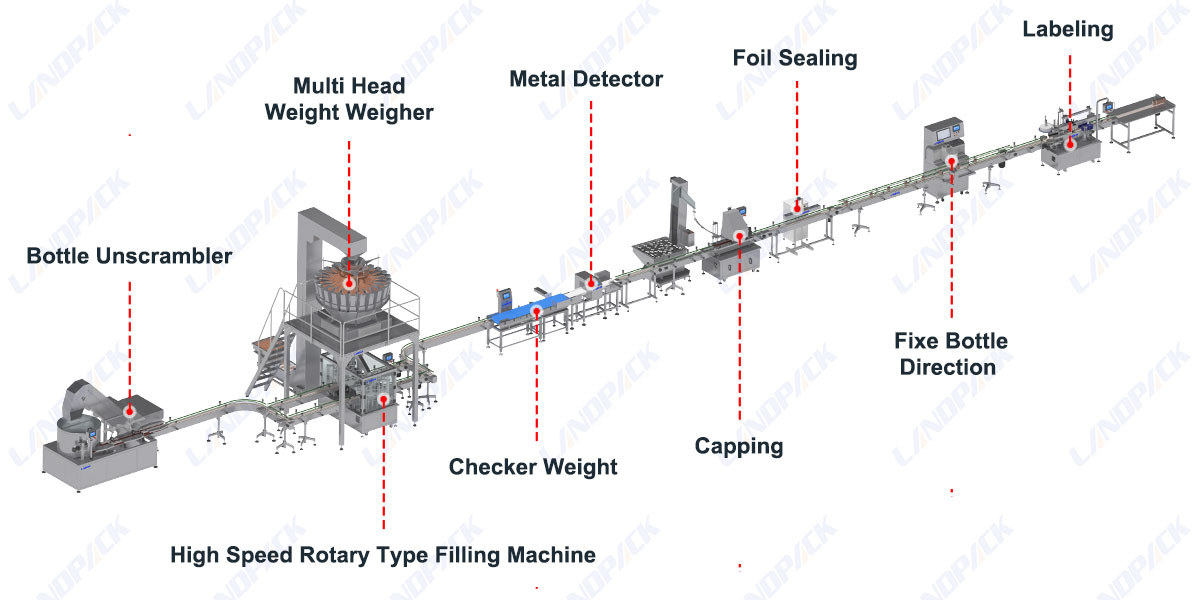

Working Process

1. Bottle unscrambling → 2. Granule spice filling → 3. Weight checking → 4. Metal detection → 5. Capping → 6. Induction foil sealing → 7. Vision inspection → 8. Labeling

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

High Speed Bottle Feeder
Machine Model	LD-LP900N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	20-100mm
Suitable Bottle Height	30-320mm
Working Speed	50-80bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	121kg

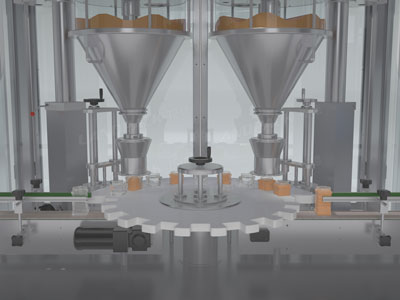

Multi- heads granules weighing double-head rotary filling machine
Model	LD-GZJ200M-R(double turntable filling)	LD-GZJ100M-R(Single turntable filling)
Material	304# Stainless steel	304# Stainless steel
Filling diameter	φ40 -φ130mm	φ40 -φ130mm
Applicable height	50-200mm (customized according to Bottle size)	50-200mm (customized according to Bottle size)
Filling speed	30-50 cans per minute	10-20 cans per minute
Air source	0.6-0.8Mpa	0.3-0.5Mpa
Voltage	220V,50HZ	220V,50HZ
Power	2.5KW	1.5KW
N.W./G.W.	200/320KGS	100/220KGS
Size	200010001400mm	20005001400

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Aluminium foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Vision Inspection Machine
Application	Bottles, pouches, boxes, flat or irregular products
Inspection Function	Orientation detection, front/back recognition
Vision System	Industrial camera with vision inspection system
Camera Resolution	5 MP / 8 MP (optional)
Detection Accuracy	≥ 99.8%
Production Speed	Up to 60–120 pcs/min (depending on product size)
Orientation Method	Servo-driven turning / pneumatic flipping
Control System	PLC + touch screen HMI
Power Supply	AC 220V, 50/60 Hz
Machine Material	Carbon steel with coating / SS304 (optional)

Features:

Machine Image	Benefits

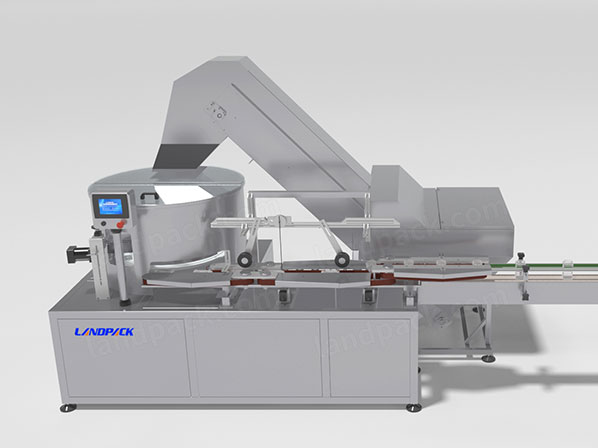

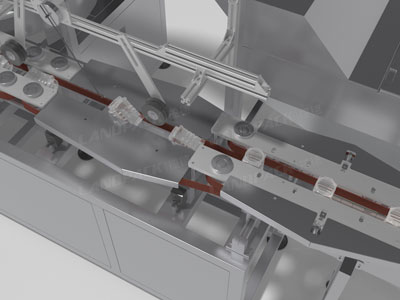

	High-Speed Automatic Bottle Unscrambler Automatically sort and feeds bottles with high speed, which ensures an uninterrupted and seamless operation
	Wide Bottle & Capacity Compatibility Fully automatic filling line can accommodate different sizes of bottles and jars that can be adjusted quickly, making it suitable for different spice packaging requirements.

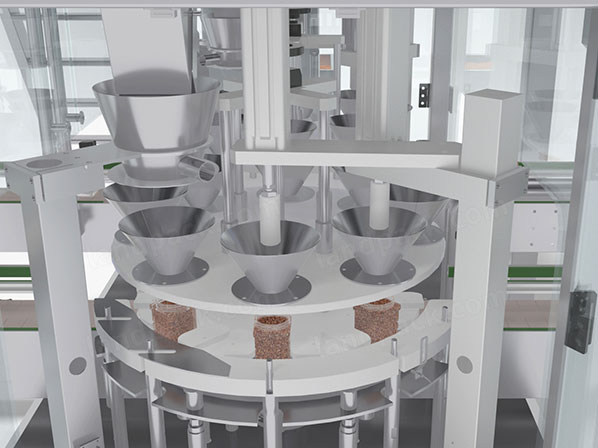

	High-Precision Granule Filling The precise control of filling ensures a consistent weight of each bottle, with the least loss of product and a efficient filling.

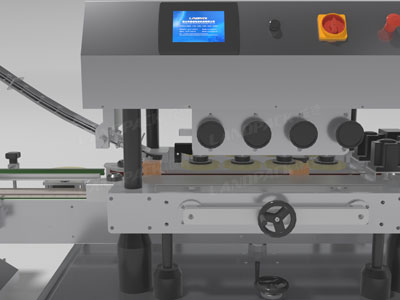

	High-Speed Capping & Reliable Sealing Stable capping system that is combined with the aluminum foil used for induction sealing

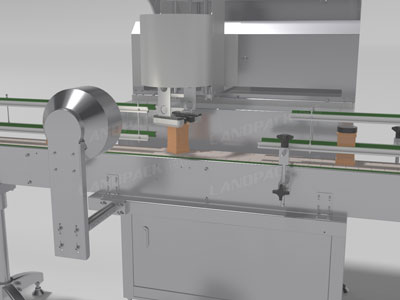

	Vision Inspection & High-Speed Labeling Vision inspection systems correct the orientation of bottles and labels and speedy labeling increases overall efficiency in production.
