Spice Filling Machine Chilli Powder Filling Capping Labeling Machine Line

Application:

This spice filling machine is widely used for spice and seasoning powders such as chili powder, paprika powder, black pepper powder, cumin powder, curry powder, garlic powder, and onion powder.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This spice filling machine is designed for round containers, supporting a wide range of packaging formats such as plastic bottles, glass bottles, and PET jars. It is compatible with screw-cap bottles with aluminum foil inner seals, providing tamper-evident and leak-proof packaging.

Wide Application Range

This chili powder filling machine is designed for accurate and hygienic bottling of fine powder products. It integrates automatic bottle unscrambling, screw feeding, precise powder dosing, capping, foil sealing, coding, and labeling, widely used for

Spice & Seasoning Industry

• Chili powder, cayenne pepper, paprika, curry powder, turmeric powder, cumin powder, garlic powder, onion powder.

Food Ingredient Industry

• Soup base powder, instant noodle seasoning powder, marinade powder, barbecue rubs, fried food coating powder.

Health & Functional Food Industry

• Herbal powder mixes, plant extract powders, mushroom powder, ginger powder, green tea powder, and other functional nutrition powders.

Machine Details:

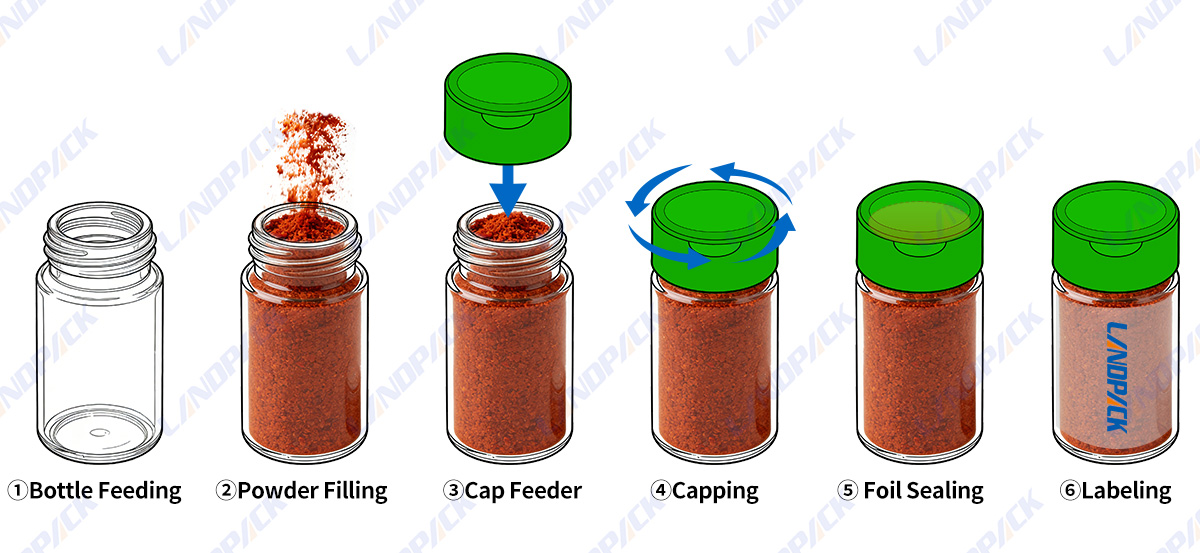

Working Process

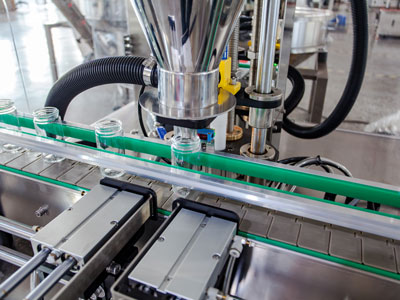

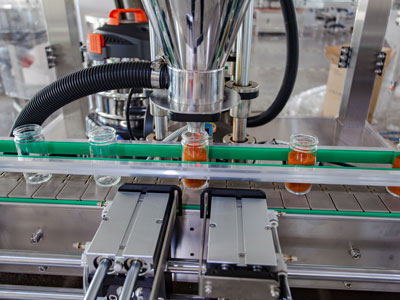

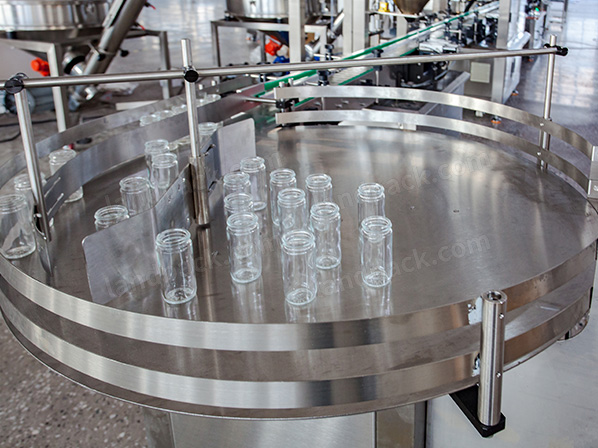

1. Bottle Feeding → 2. Powder Filling → 3. Cap Feeding → 4. Capping → 5. Foil Sealing → 6. Labeling

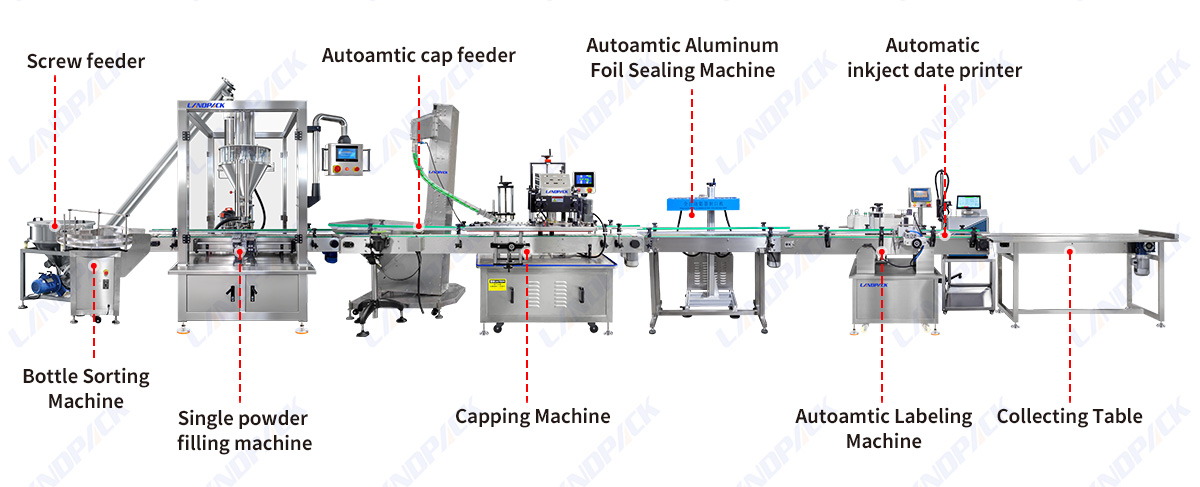

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Single Head Powder Automatic Filling Machine
Item	LFP-01(Single Head)	LFP-01(Dual Head)
Model	LFP-01	LFP-01
Filling Weight	10-5000 g(by changing auger)	10-5000 g(by changing auger)
Bottle Diameter	Φ30-Φ140 mm (customizable)	Φ30-Φ140 mm (customizable)
Bottle Height	50-200mm (customizable)	50-200 mm (customizable)
Capacity	10-20 bottles/min	20-40 bottles/min
Filling Accuracy	500g:1% >500g:0.5%(varies bymaterial)
Power Consumption	2.5kW	5kW
Hopper Capacity	50L	50L
Power Supply	220V,50Hz	220V,50Hz
Air Pressure	0.6-0.8 MPa	0.6-0.8 MPa
Machine Weight	350kg	550 kg
High Speed Capping Machine
Model	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	40-100 Bottles/min	30-80 Bottles/min
Bottle cap diameter	Φ18mm-Φ80mm(Could be customized)	Φ18mm-Φ80mm(Could be customized)
Bottle diameter	Φ35mm-Φ140mm(Could be customized)	Φ35mm-Φ140mm(Could be customized)
Bottle sealing height	38mm-300mm(Could be customized)	38mm-300mm(Could be customized)
Power	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.5-0.7Mpa
Weight	350kg	300kg
Dimensions	H3120W1544L2122	H3100W1244L2122
Automatic Aluminum Foil Sealing Machine
Model	LD-ZS (Double Heads Aluminum Foil Sealing)	LF-LB-2000 (Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-Φ200mm (Could be customized)	Φ10-Φ200mm (Could be customized)
Applicable bottle height	H: 40-300mm (Could be customized)	H: 40-300mm (Could be customized)
Speed	0-30 bottles/min	0-10 bottles/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V, 50HZ	220V, 50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Automatic Labeling Machine
Model	LFT-YP-00
Labeling Speed	20-60 bottles/minute
Labeling Accuracy	±1mm
Max Label Width	100mm
Applicable Product Size	Φ30mm-Φ80mm (Can be customized)
Applicableinner diameter of paper	Φ76mm
Applicable outer diameter of paper	Max.Φ330mm
Air Source	4-6 KG 30L/min
Dimension	20008001600mm
Voltage	220V, 50 Hz, 2000W
Weight	250KG
Inkjet Printer Machine
Power supply	220V 60Hz
Printing speed	1024 seconds (5*7)
Printing materials	Paper, plastic products, pipes, food bags, metal, glass, paper cups, etc.
Store information	The system can store 1000 print information
Machine size	length 370mm width 260mm height 500mm
Ink consumption	70 million words per print (5*7)
Machine weight	21kg
Package size	560350570mm

Features:

Machine Image	Benefits

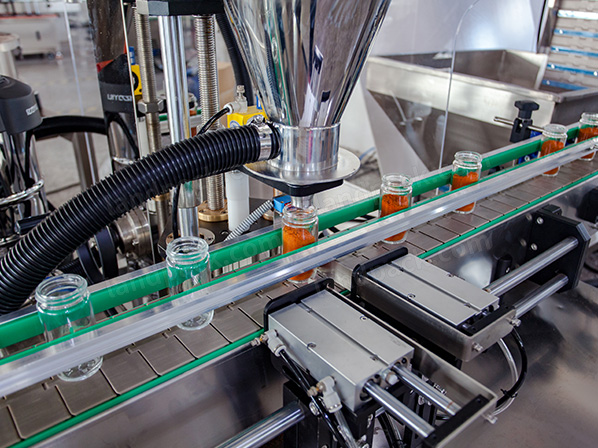

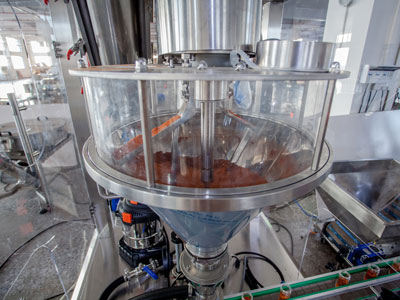

	Auger Dosing System that includes Anti-Leakage Design A special design for spices and other seasonings The auger filler guarantees steady and consistent doses without causing dusting, leaking, and loss of material during filling.

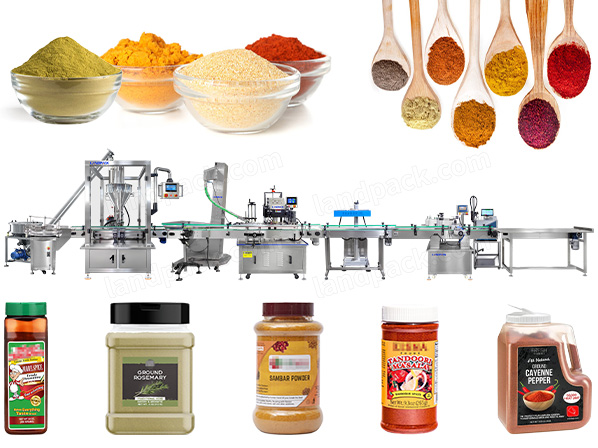

	Fully Automatic Integrated Filling Line The line integrates bottle feeding and filling, as well as foil sealing, capping, coding process, and labeling into one seamless process that reduces manual labor.
	Stable and Adjustable Production Capacity The standard output is 15 to 20 bottles per minute. the line is able to be modified or upgraded to accommodate various production levels or factory designs.
	Food-Grade SS304 Contact Parts All materials-contact components are constructed using 304 stainless steel, giving excellent resistance to corrosion as well as easy cleaning. the adherence to the safety and hygiene regulations for food.
	Accurate Filling and consistent results The precise structure of the auger filler ensures consistent filling levels throughout bottles. Keeping product consistency while reducing material wasted.
	User-Friendly Control System A user-friendly control interface lets operators easily alter filling volume as well as speed and the operating settings, which makes day-to-day operation and switchovers simple and effective.
