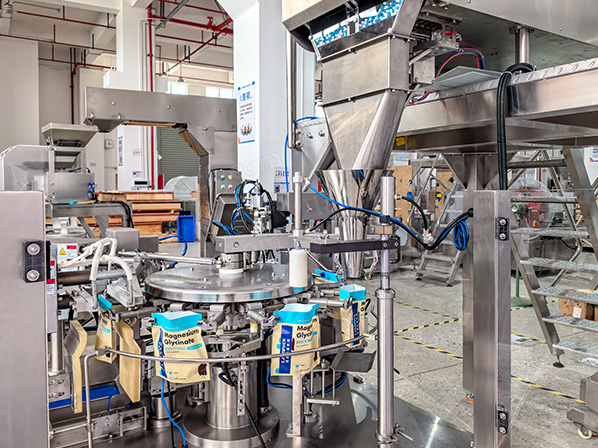

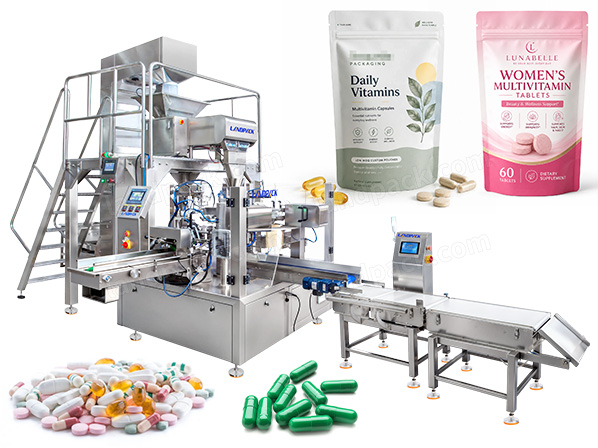

Fully Automatic Premade Pouch Tablets Pills Capsule Counting Packaging Machine

Application:

The Tablets Pills Capsule Counting Packaging Machine is designed for tablets, hard capsules, soft capsules, pills, medicine tablets, Vitamin capsules, nutritional tablets, dietary supplements, probiotics, Candy, gummy candy, mint candy, chocolate pieces, Seeds, nuts, snacks, and other counted solid products

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Tablets Pills Capsule Counting Packaging Machine is suitable for premade pouches, zipper pouches, stand-up pouches, flat pouches, three-side sealing bags and customized laminated pouches.Compatible with different pouch materials including PET/PE, BOPP/CPP, PET/AL/PE and other composite films.

Videos Introduction:

Working Process

1. Pouch Feeding → Bag Opening → Product Counting → Filling → Weight Checking → Sealing → Date Coding → Finished Bag Output

Key Component

Specification

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG

Features:

1. SUS304 stainless steel main frame meets GMP standards with durable and hygienic structure.

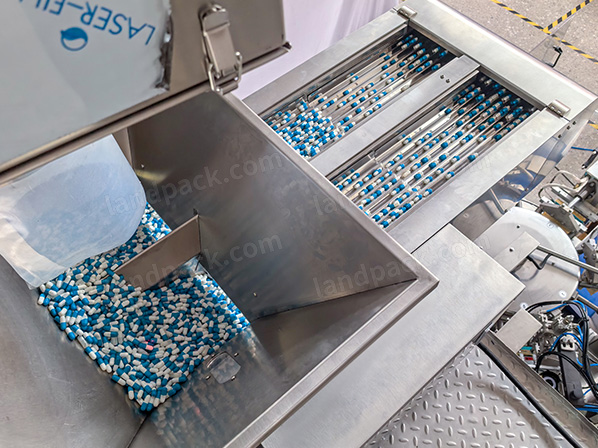

2. Customized 16-channel counting system ensures high-accuracy tablet and capsule counting.

3. Siemens PLC and touchscreen control provide easy operation and stable performance.

4. One-key bag width adjustment supports different premade pouch sizes up to 230mm.

5. Servo-driven system with vibration and pressing function improves filling stability and sealing appearance.

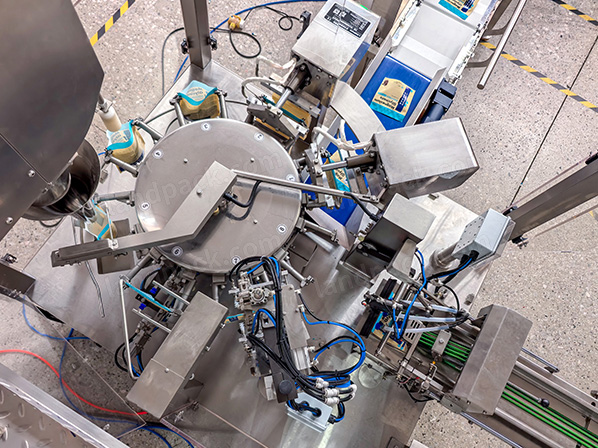

6. Zipper opening device with upper and lower suction cups ensures reliable bag opening.

7. No bag opening, no filling and no sealing function reduces material waste and improves safety.

8. Double sealing design and weight checking system ensure stronger sealing and accurate finished packages.
