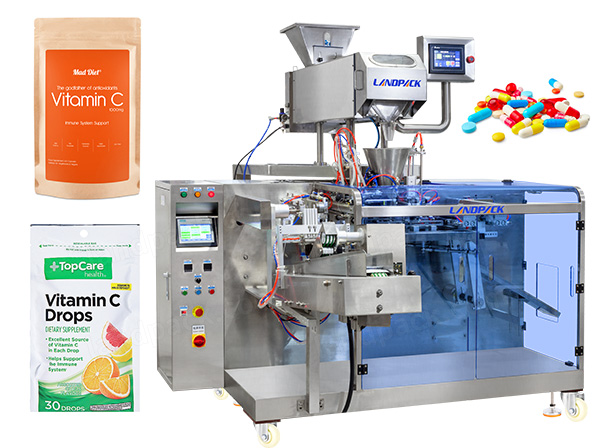

Automatic 8 Channel Capsule Tablet Counting Packing Machine Premade Pouch Packing Machine

Application:

It can count and bagging solid preparations or solid particles such as tablets (including special-shaped tablets), capsules, soft capsules (transparent and opaque).

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Anti-Clogging Discharge Design (Optional) – Specially engineered spout structure prevents material blockage and enables fast filling, even for small-mouth bags.

2. Gentle Handling, No Material Damage – Uniform and stable feeding/discharging with a patented bottle-switching mechanism that ensures accurate filling without damaging delicate materials.

3. Smart Detection System – Equipped with multiple detection and alarm features such as “no bag – no count,” automatic rejection of abnormal bags or oversized particles, and built-in fault self-diagnosis.

4. High-Dust Resistance – Incorporates proprietary anti-dust photoelectric sensor technology for stable and reliable performance even in high-dust environments.

Application:

It can count and bagging solid preparations or solid particles such as tablets (including special-shaped tablets), capsules, soft capsules (transparent and opaque).

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Working Process:

1.Giving bag;

2. Pick up the bag(coding);

3.Open the bag up and down;

4.Filling;

5.Heating sealing;

6.Output of product;
