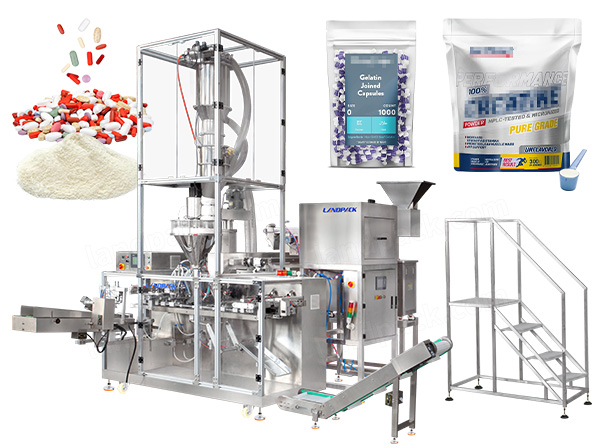

Automatic Stand-up Pouch Packaging Machine For Pharmaceutical Powder Capsule Tablet

Description:

The horizontal stand pouch machine is designed for pharmaceutical, nutraceutical, and food-grade packaging that requires both capsule/pill counting and powder dosing in the same pouch. It is ideal for health supplements (capsules, softgels, tablets, probiotics), sports nutrition products (protein powder, collagen powder, amino acid blends), and pharmaceutical dose packs (mixed capsules + measured powders).

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application(Bag & Specific material):

The stand-up pouch packing machine supports a versatile range of pouch types, including doypacks, stand-up pouches, zipper pouches, flat premade pouches, and gusset pouches, ensuring compatibility with both capsule-counting and powder-filling applications.

Wide Application Range

Designed for precise counting and powder dosing in a packing system, the machine is ideal for manufacturers requiring accurate, hygienic, and high-speed packaging of solid capsules and fine nutritional powders. It is widely used across multiple industries, including :

Nutritional Supplements

• Protein powder, collagen powder, whey powder, creatine, meal replacement powder

Pharmaceutical & Healthcare

• Hard capsules, soft capsules, tablets, vitamins, herbal capsules

Functional Foods

• Superfood powders, probiotics powder, dietary blends

Machine Details:

Working Process

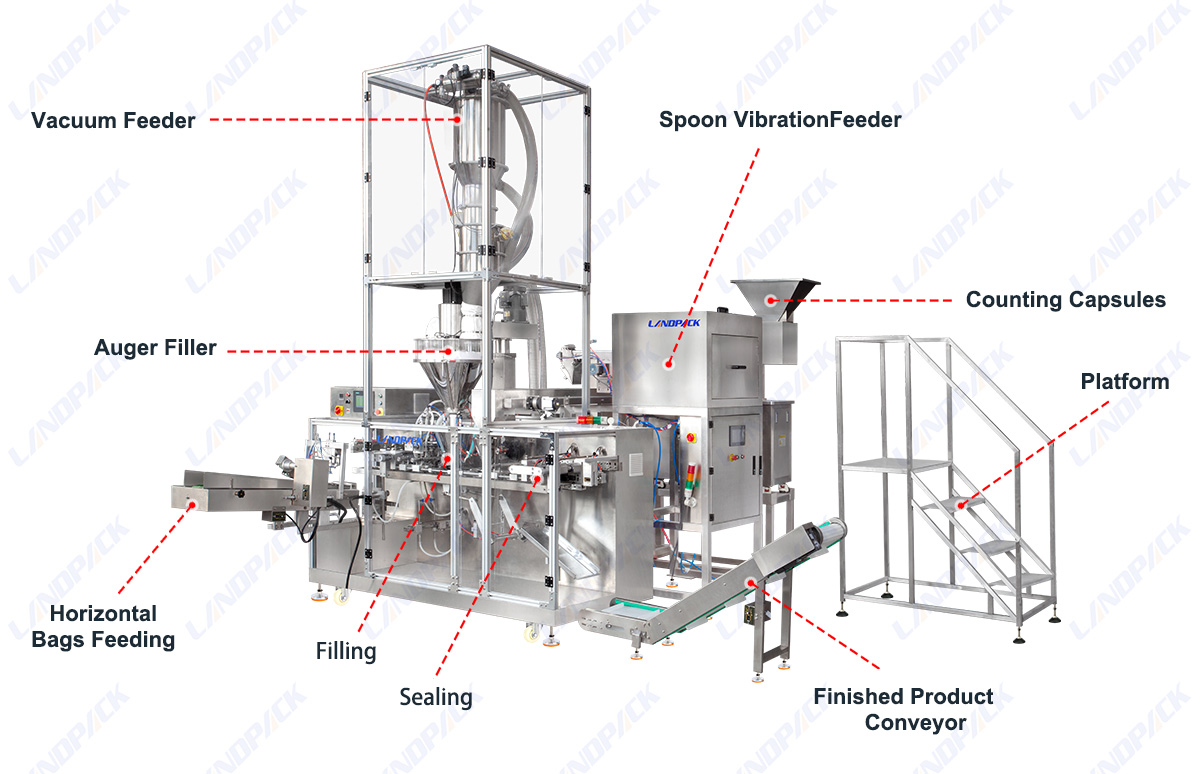

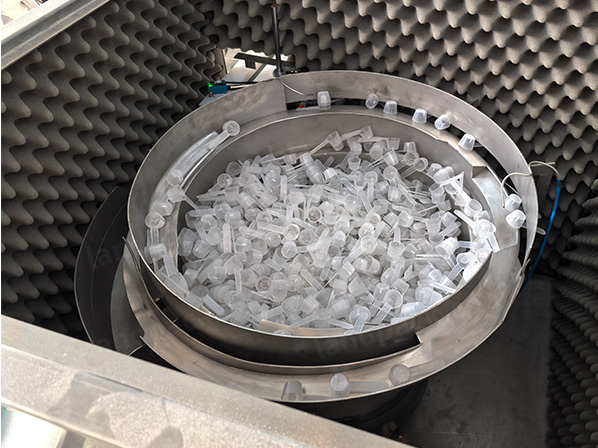

1. Automatic bag taking → 2. Inkjet printer → 3. Open zipper and open the bag → 4. Powder filling&collect the dust → 5. Tablets capsules counting filling or spoon feeder device → 6. Powder vacuum feeder → 7. Counting capsules → 8. Spoon Vibration Feeder → 9. Counting spoon

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW

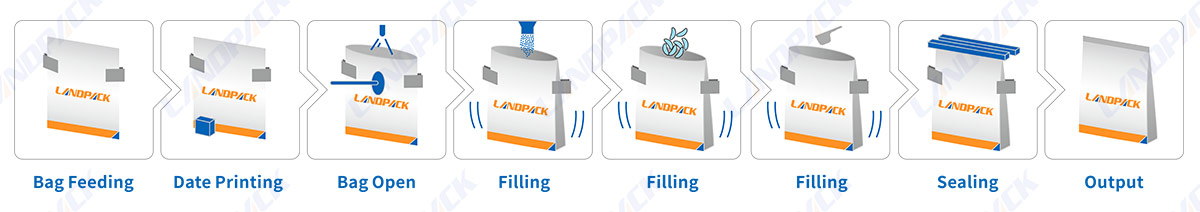

Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product

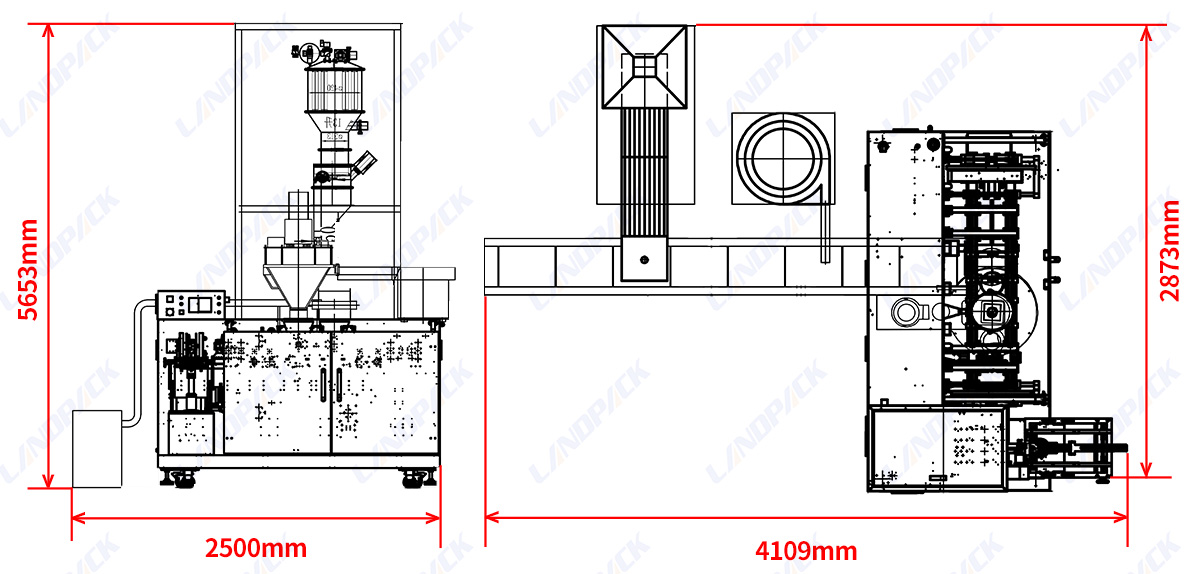

Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator

Features:

Machine Image	Features

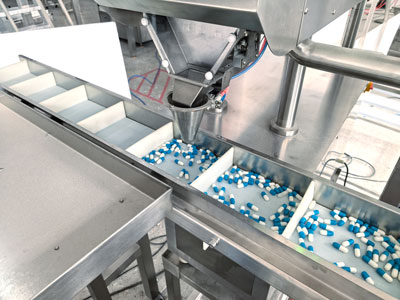

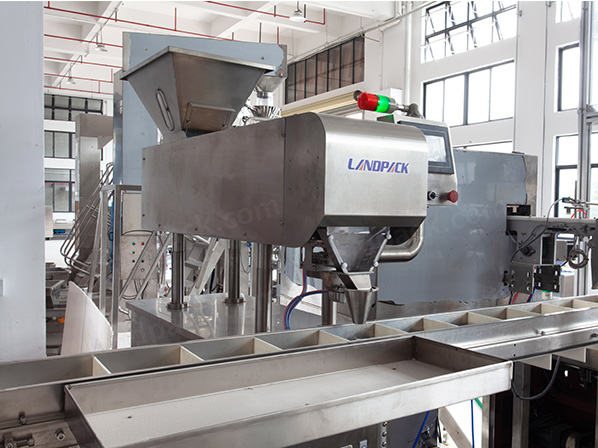

	Dual Filling System for Capsules + Powder: With an eight-channel counting machine as well as a separate powder dosing device The system allows simultaneous filling of tablets and capsules as well as powders that are fine into one pouch.

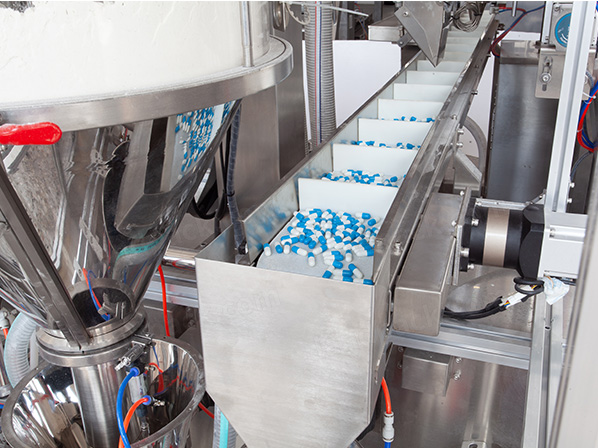

	Stable and Hygienic Product Conveying The lifting conveyor of the L type transports tablets and capsules without breaking. The powder hopper ensures a consistent powder flow, which reduces the chance of bridging, and also ensuring a uniform feed in high-speed operations.

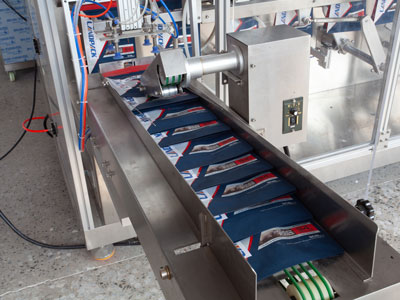

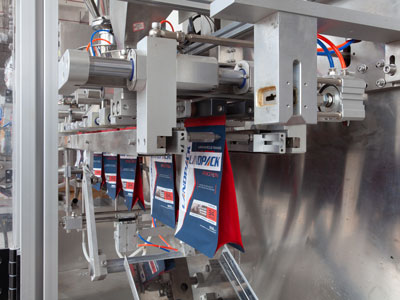

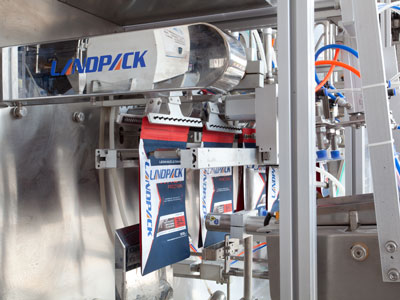

	Intelligent Bag Handling & Error Prevention The horizontal pouch packing machine is equipped with automated pouch opening and detection and reject, to ensure that the proper pouch positioning.

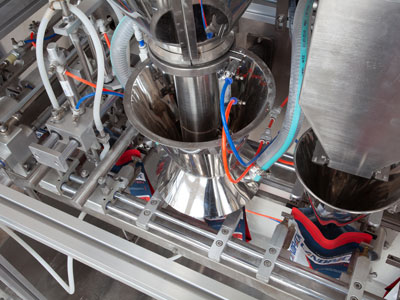

	Precision Counting & Dosing Control Every channel in the system separately controls the flow of product to ensure high accuracy. Meanwhile, the powder filler employs a servo-driven system of measuring to provide high-quality, stable dosing. Ideal for supplement or pharmaceutical products.
	Integrated Coding and Traceability The inkjet printer can support real-time printing of batches numbers, production dates, as well as traceability codes. The precise and clear coding helps improve the compliance of pharmaceutical as well as nutraceutical packages.
	Flexible Compatibility With a Variety of pre-made pouches The machine can be used with zipper pouches, flat pouches stand-up bags and the spout pouches.
