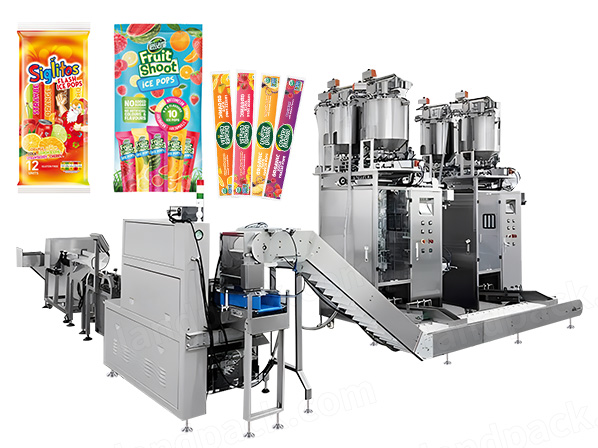

Multi-Lane Jelly Ice Lollies Stick Packing Machine Stick Cartoning System

Application:

Automatic Multi Lane Jelly Ice Lollies Stick Packing Machine Stick Cartoning System is suitable for liquid products, such as ice lollies, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Automatically performs measuring, bag-making, sealing, cutting, counting, and includes a conveyor with metal/weight detection

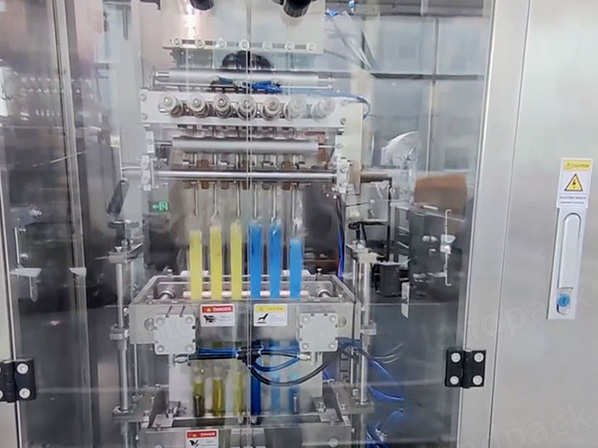

2. Multi-barrel piston pump system ensures precise measurement for various jelly flavors

3. Protective covers conceal all heating and moving components

4. Stainless steel material contact surfaces meet pharmaceutical and food safety standards

5. Built-in casters enable easy equipment relocation

6. Multiple alarm systems minimize material waste and ensure operational safety

Application:

Automatic Multi Lane Jelly Ice Lollies Stick Packing Machine Stick Cartoning System is suitable for liquid products, such as ice lollies, shower gel, fruit juice, honey, milk, mouthwash, sauce, jam, jelly, etc.

Videos Introduction:

Specification:

Multi Lane Stick Packing Machine Parameters
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Flow Pack Machine Parameters
Model	LP-350	LP-400	LP-450	LP-600	LP-700
Film Width	Max.350mm	Max.400mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-330mm	150-400mm	150-450mm	160-500mm	180-600mm
Bag Width	50-160mm	50-180mm	50-180mm	100-280mm	100-330mm
Products High	Max.60mm	Max.65mm	Max.75mm	Max.110mm	Max.110mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-180bag/min	30-150bag/min	30-150bag/min	20-150bag/min	20-130bag/min
Power	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Power	2.6KW	2.8KW	2.8KW	2.8KW	2.8KW
Machine Size	40307701420	40307701420	40308201420	40309701500	403010701500
(LWH)mm	40307701420	40307701420	40308201420	40309701500	403010701500
Machine Weight	About 580kg	About 600kg	About 650kg	About 680kg	About 720kg
Optional Devices	1.Lateral feed device, 2.Straight feed device, 3.Belt material conveyor,
	4.End sealing auxiliary conveyor, 5.Auxiliary material feeding device, 6.Materia cut prevent device,
	7.Perforating device, 8.Angle folding device, 9.Date Printer, 10.Labelling machine

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
