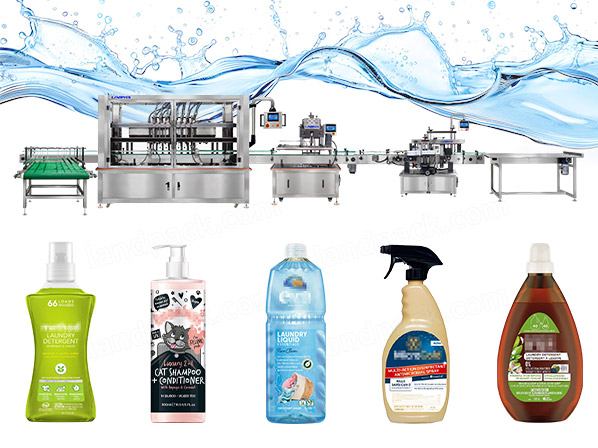

Automatic Lotion Gel Detergent Shampoo Liquid Soap Filling Bottling Capping and Labeling Machine

Application:

This liquid filling capping and labeling machine is suitable for a wide range of liquid and semi-liquid products such as shampoo, detergent, liquid soap, hand wash, fabric softener, lotion, cream, body wash, skincare liquid, sauce, syrup, honey.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

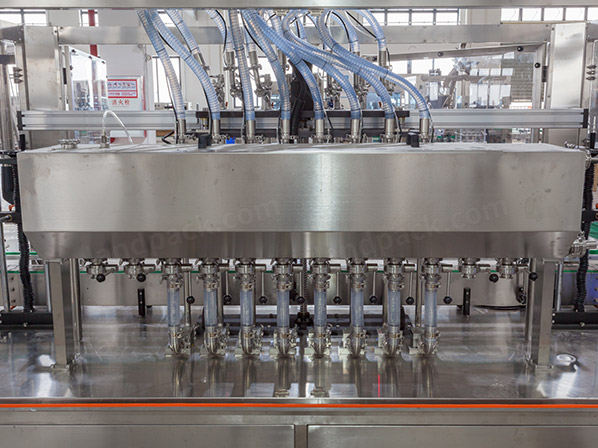

Video:

Application:

The liquid filling capping and labeling machine is suitable for filling and packaging various bottle types, including round bottles, square bottles and flat bottles made of PET, PE or HDPE materials. Different bottle sizes can be adjusted directly on the machine without changing molds.

Machine Details:

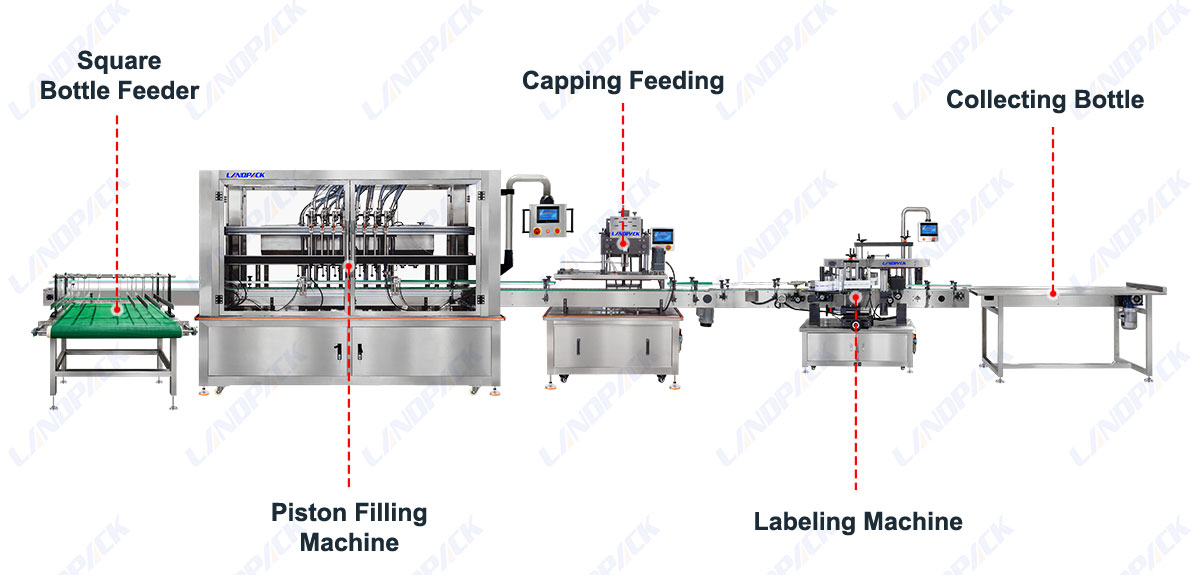

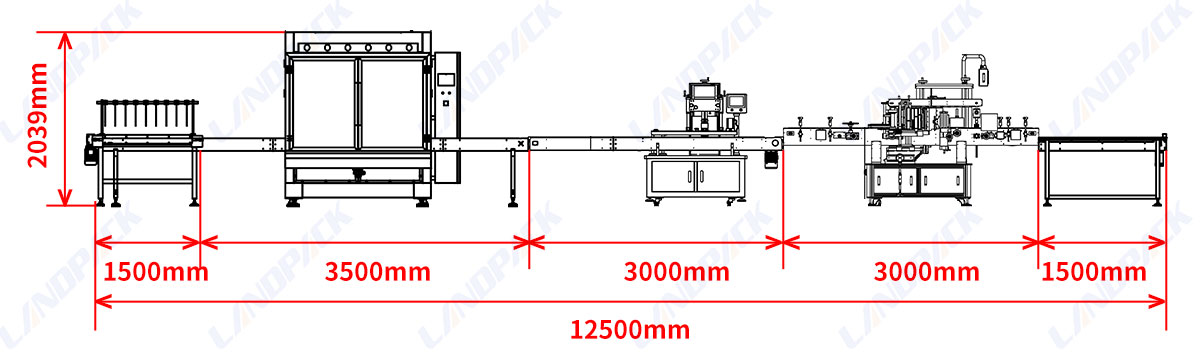

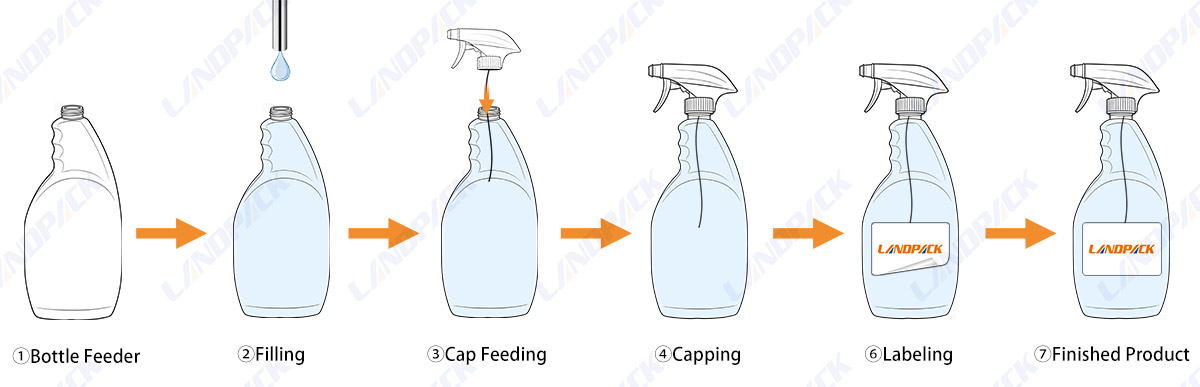

Working Process

1. Bottle unscrambling → Automatic bottle feeding → 8-head filling → Cap feeding → Automatic capping → Double-side labeling → Finished product collection

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Liquid Filling Machine
Number of filling nozzles	2 Nozzle	4 Nozzle	8 Nozzle
Filling range	1000-5000ml
Filling speed	≤1800 bph	≤2500 bph	≤6000 bph
Measurement accuracy	≤±1%
Power	3.2KW	7.2KW	9.8KW
Voltage	AC380V 50-60HZ
Air pressure	0.5 - 0.7 Mpa
Dimension	180015002200mm	220016002200mm	460018002200mm
Weight	About 600kg	About 1000kg	About 2000kg
Automatic Bottle Capping Machine
Model	LFX-JX-01 (Four wheel capping	LFX-GS-150 (Eight wheel capping)	LFX-GS-250 (Six wheel capping)
Capacity	20-50 bottles/min	40-100 bottles/min	30-80 bottles/min
Bottle cap diameter	Ф22mm-Ф80mm	Ф18mm-Ф80mm	Ф18mm-Ф80mm
Bottle diameter	Ф35mm-Ф140mm	Ф35mm-Ф140mm	Ф35mm-Ф140mm
Bottle sealing height	38mm-300mm	38mm-300mm	38mm-300mm
Power	1.5KW	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
Weight	250kg	350kg	300kg
Dimensions	H3000W800L1600 mm	H3120W1544L2122 mm	H3100W1244L2122 mm
Automatic Labeling Machine
Model	LFT-SM-200C(double heads labeling)	LFT-SM-100C(Single heads labeling)
Labeling speed	10-40 bottles/min	5-20 bottles/min
Labeling accuracy	±1mm	±1mm
Label maximum width	200mm (Could be customized)	150mm(Could be customized)
Size of the object being attached	Height≤400mm; Thickness≤100mm
Label lD	Ф76.2mm	Ф25.4mm
Label OD	MaxФ330mm	MaxФ230mm
Voltage	220V, 50HZ	220V, 50HZ
Power	3.5KW	2.5KW
Weight	500kg	400kg
Dimension	L3002W1478H1810mm	L2950W1400H1810mm

Features:

1. Bottle unscrambler works for both round and square bottles, easy to adjust for different sizes.

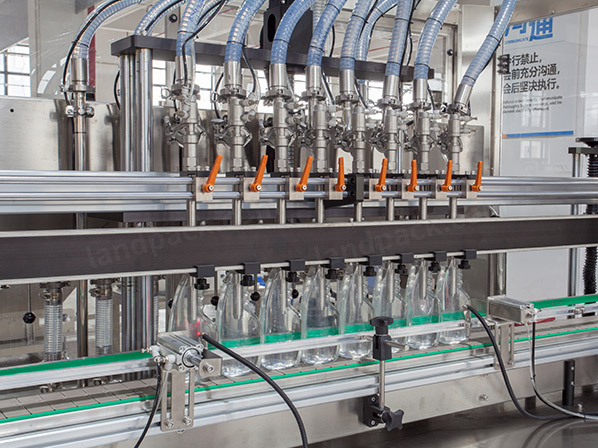

2. Servo-driven gear pump filling system gives stable filling accuracy without volume limitation.

3. Linear filling structure handles different bottle sizes without changing molds.

4. Four-wheel capping machine fits different screw caps, only simple adjustment needed.

5. Double-side labeling machine supports one-side, two-side and round bottle labeling in one machine.

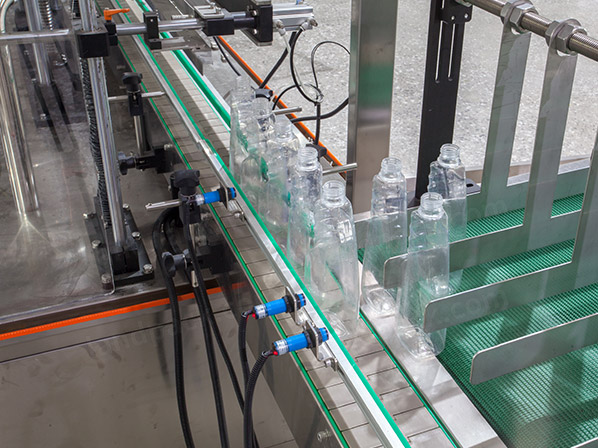

6. Bottle sensor system with no bottle no filling / no capping / no labeling function for stable running.
