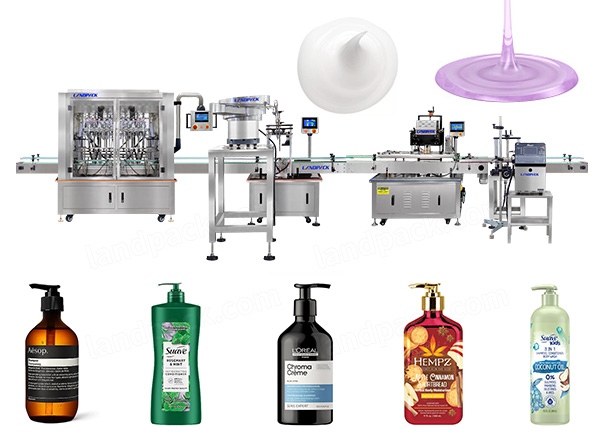

Shampoo Bottle Filling Machine For 100ml 200ml 300ml 400ml 500ml 750ml 1L Etc

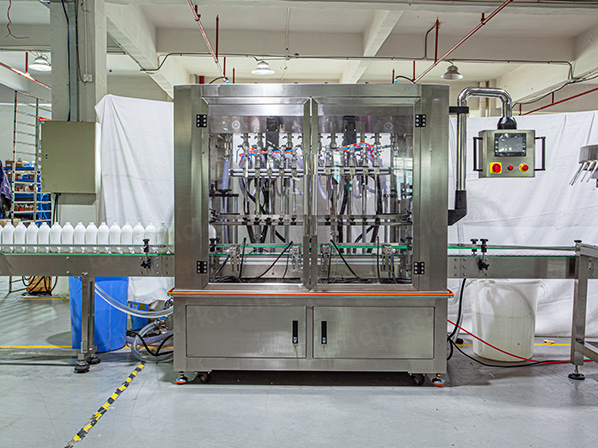

1. 10‑Head Gear Pump Filling: Uses precision gear pumps for volumetric filling; Divided into two independent groups (each of 5 heads) with separate feed tanks—allowing simultaneous filling of two different products.

2. Bottom‑Up (Dipping) Nozzle to Reduce Bubbles: Filling nozzles rise during filling, minimizing air entrapment and foam.

3. Automatic Cap Feeding & Capping: Vibratory cap feeder and mechanical arm place caps, followed by an automatic four-wheel capping station—reducing manual labor.

4. Ink‑Jet Coding on Bottle Bottom: Integrated bottle clamping conveyor with ink-jet printer ensures traceability and compliance.

5. No‑Bottle, No‑Fill Protection: Equipped with sensors to halt filling if no bottle is detected.

6. High Filling Accuracy & Easy Adjustment: Precision gear pumps ensure ±1% accuracy; user can store multiple fill recipes.

7. Food/Pharma-Grade Stainless Steel Construction: Contact parts made of 304/316L stainless steel—fully cleanable and compliant with GMP/hygiene standards.

8. PLC Touchscreen Control: Centralized control with recipe storage, real-time monitoring, and fault alerts.

Ideal for filling and capping small- to medium-size bottles (100 ml–1 L) across multiple industries: Cosmetics & Personal Care: shampoo, conditioner, body wash; Daily Chemicals: liquid soap, dishwashing, laundry detergent; Food & Beverages: sauces, oils, syrups, honey, essential oils ; Pharmaceuticals & Healthcare: oral liquids, sanitizers.

1.Bottle Feeding: Bottles conveyed into the filling station.

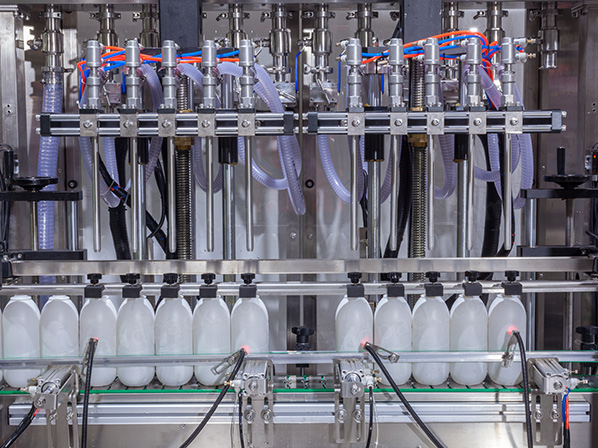

2.Gear-Pump Filling: 10 nozzles, two groups of 5, bottom-up filling ensures minimal bubbles.

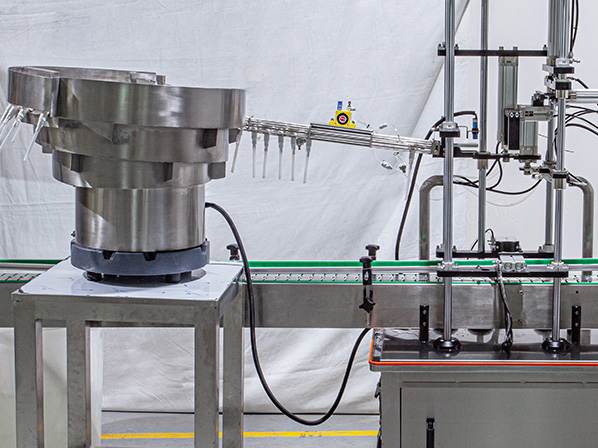

3.Cap Delivery: Vibratory feeder sorts caps; mechanical arm places on bottles.

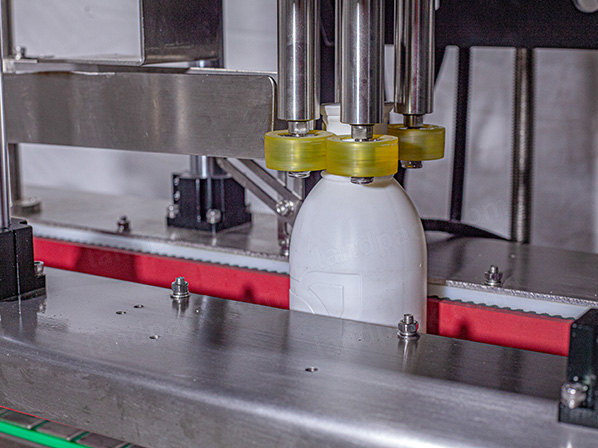

4. Automated Four-Wheel Capping: Secures caps efficiently.

5. Ink‑Jet Coding & Discharging: Clamping conveyor prints batch/date codes on bottle bottoms before output.
