Application:

This fully automated liquid filling line is ideal for a wide range of personal care, cosmetic, and household liquid products. It handles hair care oils, essential oils, serums, shampoos, liquid soaps, hand sanitizers, and lotion-based products, ensuring accurate dosing and clean packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This liquid filling line is compatible with a wide range of container types to meet diverse market needs. It handles bottles, jars, tins, and cans made from PET, HDPE, glass, or aluminum, providing flexibility for both cosmetic and household liquid products.

Wide Application Range

This fully automatic filling line is widely used for a broad range of liquid and semi-liquid products across personal care, household chemicals, and food industries. With precise dosing, stable bottle handling, and flexible compatibility with different viscosities, it supports both daily chemical products and viscous food-grade materials with equal reliability. Common product categories include:

Personal Care & Cosmetic Liquids

• Hair Essential Oil, Hair Serum, Repair Essence

• Facial Serum, Botanical Oils, Vitamin E Oil

• Massage Oil, Fragrance Oil, Cuticle Oil

Household Chemical Liquids

• Laundry Detergent

• Hand Soap / Hand Wash

• Dishwashing Liquid

Food & Condiment Products

• Syrup (Fruit Syrup, Glucose Syrup, Herbal Syrup)
• Sauces (Soy Sauce, Chili Sauce, BBQ Sauce, Dressings)

• Liquid Seasonings

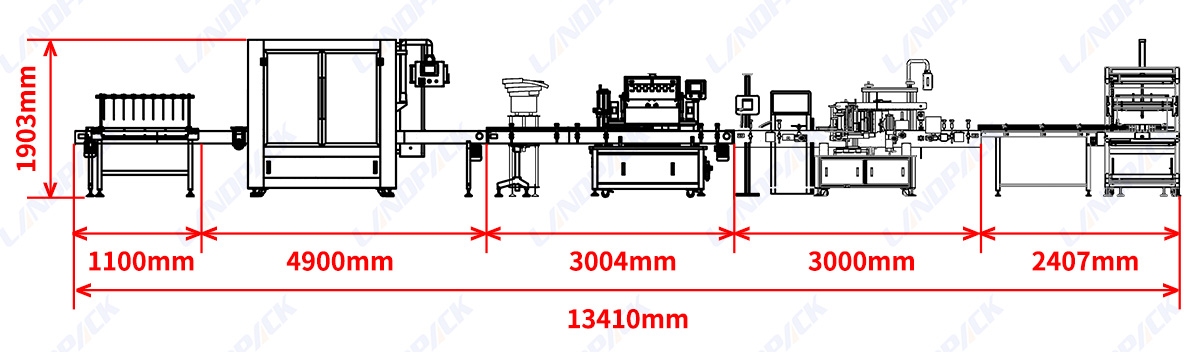

Machine Details:

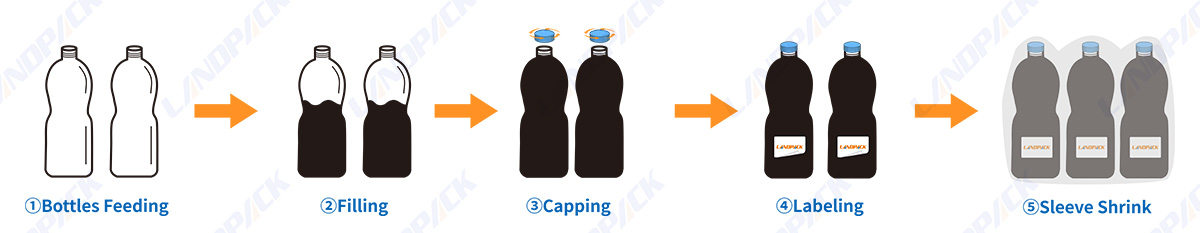

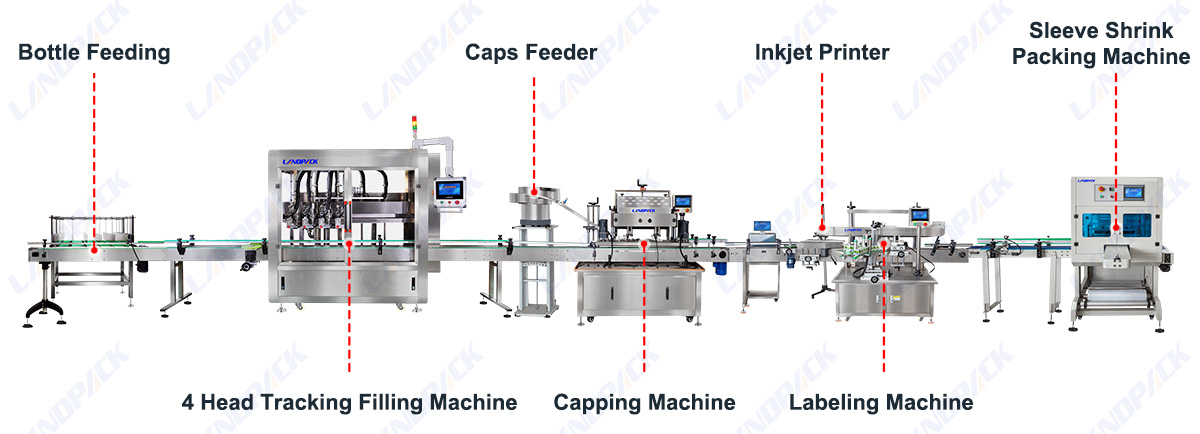

Working Process

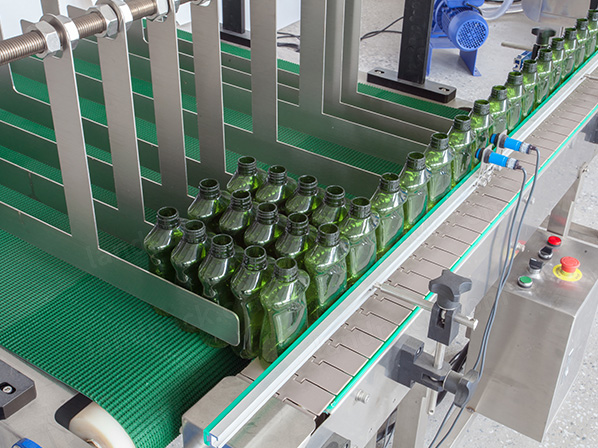

1. Empty bottle feeding belt → 2. 4 head tracking filling machine → 3. Automatic caps feeder and Automatic capping machine → 4. Automatic double heads labeling machine → 5. Inkjet Printer → 6. Inkjet coding → 7. Customized device to change the direction → 8. Automatic sleeve shrink packing machine

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Liquid Tracking Filling Machine
Number of filling nozzles	2 Nozzle	4 Nozzle	8 Nozzle
Filling range	1000-5000ml
Filling speed	≤1800 bph	≤2500 bph	≤6000 bph
Measurement accuracy	≤±1%
Power	3.2KW	7.2KW	9.8KW
Voltage	AC380V 50-60HZ
Air pressure	0.5 - 0.7 Mpa
Dimension	180015002200mm	220016002200mm	460018002200mm
Weight	About 600kg	About 1000kg	About 2000kg
Automatic Bottle Capping Machine
Model	LFX-JX-01 (Four wheel capping	LFX-GS-150 (Eight wheel capping)	LFX-GS-250 (Six wheel capping)
Capacity	20-50 bottles/min	40-100 bottles/min	30-80 bottles/min
Bottle cap diameter	Ф22mm-Ф80mm	Ф18mm-Ф80mm	Ф18mm-Ф80mm
Bottle diameter	Ф35mm-Ф140mm	Ф35mm-Ф140mm	Ф35mm-Ф140mm
Bottle sealing height	38mm-300mm	38mm-300mm	38mm-300mm
Power	1.5KW	2KW	1.5KW
Voltage	220V, 50HZ	220V, 50HZ	220V, 50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
Weight	250kg	350kg	300kg
Dimensions	H3000W800L1600 mm	H3120W1544L2122 mm	H3100W1244L2122 mm
Automatic Labeling Machine
Model	LFT-SM-200C(double heads labeling)	LFT-SM-100C(Single heads labeling)
Labeling speed	10-40 bottles/min	5-20 bottles/min
Labeling accuracy	±1mm	±1mm
Label maximum width	200mm (Could be customized)	150mm(Could be customized)
Size of the object being attached	Height≤400mm; Thickness≤100mm
Label lD	Ф76.2mm	Ф25.4mm
Label OD	MaxФ330mm	MaxФ230mm
Voltage	220V, 50HZ	220V, 50HZ
Power	3.5KW	2.5KW
Weight	500kg	400kg
Dimension	L3002W1478H1810mm	L2950W1400H1810mm
Shrink Wrapping Machine
Voltage	Sleeve machine 220V can be customized, the shrink machine must be 380V
Power	1.3KW/18KW
Sleeve machine packing size	Max 420330330mm, Min 2506060mm
Packing speed	0-6 pieces/min
Tunnel size	1500600400 mm
Tunnel out dimension	25008501520 mm
Sleeve out dimension	1500600402 mm

Features:

Machine Image	Benefits

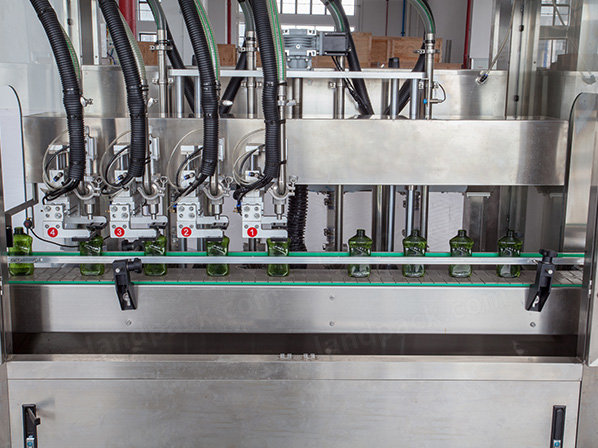

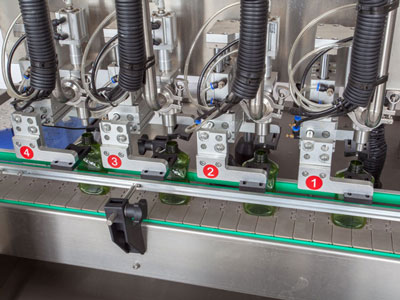

	Servo-Controlled Filling, Lifting & Tracking for High Precision The filling, lifting, and tracking systems are fully driven by servo motors, ensuring exceptional stability and accuracy for essential oils, serums, and other liquid products, even at high-speed production.

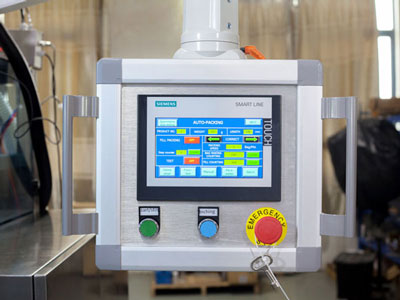

	Tool-Free Adjustment with Intelligent Parameter Setting Filling speed and volume can be set directly on the touchscreen without mechanical adjustments, enabling faster changeovers, precise dosing control, and greater flexibility for various bottle sizes and product viscosities.

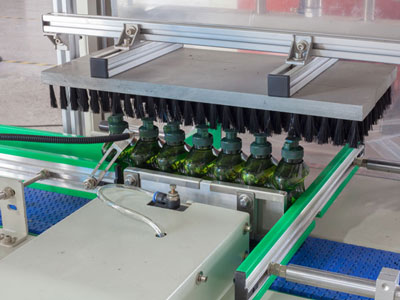

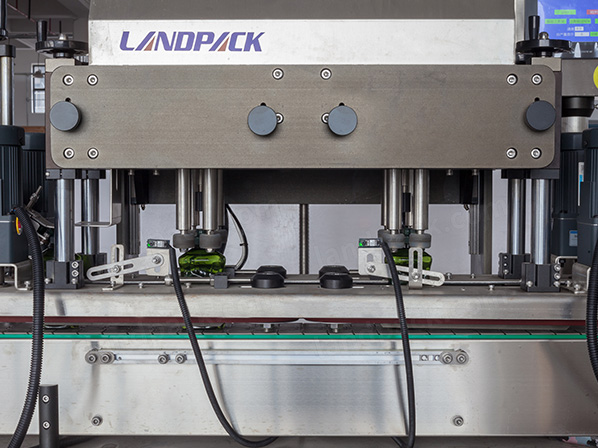

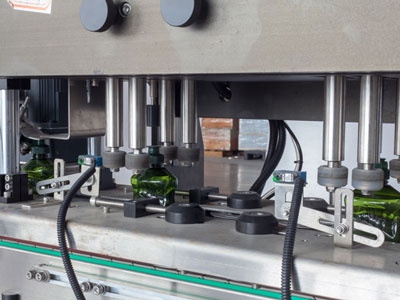

	Automated Cap Feeding & Capping to Reduce Labor Costs The full-automatic cap feeding and capping system delivers stable, consistent sealing for different closure types while significantly reducing manual handling and improving overall production efficiency.

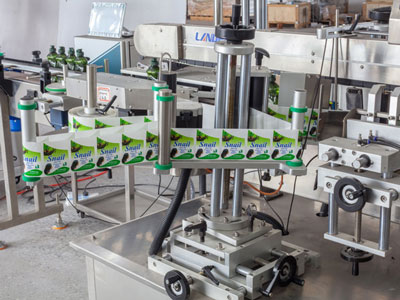

	Dual-Side Labeling for Multiple Bottle Shapes The double-sided labeling machine supports both round and square bottles, ensuring accurate label placement, enhanced branding display, and a professional retail-ready appearance.

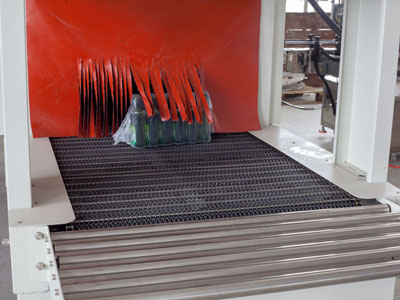

	Heat Shrink Tunnel for Secure & Attractive Packaging The heat-shrink tunnel applies controlled heating to shrink sleeves tightly onto bottles, providing tamper evidence, improved product protection, and a clean, high-end packaging finish.
	Integrated Coding & Modular Line Design for Broad Compatibility The system seamlessly incorporates coding, bottle feeding, capping, labeling, and shrink packaging into one modular line, supporting a wide range of cosmetic, personal-care, and household liquid products with high reliability and easy maintenance.
