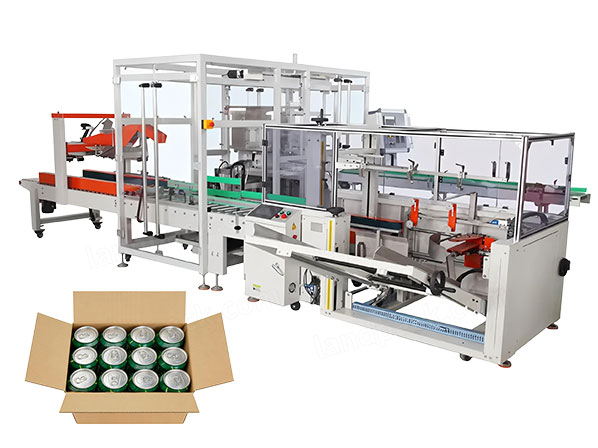

Case Packing Robot Automatic Grab Type Compact Shipping Case Erector and Packer

Application:

Suitable for food and daily chemical packaging applications, this end-of-line packaging system supports continuous carton handling, automatic product arrangement and integrated secondary packaging operations..

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This automatic end-of-line case packing system is designed for carton erecting, robotic case packing, carton sealing and in-box inspection, and is widely used for secondary packaging of bottled beverages, canned drinks, dairy products, snack foods, biscuits, shampoo, detergent, cosmetic products, pharmaceutical products, pouches, trays, cartons and other consumer goods, while supporting integration with flow wrappers, shrink wrappers, filling machines and labeling machines for continuous automatic production.

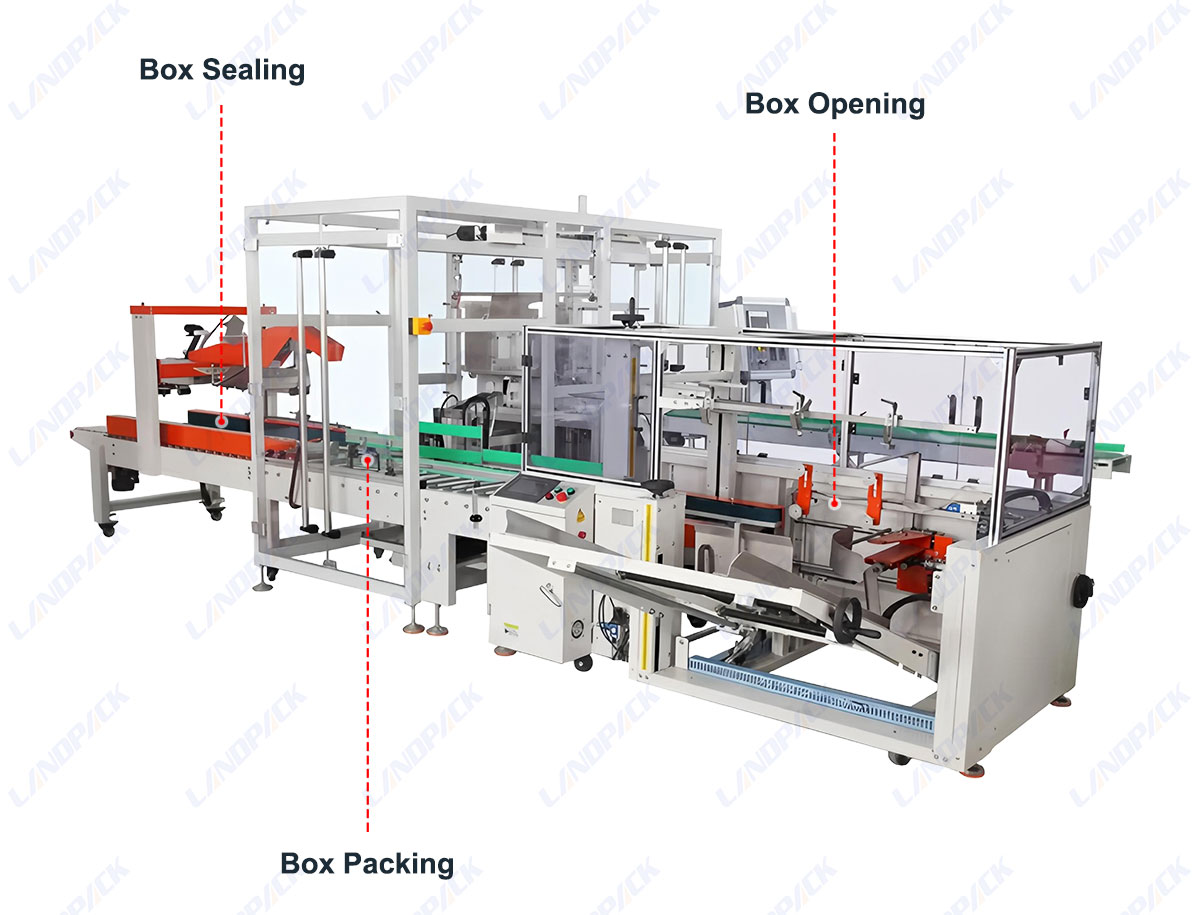

Machine Details:

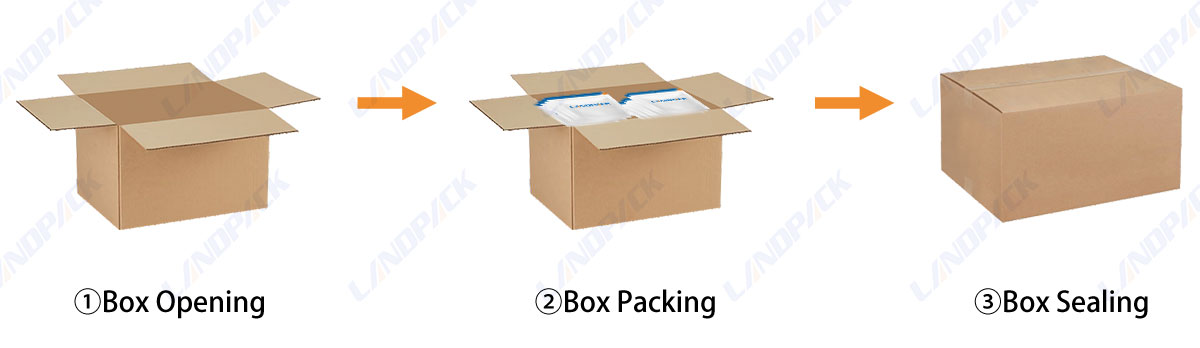

Working Process

1. Carton conveying → 2. Product Feeding → 3. Automatic case packing → 4. Carton sealing → 5. Carton transfer → 6. Finished pallet output

Specification

Model		LD-LLP550
Packing speed		≤5/min(depends on products)
Carton size	minimum	220150120
	maximum	600400400
Air compressed		≤1m³/hour 0.6mpa
Power supply		1.5kw 220/380v 50hz
Using tape		OPP, kraft paper
Machine Size(mm)		220016002400
Machine weight		1500kg
