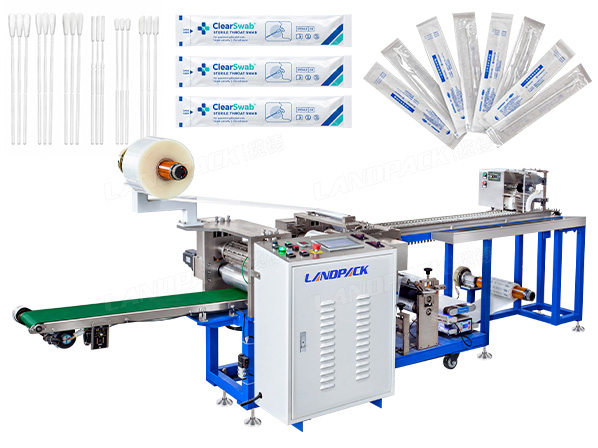

Fully Automatic Cotton Swab Packaging Machine Horizontal Flow Wrapping Machine

Application:

This cotton swab packaging machine is suitable for packaging throat swabs, cotton swabs, and other compatible elongated or regularly arranged products. It can be used by medical consumables manufacturers, laboratory supply producers, and hygiene product suppliers.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Suitable for sachet packaging using roll film, designed for individually wrapping throat swabs and cotton swabs. The machine forms, seals, and cuts the film into individual sachets. The final sachet size, film material, and sealing style should be confirmed according to the actual machine configuration..

Machine Details:

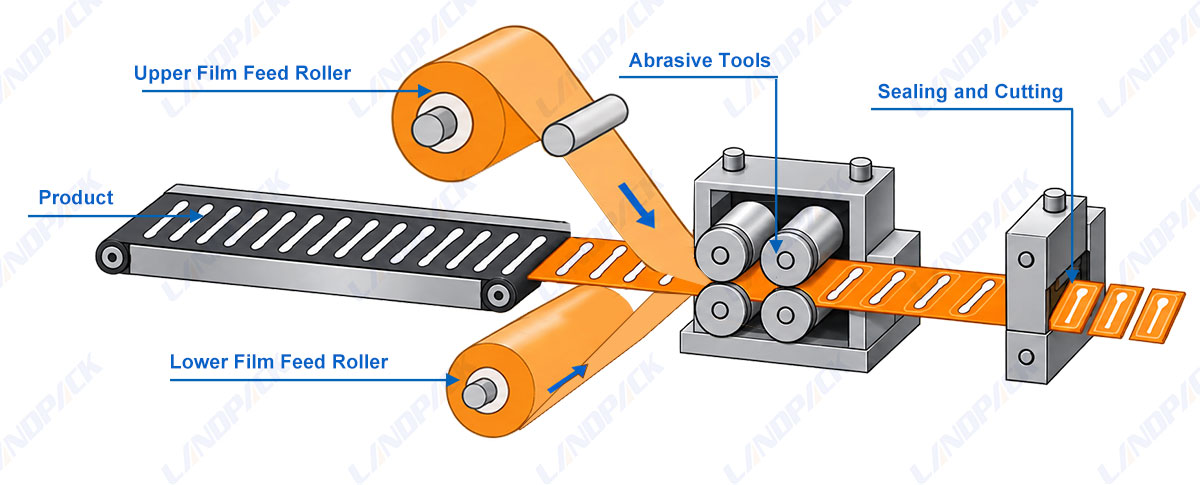

Working Process

1. Upper & Lower Film Feeding → Automatic Swab Feeding → Swab Positioning → Film Forming → Precision Roller Sealing → Film Pulling → High-Speed Cutting → Finished Swab Pack Output

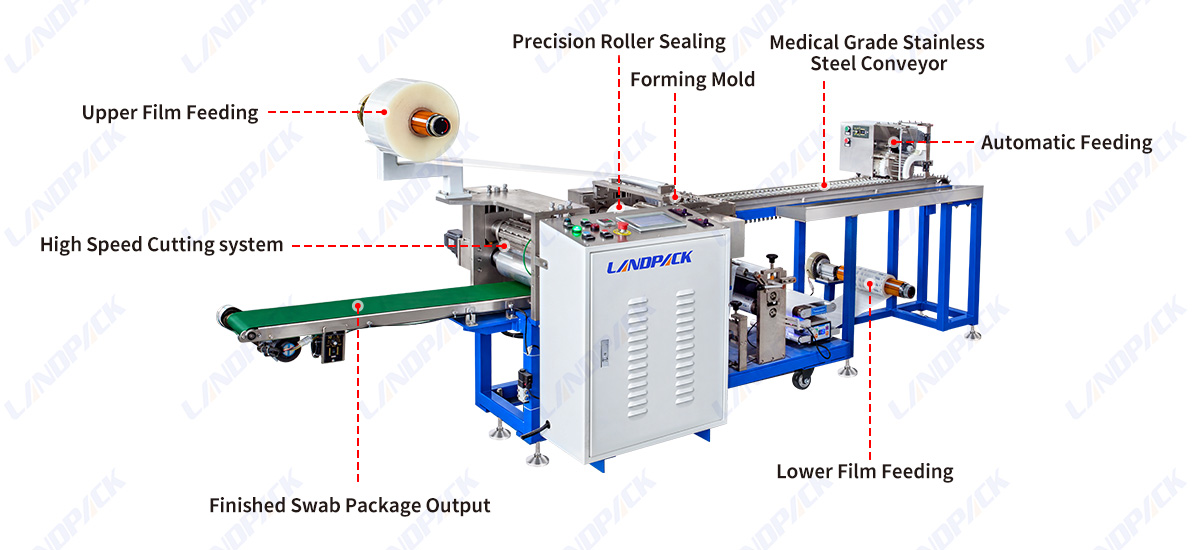

Key Component

Specification

Model	LP-350	LP-420	LP-450	LP-600	LP-700
Film Width	Max.350mm	Max.420mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-330mm	150-420mm	150-450mm	160-500mm	180-600mm
Bag Width	50-160mm	50-180mm	50-180mm	100-280mm	100-330mm
Products High	Max.60mm	Max.65mm	Max.75mm	Max.110mm	Max.110mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-180 bags/min	30-150 bags/min	30-150 bags/min	20-150 bags/min	20-130 bags/min
Power	220V, 50/60Hz, 2.6KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW
Machine Size(LWH)mm	40307701420	40307701420	40308201420	40309701500	403010701500
Machine Weight	About 580kg	About 600kg	About 650kg	About 680kg	About 720kg
Optional Devices	1. Lateral feed device, 2. Straight feed device, 3. Belt material conveyor, 4. End sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Materia cut prevent device, 7. Perforating device, 8. Angle folding device, 9. Date Printer, 10.Labeling machine

Features:

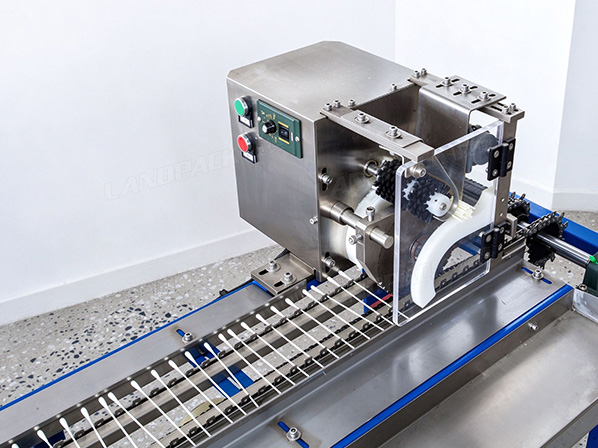

1. Automatic Swab Feeder: Customized feeding system supports continuous swab loading, with a loading rate of up to 95% under specified settings.

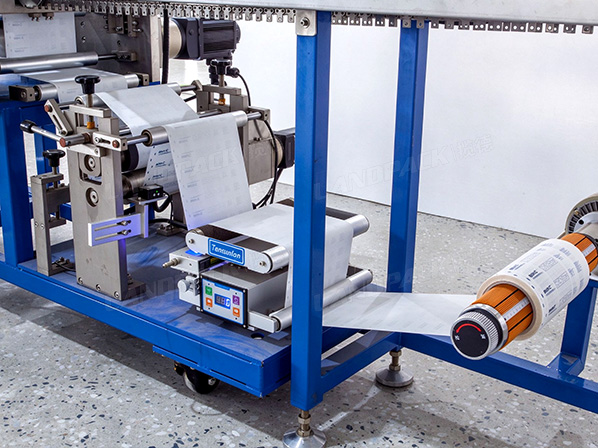

2. Dual Film Feeding: Upper and lower film feeding systems supply two layers of roll film for forming and sealing.

3. Durable Sealing Mold: P20 steel sealing roller mold with hard chrome treatment offers wear and corrosion resistance.

4. High-Precision Sealing Mold: Machining tolerance is within 0.01 mm for the confirmed machine configuration.

5. Automatic Film Alignment: Corrects film position during operation to maintain consistent packaging alignment.

6. Photoelectric Color Mark Tracking: Supports single-side color marks and double-side printed film, with registration deviation of approximately 3–4 mm under specified settings.

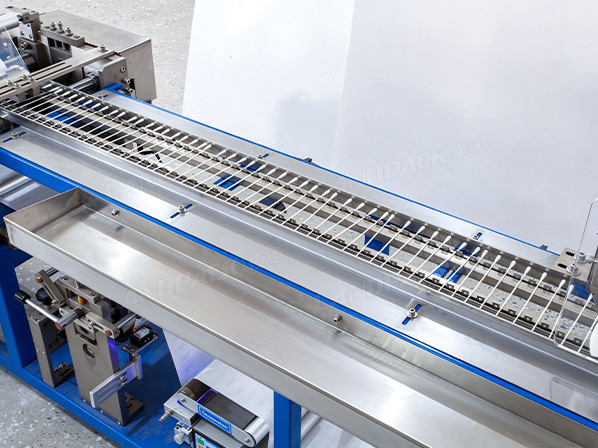

7. Reliable Conveying and Cutting: A 304 stainless steel conveyor chain transports swabs, while a high-speed steel knife cuts finished packs cleanly.

8. Labor-Saving Operation: The automatic feeding system allows one operator to manage one machine under the configured production setup.
