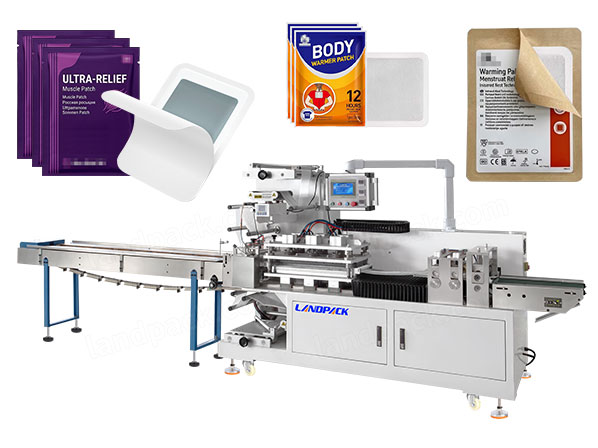

Automatic Four Side Sealing Flow Wrapping Machine | Ointment Patch Packing Machine

Application:

This Four Side Sealing Packing Machine is suitable for packaging ointment patches and other compatible flat products used in medical care, personal care, and daily applications such as ointment patches, pain relief patches, cooling patches, fever patches, herbal patches, medical dressings, adhesive patches, and other compatible flat products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

Designed for sachet packaging with four-side sealing, suitable for individually wrapping ointment patches and other compatible flat products. Compatible film options may include laminated composite films, subject to the machine's sealing system and material requirements.

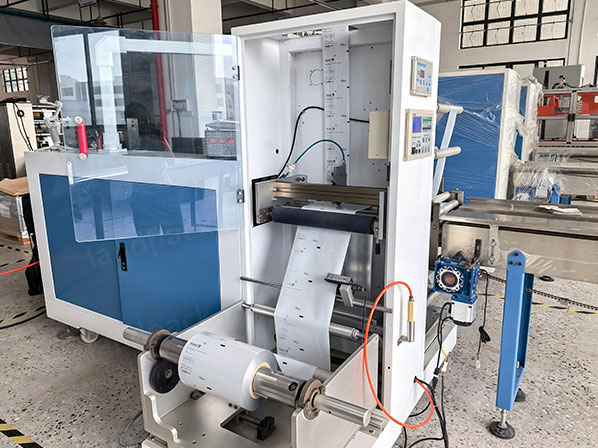

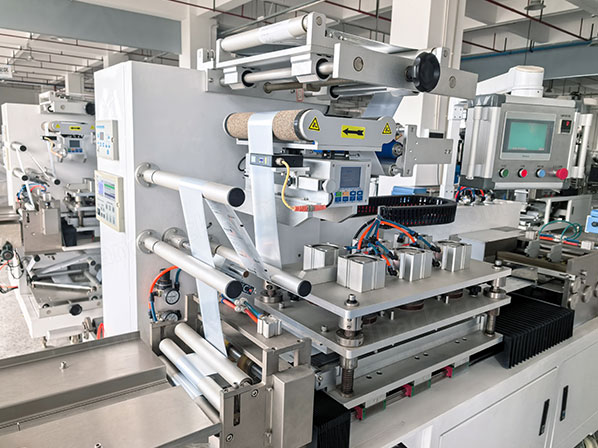

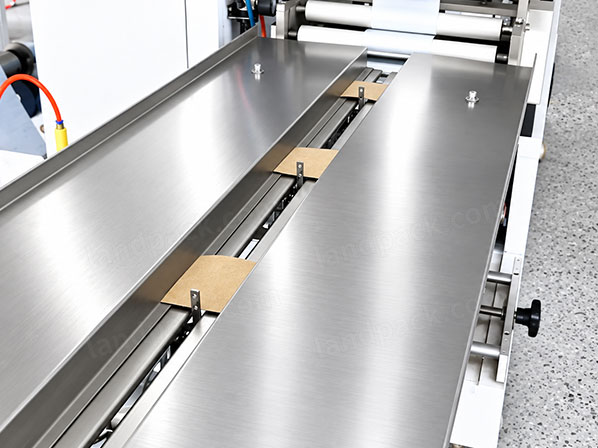

Machine Details:

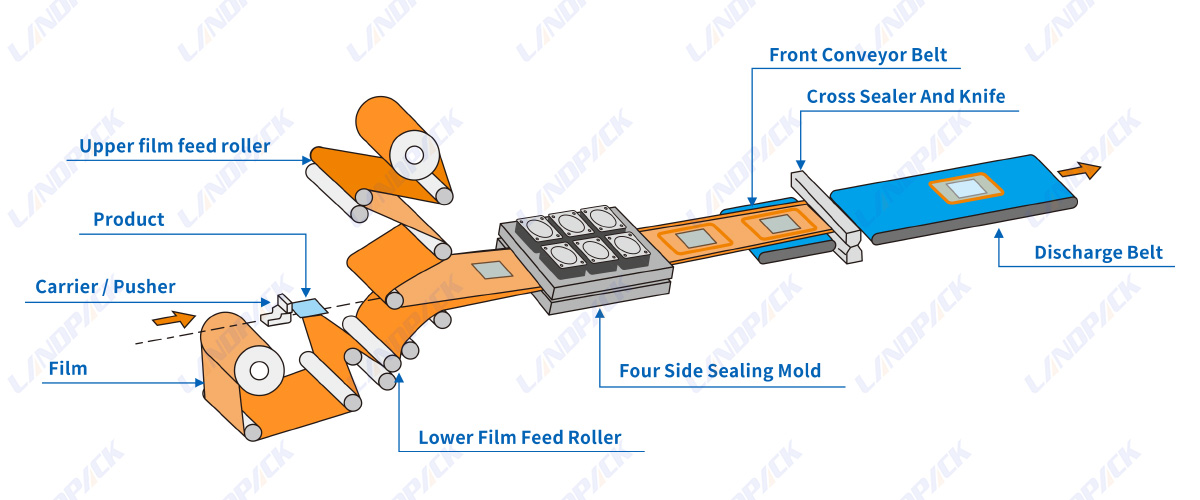

Working Process

1. Film Pulling and Bag Forming → Rear Pusher Feeding → Mold Forming → Film Pulling and Cutting → Output Conveyor

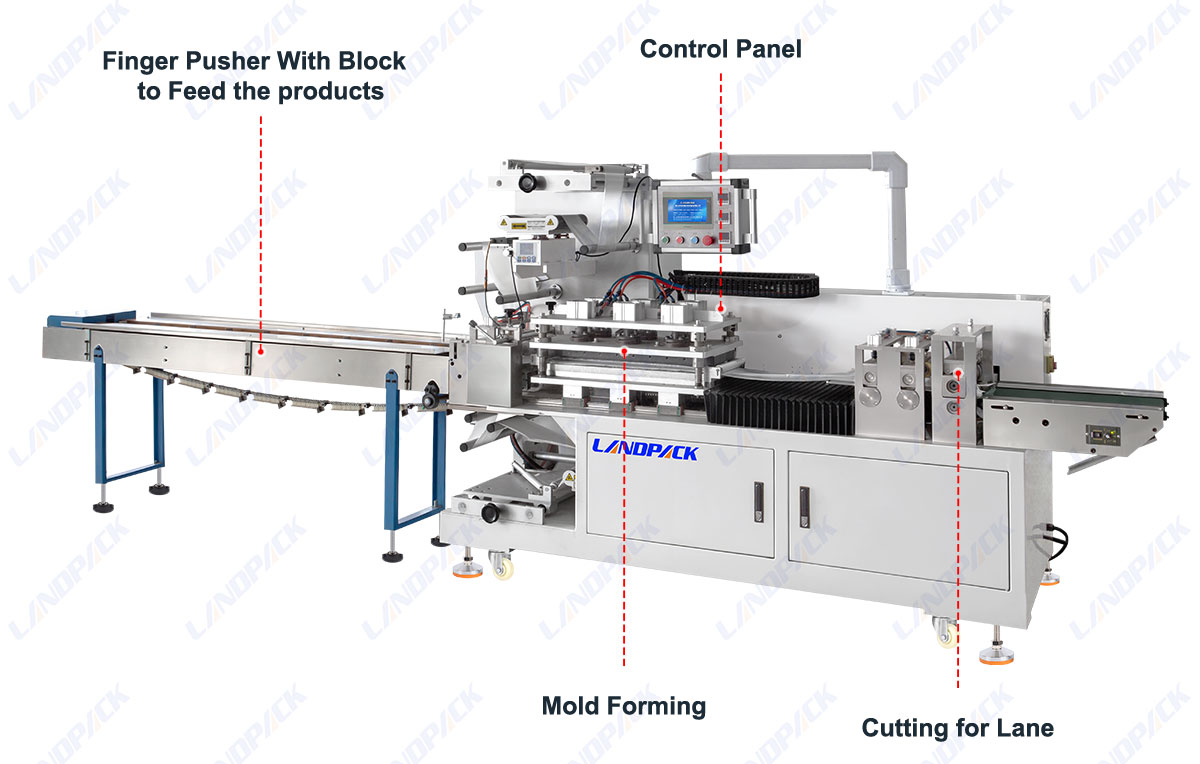

Key Component

Specification

Model	LP-350	LP-420	LP-450	LP-600	LP-700
Film Width	Max.350mm	Max.420mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-330mm	150-420mm	150-450mm	160-500mm	180-600mm
Bag Width	50-160mm	50-180mm	50-180mm	100-280mm	100-330mm
Products High	Max.60mm	Max.65mm	Max.75mm	Max.110mm	Max.110mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-180 bags/min	30-150 bags/min	30-150 bags/min	20-150 bags/min	20-130 bags/min
Power	220V, 50/60Hz, 2.6KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW	220V, 50/60Hz, 2.8KW
Machine Size(LWH)mm	40307701420	40307701420	40308201420	40309701500	403010701500
Machine Weight	About 580kg	About 600kg	About 650kg	About 680kg	About 720kg
Optional Devices	1. Lateral feed device, 2. Straight feed device, 3. Belt material conveyor, 4. End sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Materia cut prevent device, 7. Perforating device, 8. Angle folding device, 9. Date Printer, 10.Labeling machine

Features:

1. Five-Servo Drive System: Ensures stable operation with low noise, with machine noise ≤80 dB(A).

2. Stainless Steel Contact Parts: Product-contact parts are made of stainless steel to support hygienic packaging of plaster products.

3. Smart Touchscreen Control: Enables quick parameter setting and features built-in fault self-diagnosis with clear alarm displays.

4. High-Precision Color Mark Tracking: Photoelectric tracking and digital cutting-position settings help ensure accurate sealing and cutting.

5. Optional Dual-Film System: Supports four-side sealed bag production with a dual-film feeding configuration.

6. Independent PID Temperature Control: Adapts to compatible heat-sealable films, including ET+OPP, BOPP, CPP, and PET+AL.

7. Versatile Four-Side Sealing: Produces medical easy-tear sachets and paper-plastic composite bags with neat, firm seals.
