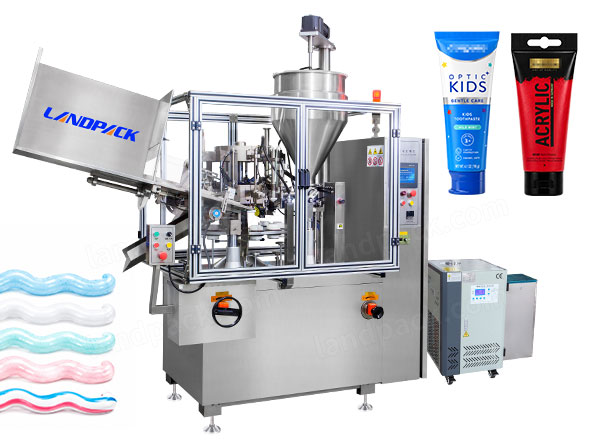

High-Speed Fully Automatic Toothpaste Plastic Tube Filling and Sealing Machine

Application:

The Plastic Tube Filling and Sealing Machine is designed for toothpaste, whitening toothpaste, children's toothpaste, gel toothpaste, dental gel, facial cream, eye cream, BB cream, cosmetic gel, facial cleanser, Hand cream, body cream, hair cream, skin cream, hair conditioner, Ointment, topical cream, medicated gel and compatible paste products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Plastic Tube Filling and Sealing Machine is suitable for plastic soft tubes and plastic-aluminum laminated tubes, aluminum tube with tube dimensions customized according to the actual product and package design.

Videos Introduction:

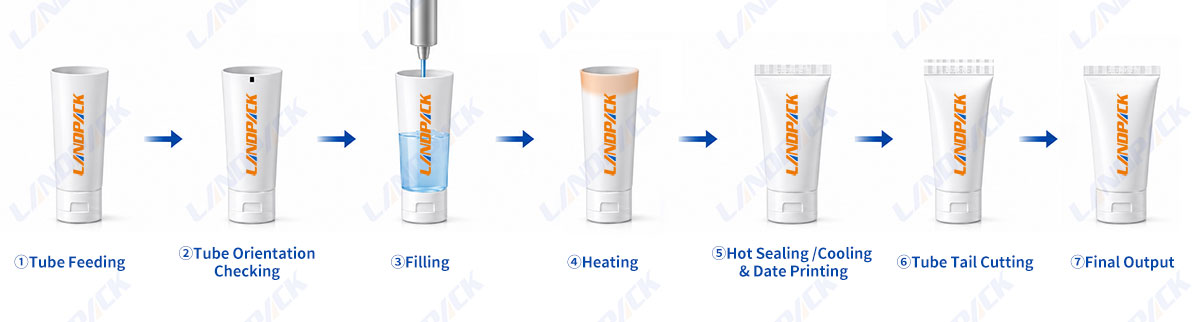

Working Process

1. Automatic Tube Feeding → Tube Loading → Photoelectric Color-Mark Positioning → Toothpaste Filling → Tube Tail Heating → Hot-Air Sealing → Batch Coding → Tail Trimming → Finished Tube Ejection

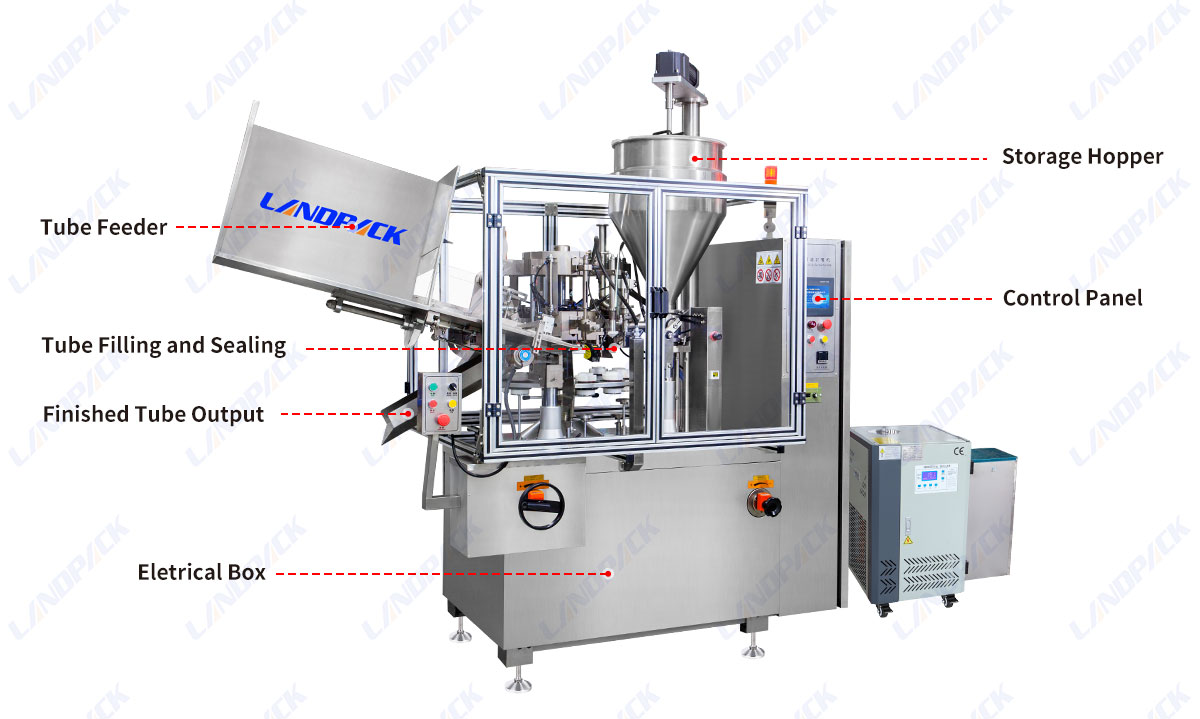

Key Component

Specification

Parameter / Model	LD-60L	LD-60F
Tube Material	Metal tube, Aluminum tube	Plastic tube, Composite tube
Tube Diameter	Φ10 - Φ42 mm	Φ10 - Φ60 mm
Tube Length	45 - 250 mm (Customizable)	45 - 250 mm (Customizable)
Filling Capacity	5 - 500 ml/tube (Adjustable)	5 - 500 ml/tube (Adjustable)
Filling Accuracy	≤ ±0.5%	≤ ±0.5%
Speed (r/min)	3 - 10 r/min	2.5 - 7 r/min
Production Capacity	60 - 80 tubes/min	60 - 80 tubes/min
Compressed Air	0.55 - 0.65 MPa	0.55 - 0.65 MPa
Motor Power	2 kW (380V / 220V 50Hz)	2 kW (380V / 220V 50Hz)
Heat Sealing Power	3.3 kW	3.3 kW
Overall Dimensions (mm)	2500×1200×2400	2500×1200×2400
Main Unit Weight	Approx. 1500 kg	Approx. 1500 kg

Features:

1. Hot-air heating system with chiller provides uniform heating and neat, consistent tube sealing.

2. Automatic tube feeding continuously loads empty tubes into the machine, reducing manual handling.

3. Production speed reaches 70–80 tubes/min, supporting higher-output toothpaste packaging.

4. Automatic quantitative filling provides accurate and consistent dosing for toothpaste, cream and paste products.

5. Photoelectric eye-mark detection accurately positions printed tubes before filling and sealing.

6. Hot-air sealing, batch coding and tail trimming are automatically completed for a clean finished tube appearance.

7. Anti-drip filling design helps keep the tube mouth and sealing area clean when handling viscous products.

8. PLC and touchscreen provide user-friendly control of filling, sealing, speed and operating parameters.
