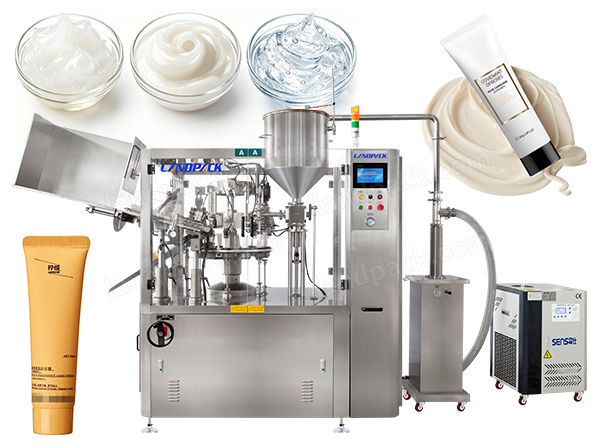

High-Speed Automatic Tooth Paste Cream Plastic Tube Filling and Sealing Machine

Application:

This Tube Filling Machine is widely used for toothpaste, facial cleanser, hand cream, moisturizing cream, sunscreen, cosmetic cream, BB cream, ointment, pharmaceutical cream, antibacterial gel, aloe vera gel, hair treatment cream, skin care products, medical gel, industrial paste products, adhesive products, and other cream, gel, paste, or semi-liquid materials packaged in plastic tubes and laminated tubes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

This Tube Filling Machine is suitable for plastic tubes, laminated tubes, cosmetic tubes, toothpaste tubes, pharmaceutical tubes, gel tubes, ointment tubes, sunscreen tubes, hand cream tubes, facial cleanser tubes, and other soft tube packaging formats.

Videos Introduction:

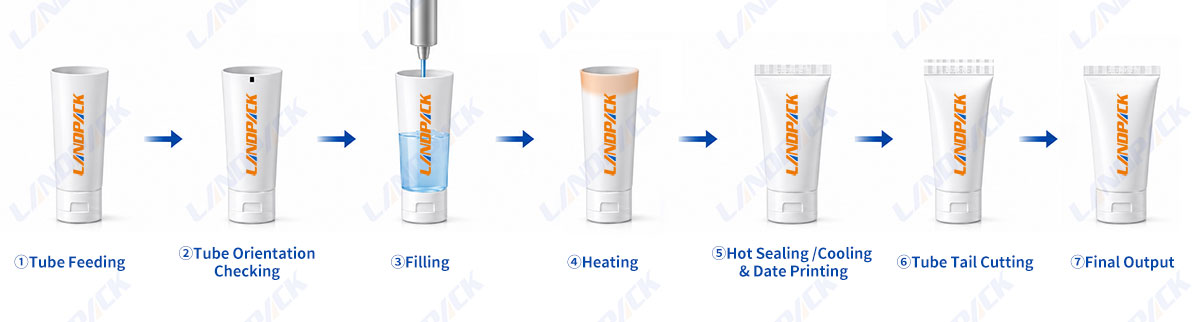

Working Process

1. Tube Loading → Tube Orientation → Tube Transfer → Product Filling → Tube Heating → Tube Sealing → Date Coding → Tail Trimming → Finished Product Output

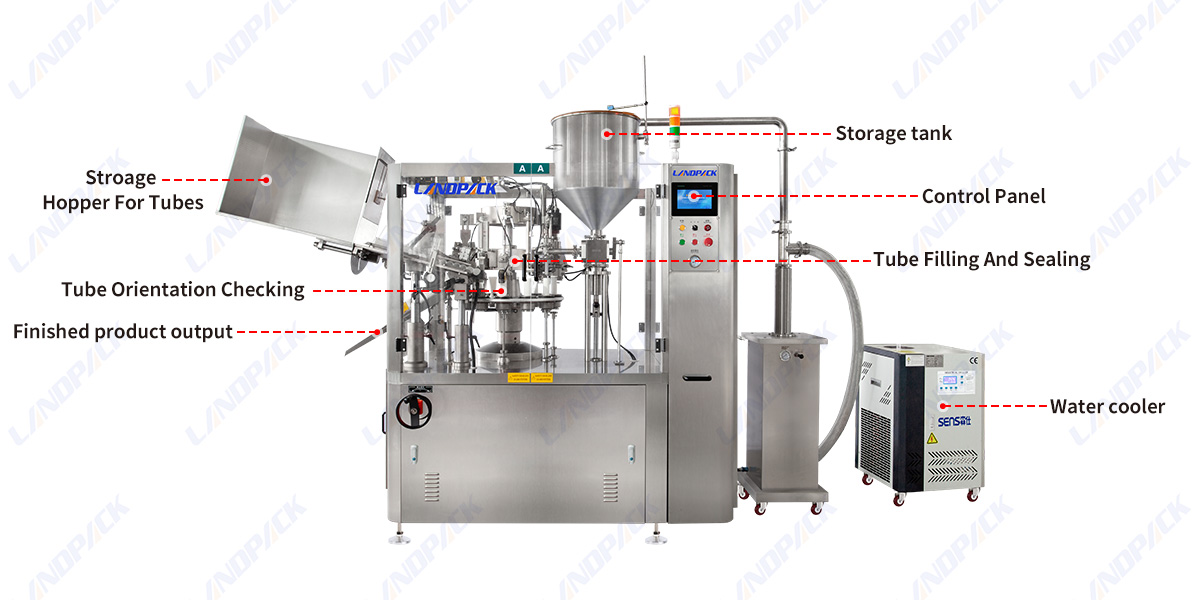

Key Component

Specification

Parameter / Model	LD-60L	LD-60F
Tube Material	Metal tube, Aluminum tube	Plastic tube, Composite tube
Tube Diameter	Φ10 - Φ42 mm	Φ10 - Φ60 mm
Tube Length	45 - 250 mm (Customizable)	45 - 250 mm (Customizable)
Filling Capacity	5 - 500 ml/tube (Adjustable)	5 - 500 ml/tube (Adjustable)
Filling Accuracy	≤ ±0.5%	≤ ±0.5%
Speed (r/min)	3 - 10 r/min	2.5 - 7 r/min
Production Capacity	60 - 80 tubes/min	60 - 80 tubes/min
Compressed Air	0.55 - 0.65 MPa	0.55 - 0.65 MPa
Motor Power	2 kW (380V / 220V 50Hz)	2 kW (380V / 220V 50Hz)
Heat Sealing Power	3.3 kW	3.3 kW
Overall Dimensions (mm)	2500×1200×2400	2500×1200×2400
Main Unit Weight	Approx. 1500 kg	Approx. 1500 kg

Features:

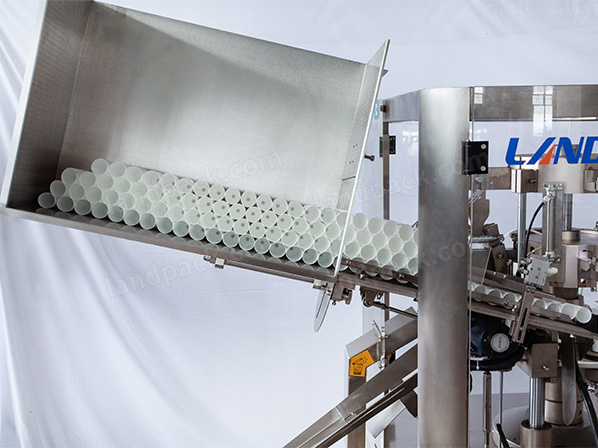

1. Automatic tube feeding and positioning system automatically loads tubes and aligns printed artwork through color mark detection.

2. Anti-reverse tube inspection detects incorrectly loaded tubes to improve production reliability.

3. High-speed production capacity reaches 70-80 tubes per minute, helping increase manufacturing efficiency.

4. Piston filling system is suitable for toothpaste, cream, gel, ointment, paint, putty, and other viscous products.

5. Product-contact parts are made of SS316 stainless steel, meeting food, cosmetic, and pharmaceutical production requirements.

6. Hot-air heating system combined with a water chiller delivers strong, smooth, and attractive tube seals.

7. Automatic date coding unit prints batch numbers and production information for product traceability.

8. PLC touchscreen control allows easy adjustment of filling volume, sealing temperature, production speed, and tube specifications.
