Fully Automatic Chemical Liquid Disinfectant Bottle Filling Capping Labeling Shrink Wrapping Line

Application:

This chemical filling machine is suitable for packaging various liquid chemical products, including disinfectants, sanitizers, alcohol-based cleaning liquids, bleach, floor cleaners, glass cleaners, toilet cleaners, kitchen cleaners, detergent liquids, fabric softeners, hand sanitizers, industrial cleaning chemicals, automotive care liquids, and other low-to-medium viscosity chemical products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Machine Details:

Working Process

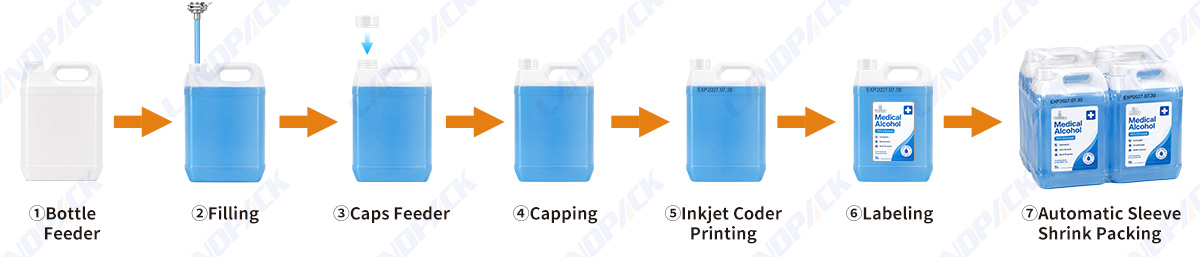

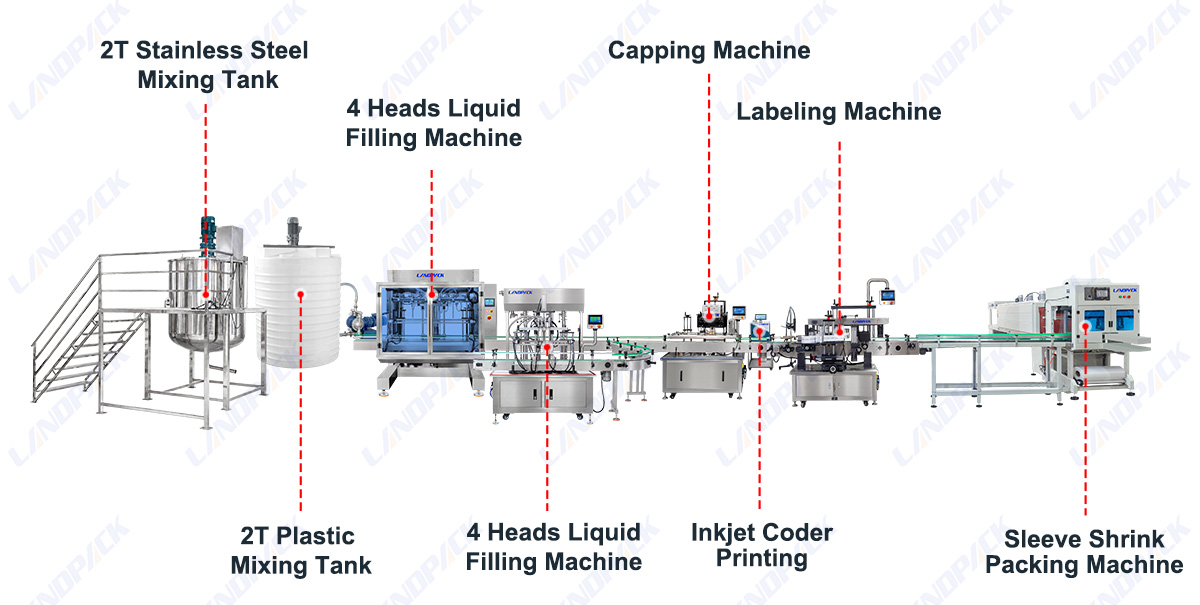

1. Filling → Conveyor Transfer → Manual Cap Placement → Four-Wheel Capping → Inkjet Coding → Labeling → Single/Double Side Labeling → Sleeve Wrapping → Counting & Heat Shrinking → Finished Product Output

Key Component

Specification

Mixing and heating tank 2000L
Material	SS 304
Heating type	electric heating
Tank diameter	1500mm
Tank capacity	2000L
Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)
Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122
Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)		LFT-GS-100(High speed labeling)
Label length	20mm～300mm		20mm～300mm
Label width/height	20mm～200mm(can be customized)		20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)		30-150mm(can be customized)
Roll Label outer diameter	300mm		300mm
Roll Label inner diameter	76mm		76mm
Accuracy	±1mm		±1mm
Label speed	40-100pcs/min		60-120pcs/min
Conveyor speed	5～25m/min		15～20m/min
Suitable label type	Adhesive sticker label(transparent label needs customization)		Adhesive sticker label(transparent label needs customization)
Working air pressure	0.4-0.6Mpa		0.4-0.6Mpa
Voltage	220V can be customized 4KW		220V can be customized 4KW
Weight	350KG		450KG
Overall dimension	3000mm×1450mm×1950mm		3050mm×1550mm×1950mm
Shrink wrapping machine
Voltage	Sleeve machine: 220V; can be customized; shrink machine must be 380V
Power	1.3KW/18KW
Sleeve machine packing size	Max 420330330mm min 2506060mm
Packing speed	0-6 pieces per minute
Tunnel size	1500600400mm
Tunnel out dimension	25008501520
Sleeve out dimension	1500600402mm

Features:

1. No bottle, no filling function helps reduce product waste and improve filling efficiency.

2. Suitable for various bottle shapes and sizes, including round bottles, square bottles, and chemical containers.

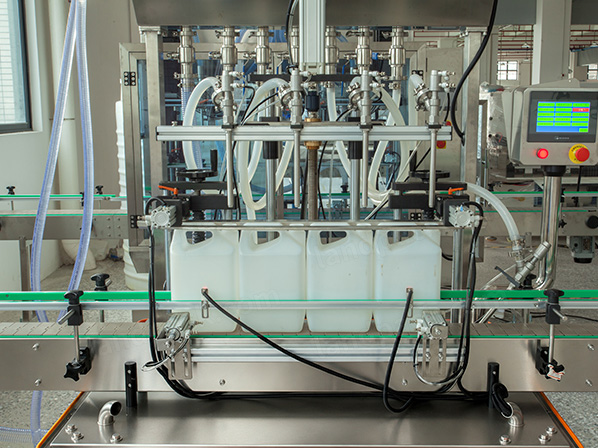

3. 4-head gravity filling system provides stable filling performance for disinfectants and liquid chemical products.

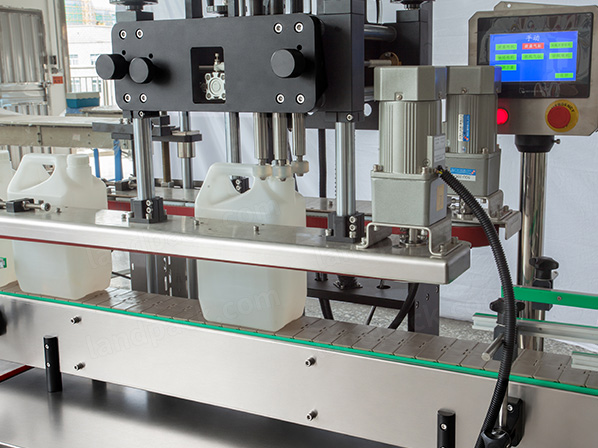

4. Four-wheel capping machine combines cap pressing and tightening for a high capping success rate.

5. Automatic inkjet coding system prints production dates and batch numbers clearly for product traceability.

6. Single-side or double-side labeling machine supports accurate labeling for different bottle formats.

7. Sleeve shrink wrapping system creates professional retail-ready packaging and improves transportation stability.

8. User-friendly control system enables easy operation, quick adjustment, and convenient daily maintenance.
