Fully Automatic Corrosive Chemical Liquid Bottle Filling Capping Labeling Machine Line For Bleaches

Application:

This chemical filling machine is specially designed for corrosive chemical liquids such as bleach,disinfectant, toilet cleaner, acid and alkaline liquids,detergents, cleaning agents, and sanitation liquids.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This chemical filling machine is suitable for plastic bottles (PE / HDPE / PET) with screw caps.Supports various bottle shapes (round, square, flat) and a wide filling volume range from small to large containers.

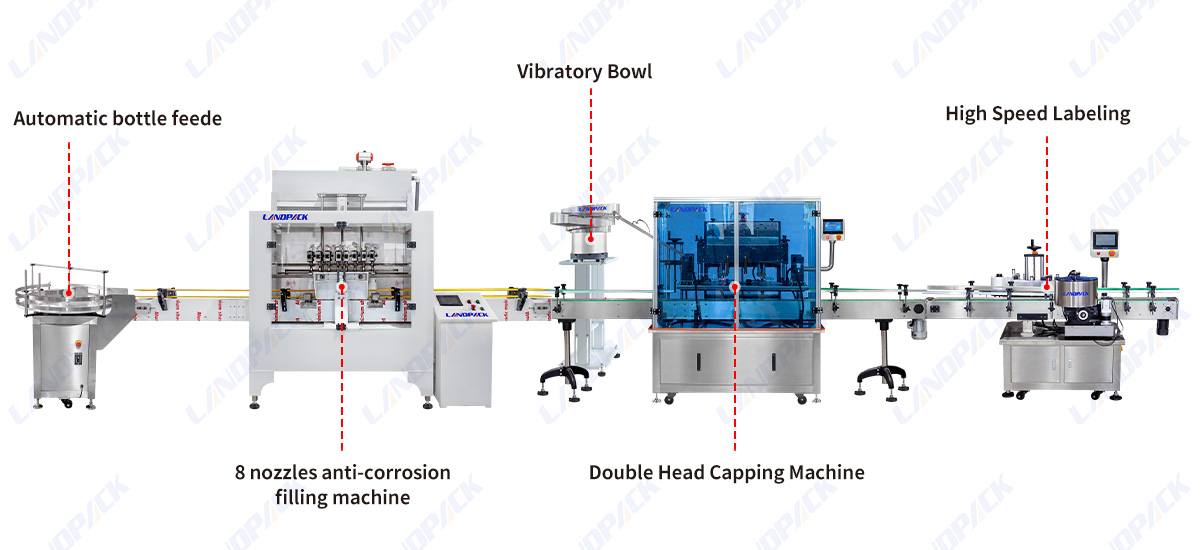

Machine Details:

Working Process

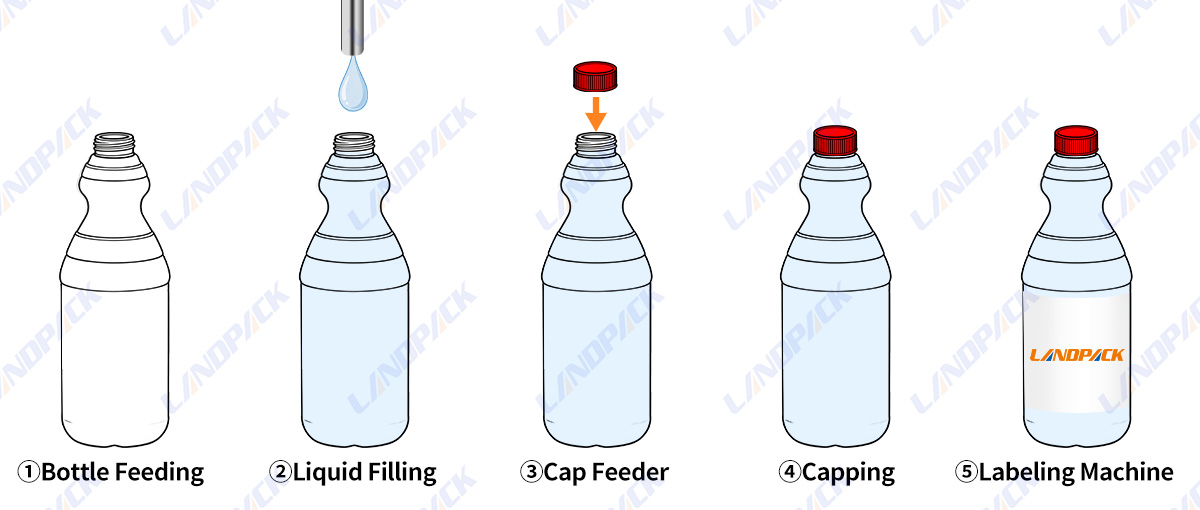

1. Bottle unscrambling → Bottle conveying → Anti-corrosion filling → Cap feeding → Capping → Labeling → Finished product output

Key Component

Specification

Bottle Arranging Machine
Speed	around 60 bottles/min
Bottle Diameter	Custom-made 80-210mm
Bottle Height	Custom-made 100-330mm
Power	220V/50Hz

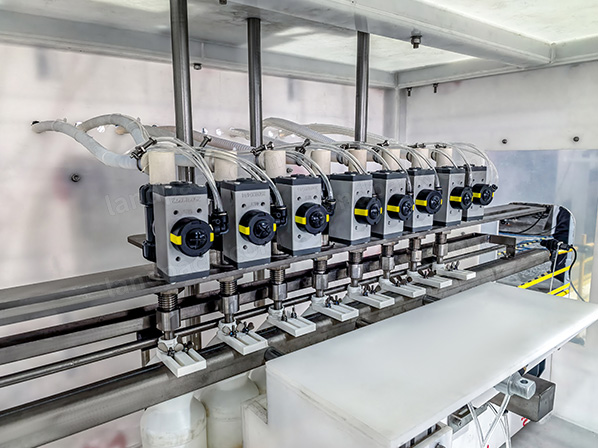

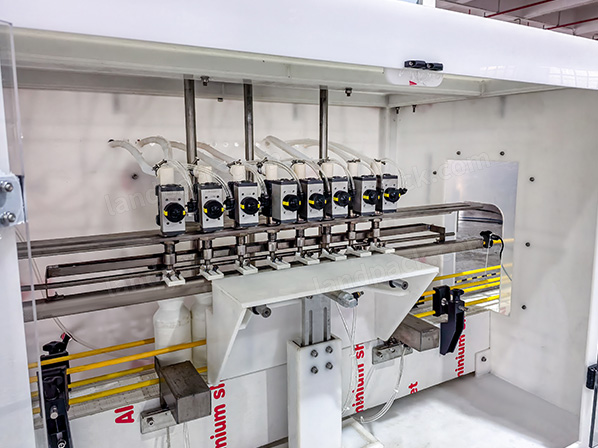

Automatic Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)
Production Speed	15-25 bottles/min	20-35 bottles/min	30-40 bottles/min	40-50 bottles/min
Measurement Accuracy	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz
Air consumption	0.6-0.8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)

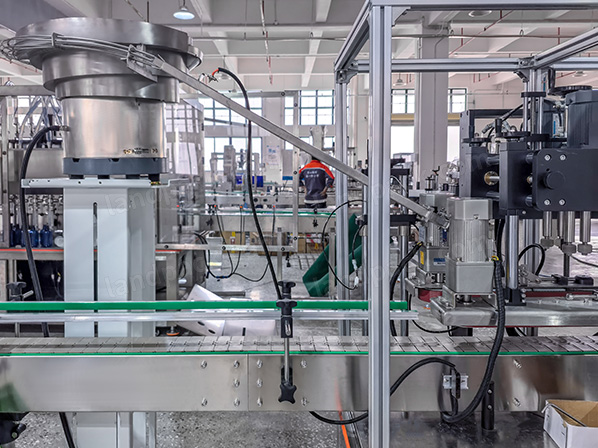

Automatic Capping Machine
Speed	30-50 Cans/minute (can be customized)
Seal Can Diameter	φ35-φ100mm (can be customized)
Bottle's Height	60-200mm (can be customized)
Cap's Height	5-15mm
Productivity	0.15 cubic/minute
Power	440W
Outline dimension	200010001800mm (LWH)

Automatic Labeling Machine
Model	LFT-YP-00
Labeling range	L<300mm, H<120mm
Labeling speed	20-60 bottles/min
Labeling accuracy	±1.5mm
Size of the main frame	L2000W860H1600(mm)
Working voltage	220V
Electricity power	2KW
Weight	250KG
Packing Dimension	2100(L)1150(W)1450(H)mm
