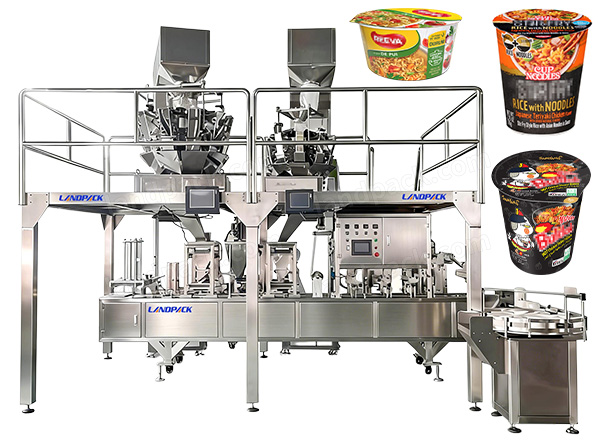

Automatic Instant Noodles Cup Filling and Sealing Machine

Application:

Linear cup sealing machine for instant noodle packaging with multihead weigher integration. Suitable for cup noodles, rice meals, and multi-component food filling, featuring automatic cup feeding, filling, foil sealing, and optional utensil placement.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Video:

Application:

Machine Details:

Features:

Learn More:

Video:

Application:

Suitable for filling and sealing granular and small solid products in pre-formed cups. Widely used for snacks, cereals, nuts, seeds, candy, dried fruits, instant foods, coffee granules, and similar products. Applicable to food, daily consumables, and light industrial products requiring sealed cup packaging.

Machine Details:

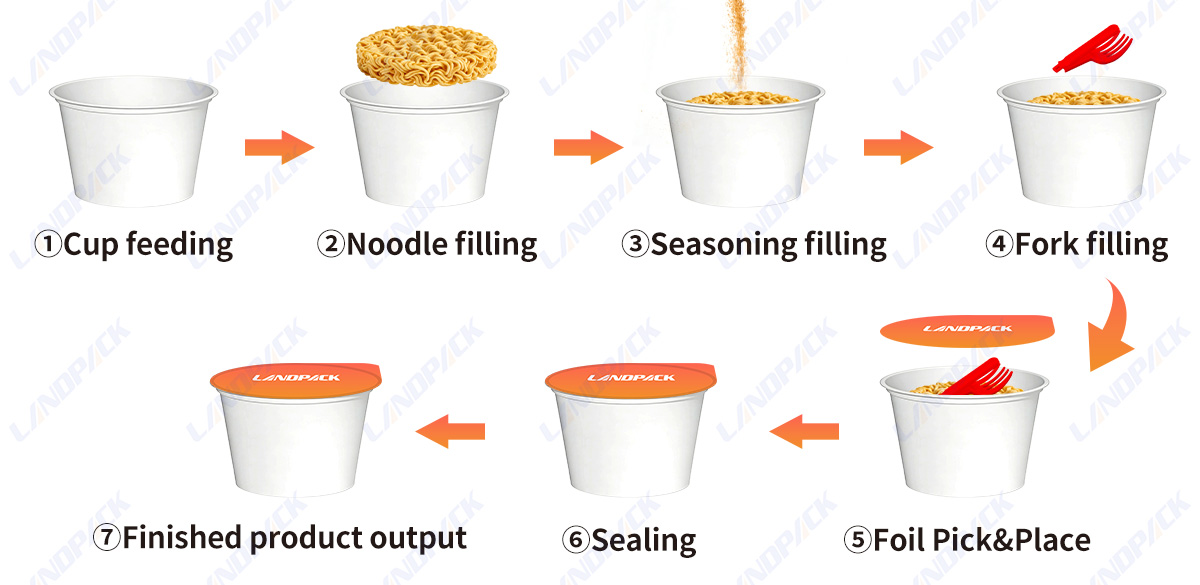

Working Process

1. Cup Feeding → 2. Noodle Filling →3. Seasoning Filling → 4. Fork Filling → 5. Foil Pick&Place → 6. Sealing → 7. Finished Product Output

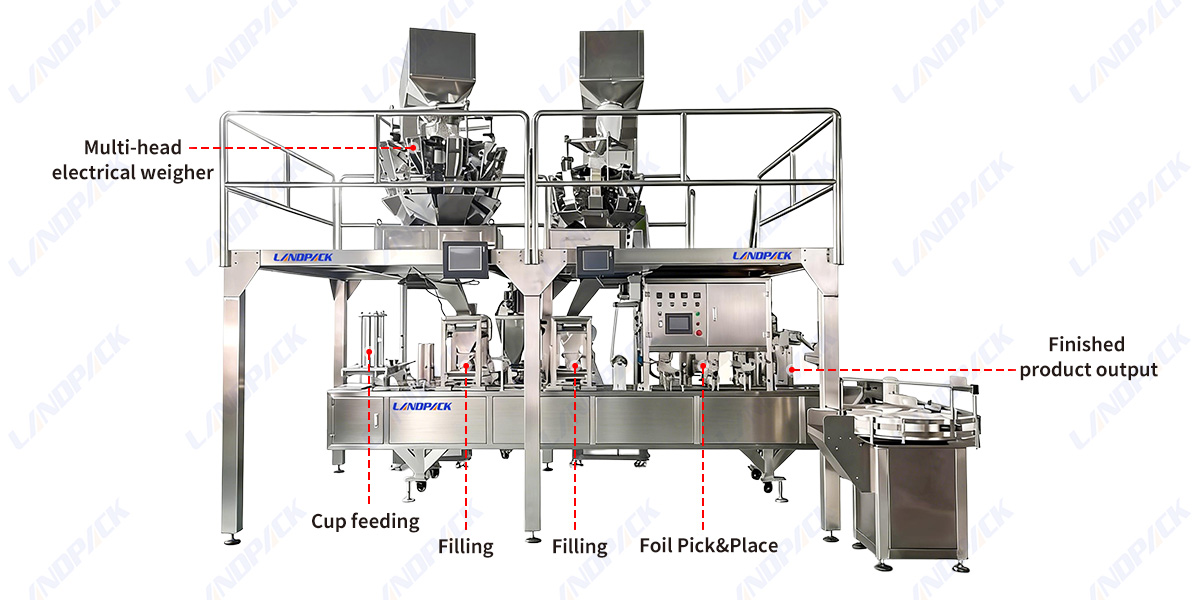

Key Component

Specification

Machine Type	Linear Cup Sealing Machine
Application	Instant noodles, rice meals, dry food cups
Filling Type	Solid, powder, granule (multi-component)

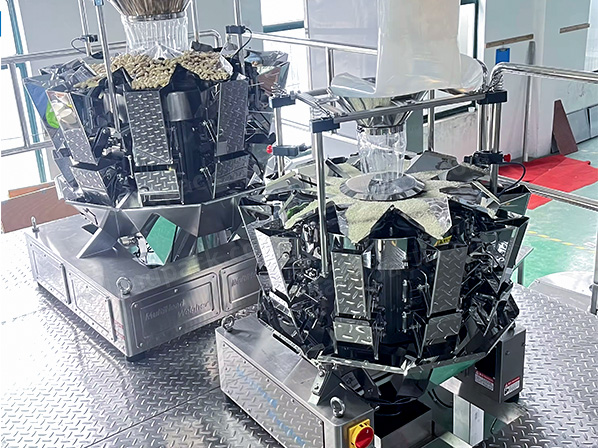

Weighing System	Multihead weigher compatible
Production Capacity	30–80 cups/min (depending on configuration)
Cup Type	Pre-formed plastic or paper cups
Cup Size Range	Customizable based on sample
Filling Stations	2–4 stations (expandable)
Sealing Type	Aluminum foil heat sealing
Sealing Method	Pneumatic or servo-driven
Temperature Control	PID temperature control
Control System	PLC + touch screen
Material	SUS304 stainless steel (food contact parts)
Power Supply	220V / 380V, 50/60Hz
Air Consumption	0.6–0.8 MPa
Machine Dimensions	Depends on configuration
Optional Functions	Fork/spoon placement, lid placing, date coding

Features:

1. Linear conveying structure for sequential processing.

2. Automatic cup feeding, filling, sealing, and discharge system.

3. Multi-head or volumetric filling system for granule products.

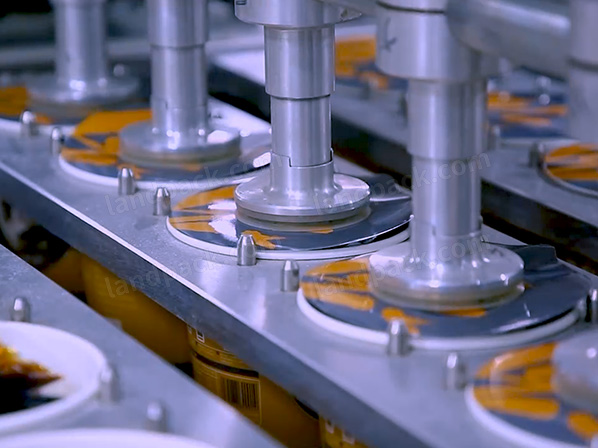

4. Heat sealing unit with adjustable temperature and pressure.

5. PLC control with touch screen interface.

6. Stainless steel frame for product contact areas.

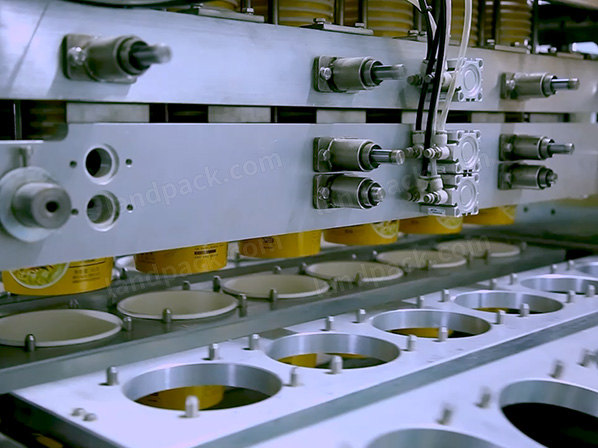

7. Sensors for cup detection and positioning.

8. Easy changeover for different cup sizes.

Learn More:

1.Learn more Landpack Cup Filling Machine

2.Why choose Landpack

3.Certificate of the Landpack packing machine.

4.Guidance for first time to buy Filling Machine/ Packing Machine
