Automatic Sauce Cup Filling Machine Liquid Cup Filling and Sealing Machine

Application:

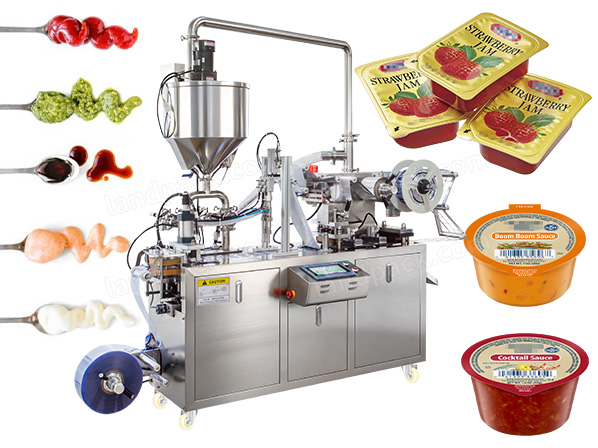

Automatic thermoforming sauce cup filling and sealing machine for jam, ketchup, dressing and other viscous products, with cup forming, piston filling, film sealing and cutting.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This automatic rotary cup filling and sealing machine is designed for packaging mixed solid and liquid products such as fruit pieces in syrup, wet pet food, yogurt, jelly, pudding, oatmeal, prepared meals, nata de coco, corn kernels, and sauces with particles in premade cups. The system integrates automatic cup feeding, dual filling for solids and liquids, roll film placement, heat sealing, and finished-cup discharge.

Machine Details:

Working Process

1. Cup Feeding, 2. Granule filling, 3. Liquid filling, 4. Roll film placement, 5. Heat sealing, 6. Cup discharge, 7. Finished product output

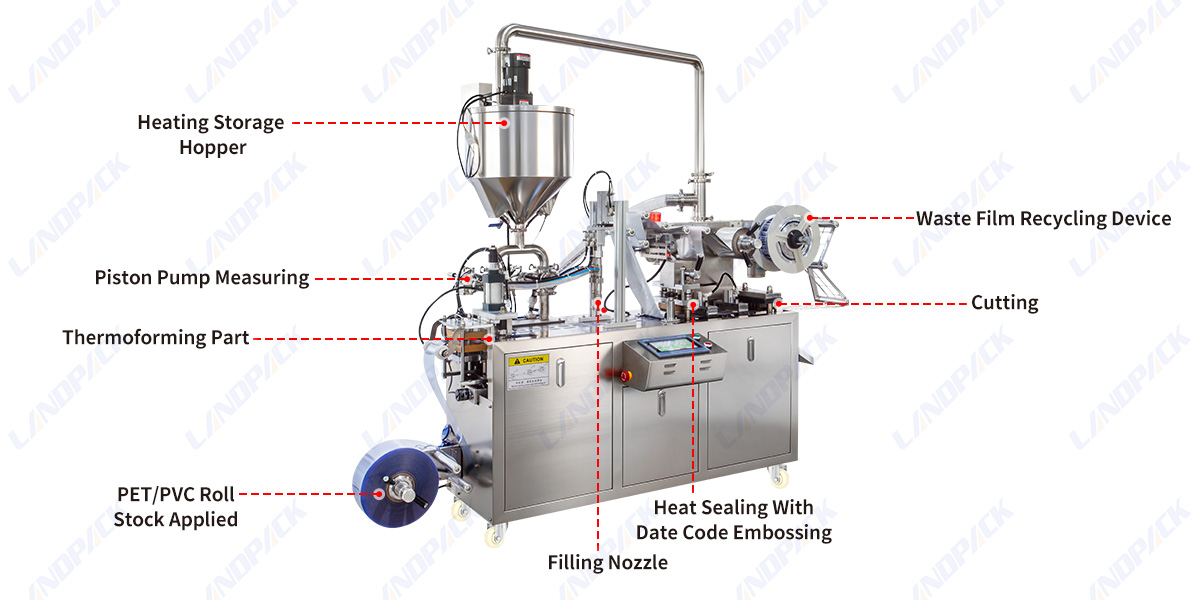

Key Component

Specification

Model	LDCUP-80
Filling Material	Viscous liquid, paste and sauce products
Filling Method	Piston Pump
Packing Speed	10–30 Cycles/Min
Production Capacity	Depends on the number of mould cavities and cup size
Max. Forming Area	105 × 70 mm
Max. Forming Depth	Standard ≤15 mm; Max. 25 mm Customized
Stroke Range	30–80 mm
Filling Volume	Customized According to Cup Size and Product
Forming Film Material	PET / PVC Roll Film
Forming Film Thickness	0.15–0.50 mm
Max. Forming Film Width	110 mm
Sealing Film Material	Aluminum Foil or Composite Heat-Sealing Film
Sealing Film Thickness	0.02–0.08 mm
Air Pressure	0.4–0.6 MPa
Compressed Air Consumption	≥0.3 m³/min
Power Supply	220V / 380V, 50/60Hz
Total Power	Approx. 2.8 kW
Main Motor Power	0.75 kW

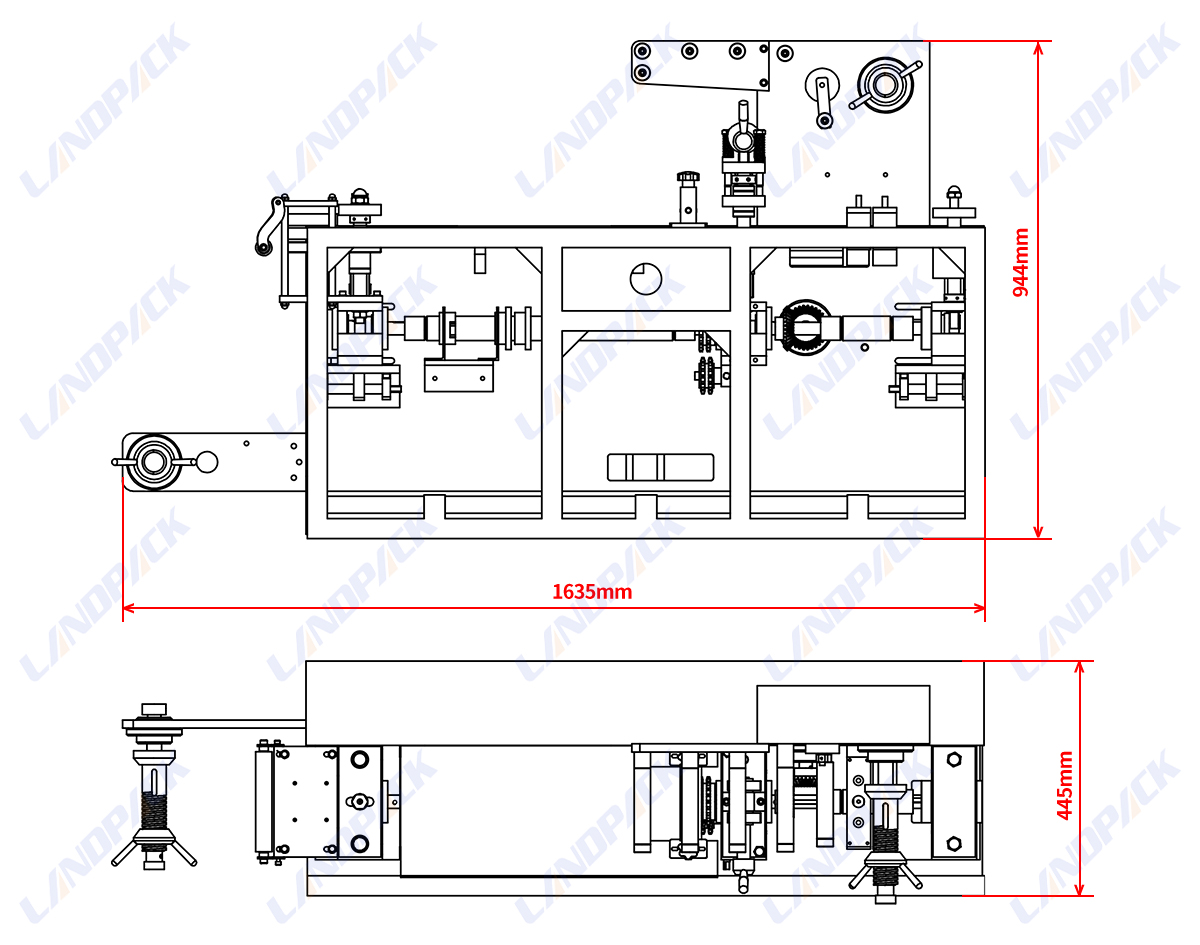

Machine Dimensions	1635 × 445 × 944 mm
Machine Weight	Approx. 400 kg
Control System	PLC and Touchscreen Control
Optional Functions	Heating and Mixing Hopper, Date Embossing, Waste Film Rewinding and Customized Mould

Features:

1. PET or PVC bottom film is heated and thermoformed into portion cups directly on the machine.

2. Piston pump measuring system supports adjustable filling volumes for thick liquid and paste products.

3. Heated storage hopper helps maintain product temperature and flow during continuous filling.

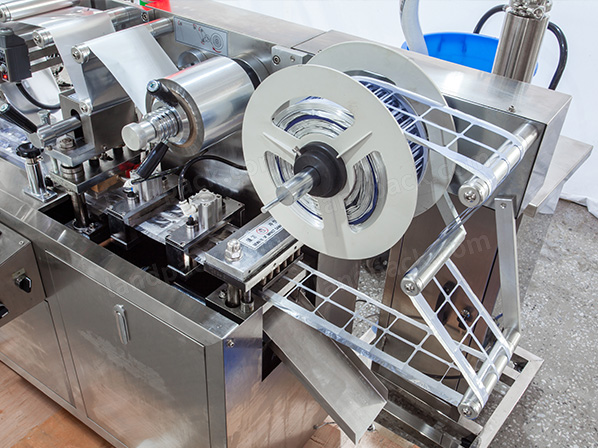

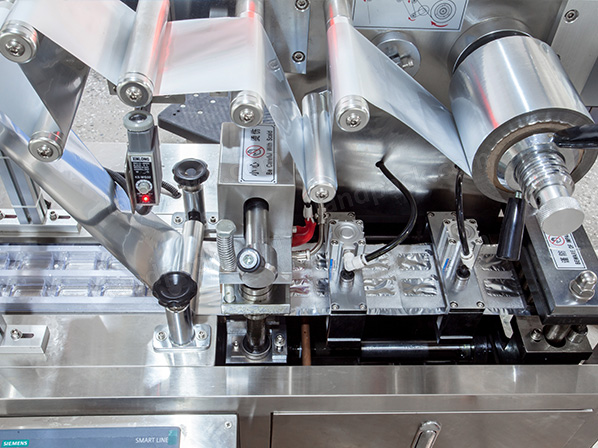

4. Automatic sealing film feeding covers the filled cups before heat sealing.

5. Heat-sealing station can emboss production dates or batch information onto the package.

6. Cutting device separates the sealed film into individual cups or connected cup groups according to the mould design.

7. Waste film recycling device collects the remaining sealing film after cutting.

8. Touchscreen control allows operators to set filling, forming, sealing and production parameters from one interface.
