Dry Fruits Packing Machine | Vertical Packaging Machine

Application:

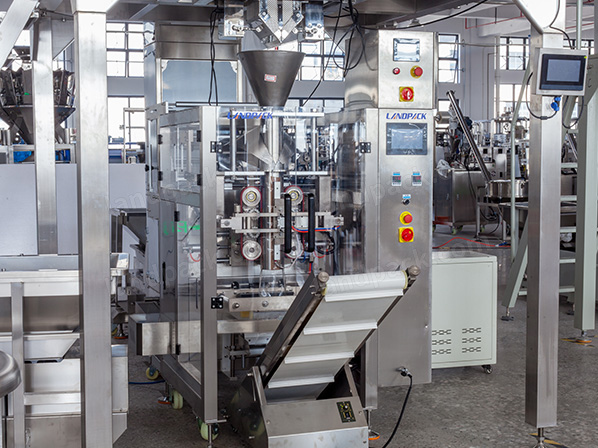

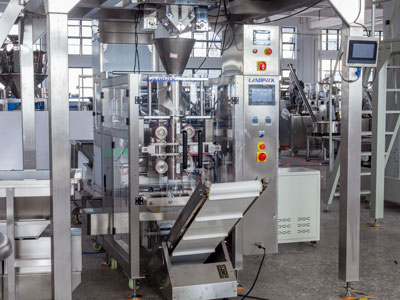

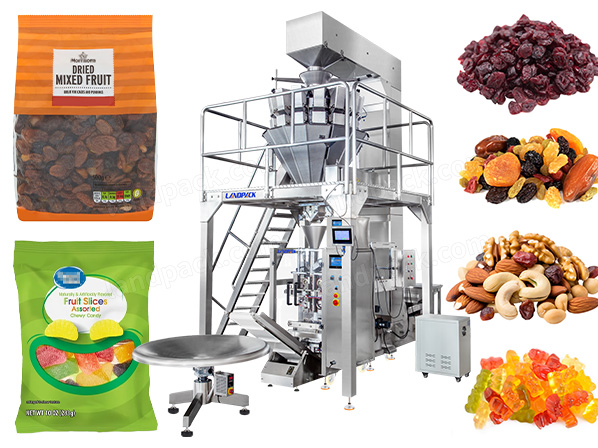

The LD-520A vertical packing machine, equipped with a 14-head 2.5L multi heads weigher, Z-type elevator, finished product conveyor, and rotary collection table, is designed for high-speed and accurate packaging of dried fruits and free-flowing granular products such as raisins, dried cranberries, dried blueberries, dried mango, dried pineapple, dried dates, figs, apricots.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The dry fruit packaging machine supports multiple flexible bag styles, including pillow pouches, back-sealing pouches, and gusset pouches, allowing manufacturers to choose the most suitable packaging format for dried fruits and granule products.

Wide Application Range

The packaging machine, integrated with a customized weigher, improves material flow and reduces sticking, making it suitable for

Dried Fruit Products

• Sultanas, golden raisins, dried cherries, dried kiwi slices, dried apple cubes

Nut & Fruit Mixes

• Fruit-and-nut blends, breakfast topping mixes, and trail snack combinations

Snack & Confectionery Granules

• Chocolate-coated dried fruits, sugar-coated fruit pieces, and yogurt-coated snacks

Machine Details:

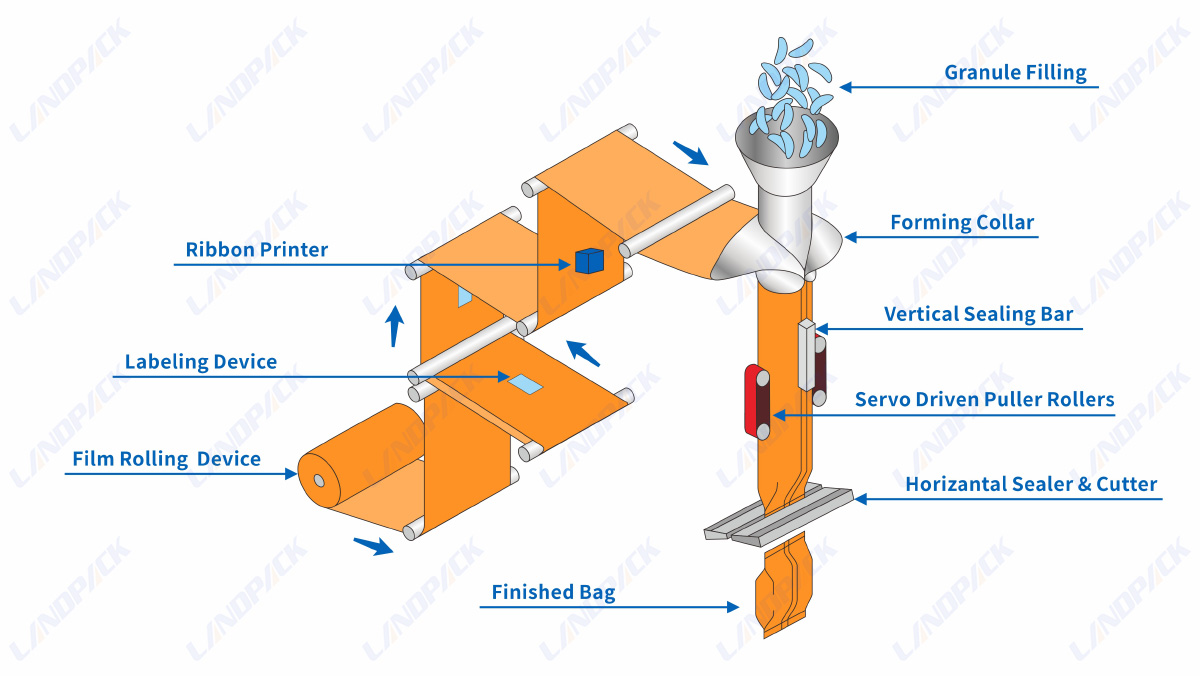

Working Process

1. Bag Forming → 2. The date printer coding → 3. Bag Filling → 4. Hot sealing → 6. Output

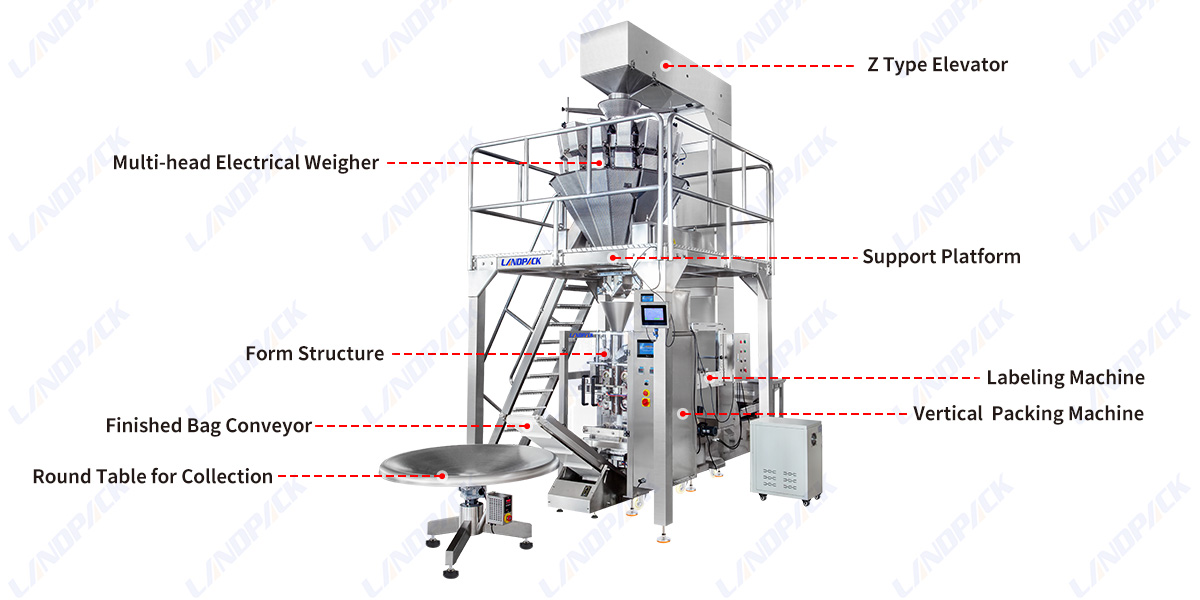

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

Machine Image	Benefits

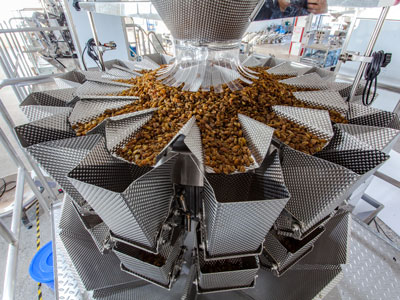

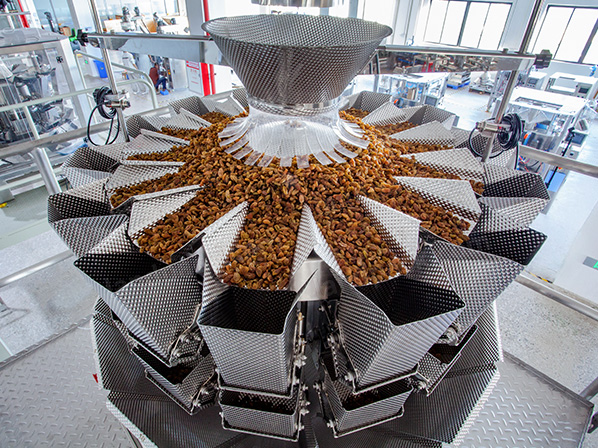

	14-Head 2.5L dimple Combination Weigher Multihead weighers provide high-speed and precise weighting for dried fruits as well as products with irregular shapes. The patterned buckets enhance the flow of materials, minimize sticking, and ensure the same weighing performance.

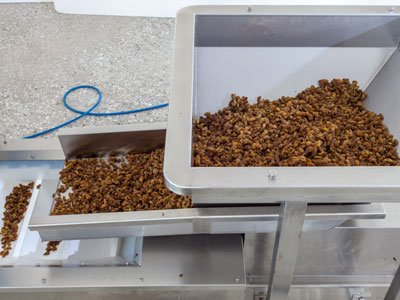

	Z-Type Elevator for Automatic Feeding The Z-type elevator moves the products continuously and smoothly from the feed area to the weigher. This reduces the need for manual labor as well as reducing damage during the transfer.

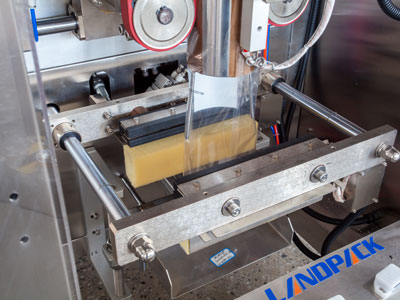

	Stable Vertical Form-Fill-Seal Structure The vertical packing system guarantees consistency in bag shaping exact filling, as well as secure sealing. This results in neat, well-formed finished packaging.

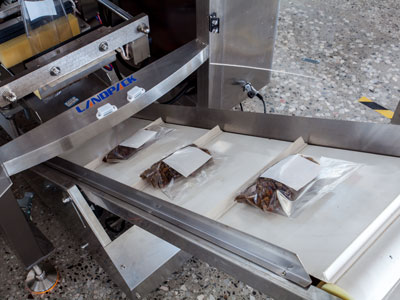

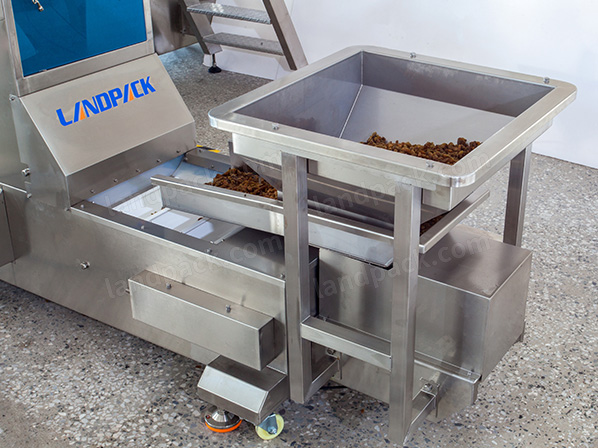

	Finished Product Conveyor & Rotary Collection Table An integrated conveyor of output as well as rotating table facilitates an efficient disposal and the collection of completed bags, increasing the efficiency of the line and easing downstream handling.

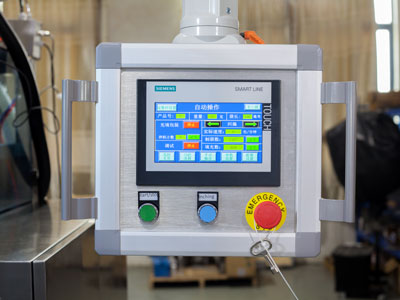

	Intelligent PLC Touchscreen Control The user-friendly PLC control system lets operators adjust parameters, check machine status and swiftly switch between various types of sizes of bags and items.
	Food-Grade SS304 Construction All components used for product contact are made out of stainless steel. They provide high hygiene, simple cleaning, and long-lasting durability for snack and dried fruit packaging applications.
