Full Automatic Granule Dried Fruit Nuts Gummies Bottle Jar Filling Capping Lableing Packing Machine Production Line

Application:

This filling capping labeling machine production line is mainly suitable for automatic packing of granular or flake materials such as ried fruit roasted seeds, candy, chocolate, biscuits, peanuts, melon seeds, rice, seeds, pistachios, coffee beans, green beans, white sugar, salt, chicken essence, monosodium glutamate, oatmeal,grain products, leisure snacks, dChinese herbal medicine piecesdesiccant; for various round cans such as bottles, cans, paper cans and iron cans. The operation is simple and easy to learn. It is an ideal equipment for food, beverage, pharmaceutical and other industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Advantages:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Advantages:

1. Automatic feeding, weighing, can flling and labeling, eliminating unnecessary labor costs while improving production efficiency.

2. Advanced technology: man-machine interaction touch screen, PLC controller,photoelectric sensor, high precision servo motor, etc.

3. Auxiliary devices: devices such as nitrogen generator or liquid nitrogen storage tank can be assembled together according to your requirements.

4. Applications: suitable for plastic/ metal can packaging, widely used in food,daily necessities and other industries.

5. Fast filling speed and high accuracy.

6. Advanced man-machine interface operation, PLC control.

7. Stainless steel appearance material, fully in line with food hygiene standards.
Application:

1. This filling capping labeling machine production line is mainly suitable for automatic packing of granular or flake materials such as ried fruit roasted seeds, candy, chocolate, biscuits, peanuts, melon seeds, rice, seeds, pistachios, coffee beans, green beans, white sugar, salt, chicken essence, monosodium glutamate, oatmeal,grain products, leisure snacks, dChinese herbal medicine piecesdesiccant.

2.it issuitable for various round cans such as bottles, cans, paper cans and iron cans. The operation is simple and easy to learn. It is an ideal equipment for food, beverage, pharmaceutical and other industries.
Videos Introduction:
Specification:
Measurement method
Multi head weigher
Filling products
Granular materials,sheet materials,strip materials etc
Filling weight
10-3000g
Packaging accuracy
≤±1.5g
Packing speed
60cans/min
Feeding tank
Turntable to feeding the jars
Air consumption
0.65Mpa, 0.3m³/min
Packing material
All regular shaped cans, such as PET,glass bottle etc (confirm when order)
Power supply
220V/380V 50-60Hz
Power
3KW
Dimension
L4500 x W1550 x H2000mm
Weight
1600kg
Other serices
Can be customized according to demand

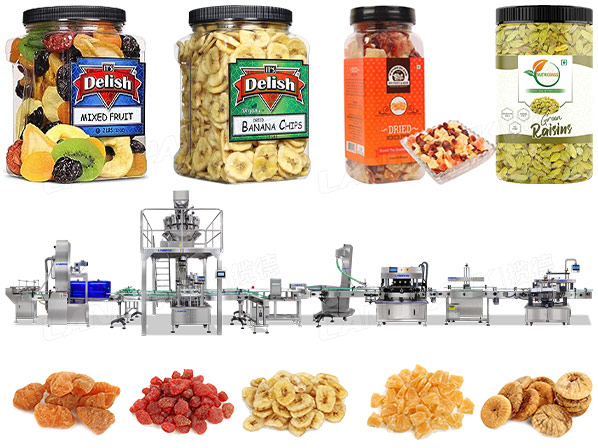

Working Process:

1. The stacking table will sort out and organize the cans/ bottles first.

2. Granular material is lifted by Z bucket conveyor and weighed by multi-head scale.

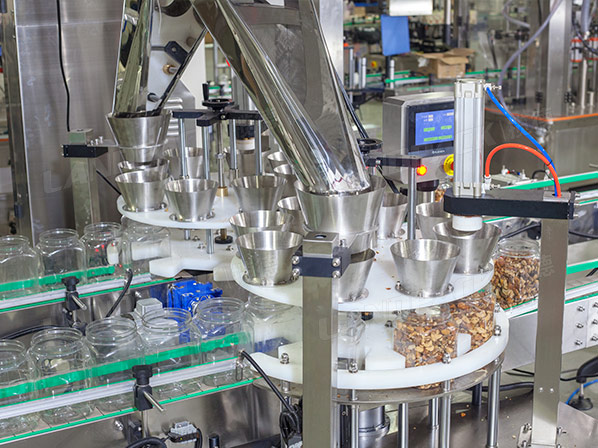

3. Granular material is filled into the cans by rotary flling machine.

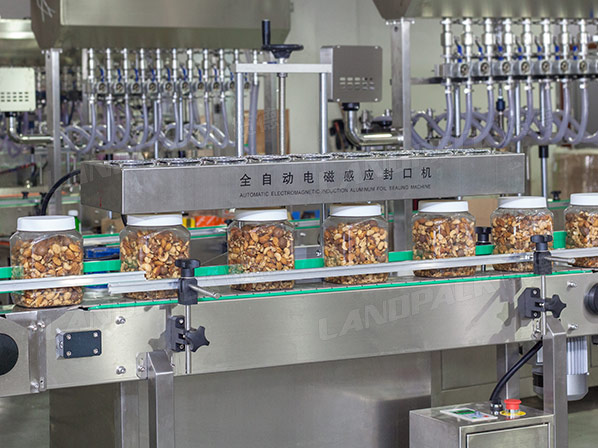

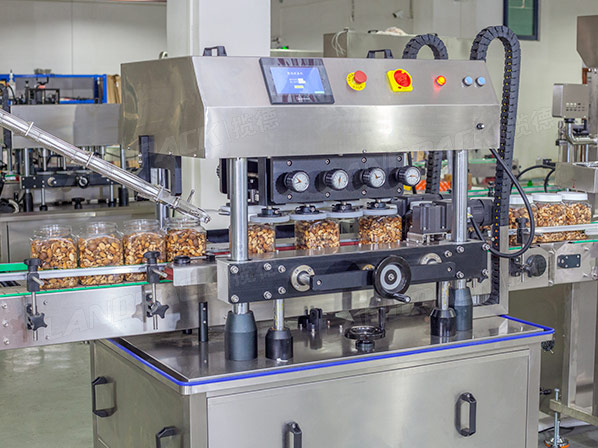

4. The filled cans enter the can sealing machine to seal.

5. Sealed cans go into snap-on lids with dust caps.

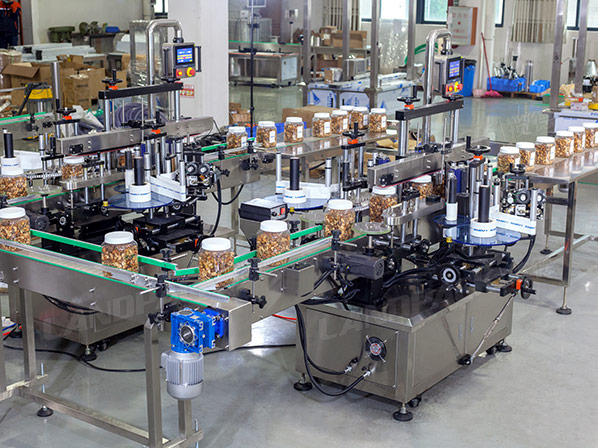

6. The cans are labeled by the labeling machine.

7. The cans are collected by the stacking table and ready to be loaded into the trans-portation box
