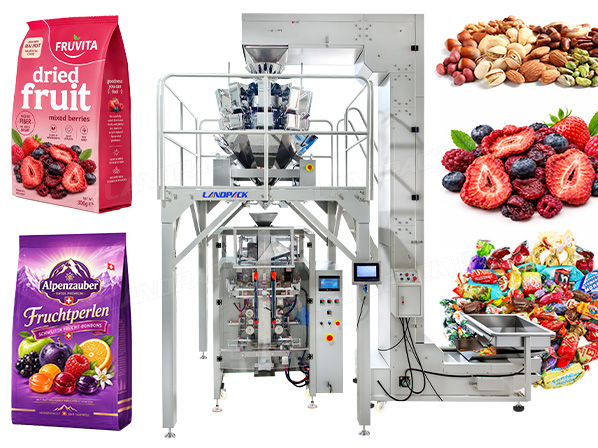

Automatic Sugus Gummy Candy Gusset Bag Vertical Pouch Packing Machine

Application:

The Gummy Candy Packing Machine is designed for Sugus, fruit chews, milk chews, soft candy, individually wrapped chewy candy, Gummy bears, fruit gummies, jelly candy, gummy rings, gummy drops, Fruit candy, mint candy, boiled sweets, filled candy, wrapped hard candy, Chocolate pieces, coated chocolate, chocolate balls, mini chocolate products, Jelly, nuts, dried fruits, cereal, biscuits and other compatible solid products

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

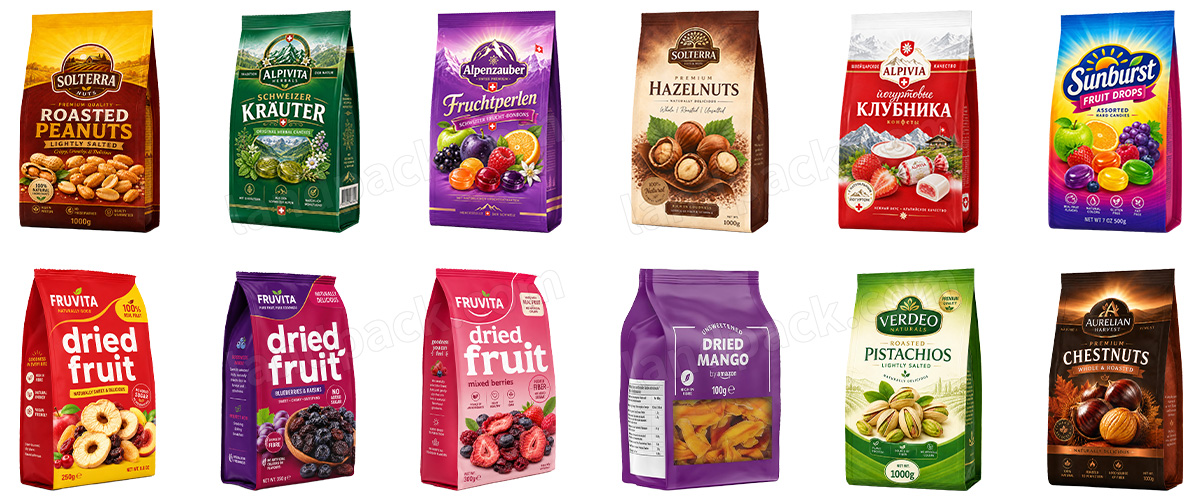

The Gummy Candy Packing Machine is designed for gusset bags / quad-seal bags with four-side heating, providing a more defined bag shape and stronger shelf presentation for candy products.Also be configured for pillow bags, back-seal bags, gusset bags and other roll-film VFFS formats according to the required finished package.

Videos Introduction:

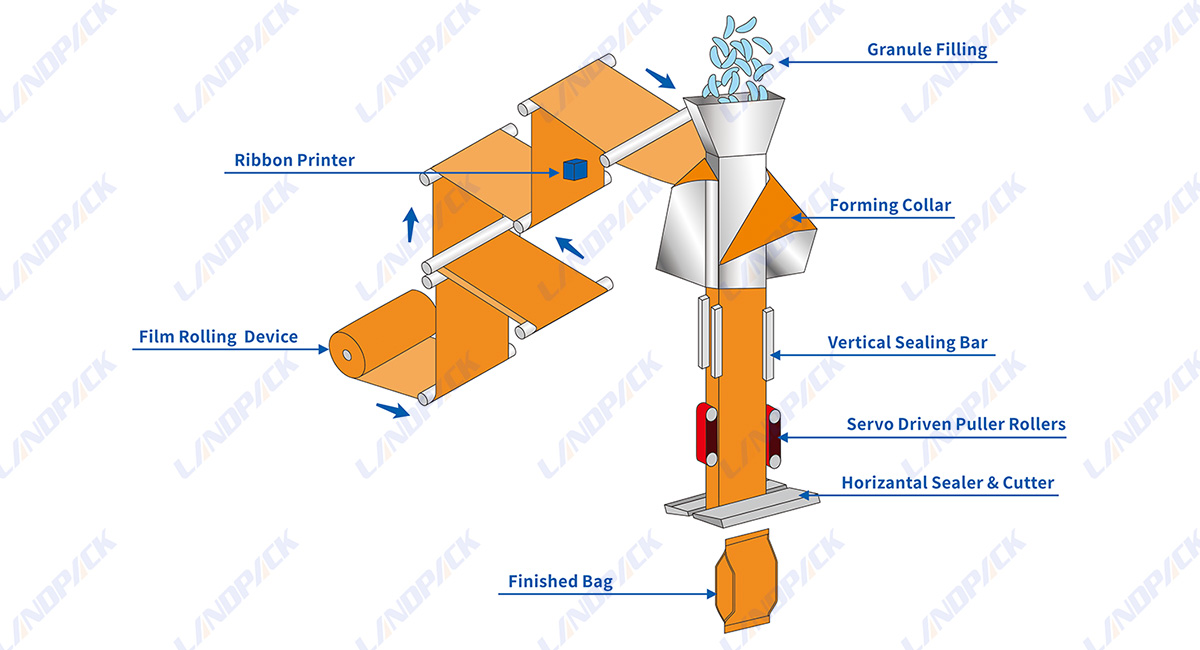

Working Process

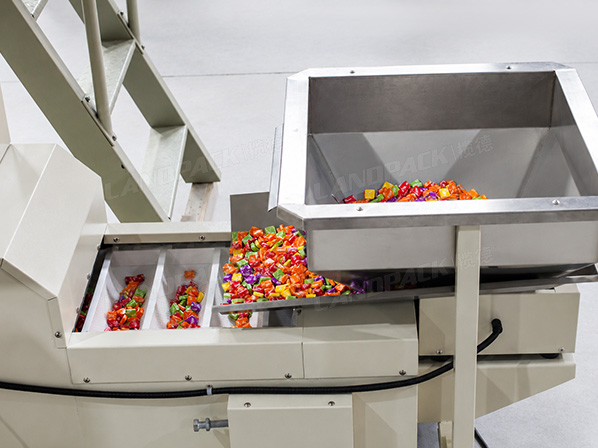

1. Candy Feeding → Z-Type Elevating → Multihead Weighing → Roll Film Feeding → Bag Forming → Sugus Filling → Four-Side Heating → Horizontal Sealing → Bag Cutting → Finished Product Output

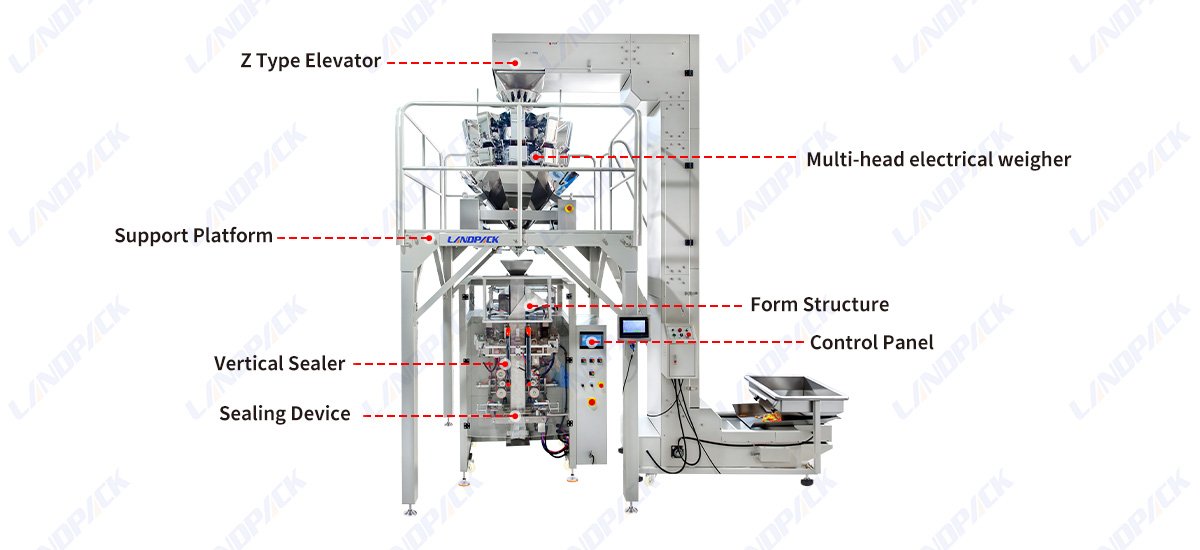

Key Component

Specification

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW

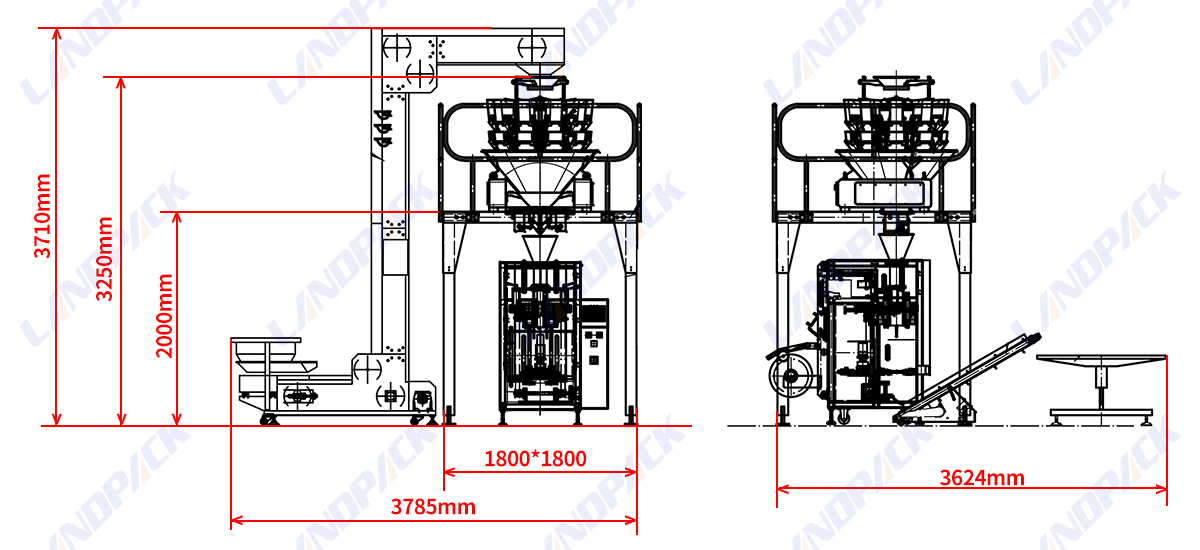

Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)

Features:

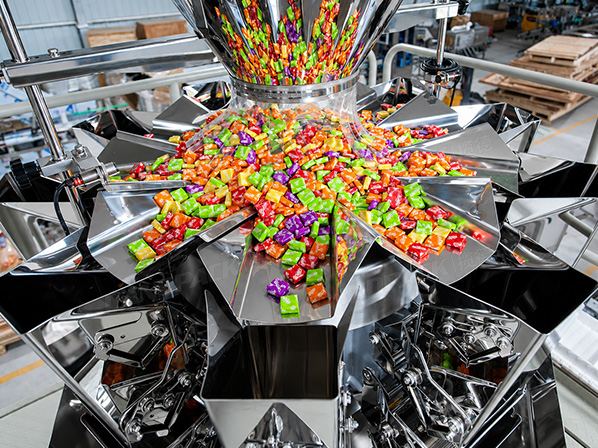

1. 10-head multihead weigher provides fast and accurate portioning for Sugus, gummies and irregular candy pieces.

2. Servo-driven film pulling system ensures smooth film feeding, accurate bag length and stable bag forming.

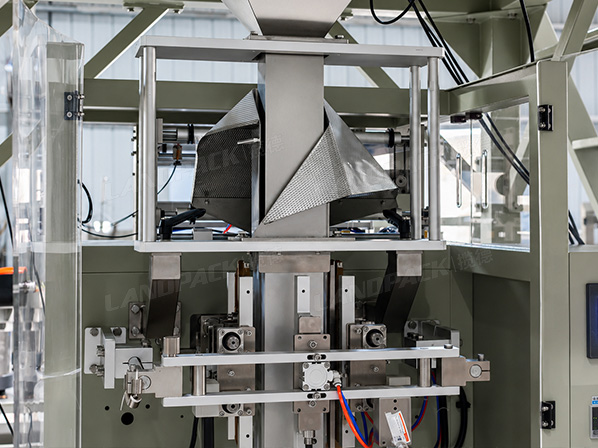

3. Four-side heating structure produces well-shaped gusset or quad-seal bags with a neat retail appearance.

4. Interchangeable forming parts support pillow, gusset and block-bottom bag formats for different candy packages.

5. Roll-film VFFS system automatically completes bag forming, filling, sealing and cutting without premade pouches.

6. Photoelectric eye-mark tracking accurately positions printed film for consistent sealing and cutting.

7. Independent temperature control adapts the sealing system to different heat-sealable laminated films.

8. PLC touchscreen provides centralized control of weighing, film movement, sealing temperature and production settings.
