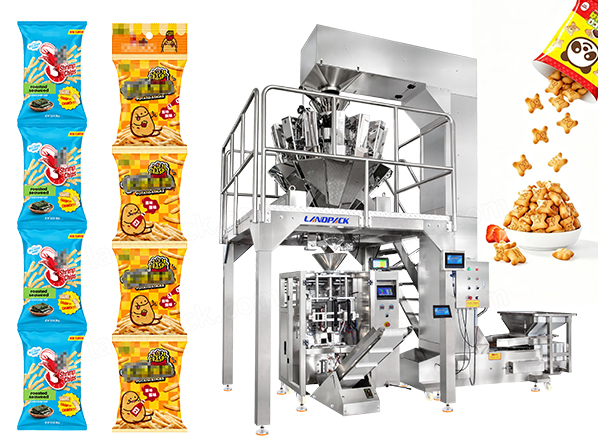

Fully Automatic Candy Gummy Pouch Packing Machine Vertical Packing Machine For Linked Sachet

Application:

This gummy packaging machine is suitable for gummy candies, jelly candies, chewy candies, fruit gummies, rainbow candies, hard candies, chocolate beans, coated chocolates, marshmallows, sugar-coated candies, snack pellets, small biscuits, nuts, dried fruits, and other free-flowing snack products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

This gummy packaging machine is suitable for 5-linked sachets, multi-pack candy sachets, pillow bags, back-seal bags, retail candy packs, promotional candy packaging, gummy candy sachets, chocolate bean sachets, snack sachets, and customized packaging types.

Videos Introduction:

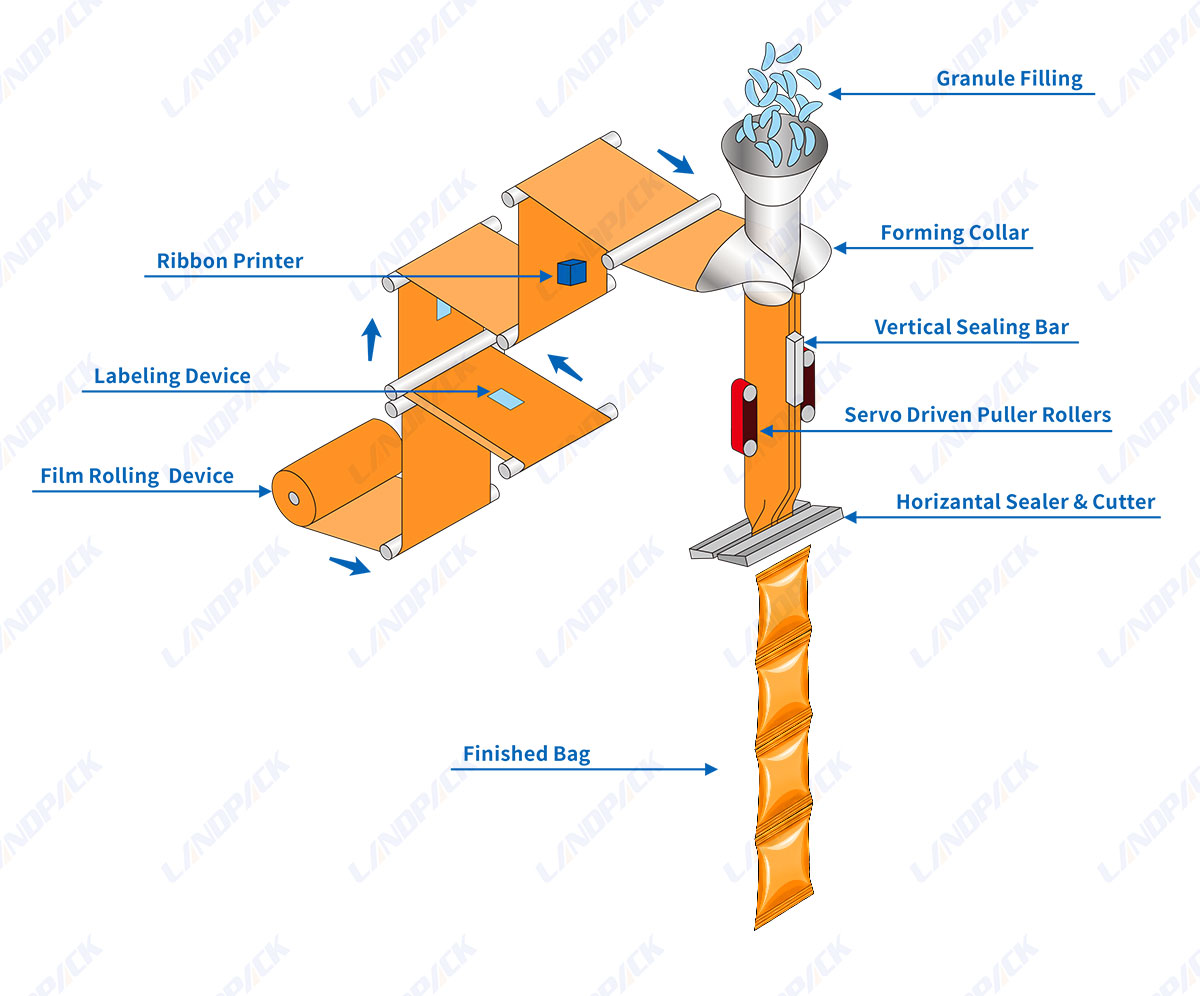

Working Process

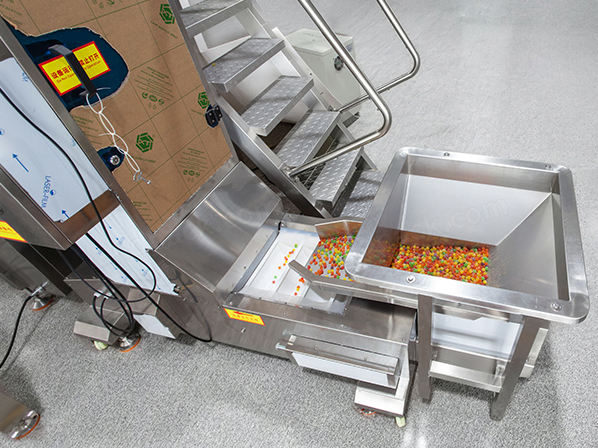

1. Z-Type Feeding → 14-Head Weighing → Thermal Transfer Coding → Bag Forming → Product Filling → Dual Servo Sealing → Linked Sachet & Hole Punching → Finished Product Output

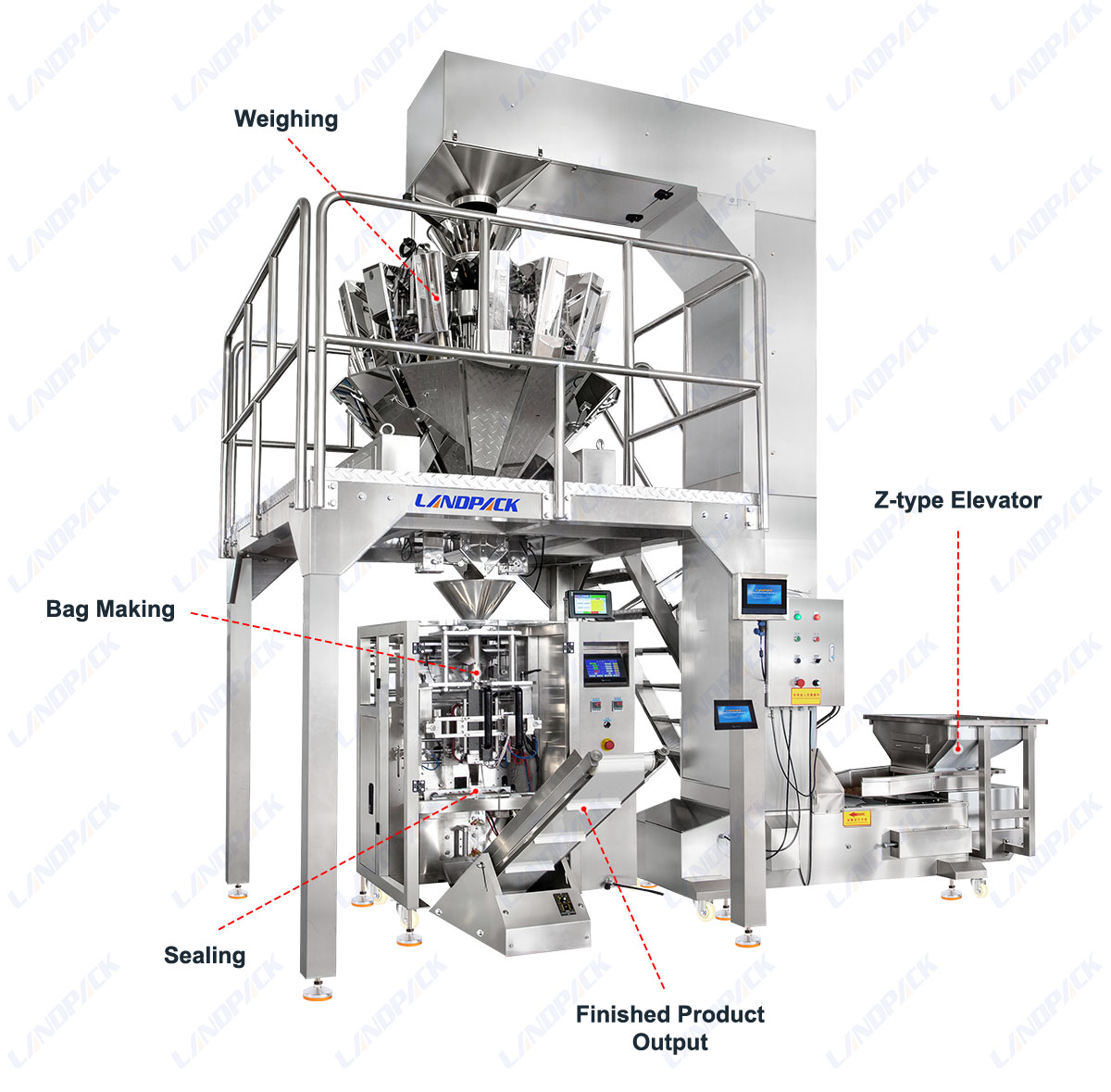

Key Component

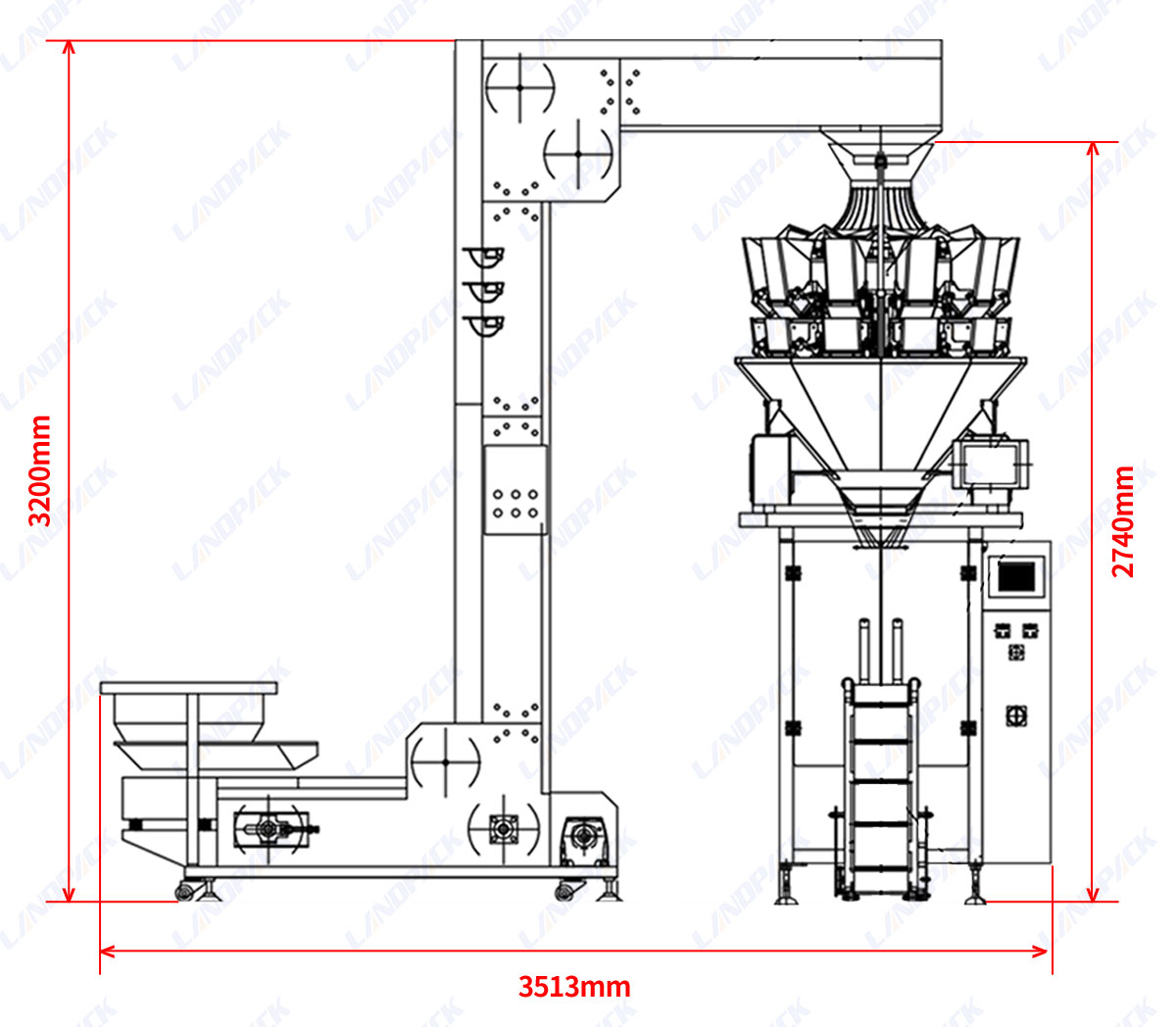

Specification

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)

Features:

1. Fully automatic weighing, bag forming, filling, sealing, coding, and cutting in one compact packaging system.

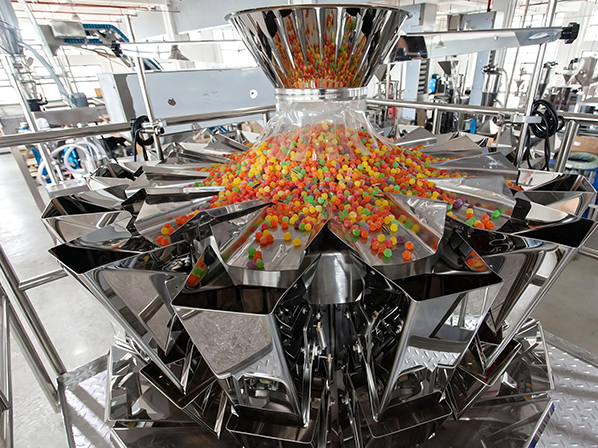

2. 14-head 1.6L multihead weigher provides high-speed and accurate weighing for gummy candies and confectionery products.

3. Dual-servo film pulling system ensures stable operation, precise bag length, and smooth sealing performance.

4. Full SS304 stainless steel machine frame is easy to clean and suitable for food production environments.

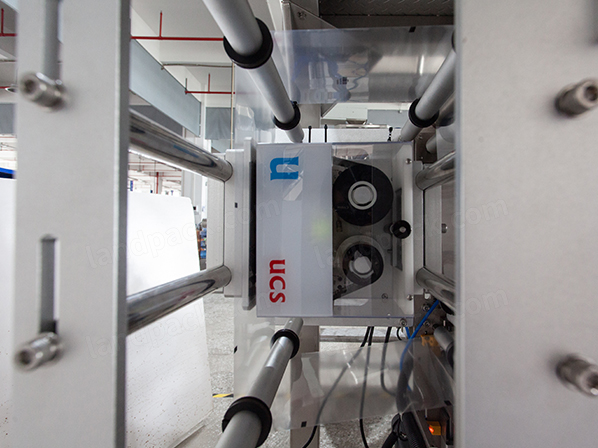

5. Thermal transfer printer supports batch numbers, production dates, barcodes, QR codes, and variable data printing.

6. Automatic film tracking system corrects film deviation and improves packaging accuracy.

7. Customized linked sachet and hanging hole functions create attractive retail-ready packaging.

8. PLC and touchscreen control system allow simple operation, recipe storage, and fast parameter adjustment.
