Visual Counting Packing Machine | Fastener Packaging Machine

Description:

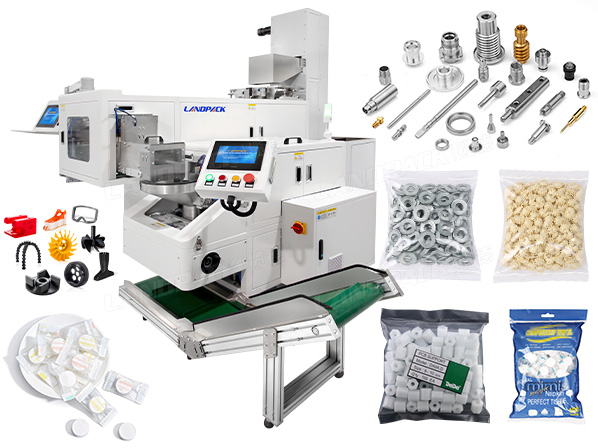

This PE film visual counting packaging machine is an automatic packing solution designed for precise counting and bagging of small plastic parts, hardware components, fastener.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

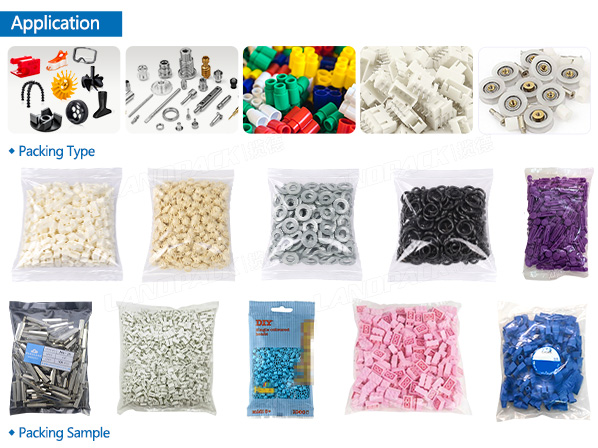

Application:

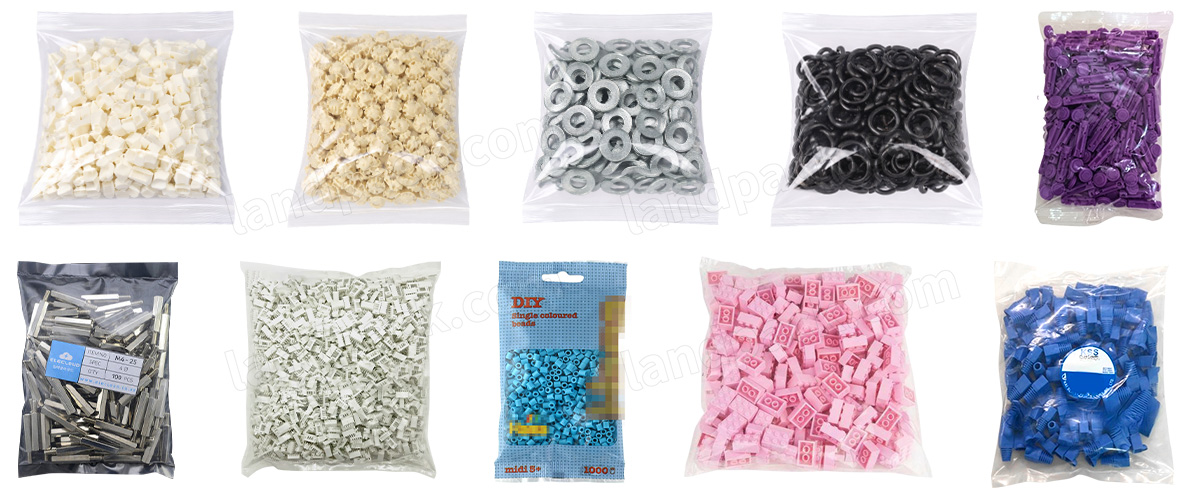

Suitable for PE film bags, back sealing pouches, pillow bags, and customized PE packaging for bulk small parts and component kits.

Wide Application Range

This visual counting and packaging machine is suitable for small parts requiring accurate quantity control and gentle handling:

Plastic Parts

• Injection-molded components, plastic clips, connectors, spacers

Hardware Parts

• Screws, nuts, bolts, washers, rivets

Assembly Kits

• Mixed small plastic and metal parts packed by fixed quantity

Machine Details:

Working Process

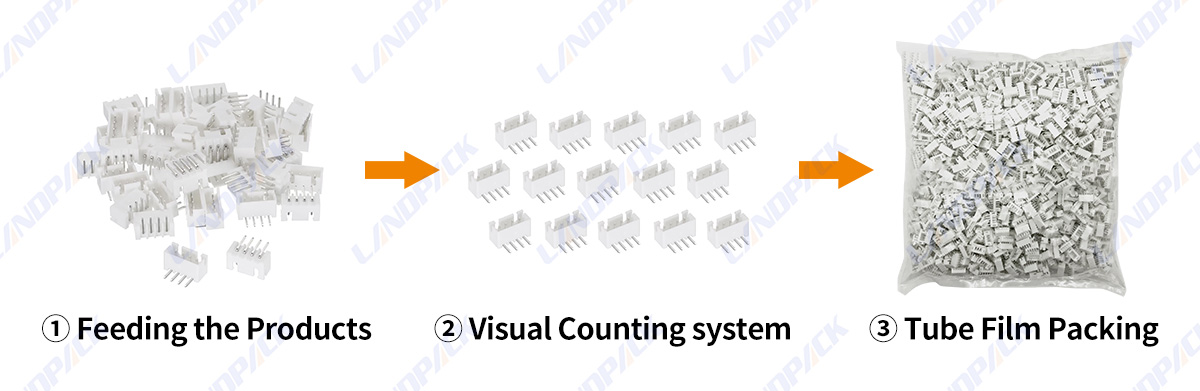

1. Material Feeding → 2. Products Visual Counting → 3. Products Filling → 4. Tube Film Filling & Sealing → 5. Output

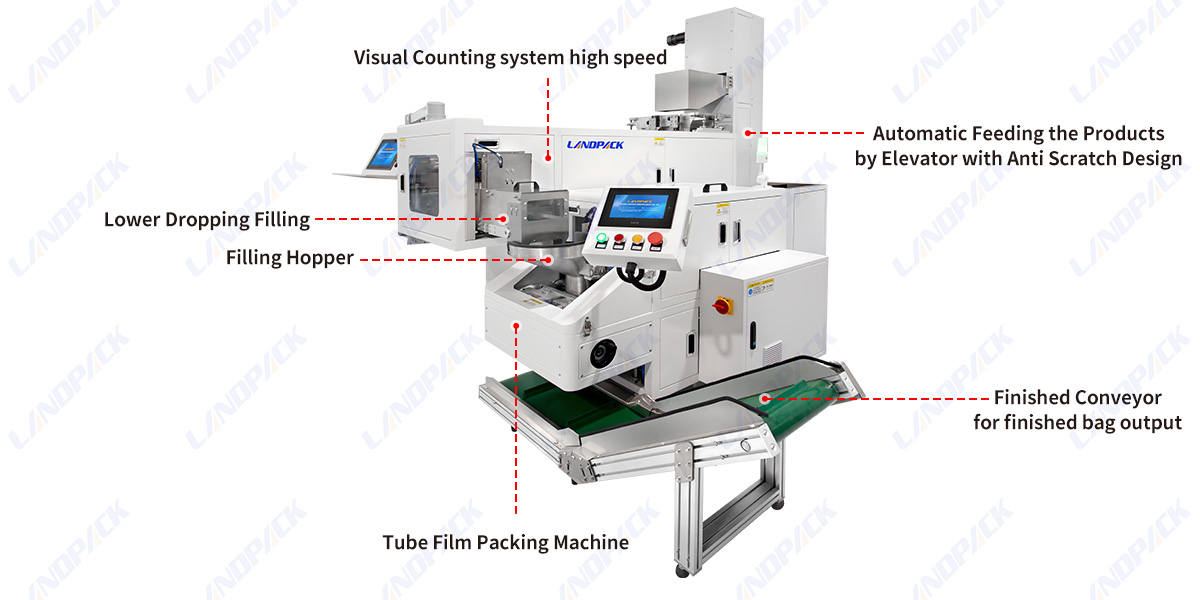

Key Component

Specification

Machine Model	LP-Series Industrial Counting Wrapper
Counting System	High-Speed Fiber Optic / Infrared Sensing
Feeding Method	Automatic Vibratory Bowl (Customized track)
Packaging Material	PE (Polyethylene), OPP/CPP, PET/PE
Bag Width	30mm - 150mm (Adjustable)
Bag Length	50mm - 200mm (Adjustable)
Packing Speed	10 - 50 bags/min (Subject to material quantity)
Counting Accuracy	≥ 99.8%
Sealing Type	Center Back Seal / 3-Side Seal
Control Interface	7" Multi-language Color PLC Touch Screen
Air Pressure	0.5 - 0.7 MPa
Power Rating	2.5 KW / 220V 50-60Hz
Conveyor System	Included (Finished product discharge belt)

Features:

HMI Touch Screen Operation: Controlled via an intuitive HMI touchscreen, which allows rapid setting of parameters, recipe management and a reduction in labor costs.

Full Servo Visual Counting System: Fully-servo driven and high-precision vision count, which is adjustable in width and height to accommodate different sizes of products and packaging sizes.

Low-Drop & Anti-Scratch Feeding Design: Special low-drop design with anti-scratch treatment reduces the risk of scratching, surface damage and miscounting. Suitable for smaller plastic and hardware parts.

PLC-Controlled PE Tube Film Packing Machine: The integrated PLC with touchscreen control assures stability bag shaping, filling and sealing.

Automatic Quantity Rejection Function: The built-in rejection module removes packages with over-count or under-count quantities, to ensure an accurate and consistent packing process.

Fully Automatic Integrated Process: Combines feeding visual counting bag making filling, sealing, inspection, and bag output into a continuous and reliable process.
