Automatic Vertical Weighing And Packing Machine For Fasteners

Application:

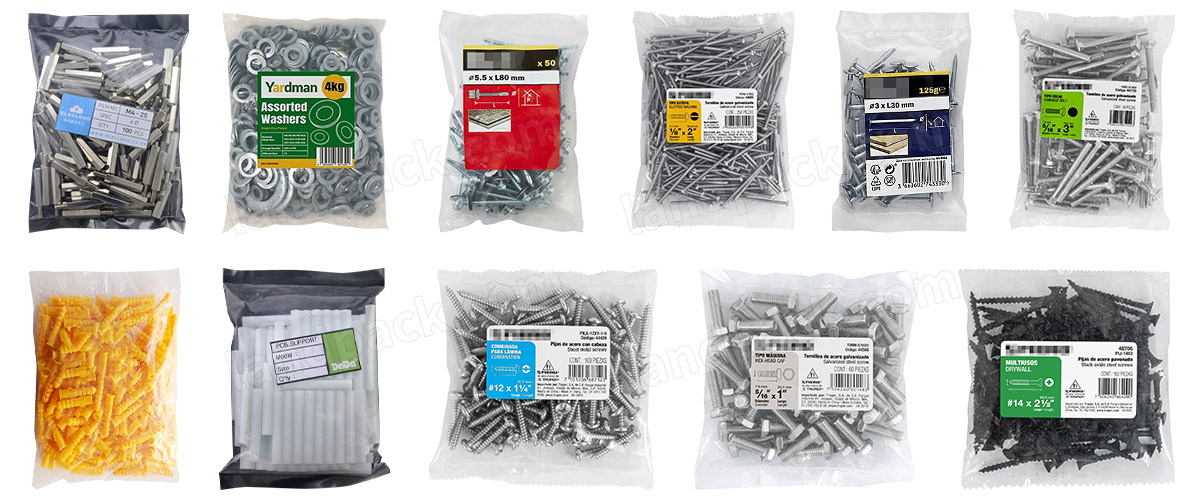

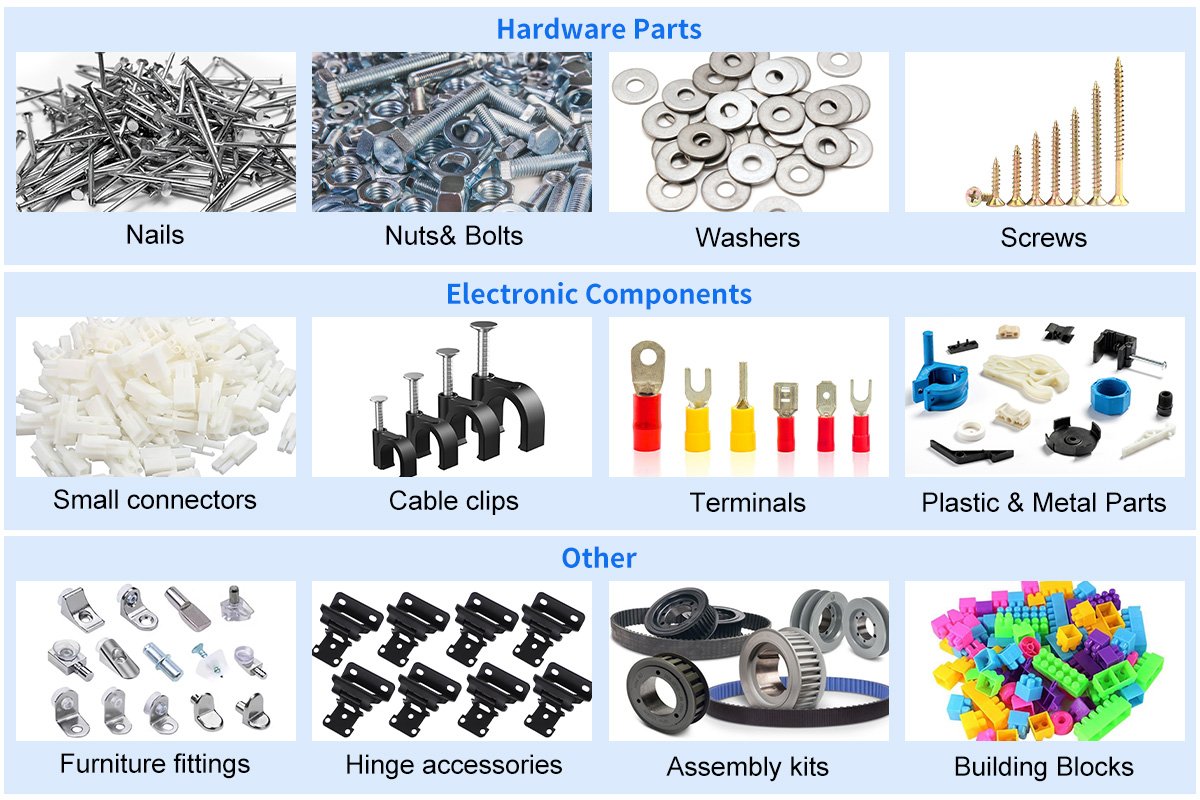

Suitable products include different sizes of screws, bolts, nuts, washers, anchors, nails, and DIY hardware accessory sets, supporting applications across furniture manufacturing, construction materials, home improvement kits, and after-sales spare-part packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

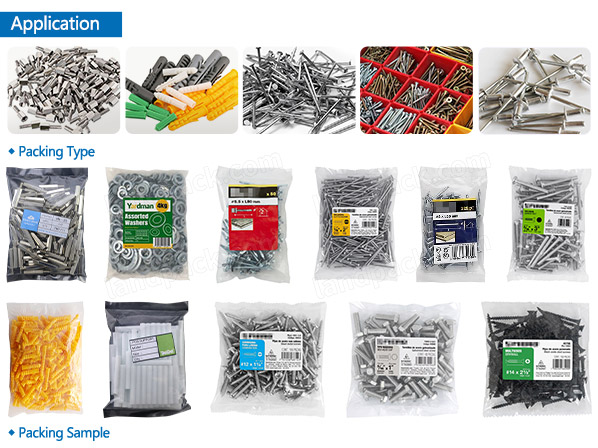

Packing Type:

This hardware packaging machine supports a variety of durable pouch types made for heavy and irregular metal components. Common options include back sealing pouches, pillow pouches, and gusset pouches, each offering strong load-bearing performance for screws, bolts, and assorted hardware kits.

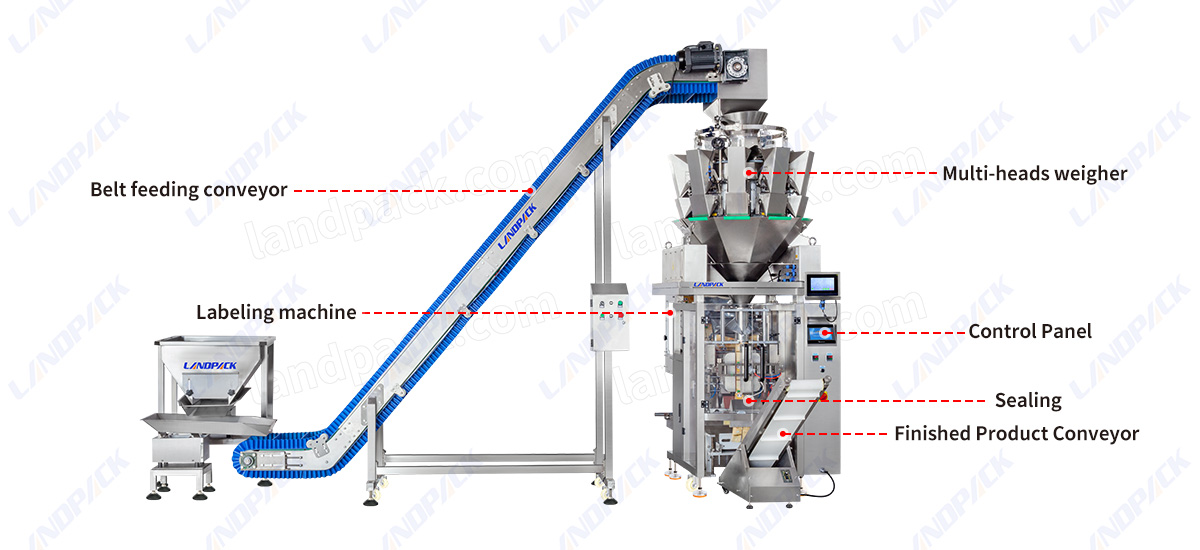

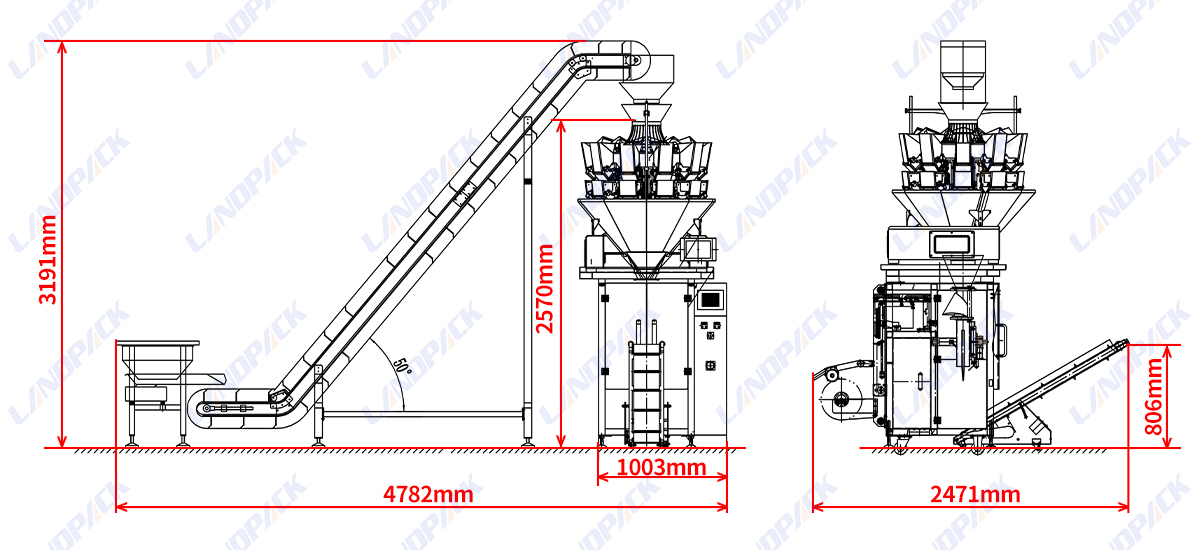

Machine Details:

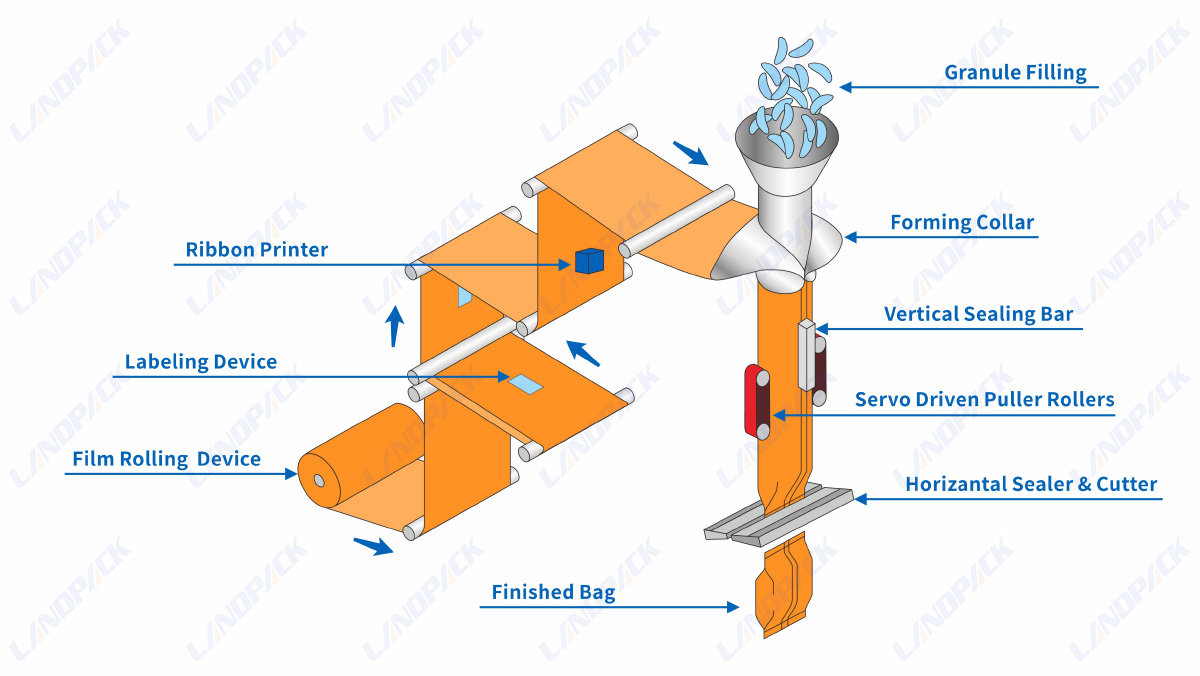

Working Process

1. Fastener feeding

2. Bag forming

3. Weighing and Filling

4. Bag Sealing

5. Finished Product Output

Specification

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Features:

Machine Image	Benefits

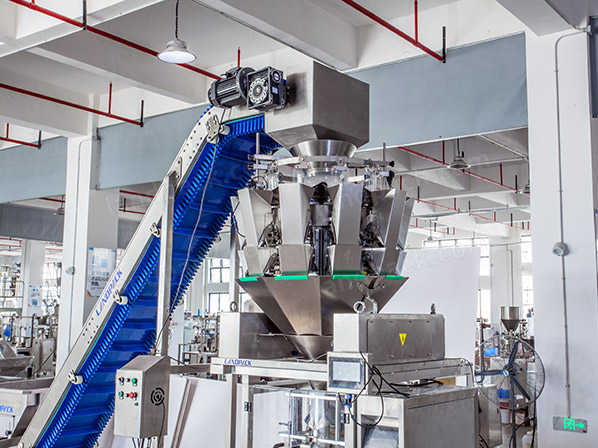

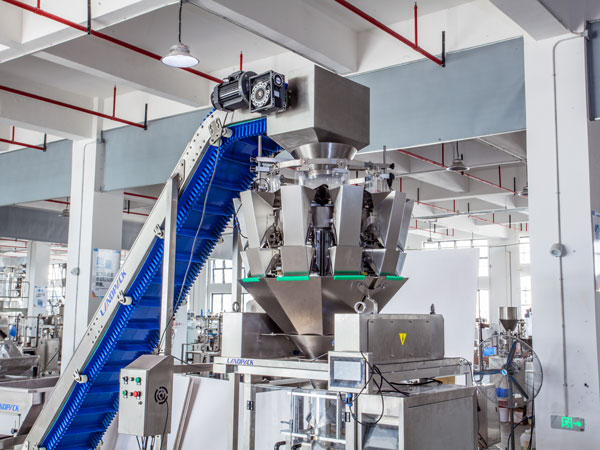

	High-Precision Screw Weighing The 10-head screw weigher delivers fast and accurate weight dosing for mixed or single-spec screws, significantly reducing giveaway and maintaining stable output even with small, heavy metal components.

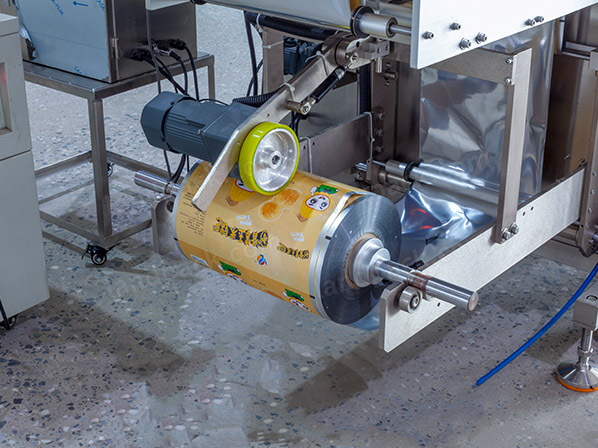

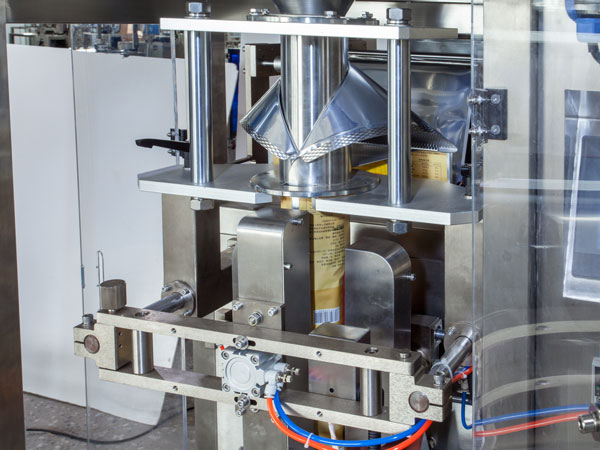

	Robust Vertical Packaging Design for Hardware The LD-420Y features a reinforced film pulling system and strong sealing jaws designed specifically to handle dense, abrasive items like screws, minimizing film tearing and ensuring long, clean seal lines.

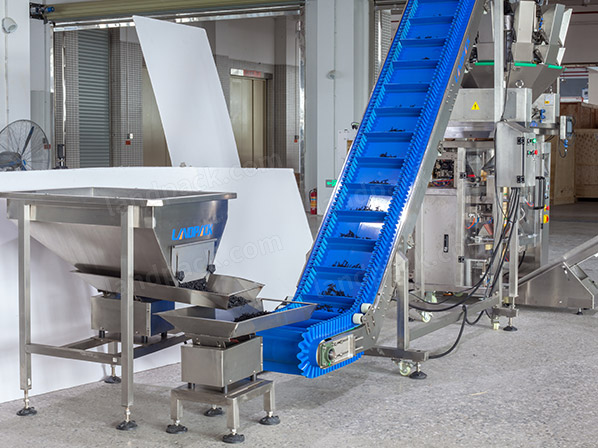

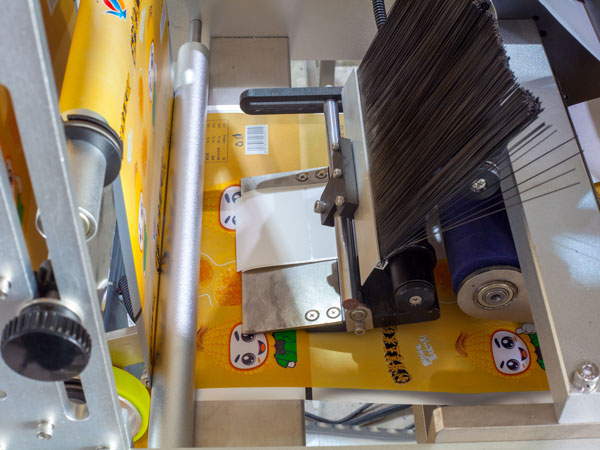

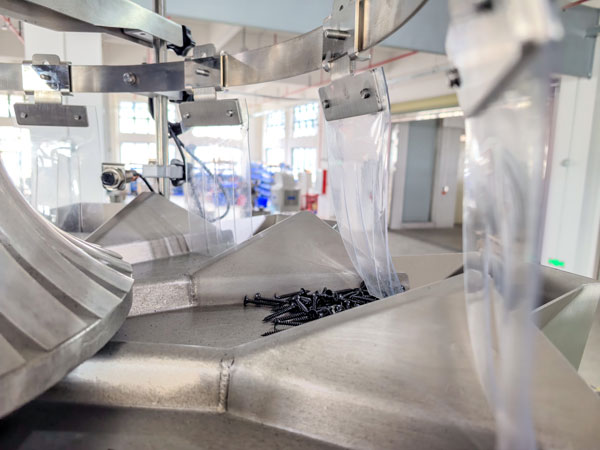

	Inline Labeling for Ready-to-Ship Packs The bucket-less skirt-belt conveyor lifts screws steadily without jamming or rolling back, keeping the flow controlled and preventing damage to the hardware or feeding system.

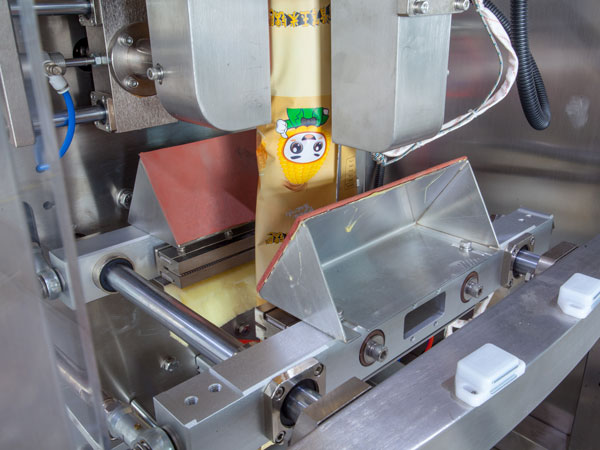

	Anti-Wear Contact Surfaces & Dust Management This is the final step in the four-sided sealing, providing the bag flat edges as well as solid protection. It enhances freshness, blocks moisture or air from entering the bag.
	Flexible Bag Formats for Hardware Kits Capable of forming various bag types—such as pillow bags, gusset bags, or back-seal pouches—to support different screw assortments, kit packaging, or OEM/retail requirements.
