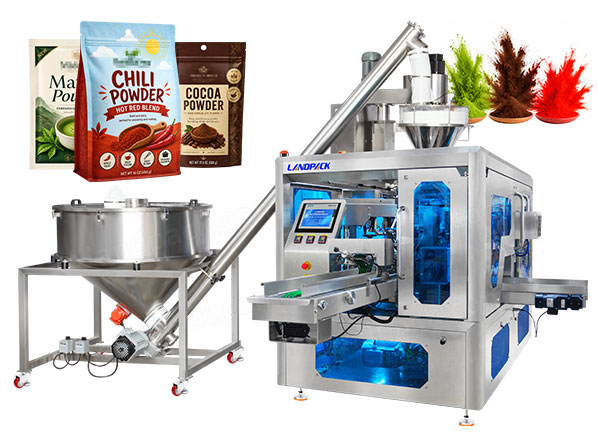

New Model Powder Rotary Premade Pouch (Doypack) Filling Sealing Machine- Landpack

New Model Powder Rotary Premade Pouch (Doypack) Filling Sealing Machine

Application:

The Automatic Powder Premade Pouch Filling and Sealing Machine is designed for accurately dosing, filling and sealing a wide range of free-flowing and non-free-flowing powder products into pre-made pouches. It is widely used for milk powder, coffee powder, protein powder, flour, starch, spice powder, seasoning powder, cocoa powder, nutritional supplements, pharmaceutical powder, detergent powder, pesticide powder and other food, pharmaceutical, chemical and agricultural powders. The machine can be equipped with an auger screw dosing system and is suitable for stand-up pouches, zipper pouches, gusset bags, flat pouches and other customized pre-made bags.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Automatic Packaging Process: Automatically completes pouch feeding, date printing, pouch opening, powder filling, sealing and finished pouch discharge.

2.Accurate Powder Dosing: Can be equipped with an auger screw filling system for accurate and stable dosing of different powder products.

3.PLC and Touchscreen Control: User-friendly PLC control and HMI touchscreen make parameter setting, operation and troubleshooting easier.

4.Wide Pouch Compatibility: Suitable for stand-up pouches, zipper pouches, flat pouches, gusset bags, three-side seal bags, four-side seal bags and other premade pouches.

5.Quick Pouch Size Adjustment: The pouch width can be adjusted quickly using the handle, reducing changeover time between different bag sizes.

6.No Pouch, No Filling, No Sealing: Automatically detects unopened or incorrectly opened pouches and stops filling and sealing to reduce product and packaging waste.

7.High Production Efficiency: Replaces manual powder filling and sealing, helping increase output while reducing labor and production costs.

8.Stable Sealing Quality: Double heat-sealing design provides strong, consistent and attractive pouch seals.

9.Stainless Steel Construction: The machine body and major product-contact components are made of stainless steel for durability, hygiene and easy cleaning.

10.Flexible Speed Control: Packing speed can be adjusted according to the powder characteristics, pouch size and required production capacity.

11.Optional Supporting Equipment: Can be integrated with a screw conveyor, vacuum feeder, powder mixer, checkweigher, metal detector, coding system and discharge conveyor.

12.Easy Production-Line Integration: Supports connection with cartoning, case packing, robotic handling and palletizing systems for complete packaging automation.;

Application:

The Automatic Powder Premade Pouch Filling and Sealing Machine is designed for accurately dosing, filling and sealing a wide range of free-flowing and non-free-flowing powder products into pre-made pouches. It is widely used for milk powder, coffee powder, protein powder, flour, starch, spice powder, seasoning powder, cocoa powder, nutritional supplements, pharmaceutical powder, detergent powder, pesticide powder and other food, pharmaceutical, chemical and agricultural powders.

Package type: This powder pouch packing machine works with premade zipper pouches stand-up doypacks, flat pouches, M shape pouches. It supports different pouch widths, filling weights, and laminated materials for retail packs and refill bags.

Videos:

Specification:

The Main Technical Parameters
Model	LD 8200D/ 8300D
Bag Size	Width:80-210/200-300mm, Length:100-300/100-350mm
Filling Volume	5-2500g (Depending on type of products)
Capacity	30-60bags/min (The speed depends on type of products and packaging material used)
Capacity	25-45bags/min (For zipper bag)
Package Accuracy	Error≤±1%
Total Power	2.5KW (220V/380V,3PH,50HZ)
Demension	171015051640 (LWH)
Weight	1480KGS
Compress Air Requirement	≥0.8m³/min supply by user
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.

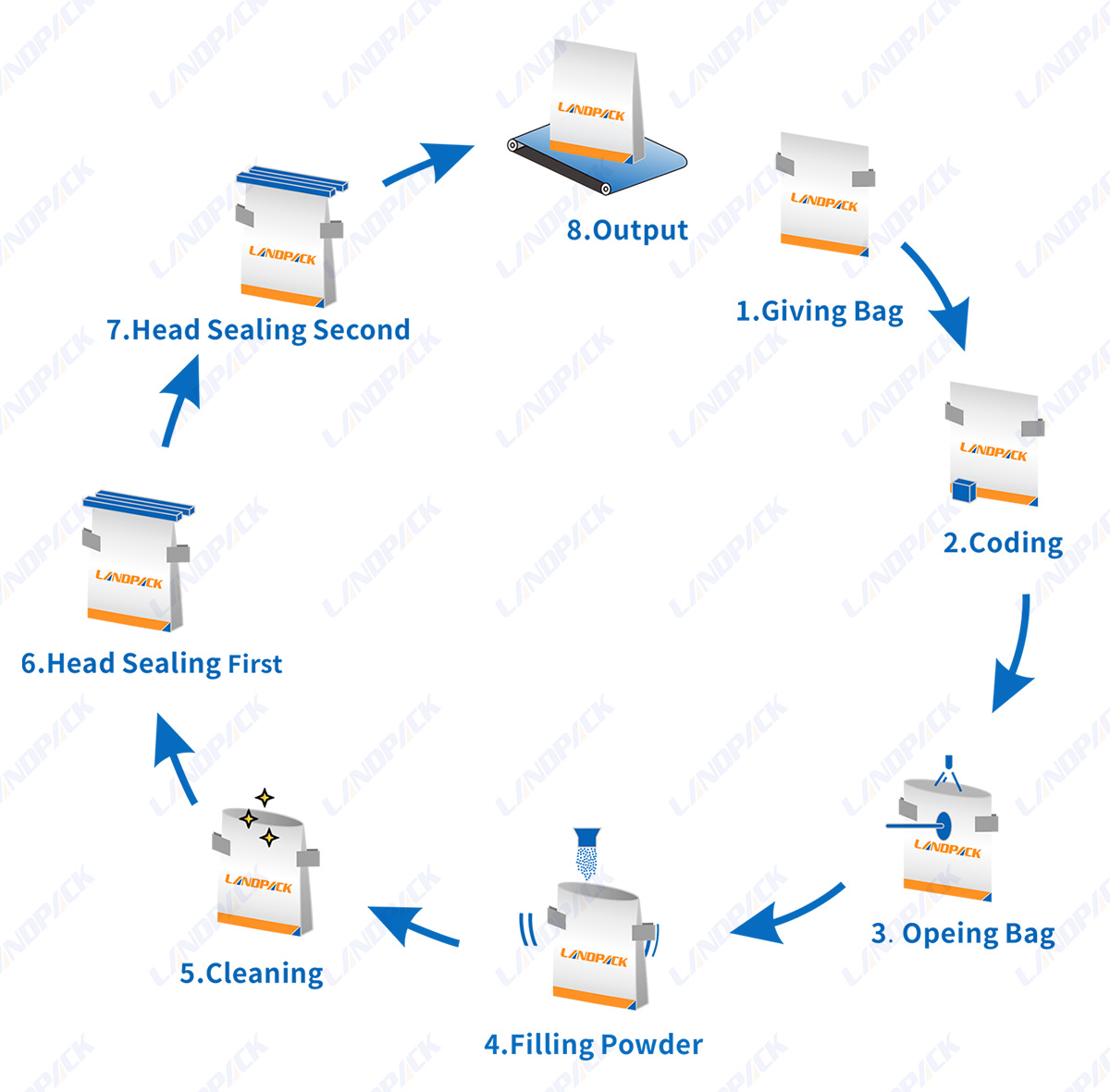

Work Process
Safety Measures	1.no bag feeding, no filling and no sealing.
	2.no bag opening/open error, no filling and no sealing
	3.no filling, no sealing
Product Process	Station 1 Bag Feeding
	Station 2 Date Printing (option)and Open zipper bag
	Station 3 Open bag
	Station 4 Filling Materials
	Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing
	Remark:No.5.6.7.Stations are based on customer requirements for adjusting.
	Station 8 Heat Sealing and Product Output
Stations are based on customer requirements for adjusting.
