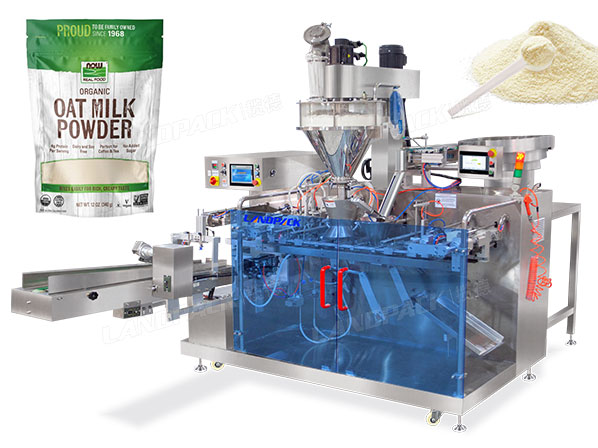

Hot Sale Powder Horizontal Doypack Pre-Made Pouch Bag Packing Machine with Spoon Feeding function

Application:

This horizontal doypack packing machine an economical pouch packing machine at high working speed (20pcs-60bag) with multi-function of zipper opening, zipper closing, euro hole punch, easy tear open.suitable for powder packing such as milk powder, tea powder, bakery powder, spices, coffee powder, medical powder, etc. Sutable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Siemens PLC sytem control with intelligent operation control and alarms function.

2.Auto running and filling the powder and spoon in one machine.

3.Full SUS304 machine with dust treatment .

Application:

This horizontal doypack packing machine an economical pouch packing machine at high working speed (20pcs-60bag) with multi-function of zipper opening, zipper closing, euro hole punch, easy tear open.suitable for powder packing such as milk powder, tea powder, bakery powder, spices, coffee powder, medical powder, etc. Sutable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Samples:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Process:

1.Giving bag;

2. Pick up the bag(coding);

3.Open the bag up and down;

4.Filling;

5.Heating sealing;

6.Output of product;
