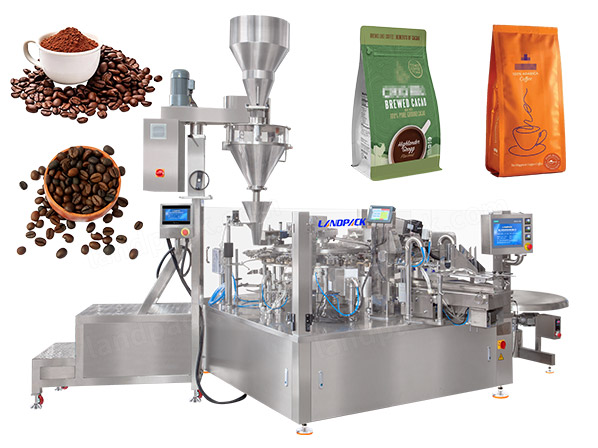

Automatic Rotary Doypack Packaging Machine for M Shape Pouch (10 Working Stations)

Application:

Equipped with a 10 working structure, the rotary premade pouch packaging machine is suitable for granule or powder products in m shape pouch packaging such as coffee beans, ground coffee, nuts, cereals, snacks, protein powder, nutritional powder, tea powder, detergent powder, desiccant, fine granule.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Video:

Application:

Machine Details:

Features:

Learn More:

Video:

Application:

This automatic rotary premade pouch packaging machine is designed for lots of premade pouch formats, especially: M-Shape pouches, Stand-up pouches, doypack, zipper pouch, gusset bags, three-side / four-side seal premade pouches.Compatible with multi-layer laminated films (PET/PE, ALU/PE, kraft paper composite).

Machine Details:

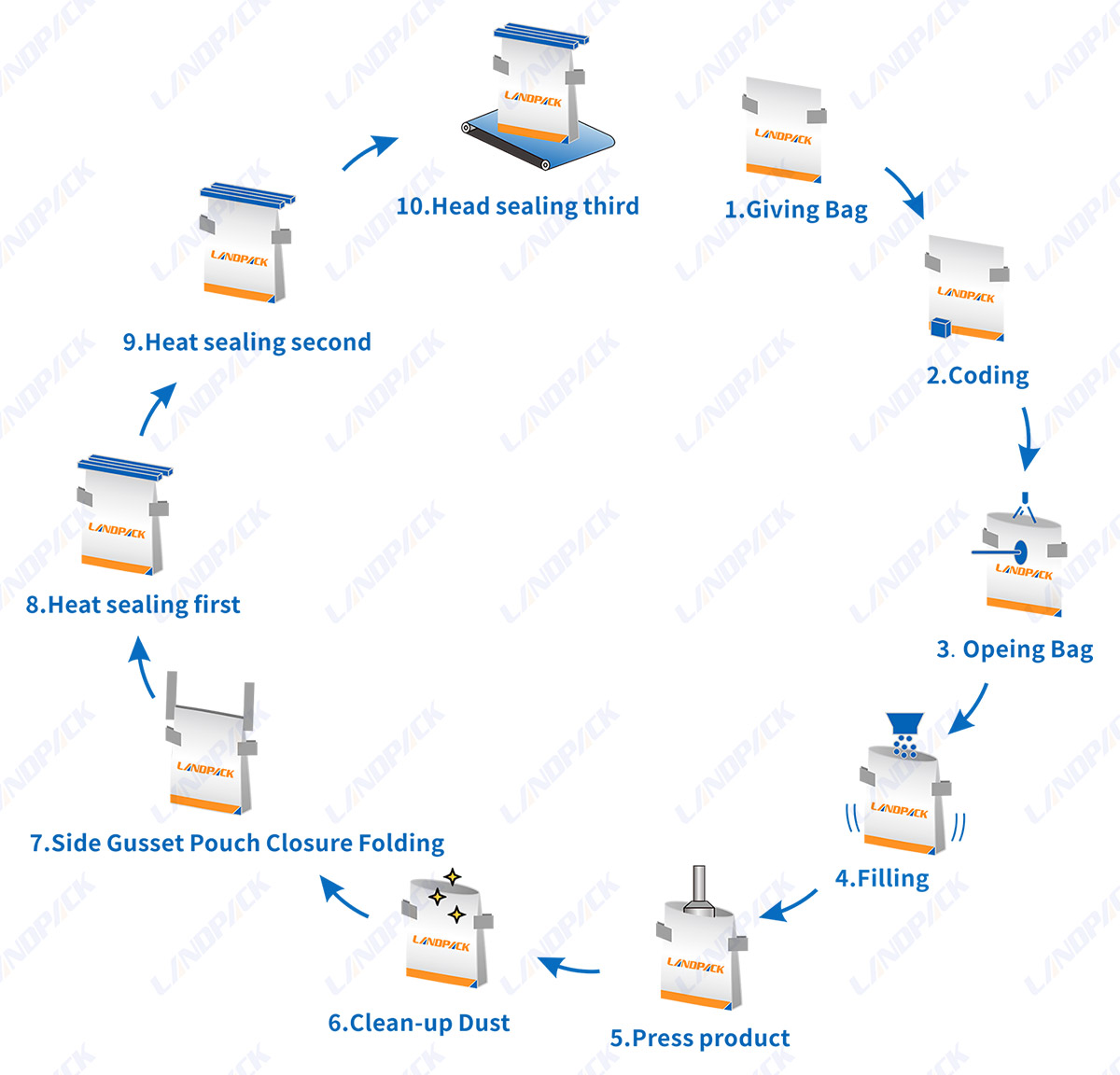

Working Process

1. Bag feeding → Bag opening → Filling (screw dosing) → Coding → Heat sealing (3 times) → Labeling → Finished pouch output

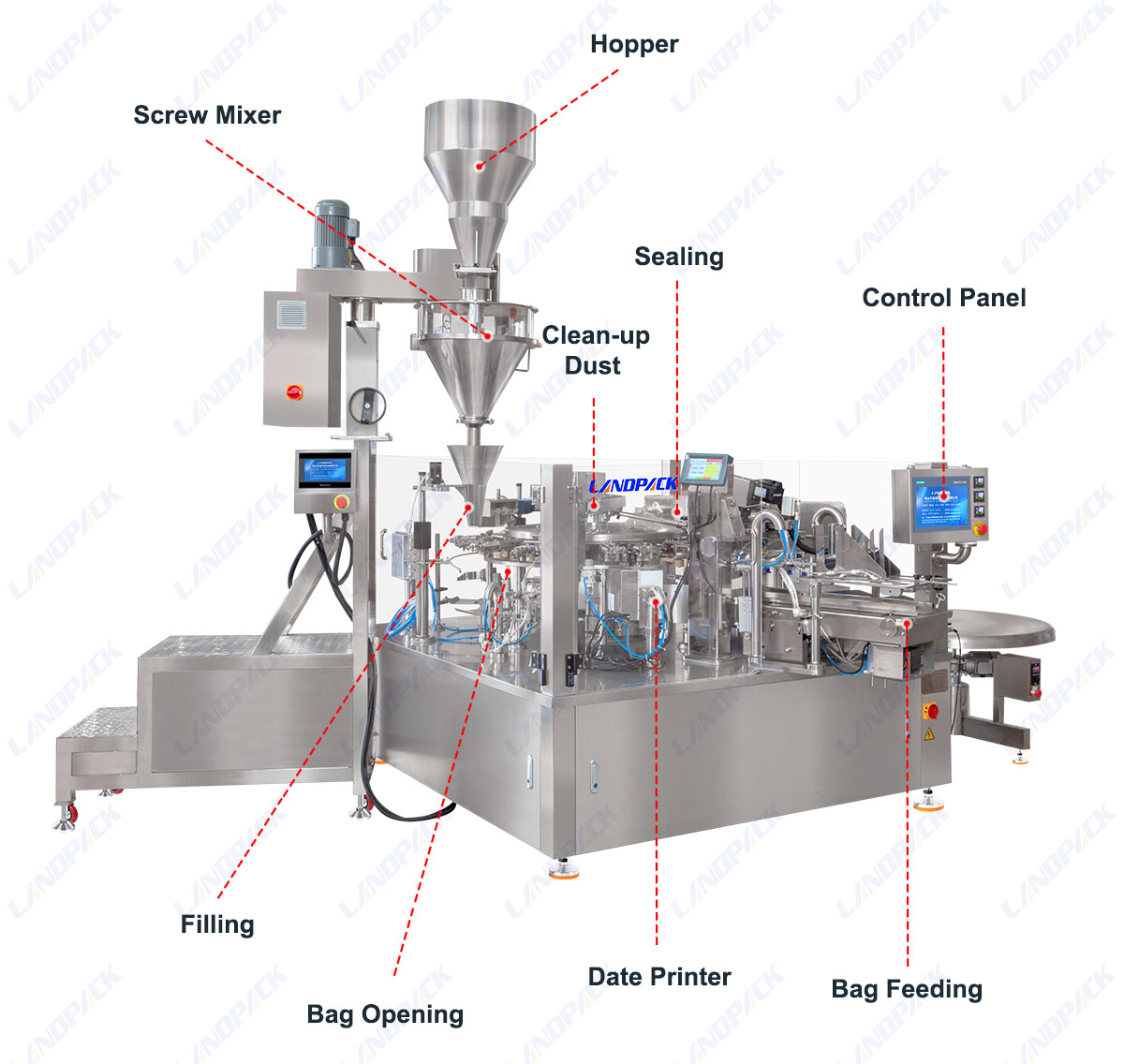

Key Component

Specification

Model	LD-8200/LD-8250/LD-8380
Size	W: 100-300/100-450
Filling range	10-1000g/20-2800g
Packing speed	40-60 bags/min (the product filling quantity determines speed)
Average precision	≤ ±1%
Total power	≥0.8m³/min supply by user

Features:

1. Specially designed for block bottom (M shape) pouch filling.

2. Cam-driven mechanism ensures precise positioning and low maintenance cost.

3. Equipped with vacuum pump for stable air supply and operation.

4. Three-stage heat sealing system for strong and seamless sealing.

5. Stable working capacity of 25–30 bags/min.

6. Reliable structure suitable for continuous and efficient production.
