Automatic M Shape Pouch Packing Machine Powder Mini Doypack Packaging Machine

Application:

This equipment specializes in forming M-shaped pouches for powdered products through a single-station pre-made bag system, supporting materials ranging from food-grade to industrial applications. The system ensures high-speed filling and precision sealing for both free-flowing and fine cohesive powders.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Automated Protein Powder Packing: Mini Doypack machine designed to streamline the packaging process and enhance production efficiency.

2.Space-Saving Design: Compact Mini powder Doypack machine that fits into tight production spaces.

3.Accurate Powder Measurement: Equipped with a 50L screw metering system for precise filling.

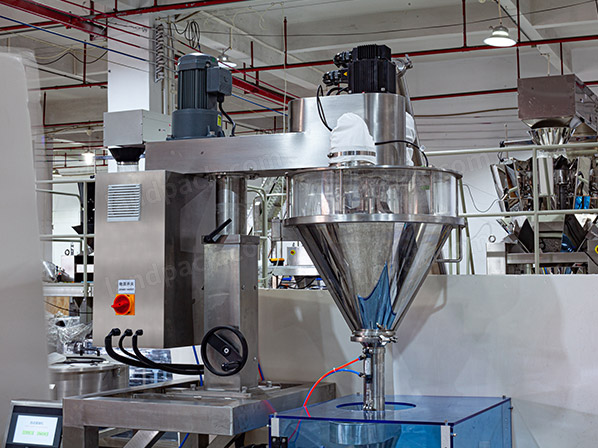

4.Efficient Powder Transport: Auger feeder seamlessly moves powder to the metering system for consistent results.

5.Pre-Made Pouch Handling: Includes a bag magazine for easy loading of pre-made pouches.

6.Dust Control Mechanism: Integrated dust removal system to keep the workspace clean during the filling process.

7.Air Supply Required: The machine operates with compressed air for optimal performance.

8.User-Friendly Interface: Features a 7-inch touch screen for easy operation and adjustments.

Application:

It efficiently packages items like wheat flour, baking soda, chili powder, protein powder, tapioca starch, instant coffee powder, curry seasoning, matcha tea powder, cocoa powder, milk powder, soy protein isolate, lubricating graphite powder, powdered detergent, medicinal herb blends, powdered sweeteners, calcium carbonate, cosmetic loose powder, powdered milk replacer, pet food supplements, and fire extinguishing agents.

Videos Introduction:

Specification:

Type	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag (e.g.: PET/PE)
Premade bag type	M Shape Pouch, Gusset Bag, Zipper Bag, etc
Bag size	70mm≤W≤150mm; 70mm≤L≤150mm	80mm≤W<300mm; 100mm≤L≤300mm	80mm≤W<300mm; 100mm≤L<430mm
Speed	0-60 bags/min	0-15 bags/min	0-15 bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optionalreticulate)
Sealing Width	10mm(5-20mm)can be customized
Voltage	220v, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3 m³/min(Standard machine,no additional function)
Body Dimension	17706001230mm	17706001230mm	167711401450mm
Machine Weight	300kgs	350kgs	450kgs

Process:

1. Auger feeder to transport powder

2. Dust remover

3. Picking bags

4. Opening zipper

5. Filling powder into pouch & Sealing
