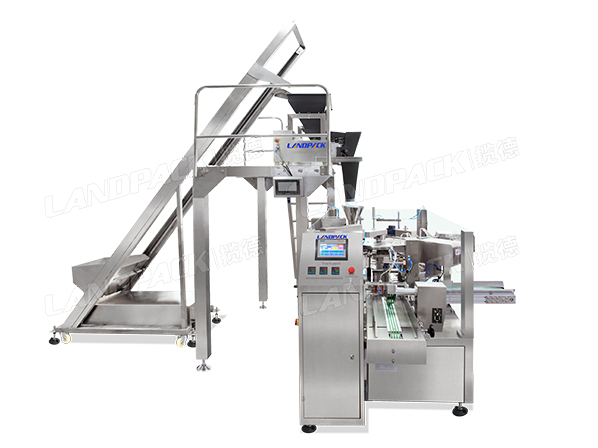

Doypack Pouch Grains Sealing And Packing Machine

 Application:


This machine is suitable for candy, hard nut, raisin, peanut, melon seeds chips, chocolate, biscuit and other big grains or irregular shape products auto weighing packing.

Details:


Type:Doypack Packing Machine

Packing Speed:15-55bags/Min

Total Power:2.5KW

Packing Size:100-210mm/110-300mm(W*L)

Power Supply:380V/220V

Total Weight:980KG

Packing Capacity:10g-1kg

Air Consumption:0.7m3/Min

Tel/Whtasapp: +86 17388602385
Features:
Application:
Samples:
Specification:
Combined Parts:
Inquiry
Features:

Easy to operate, adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

The width of the bags could be adjusted by electrical motor.

It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.

With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.

The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Application:

This machine is suitable for candy, hard nut, raisin, peanut, melon seeds chips, chocolate, biscuit and other big grains or irregular shape products auto weighing packing.
Samples:


Specification:
Type Doypack Packing Machine
Packing Speed 15-55bags/Min
Total Power 2.5KW
Packing Size 100-210mm/110-300mm(W*L)
Power Supply 380V/220V
Total Weight 980KG
Packing Capacity 10g-1kg
Air Consumption 0.7m3/Min
Combined Parts:

Structure for putting bags

Bag-feeding device

Automatic bag-loading device

Manipulator gripping bag

Vacuum bag opening

Filling materials

Shaping

Sealing

Finished product transportation.
