Grain Rice Packing Machine | Stand-up Pouch Packing Machine

Application:

The stand up pouch packing machine, equipped with a 4-head linear weigher and vacuum feeding system, is designed for accurate and efficient packaging of granular products such as beans, lentils, corn kernels, seeds, and similar products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The machine is compatible with a wide range of premade pouch formats, including stand-up pouches, doypacks, zipper pouches, spout pouches, and gusseted pouches, making it suitable for both rice packs and bulk grain packaging.

Wide Application Range

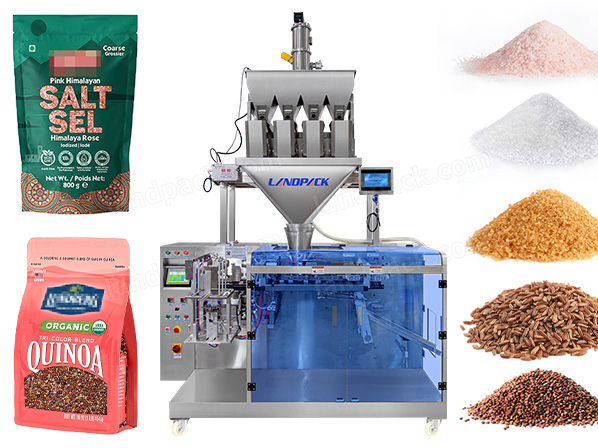

The LDSP-160AS stand-up pouch packing machine, combined with a 4-head linear weigher and vacuum feeding system, offers stable material transfer, accurate weighing, and gentle filling, making it ideal for uniform and non-fragile granular products：

Grain & Rice Products

• White rice, brown rice, jasmine rice, basmati rice, glutinous rice, and mixed grain rice.

Agricultural Granules

• Corn kernels, wheat, barley, millet, and sorghum

Seeds & Similar Granular Foods

• Unflower seeds, pumpkin seeds, and grain blends

Machine Details:

Working Process

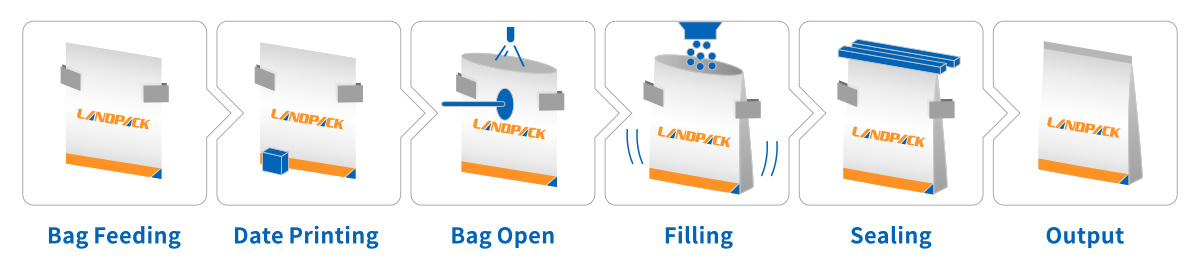

1. Bag Feeding → 2. The date printer coding → 3. Bag Opening → 4. Bag Filling → 5. Hot sealing → 6. Output

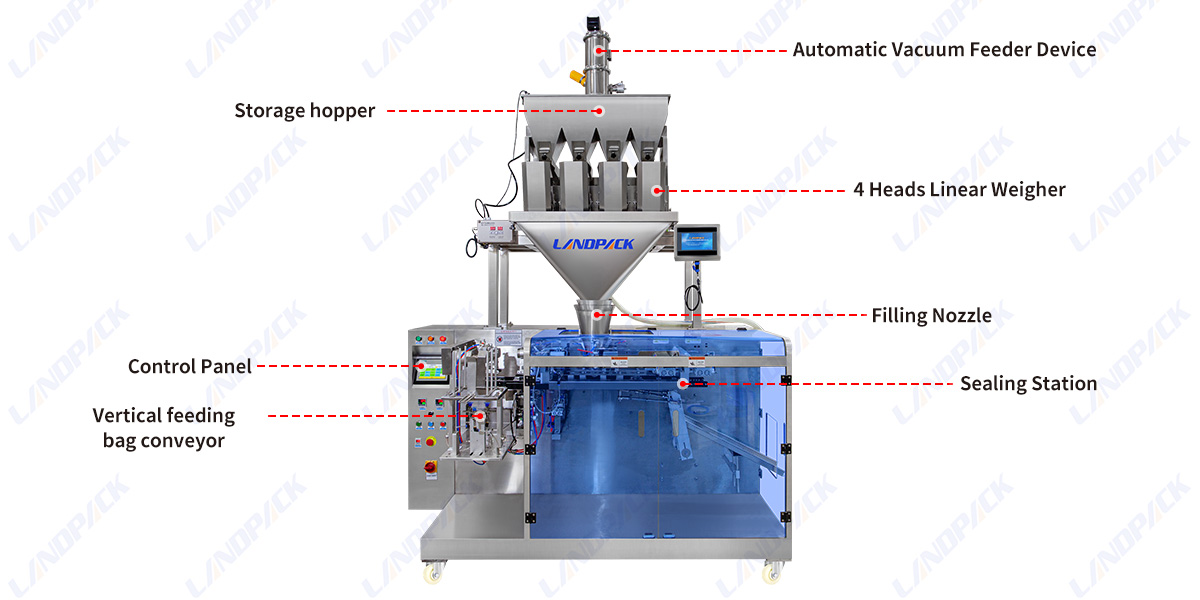

Key Component

Specification

Type LDSP-160 LDSP-160Y LDSP-210 LDSP-260

Bag Type 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Bag Size 110-230mm*80-160mm(L*W) 70-100mm*110-230(L*W) 100-210mm/110-320mm（L*W） 100-260mm/110-320mm（L*W）

Filling Range 10g-100g 10g-100g 10g-1kg 10g-3kg

Packing Speed 20-45bags/min(speed is determined
by the product filling quantity) 25-50bags/min(speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity)

Machine weight 800KG 800KG 900KG 1000KG

Total Power 2.0KW 2.0KW 2.0KW 2.0KW

Work Flow 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling
5.Heating sealing 6.Output of product

Dimensions 1750mm X 1285mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H)

Collocation Screw metering,screw elevator

Features:

Machine Image	Benefits

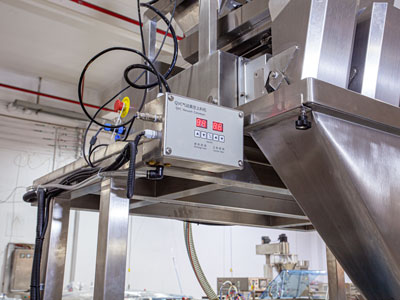

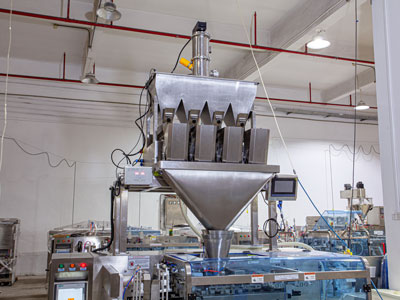

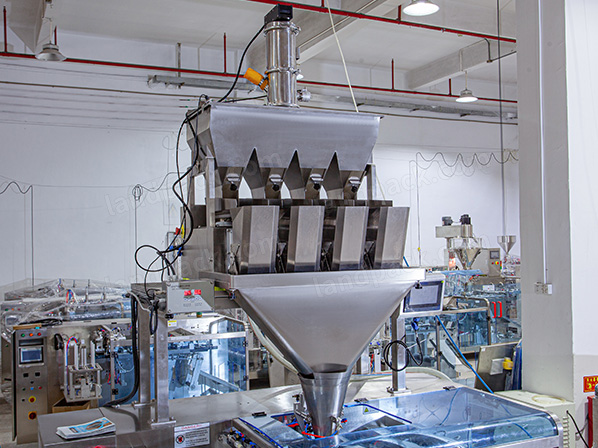

	4-Head Linear Weigher for Stable Accuracy The linear weighing system delivers consistent and reliable dosing of rice and other free-flowing granules for medium-capacity production lines, balancing accuracy with speed for an ideal experience.
	Vacuum Feeding System for Gentle Material Transfer The vacuum feeder provides an efficient method for transporting grains from their storage to weighing scales with minimal breakage or dust generated, maintaining grain integrity throughout this process.

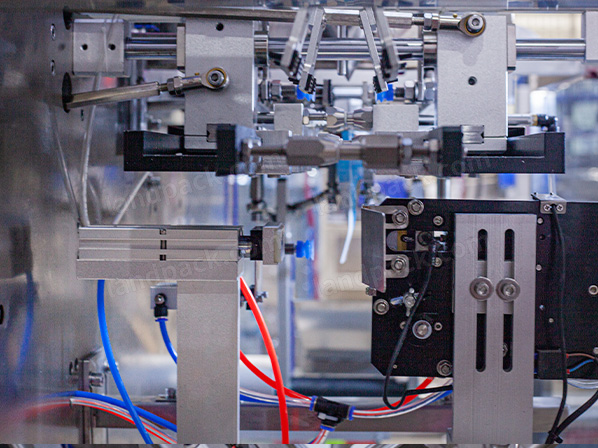

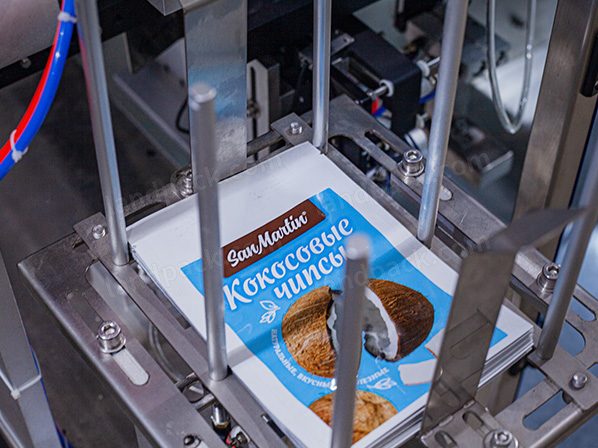

	Horizontal Premade Pouch Handling for Neat Appearance Horizontal pouch designs provide stable bag opening, accurate filling and clean sealing.

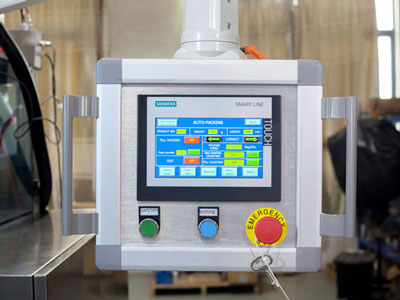

	Intelligent PLC Touchscreen Control PLC interface allows operators to easily adjust parameters, monitor production status and store recipes for different products and pouch sizes.

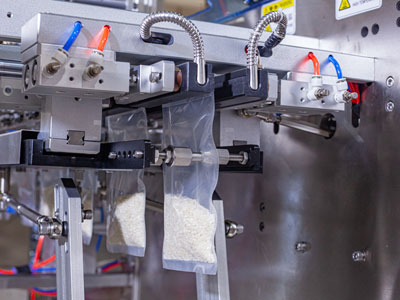

	High-Quality Sealing for Leak-Free Packaging Heat sealing technology ensures uniform seals that protect rice from moisture and contamination during storage and transportation.
	Food-Grade SS304 Construction All product contacting parts are constructed from stainless steel for hygiene, easy maintenance and compliance with food safety standards.

Learn More:

1.If you need more Stand up Pouch Packing Machine for your product , read our-- Stand up Pouch Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
