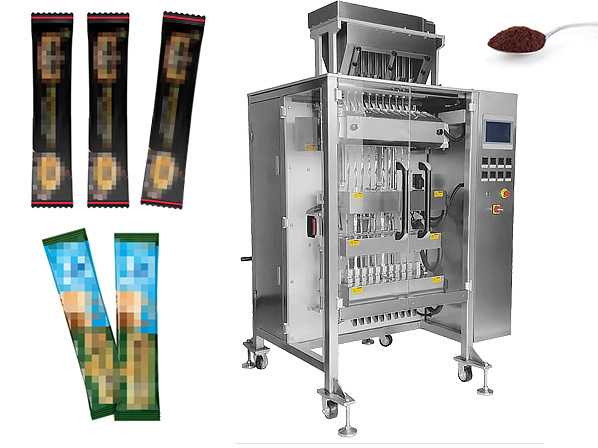

Multifunction Coffee Stick Packing Machine

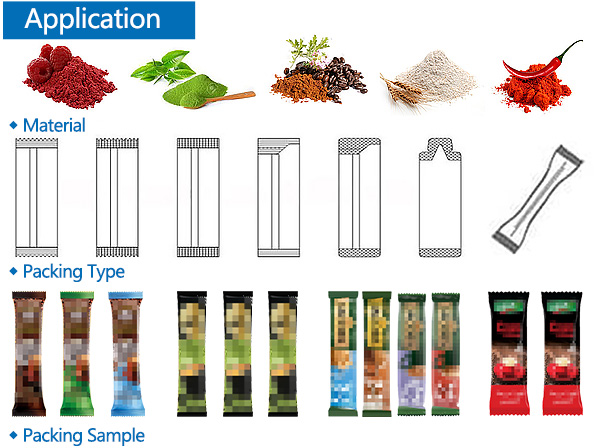

Application:

This machine is suitable for stick packaging of coffee powder, with fast packaging speed and high efficiency.

Details:


Model:LD560BF

Lane Number:8-12Land

Filling Method:Auger Filling By Servo Motor

Capacity:Max.35 Cycle/Min

Sachet Size:L:50-180mm;W:17-30mm

Film Weight&Thickness:Max.560mm,0.07-0.10mm

Sealing Type:Back Sealing/Stick Bag

Cutting Type:1.Straight Cutting;2.Zig Zag Cutting;3.Round Cutting

Air&Power:0.8Mpa 0.8m3/Min;5.5kw

Dimension&Weight:1685*1300*2005mm;550kg

Mobile Phone/Whatapp: +86 13242108152
Features:
Sample Video:
Samples:
Specification:
Combined parts:
Inquiry
Features:

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.
Sample Video:
Samples:

Specification:
Model LD280BF LD560BF
Lane number 4-6Land
8-12Land
Filling method Auger filling by servo motor
Capacity Max.35 cycle/min
Sachet size L:50-180mm;W:17-30mm
L:50-180mm;W:17-30mm
Film weight&thickness Max.280mm,0.007-0.10mm Max.560mm,0.07-0.10mm
Sealing type Back sealing/stick bag
Cutting type 1.straight cutting;2.zig zag cutting;3.round cutting
Air&power 0.8Mpa 0.8m3/min;3.5kw 0.8Mpa 0.8m3/min;5.5kw
Dimension&weight 1385*918*2005mm;350kg 1685*1300*2005mm;550kg

Combined parts:

ZV series main frame

Screw metering machine.

Screw infeed conveyor

Product conveyor
