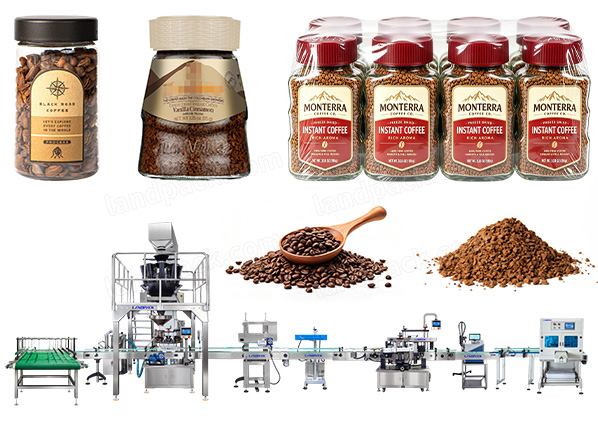

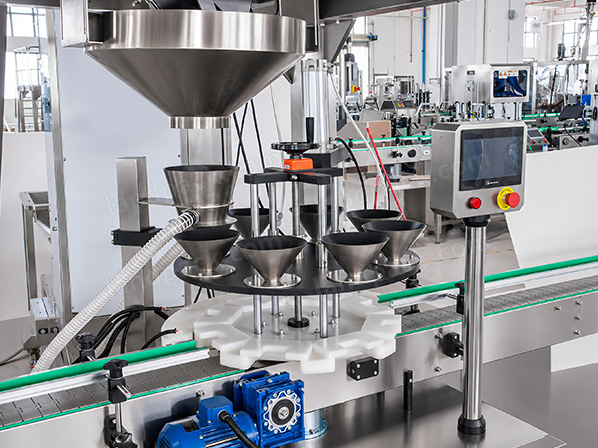

Fully Automatic Freeze-dried Coffee Bean Bottle Jar Filling Cap Pressing Labeling Machine Line

Application:

Automatic Coffee Bean Filling Machine is designed for freeze-dried coffee granules, instant coffee, specialty coffee, espresso powder, coffee crystals, Instant drink powder, tea powder, functional beverage powder, Small granular food products, dry ingredients, seasoning granules

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Videos Introduction:

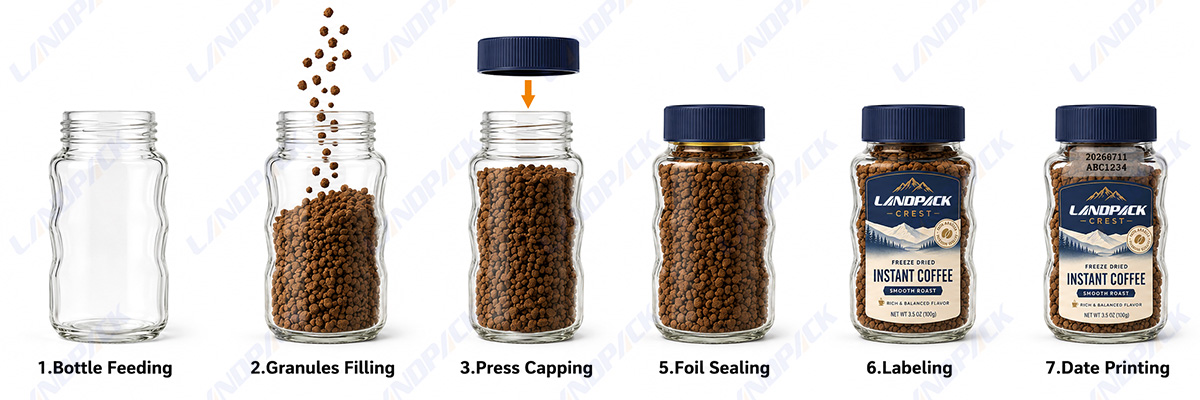

Working Process

1. Bottle Feeding → Coffee Filling → Cap Pressing → Aluminum Foil Sealing → Labeling → Coding → Shrink Wrapping → Finished Product Collection

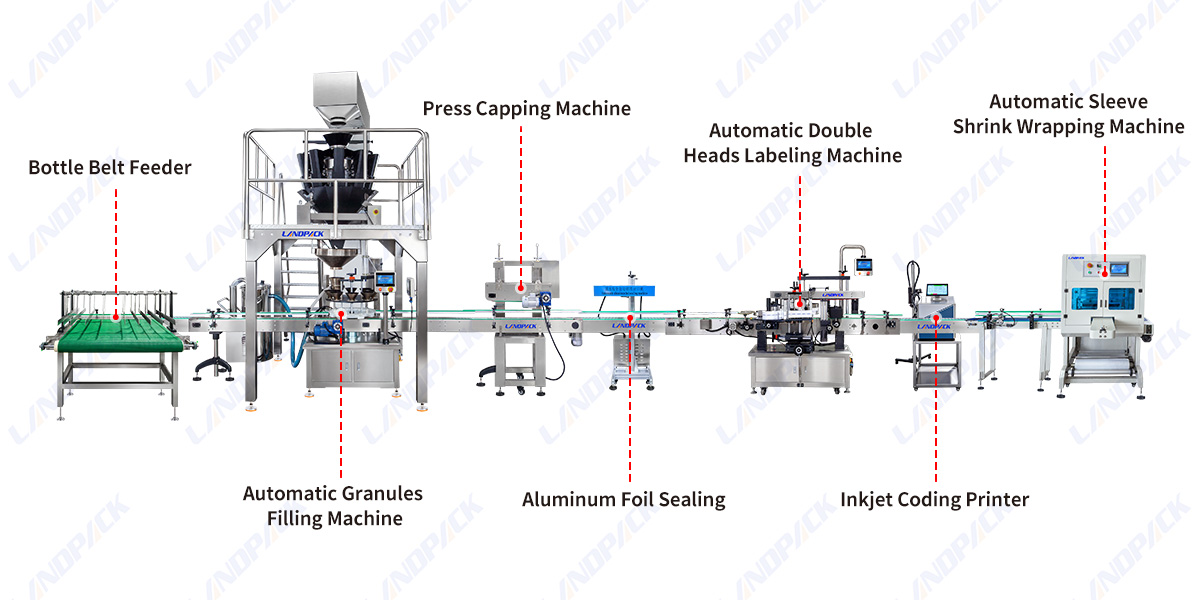

Key Component

Specification

Automatic Bottle Feeder
Machine Model	LD-LP800N
Power Supply	220V/110V, 50-60Hz, 200W
Turntable Diameter	800mm
Suitable Bottle Diameter	40-130mm
Suitable Bottle Height	30-200mm
Working Speed	40-60 bottles/min(depending on bottle size)
Package Size	123010101260mm
Gross Weight	141kg
Model	LFZP-008A
Speed	15-30pcs/min
Bottle diameter	Φ30mm-Φ135mm (customizable)
Bottle height	40mm-200mm (customizable)
Control system	PLC
Power supply	220V, 50Hz
Dimension	2000mm900mm1400mm(LWH)
Equipment Material	304
Weight	200KG
Description of main packaging process	Bottle feeding-weighing-unloading-bottle out
Main applicable functions	Suitable for weighing and filling all kinds of fragile and breakable materials, such as laundry capsule, laundry gel, laundry pod, laundry tablets etc.
	Filling containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.
Main electrical configuration and brand	PLC-Panasonic (Japan); Inverter-Panasonic (Japan); Touch screen-Weinen (China Taiwan);
Model	LD-XG21
Voltage	220V/110V 50-60Hz
Motor Power	180W,370W
Motor Speed	1400 rpm
Speed	About 1000-3000 bottles/h(Depending on the containers and the caps)
Applicable Bottle Height	100-380mm
Bottle Cap Diameter	50-100mm
Conveyor Motor Power	370W
Machine Size	About 6306501500mm
Package Size	About 8606502100mm
Package Weight	About 150kg
Automatic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
Coding machine
Printing speed	1024 seconds(5×7)
Power	220V/50HZ,150VA
Printing direction	Positive sequence/reverse order/reverse/reverse
Printing distance	The nozzle and the object to be sprayed are kept within 3cm
Store information	The system can store 1000 print information
Ink consumption	70 million words per print(5X7)
Machine weight	18kg
Shrink wrapping machine
Voltage	Sleeve machine220V can be customized, shrink machine must 380V
Power	1.3KW/18KW
Sleeve machine packing size	Max 420330330mm min 2506060mm
Packing speed	0-6 pieces per minute
Tunnel size	1500600400mm
Tunnel out dimension	25008501520
Sleeve out dimension	1500600402mm

Features:

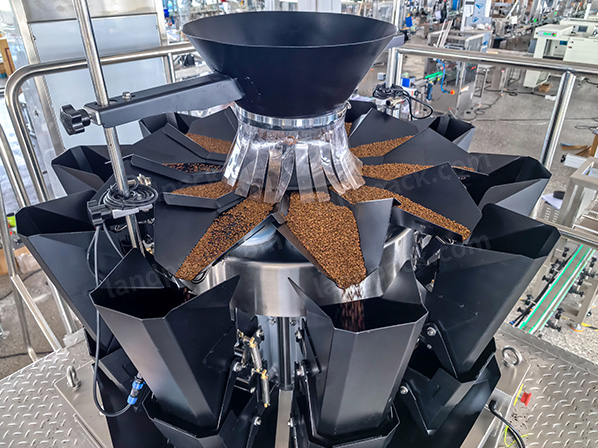

1. Teflon-coated multi-head weigher and hopper reduce material sticking and improve filling accuracy.

2. Aluminum foil sealing system provides airtight protection to prevent moisture and maintain coffee freshness.

3. Automatic measurement and filling system improves production efficiency and reduces manual operation.

4. PLC touchscreen control supports multilingual operation and convenient parameter adjustment.

5. Intelligent control system stores multiple product recipes for faster product changeover.

6. SUS304 stainless steel structure ensures durability, hygiene and easy cleaning.

7. Electric eye detection enables no bottle no filling function to reduce material waste.

8. Automatic lid feeding system transfers caps smoothly for continuous and stable capping.
