Automatic Vertical Form Fill Seal VFFS Coffee Beans Packing Packaging Machine

Application:

It is suitable for packing for all kinds of granule material, sheet material, strip material and abnormity material which such as coffee beans, candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;;

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. Suits for 1kg to 4kg grains large packing such as beans, chickpeas and dried nuts.

2.The machine could automatically use the roll film to form the quad seal pouch and gusseted bags.

3.The whole set of machine is very easy for you to operate, the touch screen and PLC system control it, The bag length could be changed on touch screen easily.

Application:

It is suitable for packing for all kinds of granule material, sheet material, strip material and abnormity material which such as coffee beans, candy, melon seeds, chips, peanuts, nutlet , preserved fruit, jelly, biscuit and so on.

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Working Process:

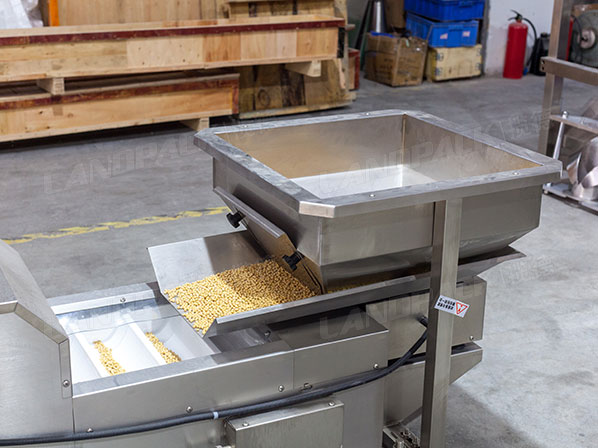

1.Transport the beans by Z type conveyor

2.Measure the beans by 14 heads weigher

3.Pulling the packing film by servo motor

4.Gusseted bag forming device

5.Output the finished products by conveyor
