Fully Automatic Plastic Cups Paper Cups Packaging and Counting Machine

Application:

This flow wrapping machine with couting machine is designed for automatic counting and packaging of stackable cup products, such as Plastic cups (PP, PET, PS), Paper cups and coated paper cups, Disposable containers and lids..

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This flow wrapper adopts horizontal flow wrapping (HFFS) to form pillow pack back sealing pouch, specially designed for counted plastic and paper cup packaging.

Machine Details:

Working Process

1. Cup Feeding → 2. Dual-Lane Counting → 3. Grouping → 4. Flow Wrapping → 5. Sealing → 6. Finished Pouch Output

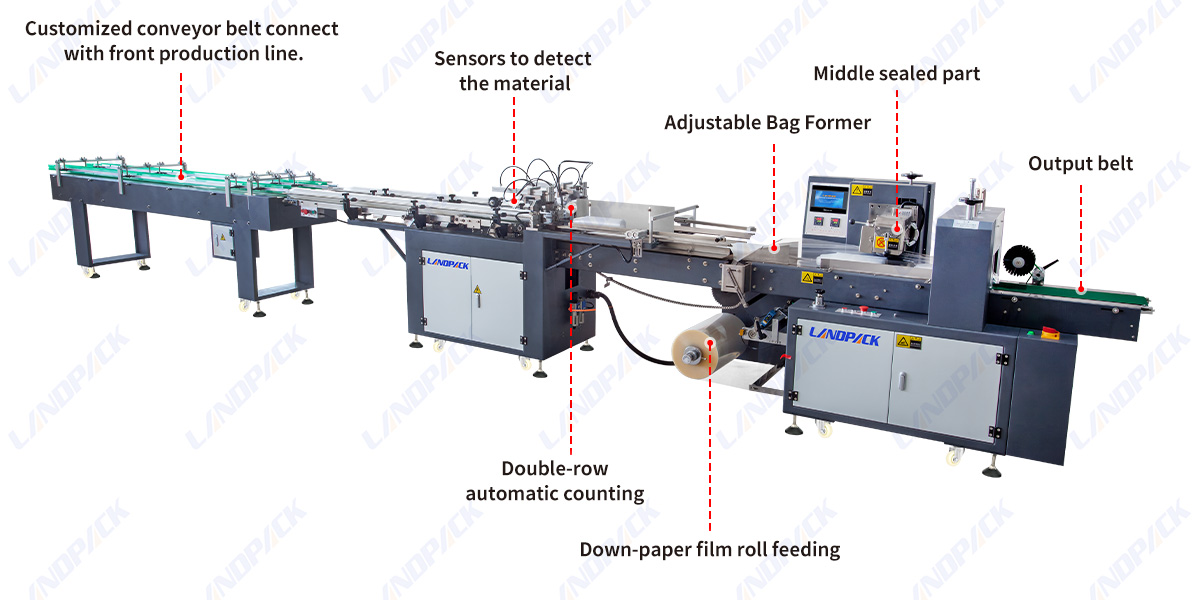

Key Component

Specification

Model	LP-250X	LP-350X	LP-450X	LP-600X	LP-700X
Film Width	Max.250mm	Max.350mm	Max.450mm	Max.600mm	Max.700mm
Bag Length	65-280mm	65-330mm	150-450mm	160-500mm	160-550mm
Bag Width	30-110mm	50-160mm	50-180mm	100-280mm	100-300mm
Product Height	Max.45mm	Max.65mm	Max.80mm	Max.110mm	Max.120mm
Packing Speed	40-230 bags/min	40-230 bags/min	40-150 bags/min	20-150 bags/min	20-110 bags/min
Power	220V, 50/60Hz, 2.4KW	220V 50/60Hz, 2.8KW	220v 50/60Hz, 2.8KW	220v 50/60Hz, 2.8KW	380V/220V, 50/60Hz, 2.8KW
Machine Size (LWH)	39206701320 mm	40207201320 mm	41508201450 mm	43009201460 mm	43009201460 mm
Machine Weight	About 500kg	About 550kg	About 650kg	About 680kg	About 750kg
Optional Devices:	1. Lateral feed device, 2. Straight feed device, 3. Belt material conveyor, 4. End sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Materia cut prevent device 7. Perforating device, 8. Angle folding device, 9. Date Printer, 10. Labelling machine

Features:

1. Customized conveyor ensures connection with cup production lines.

2. Supports single-row or double-row cup feeding to match different production capacities.

3. Automatic counting system guarantees accurate preset cup quantity in each package.

4. Flow wrapping structure continuously forms and seals pillow bag.

5. Adjustable bag length and sealing parameters suit different cup sizes and pack type.

6. Stable long-term operation with consistent sealing quality for mass production.
