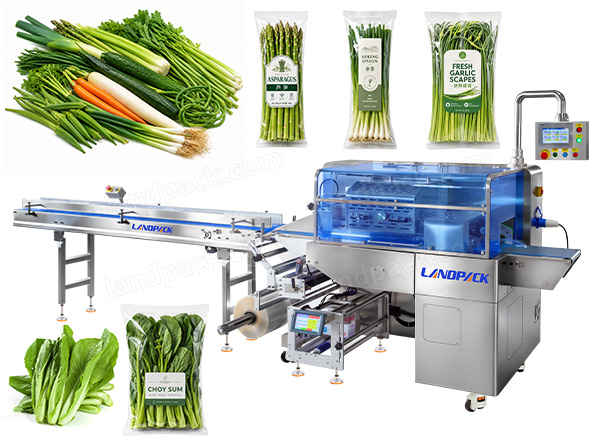

Automatic Celtuce Lettuce Fresh Vegetable Pillow Flow Wrapping Machine with Hole Punching, Coding

Application:

This lettuce packaging machine is suitable for various fresh vegetables and agricultural products, including celtuce, lettuce, romaine lettuce, baby lettuce, cabbage, spinach, bok choy, celery, coriander, parsley, green onions, asparagus, cucumbers, carrots, peppers, fresh herbs, leafy vegetables, fresh fruits, fresh-cut produce, organic vegetables, and other products requiring pillow bag packaging with hanging display functions.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

The lettuce packaging machine is versatile and can handle various heat-sealable laminates (PET/PE, Nylon/PE, etc.).Suitable for pillow bag, gusseted Bag, punched hole bag.

Machine Details:

Working Process

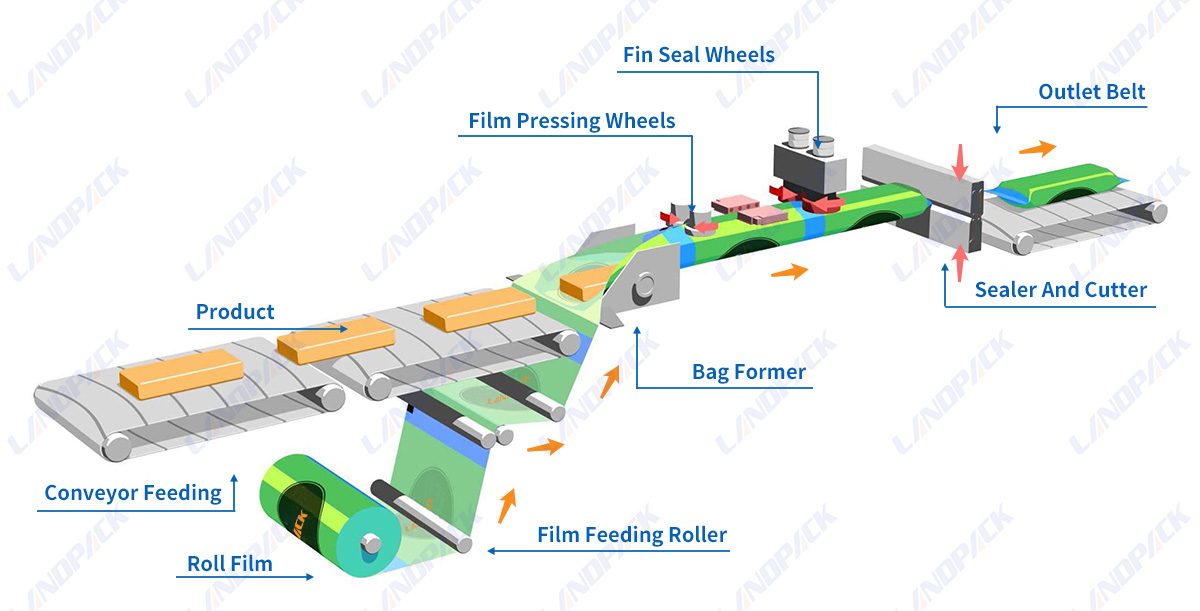

1. Product Feeding → Sensor Detection → Thermal Transfer Coding → Bag Forming → Nitrogen Flushing → Sealing & Hole Punching → Finished Product Output

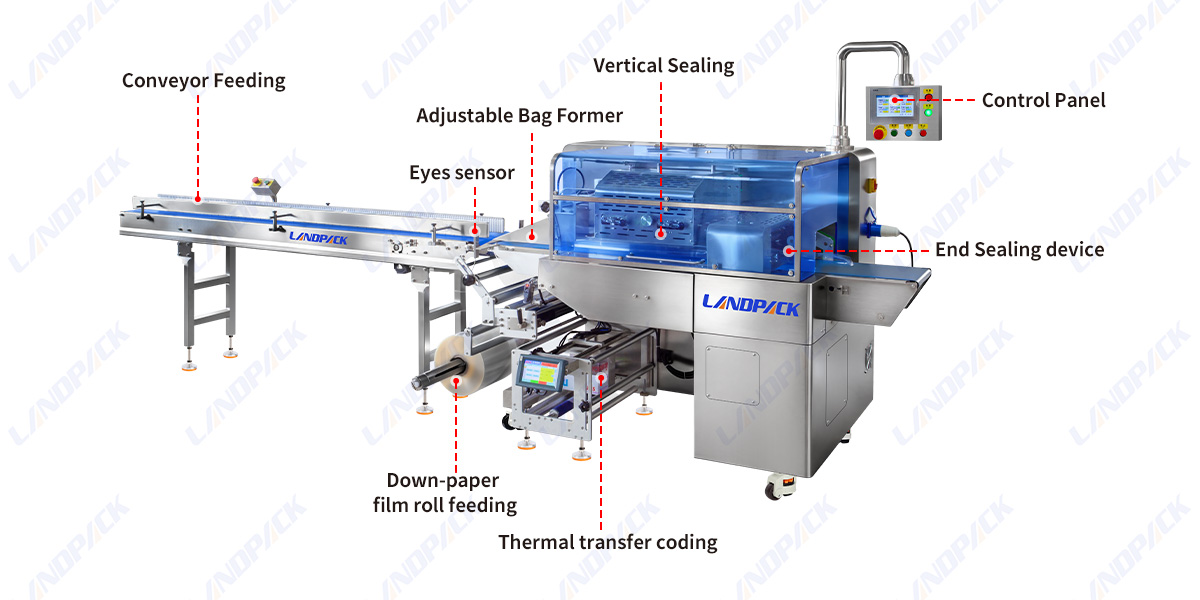

Key Component

Specification

Type	LP-450X	LP-600X	LP-700X
Film width	Max.450mm	Max.600mm	Max.700mm
Bag length	150-450mm	160-500mm	180-600mm
Bag width	50-180mm	100-280mm	100-330mm
Product height	Max.75mm	Max.110mm	Max.110mm
Film roll diameter	Max.320mm	Max.320mm	Max.320mm
Packaging rate	30-150 bags/min	20-150 bags/min	20-130 bags/min
Power	220V 50/60Hz,2.8kw	220V 50/60Hz 2.8kw	220V 50/60Hz 2.8kw
Machine size	40308201420 mm	40309701500 mm	40309801500 mm
Machine quality	650 kg	680 kg	720 KG
Remarks	Reciprocation end sealing system, with angle folding device
Film material	OPP、PE、PVC、OPP/CPP、PT/PE、KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features:

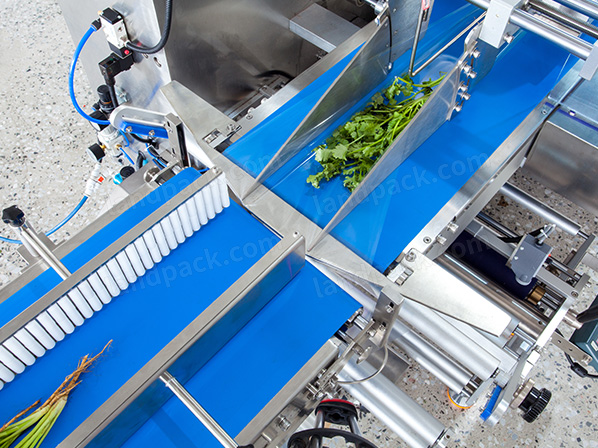

1. Bottom film flow wrapping structure provides stable product transportation and smoother feeding for fresh vegetables and fruits.

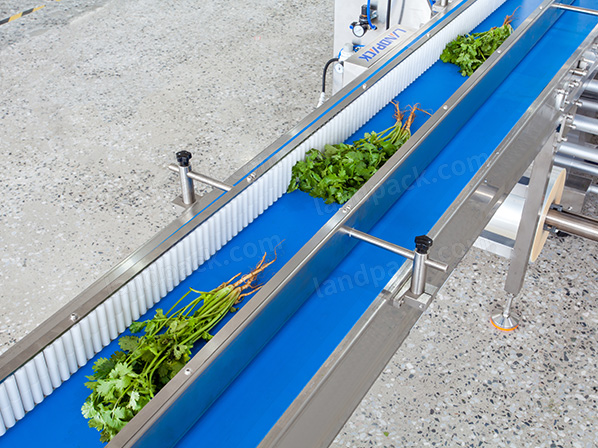

2. Conveyor equipped with roller-ball support system reduces friction and improves product feeding performance.

3. Four-servo control system ensures precise film pulling, sealing, cutting, and package positioning.

4. Integrated nitrogen flushing system helps maintain freshness and extend shelf life of fresh produce.

5. Thermal transfer printer supports production dates, batch codes, QR codes, and simple graphics directly on the film.

6. Automatic hole punching device creates euro holes for convenient retail hanging display.

7. Photoelectric film tracking ensures accurate package registration and consistent bag length.

8. Automatic feeding, coding, bag forming, nitrogen filling, sealing, punching, and discharge improve packaging efficiency while reducing labor costs.
