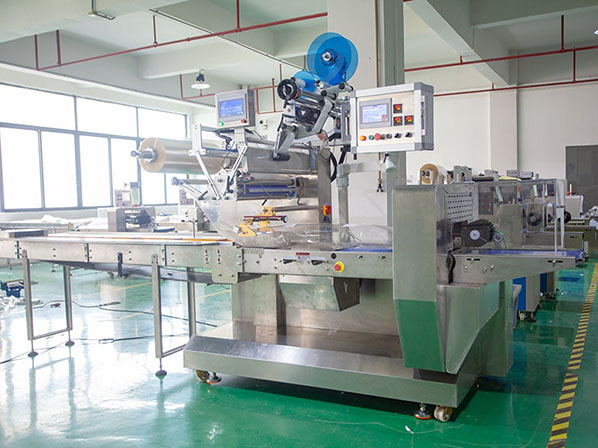

Automatic Bread Flow Wrapping Machine (HFFS) LP-680B/ 800B

Application:

Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.

Details:


Model:LP-600B/ 800B
Speed:30-150 bags/min
Bag Size: L:150-650mm; W:100-350mm
Film width: Max.780mm
Product height: Max.130mm
Film roll diameter:Max.320mm
Packaging rate: 30-150 bags/min
Tel/Whtasapp: +86 17388602385
Features:
Application:
Samples:
Specification:
Combined Parts:
Inquiry
Features:

Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

Interface features easy and quick setting and operation.

Self failure diagnosis, clear failure display.

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials.

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.
Application:

Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.
Samples:


Specification:
Type LP-680B LP-800B
Film width Max 680mm Max780mm
Bag length 150-560mm 210-650mm
Bag width 100-260mm 120-350mm
Product height Max.110mm Max.130mm
Film roll diameter Max.320mm Max.320mm
Packaging rate 30-150bag/min 30-150 bags/min
Power 220V50/60Hz 6KW 220V50/60Hz 6KW
Machine size (L)4800*(W)1200*(H)1700mm (L)4800*(W)1200*(H)1700mm
Machine quality 1120KG 1150kg
Film material OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP/ Aluminum Coating Film/ Aluminum Film
Combined Parts:

304 stainless steel Rolling bolls conveyor

End sealing drag chain

Auxiliary material feeding device

Material cut prevent device

Perforating device

Angle folding device

Date printer

Labeling machine

Thermal transfer code printer

Air charging system

Cutting stop

Prevent empty package
