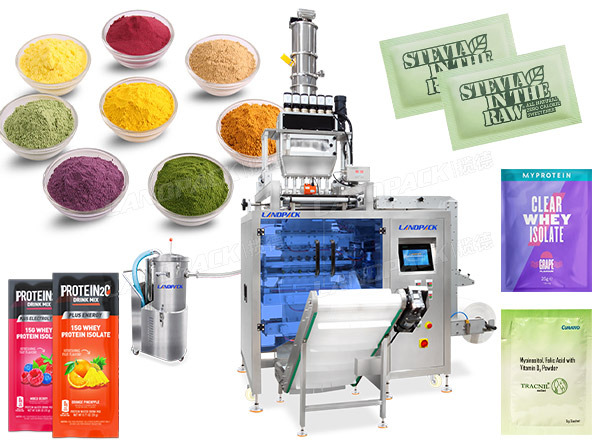

Multi-lane Spice Seasoning Powder Stick Bag Sachet Filling And Packing Machine

Application:

Automatic Powder Pouch Packing Machine is suitable for powder material: milk powder, washing powder, protein powder, flour, tea powder, bakery powder, spices powder, coffee powder, medical powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

Automatic Measuring and Filling – Ensures efficient, precise dosing of products, improving consistency and reducing waste.

High-Speed Operation – Capable of running at 150–180 bags per minute, significantly enhancing productivity and meeting large-scale production demands.

High Accuracy – Guarantees a filling accuracy within ±1g, ideal for products that require strict weight control.

Made of SS 304 Stainless Steel – A strong, durable, and corrosion-resistant material that meets food-grade hygiene standards.

User-Friendly Safety Features – Equipped with an emergency stop button, production capacity counter, and output pack readiness indicator for safe and efficient operation.

Branded Electrical Components – Utilizes internationally recognized electrical parts for stable performance and long-lasting reliability.

Automatic Slitting Film System – Ensures the film is cut smoothly and evenly, resulting in clean and professional packaging edges.

Application:

This machine is suitable for the packaging of various powdered materials in the food, and other industries, such as spice powder, milk powder, matcha powder, milk tea powder, flour, corn flour, chili powder, protein powder, meal replacement powder, fruit powder, etc.

Videos Introduction:

Specification:

Model	LD-480F	LD-720F	LD-960F	GLD-1200F
Track Number	4-6 Track	4-8 Track	4-10 Track	4-12 Track
Filling Method	Auger filling by servo motor
Capacity	20-40 bags/cut
Sachet Size	L:45--120mm;W:50-60mm	L:45--120mm;W:50-90mm	L:45--120mm;W:50-120mm	L:45--120mm;W:50-150mm
Film Width&Thinckness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm	Max.1200mm;0.07-0.1mm
Sealing Ttype	4side sealing
Cutting Type	1.Straight cutting 2.Zig zag cutting 3.Continous cutting
Air&Power	0.8MPA 0.8m³/min;2.8kw	0.8MPA 0.8m³/min 4.1kw	0.8MPA 0.8m³/min 5.5kw	0.8MPA 0.8m³/min 6.5kw
DIM&WT	95014701750mm 300kg	115316541750mm 400kg	141516862130mm 500kg	222022102600mm 800kg

Working Process:

1. Vacuum feeder is more hygienic conveying of materials

2. Air sharft roll film device

3. Date coding

4.Auger screws measuring system

5. Pull packing film and sealing

6. Dust remove → Filling

7. Cutting and output the finished product
