Snus Packing Machine Multi Lane Filter Paper Snuff Packing Machine

Application:

This multi-lane snus packing machine is suitable for small-dose pouch packaging of specific products such as snus, oral snuff, nicotine pouches, herbal pouches, and tea powder sachets.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
Tel/Whtasapp: +86 18688215960
Video:
Application:
Machine Details:
Features:
Learn More:
Inquiry
Video:
Application:
This multi-lane snus packing machine is suitable for sachet packaging using filter paper, non-woven fabric, or laminated materials, supports back sealing pouches, strip-connected sachets, or pillow pouches, with adjustable size and weight.
Machine Details:

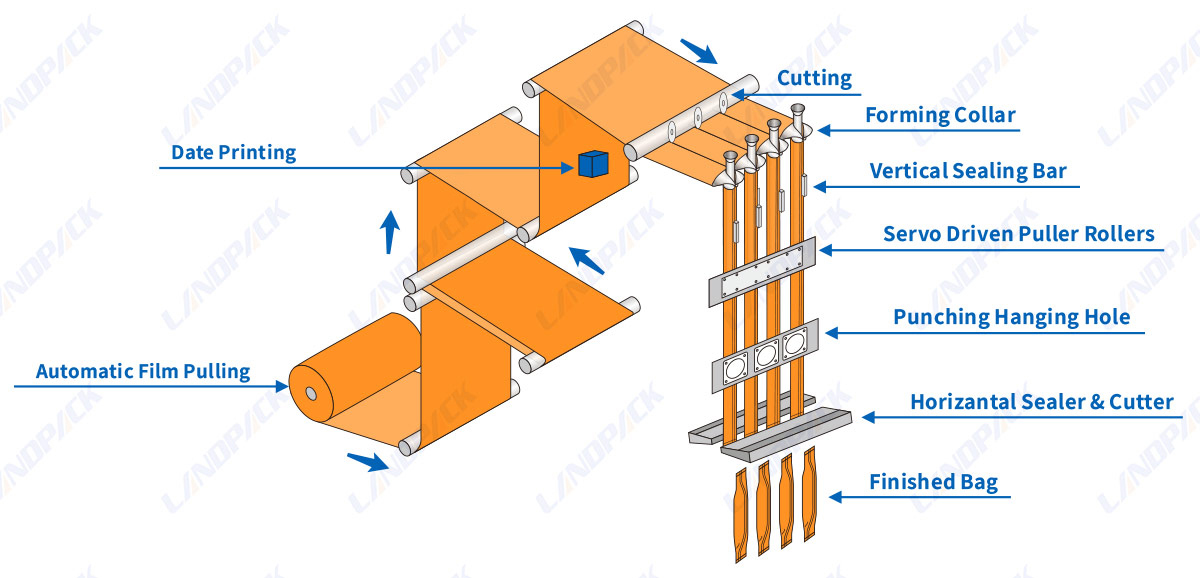

Working Process


1. Material feeding  → Multi-lane forming → Filling → Sealing → Cutting → Finished pouch output

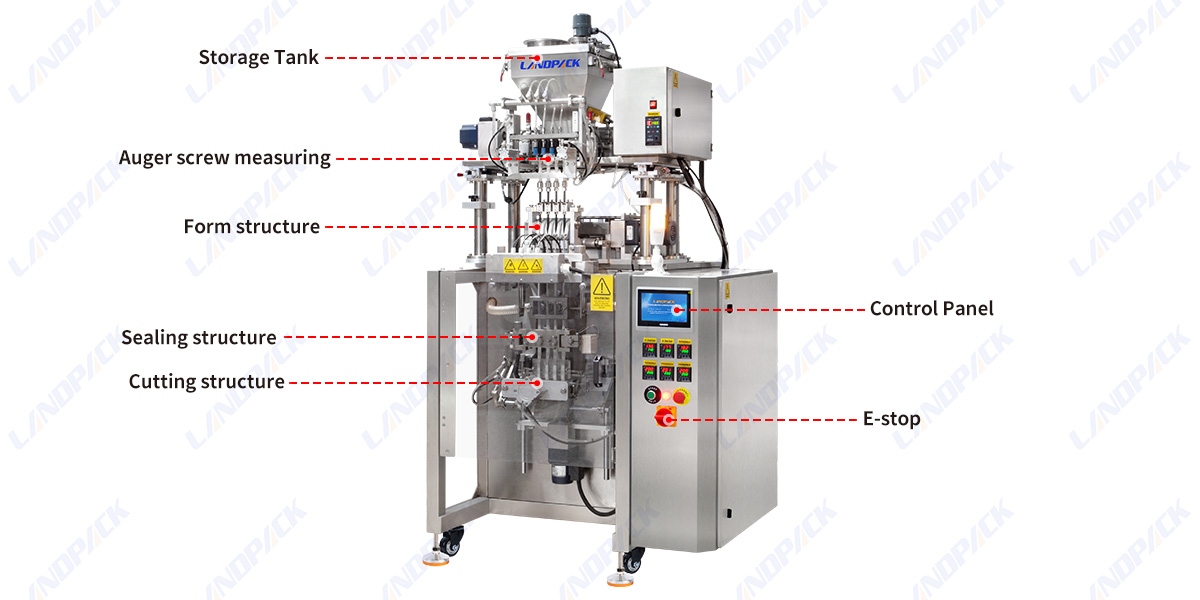

Key Component


Specification

 Model  LD-280BF  LD-560BF
 Lane number  4-6 Line  8-12 Line
 Filling Method  1.Volumetric cup;   2. Weigher
 Capacity  Max.35 cycle/ min
 Sachat Size  L:50-180mm; W:17-30mm  L:50-180mm; W:17-30mm
 Film weidth & Thickness  Max.280mm, 0.07-0.10mm  Max.560mm, 0.07-0.10mm
 Sealing type  Back sealing/Stick bag  Back sealing/Stick bag
 Cutting type  1.Straight cutting;   2.Zig zag cutting;   3.Round cutting;   4.Irregular
 Air & Powder  0.8Mpa 0.8m3/min; 3.5kw   0.8Mpa 0.8m3/min; 5.5kw
 Dimension & weight  1385*918*2005mm;350kg  1685*1300*2005mm;550kg
Features:

1. Fully automatic dosing, filling and sealing system to reduce labor.

2. 4-lane high-speed operation up to 140–160 sachets/min.

3. Stable performance for continuous production.

4. Dual dosing modes adaptable for different powder characteristics.

5. Special heat sealing system for non-woven filter material.

6. Suitable for snus and small-dose pouch packaging.
Learn More:

1.Learn more Landpack Snus Packing Machine

3.Certificate of the Landpack packing machine.
