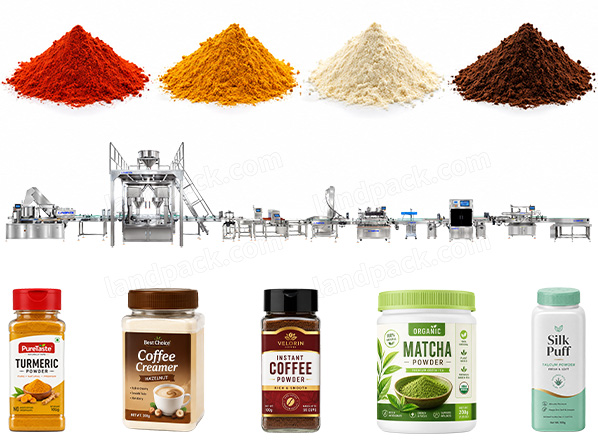

Fully Automatic Powder Bottle Filling Machine with Aluminum Foil Sealing and Vision Detection

Description:

This powder filling machine is suitable for a wide range of free-flowing and non-free-flowing powder products, including milk powder, protein powder, nutritional powder, coffee powder, seasoning powder, spice powder, flour, starch, pharmaceutical powder, health supplement powder

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This powder filling machine is mainly designed for rigid bottle packaging, including plastic bottles, PET bottles, HDPE bottles, PP bottles, and other compatible containers with screw caps. It can be configured for different bottle shapes, diameters, heights, filling volumes, cap types, aluminum foil sealing requirements, and labeling formats according to the product and packaging specifications.

Machine Details:

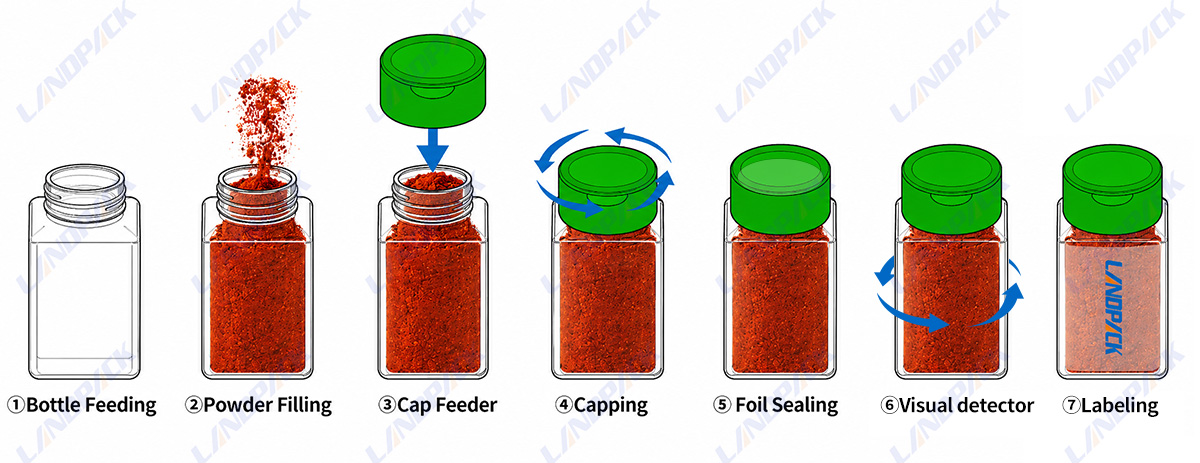

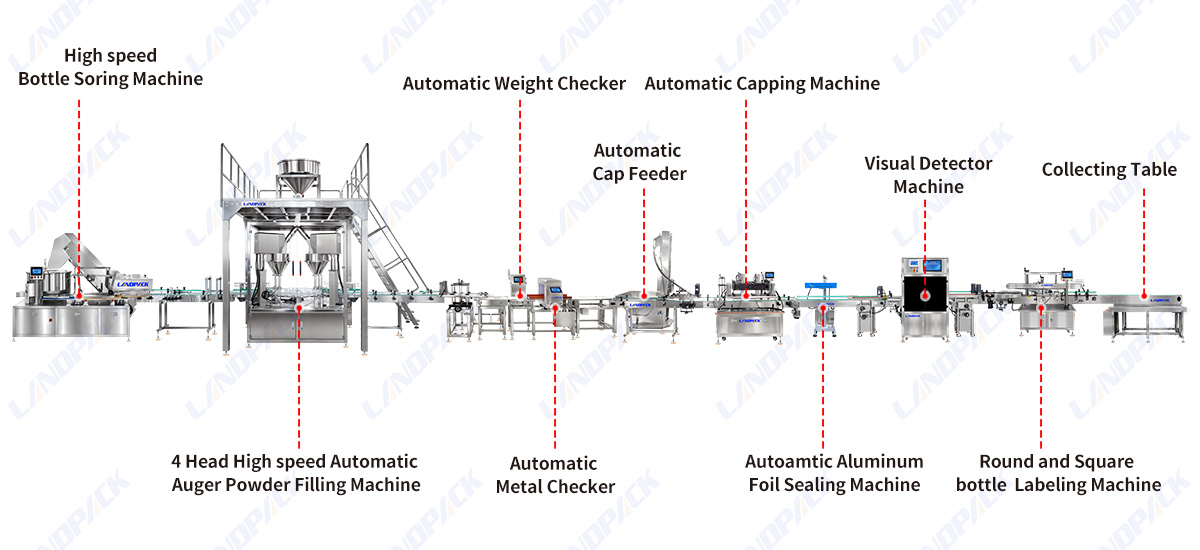

Working Process

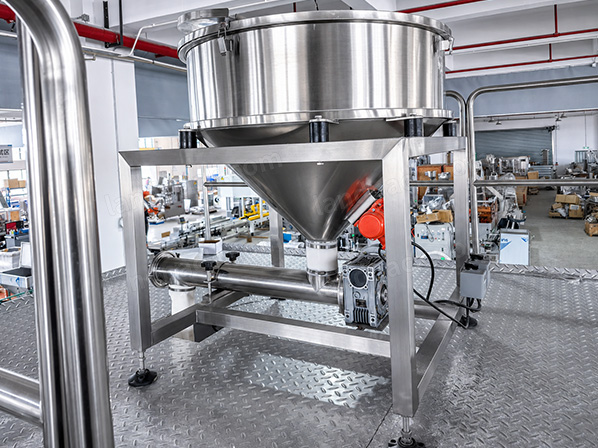

1. Bottle Feeding & Elevating → Automatic Bottle Unscrambling → Horizontal Auger Powder Feeding → Four-Head High-Speed Auger Powder Filling → Automatic Weight & Metal Checking → Aluminum Foil Sealing → Automatic Cap Feeding & Capping → Vision-Based Bottle Orientation → Four-Side Labeling for Round & Square Bottles → Manual Product Collection

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model	Dual-Head Dual-Lane Rotary Auger Filler
Filling Range	50–500 g (Customized by auger size)
Filling Speed	Up to 80 Bottles/min
Filling Accuracy	Approx. ±1%*
Bottle Diameter	φ30–φ140 mm (Customized)
Bottle Height	50–200 mm (Customized)
Hopper Capacity	50 L
Power Supply	220V / 380V, 50/60Hz

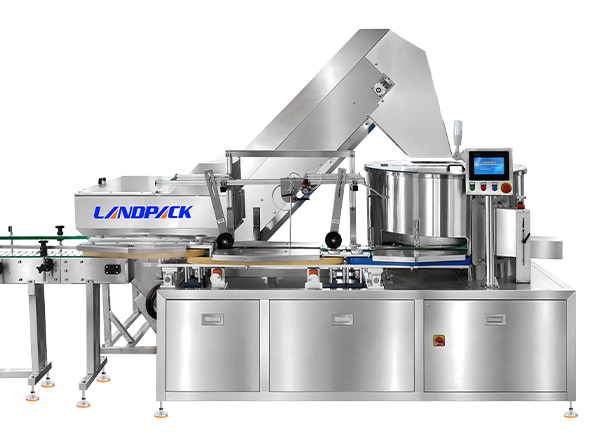

Automatic capping machine with cap feeder
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Item	Specification
Detection Type	Camera Vision Detection & Bottle Orientation
Inspection Speed	Up to 80 Bottles/min
Applicable Bottle Diameter	φ30–φ140 mm (Customized)
Applicable Bottle Height	50–200 mm (Customized)
Positioning Accuracy	Approx. ±1–2 mm*
Camera System	Industrial Vision Camera
Power Supply	220V / 50/60Hz

Round Bottle Labeling machine auto labeling
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

Features:

1. Leak-Proof Filling Nozzle — Filling nozzles are equipped with a leak-proof design to reduce powder leakage after filling.

2. No Bottle, No Filling — Automatic photoelectric sensors detect bottle presence and prevent filling when no bottle is detected.

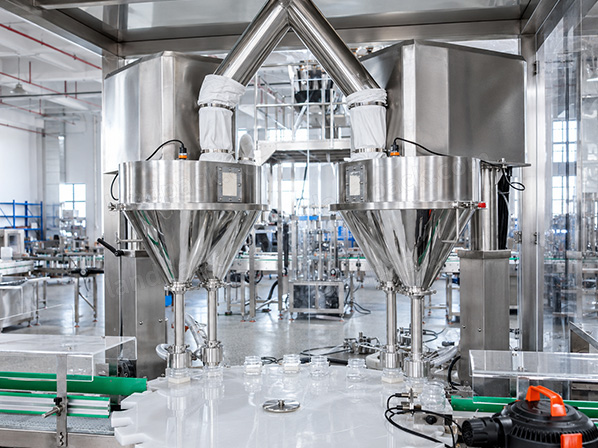

3. Four-Head High-Speed Auger Filling — Four filling heads work simultaneously to improve powder filling efficiency and production capacity.

4. Adjustable Linear Capping System — The linear capping machine accommodates different bottle sizes without changing molds; operators only need to adjust the machine.

5. Automatic Cap Feeding & Capping — The automatic cap feeder and capping machine continuously supply and tighten caps, reducing manual labor.

6. Bottle Orientation by Vision System — The camera-based vision system detects and adjusts bottle orientation to keep bottles in the correct direction for labeling.

7. Integrated Dust Extraction — A dust collection system is installed at the filling section to reduce powder dust during the filling process.

8. Stainless Steel Construction — The complete production line features a stainless steel structure for easy cleaning, maintenance, and hygienic production.
